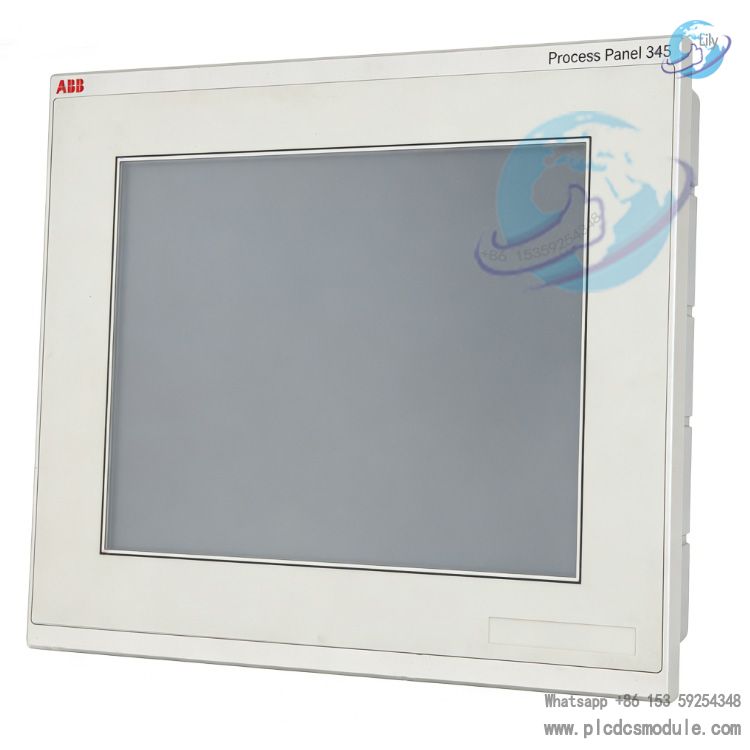

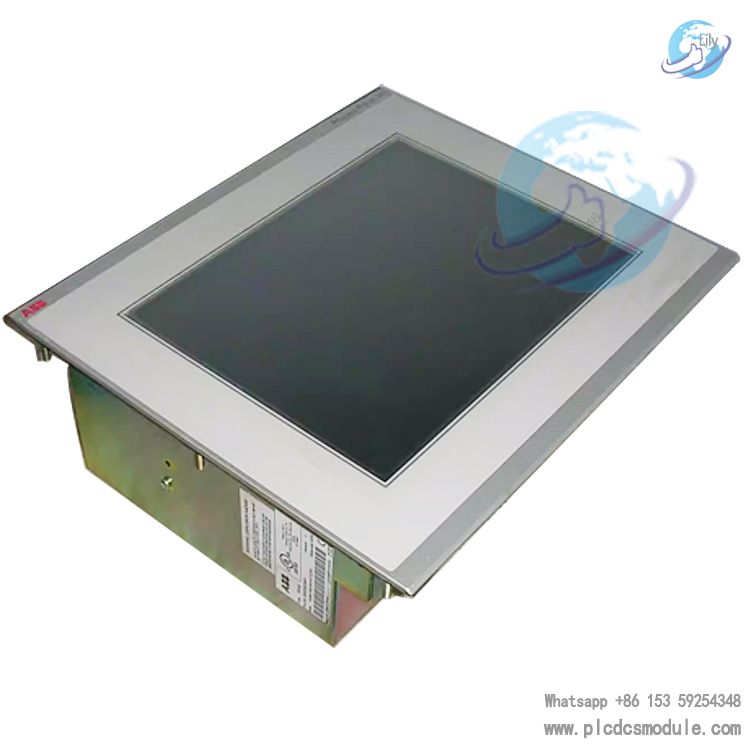

PP345 (Ordering No. 3BSC690104R2) is a 10.4-inch graphical touch operation panel of the ABB Process Panel series, serving as a core human-machine interface (HMI) component for the ABB 800xA control system. It is specially designed for industrial process automation applications, delivering intuitive and efficient on-site operation and monitoring interaction.
Positioned as an industrial-grade operation terminal, it features a compact structure and high reliability to adapt to harsh industrial environments. It is mainly used to replace or upgrade earlier Panel 800 series panels (the upgraded replacement model is PP845A 3BSE042235R2). This product is only applicable for the repair, reuse, function update or capacity upgrade of systems launched before July 22, 2017, and does not comply with RoHS 2 2011/65/EU requirements.
Download
| Parameter | Specification |
|---|---|
| Screen Size | 10.4 inches |
| Display Type | TFT color LCD |
| Resolution | 1024 × 768 pixels |
| Backlight Type | LED/CFL backlight |
| Backlight Lifetime | 50,000 hours |
| Operation Method | Resistive touch (industrial-grade precision, glove operable) |
| Operating Temperature | -10℃ ~ +60℃ |
| Storage Temperature | -20℃ ~ +70℃ |
| Protection Class | Front panel IP65 (dust/waterproof for harsh industrial environments) |
| Net Weight | Approx. 0.002 kg (core touch/display unit) |
| Mounting Method | Embedded panel mount (fits standard industrial control cabinets) |
| Power Supply | 24V DC (110/230V AC not supported) |
| Compliance | Non-compliant with RoHS 2 2011/65/EU (for existing system maintenance only) |
Functional & Application Features
1. Core Functions
- Process Monitoring: Real-time display of industrial process data, equipment status, and alarm information, supporting configuration of custom monitoring interfaces.
- Operation Control: On-site operations such as parameter setting, equipment start/stop, mode switching, and process intervention via touch control.
- Alarm Management: Integrated with alarm pop-ups, historical alarm inquiry, and alarm acknowledgment functions to ensure production safety.
- Data Interaction: Seamless integration with the ABB 800xA control system, supporting real-time data collection, command issuance, and status feedback.
- Compatibility: Compatible with ABB's earlier Panel 800 series systems, enabling direct replacement and upgrade to reduce system modification costs.
2. Application Scenarios
- Industrial Automation Control: On-site operation stations for process industries such as petrochemicals, power, metallurgy, pharmaceuticals, and water treatment.
- 800xA System Supporting: Serves as the front-end HMI for the ABB 800xA distributed control system (DCS), enabling centralized monitoring and decentralized operation.
Legacy System Upgrade: Provides solutions for maintenance, reuse, and function upgrade of Panel 800 systems deployed before 2017.
Product Positioning & Replacement Information
- Product Positioning: Special HMI component for industrial process control, belonging to the “Operations-Process Panel” product line of the 800xA system. It is mainly used for the maintenance and upgrade of legacy industrial automation systems.
- Upgrade & Replacement: The upgraded successor model of this product is PP845A (3BSE042235R2), which supports only 24V DC power supply and meets compliance requirements for new systems.
- Usage Restriction: This product can only be used for repair, reuse, function update or capacity expansion of systems launched before July 22, 2017. It is not allowed for new system deployment.
Installation & Maintenance Highlights
- Installation Tool: Torx TX7 screwdriver required. For embedded installation, ensure firm panel fixing and good sealing.
Installation Procedure: Unpacking & inspection → Panel mounting → Connect power and communication cables → Power-on commissioning → Function test
