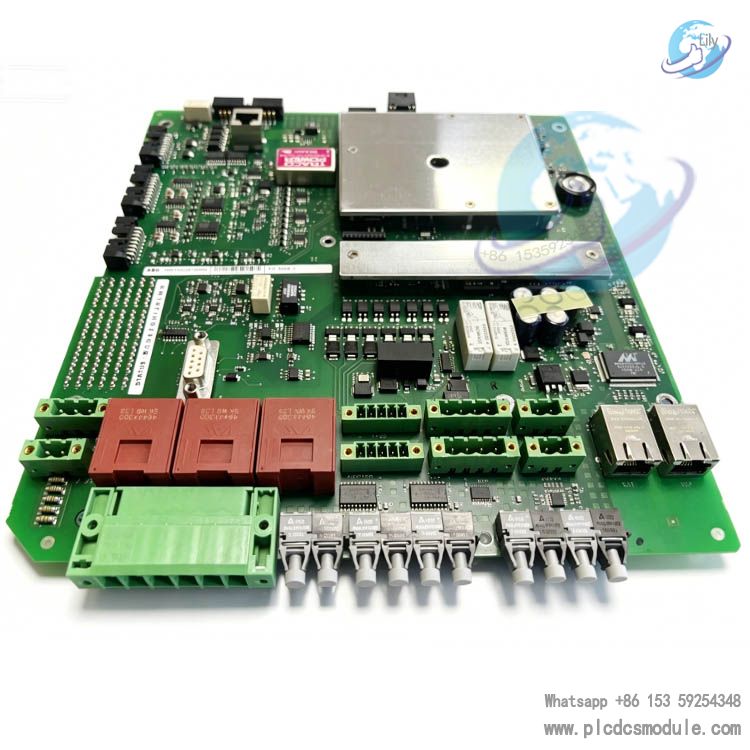

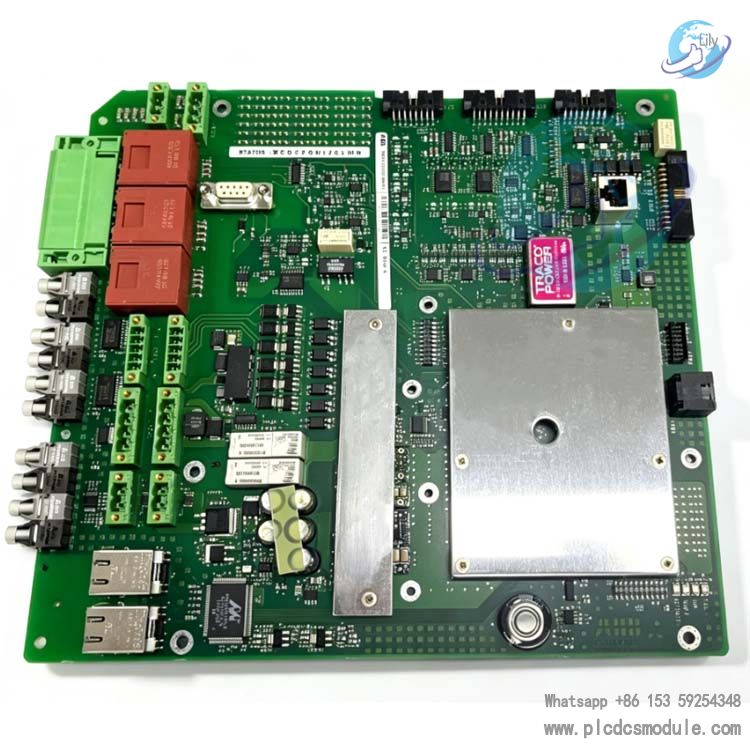

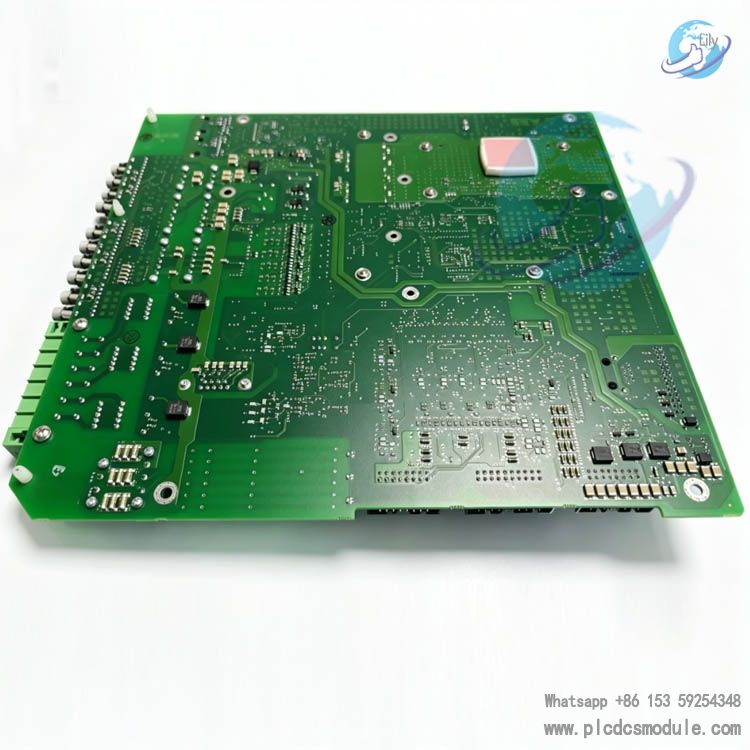

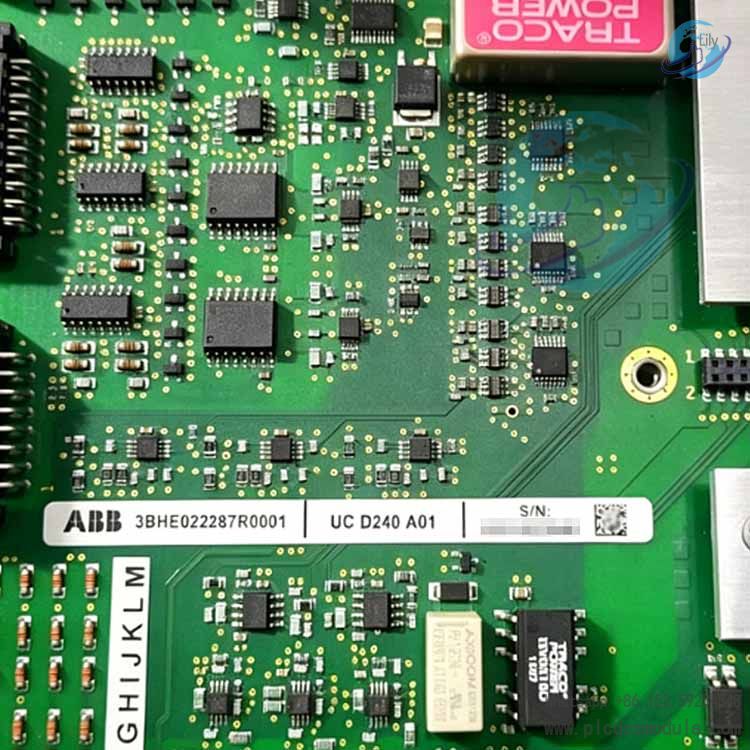

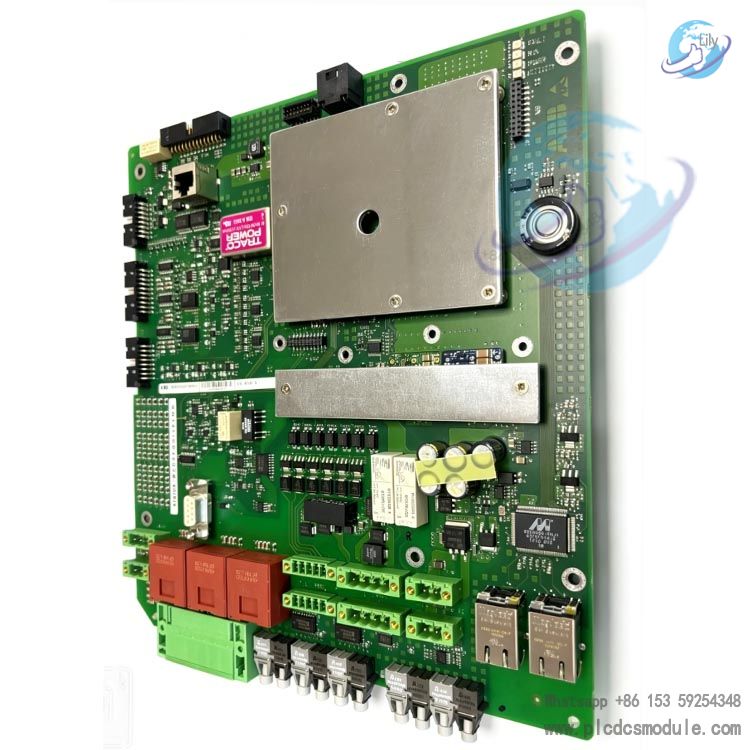

ABB UCD240A01 (Order No. 3BHE022287R0001) is a high-performance CCM (Condition Monitoring and Control) module manufactured by ABB Sweden. As a core component of the ABB Advant OCS system, it is specially designed for scenarios such as industrial automation, power and energy, oil & gas and chemical industries. It realizes AC/DC power conversion, equipment condition monitoring and precise process control. Featuring high protection level, strong compatibility and easy integration, it can operate stably in harsh environments ranging from -40℃ to +70℃, serving as the core power supply and control unit for industrial control cabinets and distributed systems.
Technical Parameters
| Parameter | Specification |
|---|---|
| Model | UCD240A01 |
| Order Number | 3BHE022287R0001 |
| Input Voltage | Single-phase / Three-phase AC 220~240V (max. 1080V AC) |
| Output | 24V DC/10A, 240W |
| Communication Interface | RS485 (Modbus RTU), Ethernet |
| Operating Temperature | -40℃~+70℃ |
| Dimensions (W × H × D) | 127mm×51mm×178mm |
| Weight | 0.5kg |
| Protection Class | IP20 |
| Certifications | CE, UL, CSA |
| Core Functions | Power conversion, 16-channel digital I/O, equipment condition monitoring, self-diagnosis of faults |
Application Scenarios
Power & EnergyUNITROL excitation system, generator set condition monitoring, and high-voltage frequency conversion control, ensuring stable operation of power generation equipment.
Oil, Gas & Chemical IndustryValve control on drilling platforms, pipeline pressure monitoring, and power control in explosive-proof environments; suitable for high humidity, dusty and corrosive working conditions.
Industrial AutomationPLC extended control, power supply for servo drives, and status monitoring of assembly line equipment; compatible with the ABB Advant OCS system.
Rail Transit & Marine EngineeringOn-board electrical control and marine power system monitoring, adaptable to working conditions with severe vibration and large temperature differences.
User Manual
Installation Steps
Environmental InspectionEnsure the installation ambient temperature ranges from -40℃ to +70℃, with no dust or corrosive gas and adequate ventilation.
Module MountingInstall via DIN rail or panel mounting; control the fastening torque within 0.8~1.2N·m to prevent loosening caused by vibration.
Wiring Specifications
Power TerminalFor AC 220~240V: connect live wire to L, neutral wire to N, and ground wire to PE. Ensure firm wiring and no short circuit.
Output TerminalFor 24V DC: connect positive pole to load positive and negative pole to load negative (NPN type). Reverse connection is strictly prohibited.
Communication TerminalConnect RS485 A/B lines correspondingly; connect the Ethernet port to a switch to avoid long-line interference.
Grounding TreatmentReliably connect the module grounding terminal to system ground to reduce electromagnetic interference.
Configuration & Commissioning
Software PreparationInstall ABB Control Builder software, then connect the module to a PC.
Parameter Configuration
- Power Parameters: Set input voltage range and output overcurrent protection threshold (default: 10A).
- Communication Parameters: Configure Modbus RTU address and baud rate (default: 9600), or Ethernet IP address.
- I/O Configuration: Define input/output mode for 16-channel digital I/O, and associate signals of monitored equipment.
Self-Diagnosis TestRun channel self-inspection via software to troubleshoot short circuit and overload faults, and confirm all I/O channels work normally.
Commissioning VerificationPower on under no-load condition for 30 minutes to monitor output voltage stability; conduct on-load test to verify load control accuracy and condition monitoring precision.
Routine Maintenance
Run full-channel self-diagnosis via Control Builder every 6 months to check short circuit and overload protection functions.Regularly clean dust on the module surface, and inspect terminal looseness and cable aging.Avoid close installation in strong electromagnetic interference environments (such as near inverters and high-power motors).
Competitor Comparison
| Comparison Item | ABB UCD240A01 | Siemens 3RW40 Series |
|---|---|---|
| Brand Feature | Integrated power & control, full ABB system compatibility | Good communication compatibility, dedicated for soft start |
| Input Voltage | 220~240V AC (max.1080V AC) | 208~600V AC |
| Output Power | 240W (24V DC/10A) | Up to 55kW |
| Working Temp | -40℃~+70℃ | -20℃~+60℃ |
| Communication | RS485, Ethernet | Profinet, RS485 |
| Application | Power conversion, monitoring & process control | Motor soft start, load control |
| Price Level | Mid-high end | Mid-range |
| Core Advantages | Wide temperature, high protection, native system compatibility | Cost-effective, simple commissioning |
FAQ
Q: No output and indicator light off after module power-on?A: ① Check if input power is normal (220~240V AC) and confirm whether the fuse is blown;② Ensure no loose wiring or short circuit, and reliable ground connection;③ Read fault codes via Control Builder to troubleshoot internal power damage or hardware failure.
Q: Frequent overload alarm during operation, how to fix?A: ① Check for load short circuit, jamming, or load power exceeding the rated 240W;② Extend acceleration/deceleration time to reduce impact from sudden load changes;③ Inspect loose output wiring and replace aging cables;④ Adjust overcurrent protection threshold via software (not exceeding 10A).
Q: Unstable Modbus communication and data packet loss?A: ① Check if RS485 A/B wires are reversed or loose, and whether the 120Ω terminal resistor is matched;② Lower baud rate (e.g. from 9600 to 4800) and limit communication distance within 1000 meters;③ Keep away from strong interference sources such as inverters and high-power motors, and ground the shielding layer properly.
Q: Can the module be used in explosive-proof environments?A: The module itself is IP20. It shall be installed inside an explosion-proof enclosure, operated within ambient temperature of -40℃~+70℃, and kept away from direct contact with flammable and explosive gas. It is applicable for explosion-proof scenarios in chemical, oil and gas industries.
Q: Are additional modules required for connection with ABB PLC?A: No extra module needed. Built-in RS485/Ethernet interfaces allow direct communication with ABB Advant OCS, AC500 and other PLCs. It supports Modbus RTU protocol for plug-and-play use.
