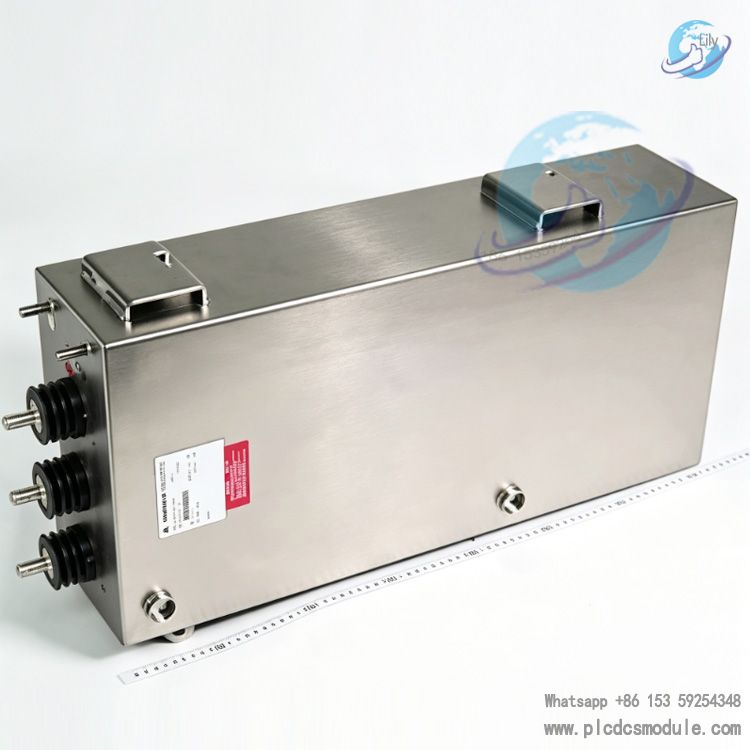

ABB 3BHL000519P0001 is a custom-designed HDC film capacitor from CN8 series with core rating: dual 1300μF branches, total rated voltage 2660VDC. It serves DC-link buffering, filtering and energy absorption for medium & high-voltage drives, converters and excitation systems. As high-reliability spare component, it is non-standard off-the-shelf product.
DOCUMENT DOWNLOAD
Key Specifications
Model: 3BHL000519P0001Electrical Data: 2×1300μF, 2660VDC, film dielectricType: DC CapacitorWeight: 68kgOrigin: Czech Republic, France
Product Advantages
High-voltage high-capacity dual-cell constructionFlexible series/parallel wiring for dual 1300μF units; 2660VDC withstand rating fits medium/high-voltage DC link with high energy density and superior bus voltage stabilization.
Long-life film dielectricElectrolyte-free design, low ESR and excellent self-healing capability; outstanding thermal and ripple current endurance, outperforming electrolytic capacitors under continuous full-load industrial operation.
Industrial high reliabilityOEM-grade original spare part engineered for ABB medium/high-voltage equipment with long MTBF to minimize unplanned downtime.
No dangerous goods shipping restrictionsNon-hazardous commodity for easy global warehousing & logistics; stock available from warehouses in Beijing, Singapore, Tokyo, Finland, Wisconsin USA and other locations.
Custom tailored productionMade-to-order to precisely match ABB inverters, power modules and excitation systems for consistent drop-in replacement.
Product Features
Dielectric: Self-healing metallized polypropylene filmConfiguration: Dual capacitor module (2×1300μF)Rated Voltage: 2660VDC nominal for high-voltage DC circuitsWeight: Net 52kg / Gross 68kg, heavy-duty modular designAmbient Rating: Industrial grade for indoor high-voltage cabinet installationCompliance: UNSPSC 39120000, B2B WEEE compliantCross Replacement: Direct substitute for legacy part HL000519P0001
Application Scope
DC-link support for medium & high voltage variable frequency drivesHigh-power motor drives, rectifier & inverter assembliesHigh-voltage power cells, H-bridge convertersDC filtering for generator excitation systemsDC circuits of wind & PV grid-tied convertersIndustrial rectifiers, SVG and active power filter devices
