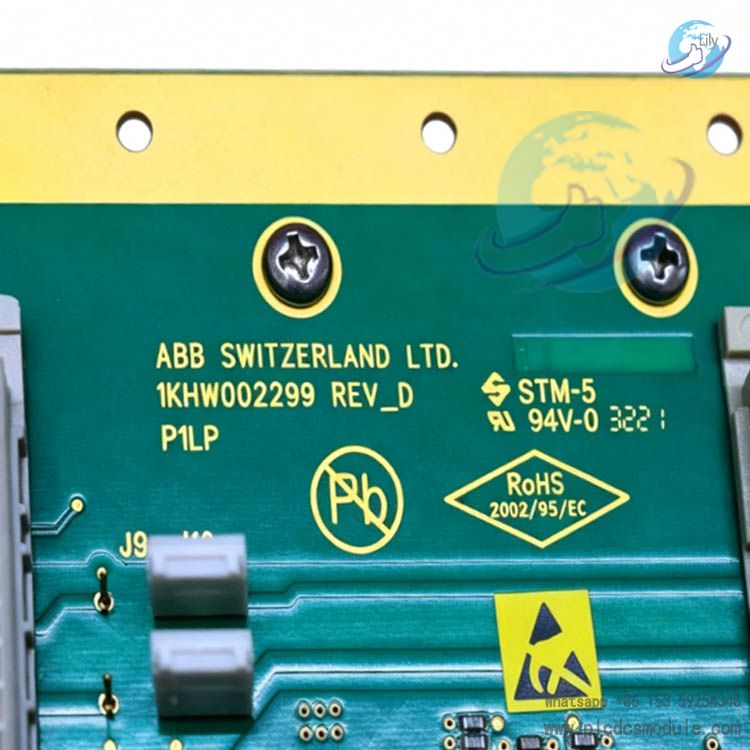

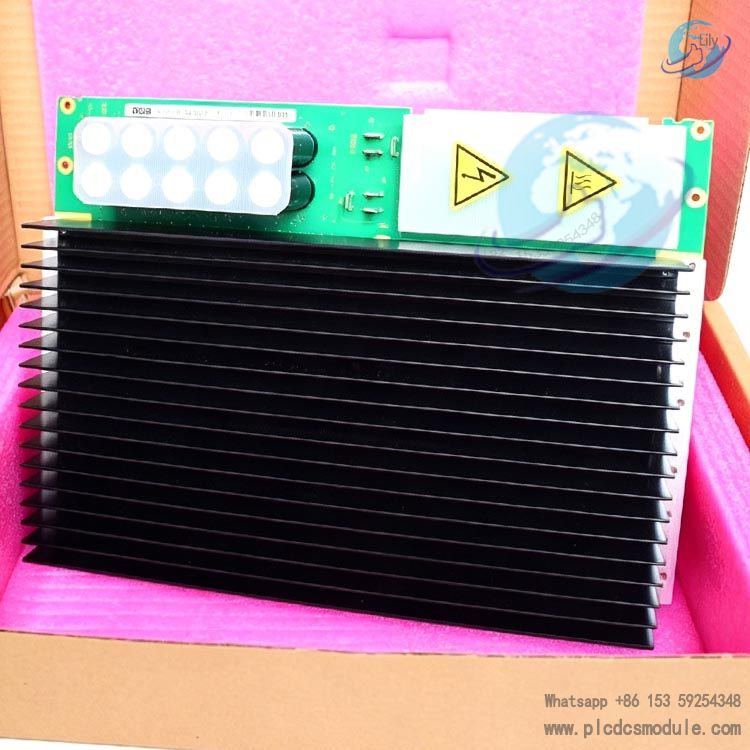

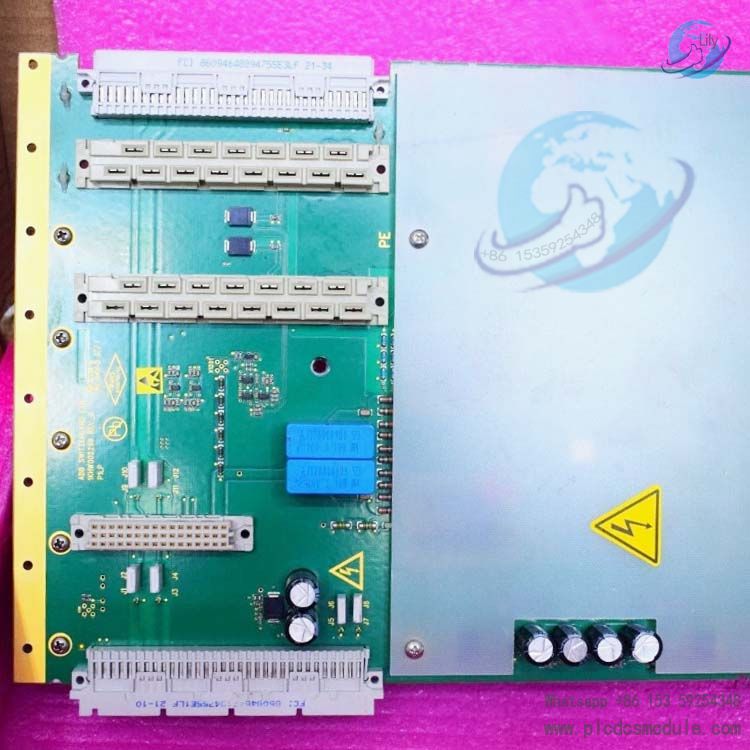

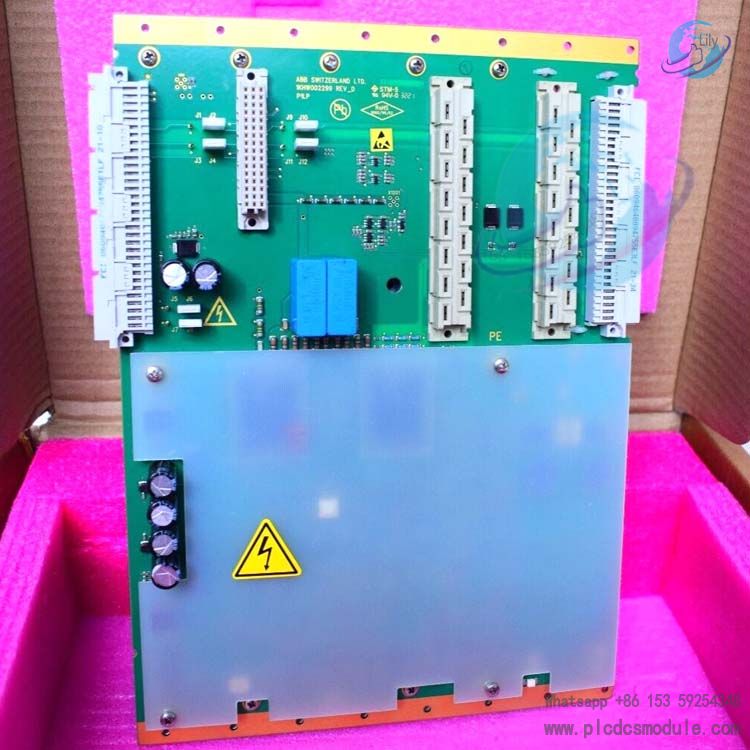

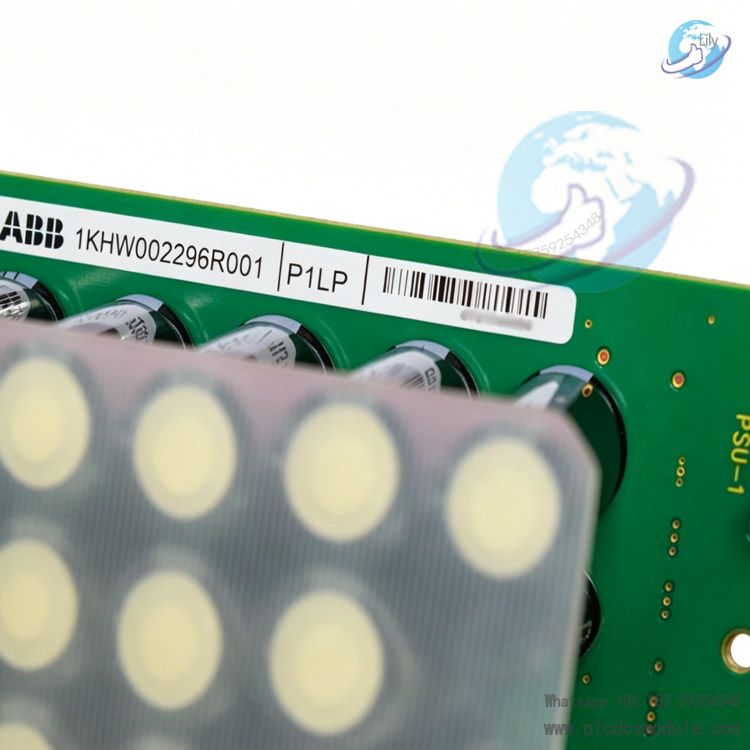

P1LP 1KHW002299 is a dedicated core control board matched with ABB LP series linear pneumatic actuators.As the "brain" of the actuator, it is responsible for signal acquisition, logic operation, drive output and communication interaction. It is compatible with LP series single-acting / double-acting actuators, and is widely applied to precise valve regulation in industrial process control.Featuring high reliability, strong anti-interference capability and easy integration, it is the preferred control component for harsh working conditions in oil & gas, chemical, water treatment and other industries.
Core Advantages
Industrial-grade High ReliabilityAdopts military-grade electronic components, supporting wide-temperature operation from -40℃ to +70℃ with IP20 protection. It features 1G vibration resistance and 15G shock resistance, suitable for industrial sites with dust, humidity and strong electromagnetic interference.
Precise Control & Fast ResponseEquipped with a 32-bit ARM processor and a logic scan cycle of 0.1ms. It supports adaptive PID regulation, achieving valve positioning accuracy up to ±0.1%, with smooth full-stroke operation and no sticking.
Seamless Multi-protocol IntegrationNatively supports Modbus RTU and RS485 communication. It can directly connect to ABB DCS, third-party PLC and SCADA systems without additional gateways, simplifying system architecture.
Fail-Safe DesignWhen matched with single-acting actuators, it supports spring-return fail-safe mode. The valve automatically switches to the safe position upon air loss or power failure, perfectly compatible with SIS safety instrumented systems.
Key Technical Features
Supply Voltage24V DC (±10%), power consumption ≤ 2W. Applied to the control of wellhead shutdown valves in oil and gas fields and relief valves of chemical reaction vessels.
Input Signal4-20mA analog signal for valve position setting; 24V DC discrete signal for start/stop and interlock control. Suitable for precise regulation of flow control valves in water treatment plants and boiler feed water valves.
Output Signal4-20mA analog signal for valve position feedback; relay contact output for fault alarm signals. Used for pipeline pressure monitoring and tank liquid level interlock control.
Communication InterfaceRS485 with Modbus RTU protocol, baud rate range 9.6~320kbps. Applicable to remote SCADA monitoring and network centralized control of multiple actuators.
Control ModeSupports manual/auto mode switching, adaptive PID control and fail-safe reset function. Ideal for remote valve operation in hazardous areas and fast response control of emergency shutdown valves.
Status IndicationEquipped with LED indicators for Power, Run, Fault and Communication status, enabling on-site rapid fault diagnosis without professional tools.
Application Scenarios
Oil and Gas IndustryControl of natural gas pipeline shut-off valves and oilfield wellhead safety valves. Leverage fail-safe features to ensure pipeline safety, and adapt to extreme cold environments down to -40℃.
Chemical IndustryControl of reactor inlet/outlet valves and acid-base medium regulating valves. With corrosion resistance and strong electromagnetic interference resistance, it is suitable for Zone 1/2 hazardous explosive areas.
Water Treatment IndustryControl of filter regulating valves and sewage discharge valves in water plants. The 4-20mA signal is compatible with various sensors to realize closed-loop control of flow and pressure.
Power IndustryControl of boiler flue gas damper valves and desulfurization system regulating valves. Wide-temperature operation adapts to high-temperature and high-dust environments in boiler houses.
Building & HVACControl of air conditioning water valves and fresh air valves in shopping malls and office buildings. Modbus communication enables seamless connection with building automation (BA) systems.
FAQ
Q: The Fault LED stays on after the control board is powered on and the unit fails to run?A: ① Check whether the 24V power supply voltage is normal (21.6~26.4V) to eliminate power fluctuation;② Verify wiring for short circuit or reverse connection, focusing on power positive and negative polarity;③ Reset parameters (restore factory defaults via Parameter 196.06) to rule out parameter errors;④ If the abnormality persists, return the board to the factory for component inspection.
Q: The valve moves sluggishly with poor positioning accuracy (error ＞ ±1%)?A: ① Calibrate PID parameters (increase P value and decrease I value to avoid overshoot);② Check whether the actuator pushrod is well aligned to eliminate lateral force;③ Clean the pneumatic pipeline filter to remove blockage caused by impurities;④ Calibrate the 4-20mA signal and suppress interference by properly grounding the shield layer.
Q: Modbus communication fails and the host cannot read data?A: ① Confirm communication address, baud rate, data bits and parity bits (default: Address 1, 19.2 kbps, 8N1);② Check if RS485 A/B lines are reversed, and implement single-end grounding for the shield layer;③ Check the bus terminal resistor (120Ω installed at both ends);④ Replace the communication chip to exclude hardware damage.
Q: The valve fails to reset after air loss and the fail-safe function does not work?A: ① Confirm the actuator is a single-acting spring return type (double-acting type has no reset function);② Inspect the spring for fatigue or fracture and replace the spring assembly if needed;③ Calibrate reset pressure (set Parameter 22.03 to 0.2 MPa);④ Inspect pneumatic pipelines for leakage and perform pressure holding test with no leakage allowed.
Q: The control board triggers frequent overheating alarms during operation (temperature ＞ 70℃)?A: ① Improve ventilation of the installation environment and keep away from high-temperature heat sources such as heaters and steam pipelines;② Clean dust on the control board surface to prevent poor heat dissipation;③ Check for overload conditions and reduce current in output loops;④ Replace aging capacitors to eliminate abnormal internal power consumption.
