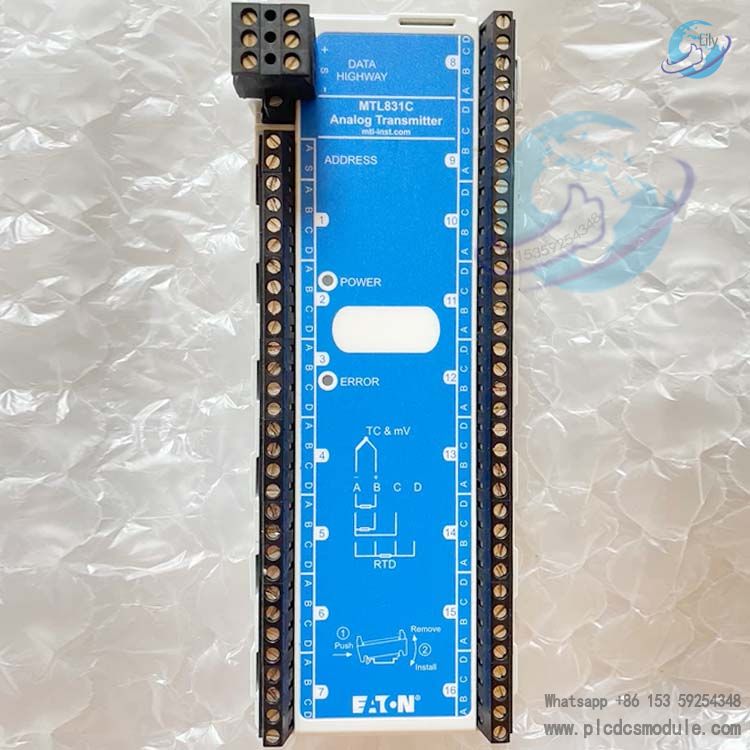

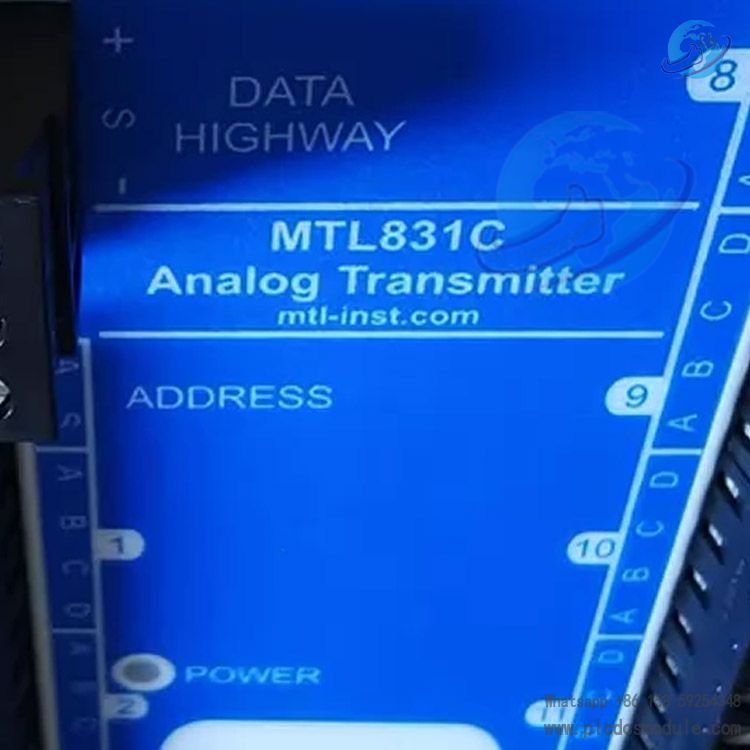

MTL831C is an
intrinsically safe multi-channel analog transmitter launched by
MTL, a brand under
Eaton. It features an explosion-proof rating of Ex ia IIC T4 Ga and can be directly installed in Zone 0 hazardous explosive areas. Designed specifically for flammable and explosive industrial sites such as petrochemical, oil and gas exploration, pharmaceutical, and coal chemical industries, it supports mixed connection of multiple on-site analog signals including RTDs, thermocouples (TC), millivolt (mV) signals and potentiometers, with a maximum of 16 analog input channels per unit.
Adopting data and power line shared transmission mode, it transmits on-site signals remotely to the safe area via a single shielded twisted-pair data bus. The maximum transmission distance reaches 2km for non-intrinsically safe applications and 1km for intrinsically safe scenarios. It can form a complete explosion-proof acquisition system when matched with the MTL838C receiver and MTL5553 intrinsically safe isolated power supply.
With a pure intrinsically safe design, it complies with Zone 0 installation requirements with no spark risk. Its high integration with 16 channels integrated in one unit greatly saves wiring, cabinet and construction costs. Equipped with shielded twisted-pair transmission, it delivers strong anti-interference performance and adapts to complex industrial working conditions. It supports plug-and-play operation with no reconfiguration required for equipment replacement, as parameters are automatically issued by the receiver. Dual LED status indicators enable fast fault location and easy maintenance, making it a highly reliable and highly integrated core device for temperature and process signal acquisition and remote transmission in explosion-proof working conditions.
DOCUMENT DOWNLOAD
MTL831C Rev 3.pdf
Specifications
Input Type：2/3/4-wire RTD, TC, mV, PotentiometerInput Channels：16 channels, mixed configuration supportedTransmission Bus：Data & power over single line, shielded twisted pairTransmission Distance：Non-intrinsically safe: 2km; Intrinsically safe (with MTL5553): 1kmExplosion-proof Certification：ATEX, IECEx, CCC, Ex ia IIC T4 GaOperating Temperature：-40℃ ~ +70℃Terminals：Fixed screw / Pluggable screw / Pluggable cage clampPower Supply：Bus-powered, no separate power supply requiredAddress Setting：Hardware jumper: Address 1 (open), Address 2 (shorted)Matching Devices：MTL838C Receiver, MTL5553 Intrinsically Safe Isolated Power Supply
Installation and Operation Guide
1. Mechanical Installation

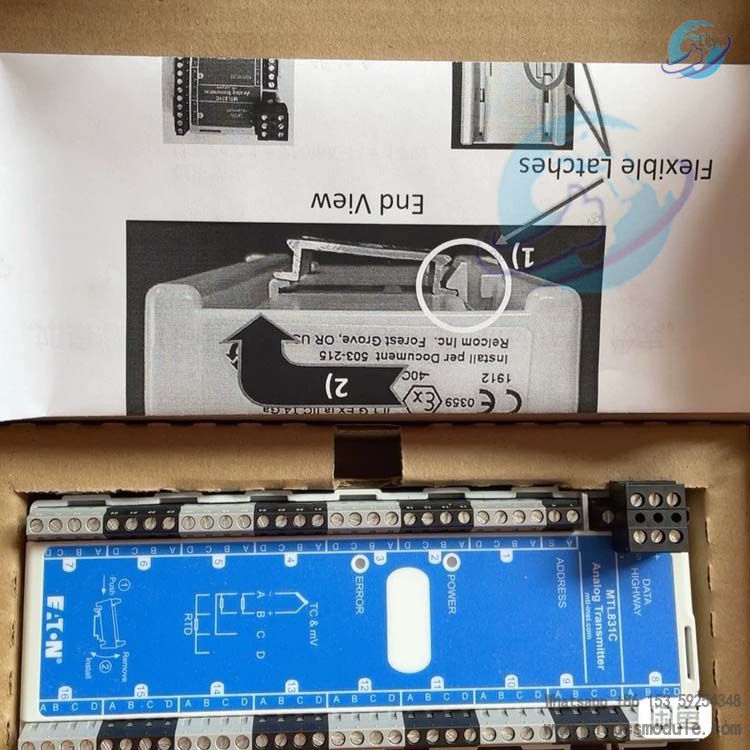

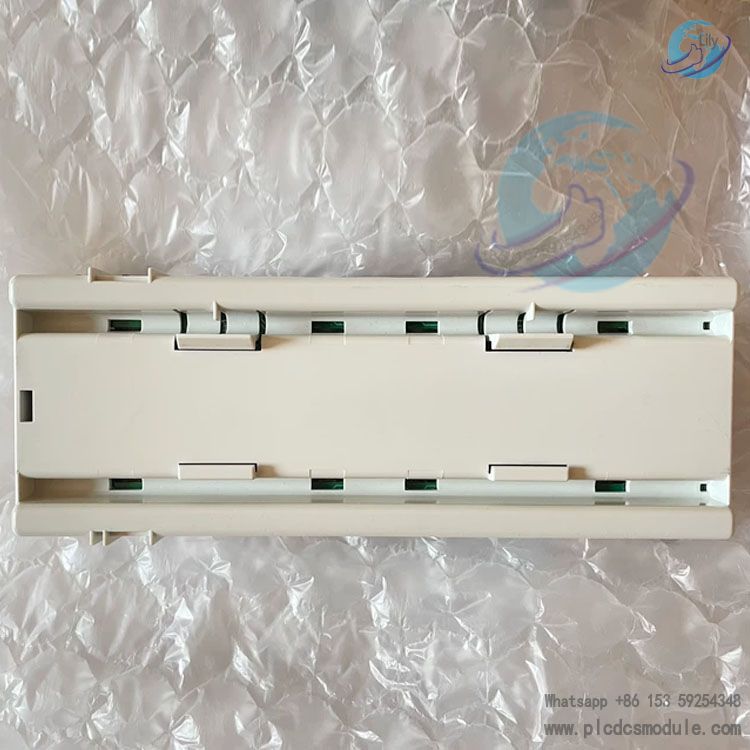

Installation Location: Suitable for both safe areas and Zone 0 hazardous areas; mount vertically on a flat surface.Mounting Method: 35mm T-type DIN rail clip-on installation; tilt and hook left → push right → reset and lock into place.Enhanced Protection: For outdoor or harsh environments, optionally adopt ENC8/ENC83 series IP67 protective enclosure.
2. Electrical Wiring
Address Setting
Single unit: Pins A and S open, Address = 1.Two units in parallel: Unit 1 open = Address 1; Unit 2 A-S shorted = Address 2.
Sensor Wiring
RTD: Wire in accordance with 2/3/4-wire system; configure the mode via software.TC/mV: Observe polarity; open-circuit detection is supported.Multi-point grounding is prohibited to avoid interference caused by ground potential difference.
Data Bus
Terminals: + (Positive), – (Negative), S (Shield).Intrinsically safe application: Connect the bus through MTL5553 isolator in the safe area.Shield Grounding: Single-point grounding to prevent circulating current interference.Wiring Torque: Terminal screw tightening torque: 0.5–0.6N·m.
3. Power-on and Configuration
Enter normal operation about 60 seconds after power-on.Only the address is set by hardware; other parameters such as channel type and range are configured via MTL838C receiver software or Modbus.When replacing the MTL831C, configuration is automatically downloaded from the receiver, no repeated setting required.
4. Status Indication
POWER (Green): Steady on = Power normal; Flashing = Communication normal.ERROR (Red): Steady on / frequent flashing = CRC error, noise interference or firmware abnormality.1–2 times red flashing at initial power-on is normal.
FAQ – Frequently Asked Questions
Q1: What if the POWER LED is off or not flashing?Measure the voltage of the bus +/- terminals to meet the minimum operating requirement, with a recommended margin of ≥1V.Check the power supply and wiring of MTL5553 (intrinsically safe) or MTL838C (non-intrinsically safe).If the fault remains, the unit is defective; contact Eaton technical support.
Q2: Why only one of two MTL831C units communicates normally?Duplicate device addresses. Only the second unit needs pins A-S shorted for Address 2; leave the first unit open.With duplicated addresses, the first powered-on unit occupies communication, while the later one stays silent.
Q3: What if the ERROR LED flashes frequently or stays solid red?Strong interference on the bus: Keep cables away from high-voltage lines, inverters and motor cables.Loose wiring or short circuit: Tighten all terminal connections.Incorrect shield grounding: Ensure single-point grounding only.Failed firmware update: Perform firmware update again.
Q4: What is the difference between intrinsically safe and non-intrinsically safe installation?Intrinsically safe (Zone 0): The bus must connect in series with the MTL5553 isolated power supply; maximum transmission distance 1km.Non-intrinsically safe (Safe Area): Connect directly to MTL838C; maximum transmission distance 2km.
Q5: What are the grounding requirements for sensors?Sensors should preferably be ungrounded. If grounding is necessary, use local single-point grounding only to prevent ground potential difference from damaging the device or affecting measurement accuracy.
Q6: Is the repairable when faulty?Official regulation: The unit is non-repairable. Replace it with another model with equivalent certification once faulty.
Q7: Which sensors support mixed connection?All 16 channels allow arbitrary mixing of 2/3/4-wire RTD, TC, mV signal and potentiometer; simply wire according to the corresponding wiring diagram.
