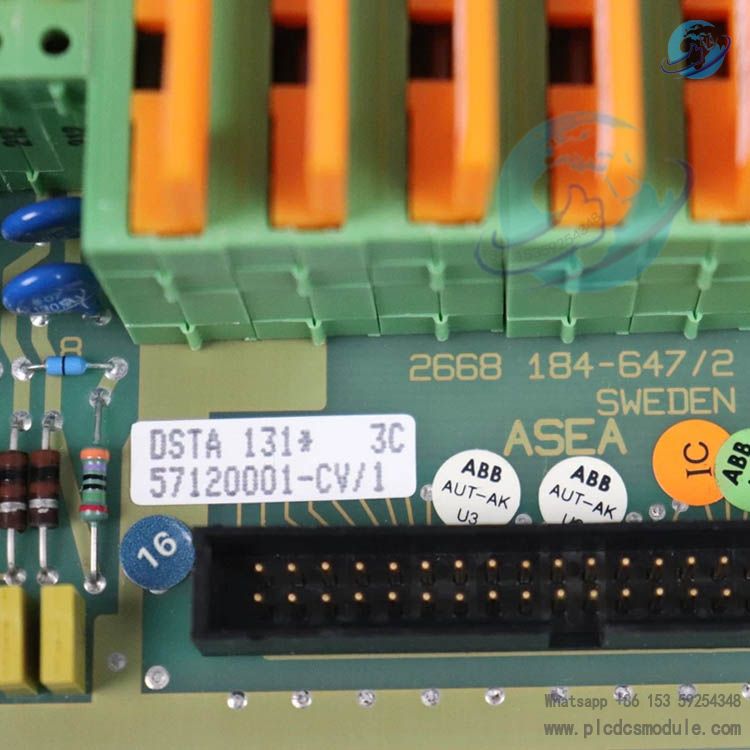

ABB DSTA131 57120001-CV is a 16-channel analog input (AI) connection unit for ABB Advant OCS/800xA systems. Developed specifically for S100 series controllers, it performs signal conversion, precision current shunting and electrical isolation between field sensors/actuators and AI cards (e.g. DSAI130). It serves as a core interface module for analog signal acquisition in DCS systems.
DOCUMENT DOWNLOAD
DSTA131 Connection Unit for AI board 57120001-CV .pdf
Product Advantages
Ultra-high measurement accuracyEquipped with 0.1% high-precision shunt resistors and adopting differential signal acquisition, it guarantees consistent and accurate measurement of analog voltage and current signals across all 16 channels.
Native compatibility with ABB systemsCustomized for ABB AI cards such as DSAI130. It is plug-and-play with no additional configuration required, fully compatible with the entire range of Advant OCS, 800xA and S100 series.
Industrial-grade reliabilityCertified to CE, UL and FCC standards. It operates stably over a wide temperature range of -25℃ to +55℃, featuring vibration resistance and electromagnetic interference resistance for harsh industrial conditions.
Integrated protection designBuilt-in 1A fuse 3BSC770001R14. Faults on a single channel will not spread to others, facilitating easier maintenance and replacement.
Compact and easy to installDesigned for standard DIN rail mounting. Dimensions: 324×54×153 mm, net weight: 0.36 kg. It saves cabinet space and enables neat wiring.
Product Features
Channel Configuration16 differential analog input channels, supporting ±10V and 4-20mA signals. Each channel is equipped with independent protection.
Electrical ParametersPower supply: 24VDC; Isolation voltage: ≥1500VRms; Input impedance: ≥1MΩ; Resolution: 12-bit.
Connection ModeDirect terminal block connection, supporting series and parallel wiring. Compatible with 2-wire and 3-wire sensors.
Mechanical CharacteristicsIP20 protection rating, flame-retardant housing. Fitted with DIN rail clips and supports hot-swap maintenance.
Diagnostic FunctionEquipped with channel status indicator lights, enabling system-level fault diagnosis and location.
Application Scenarios
Power IndustryAcquisition of analog signals of temperature, pressure and flow in thermal, hydro and nuclear power plants for monitoring boilers, steam turbines and generators.
Chemical & Metallurgical IndustryMonitoring temperature, liquid level and pH value of reactors; closed-loop control of process parameters for rolling mills and continuous casters.
Manufacturing IndustryAnalog data acquisition and control for production lines of papermaking, glass and rubber industries.
Building AutomationTemperature, humidity and pressure monitoring for Heating, Ventilation and Air Conditioning (HVAC); energy management systems for intelligent buildings.
Environmental MonitoringSignal conversion for online monitoring systems of water quality, air quality and pollution sources.
FAQ
Q1: The power indicator of DSTA131 does not light up after power-on.A1: ① Check whether the 24VDC power wiring is correct and the voltage is within the normal range (24V±10%). ② Inspect for loose power terminals. ③ Replace the power module or board to troubleshoot hardware faults.
Q2: Inaccurate and highly fluctuating analog readings on a single channel.A2: ① Check the integrity of the channel fuse and replace it with a 1A fuse (3BSC770001R14) if needed. ② Check loose sensor wiring and proper grounding of the shield layer. ③ Recalibrate channel parameters and verify matching of signal type and measuring range. ④ Eliminate on-site electromagnetic interference and keep the device away from inverters, motors and other equipment.
Q3: The system fails to detect the unit after connection with ABB DSAI130 AI card.A3: ① Ensure the dedicated ribbon cable is fully seated and no pins are bent. ② Confirm model compatibility between DSTA131 and DSAI130 (e.g. DSAI130K18). ③ Restart the controller and rescan hardware. ④ Update system firmware to ensure full compatibility.
Q4: Can the unit work properly when ambient temperature exceeds 55℃?A4: Long-term operation at excessive temperature is prohibited. It will lead to reduced accuracy, accelerated component aging and even permanent damage to the board. Take heat dissipation measures such as installing fans and optimizing cabinet ventilation to keep the temperature within the range of -25℃ ~ +55℃.
Q5: Does it support hot swapping? Is system shutdown required for replacement?A5: Hot swapping is supported. No shutdown is required when replacing single-channel fuses or the board, and the operation of other channels will not be affected, delivering convenient maintenance.
