Model Breakdown
VMIVME-7645
- VMIC: Brand identifier of the original board designer and manufacturer
- VME: Complies with VME64 industrial standard bus architecture
- 76XX Series: VMIC general embedded single-board computer product line
- 45: Sub-model code, defining dedicated I/O channel layout, processor specifications and AMAT customized firmware revision

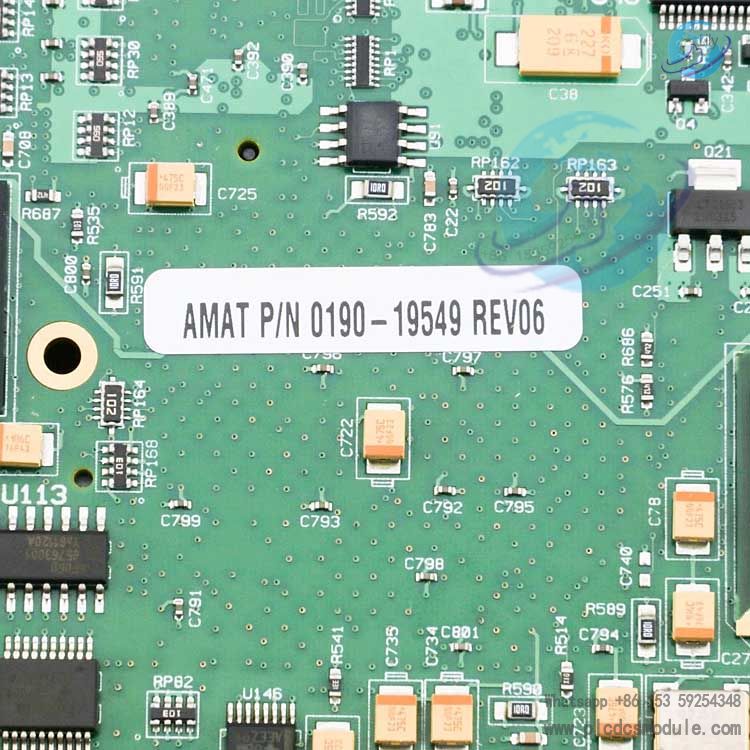

0190-19549
- 0190: Unified prefix for AMAT original electrical control board parts, categorizing main control PCB spares for production equipment
- 19549: Unique serial part number for individual unit, corresponding to exclusive hardware revisions and fixed firmware versions of VMIVME-7645; distinguishes general commercial versions from customized versions dedicated to semiconductor equipment
Product Features

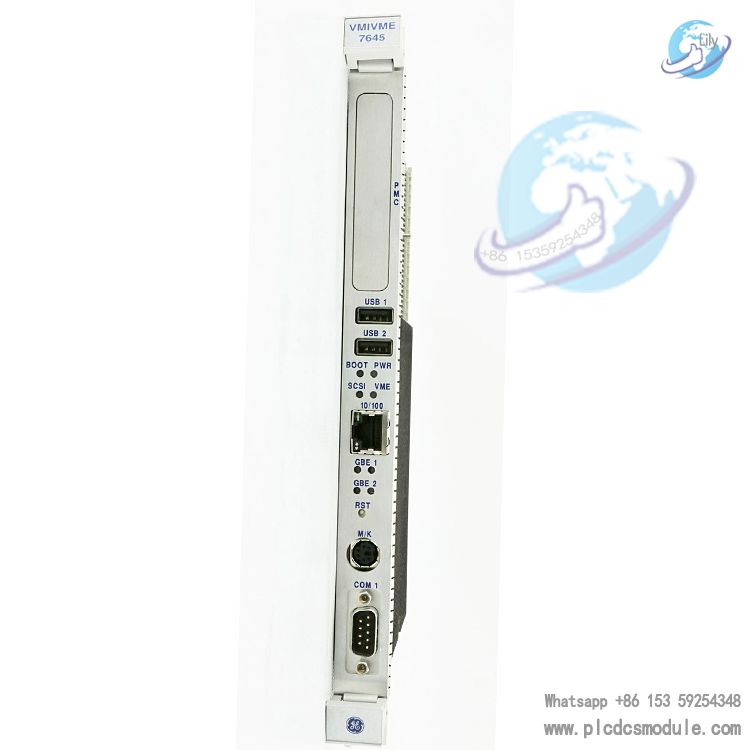

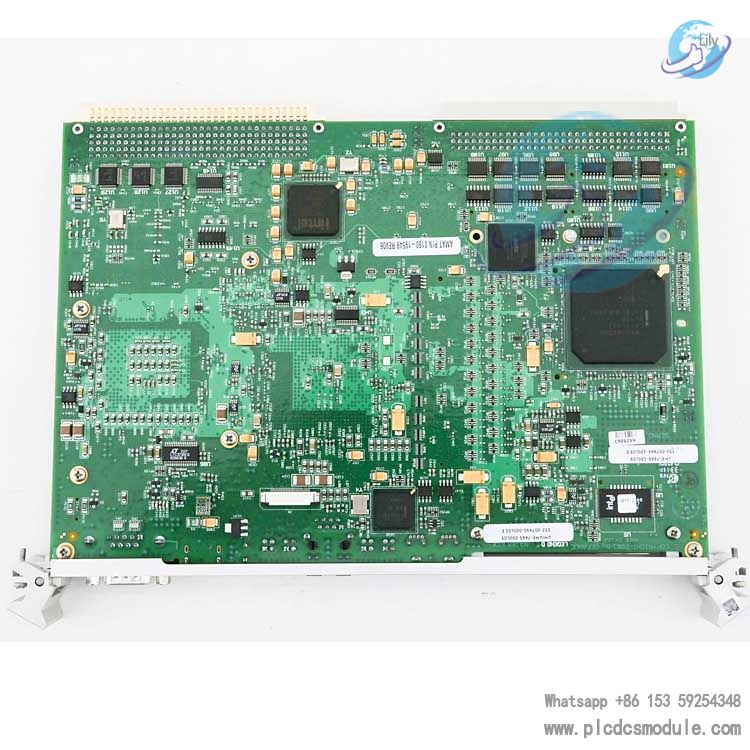

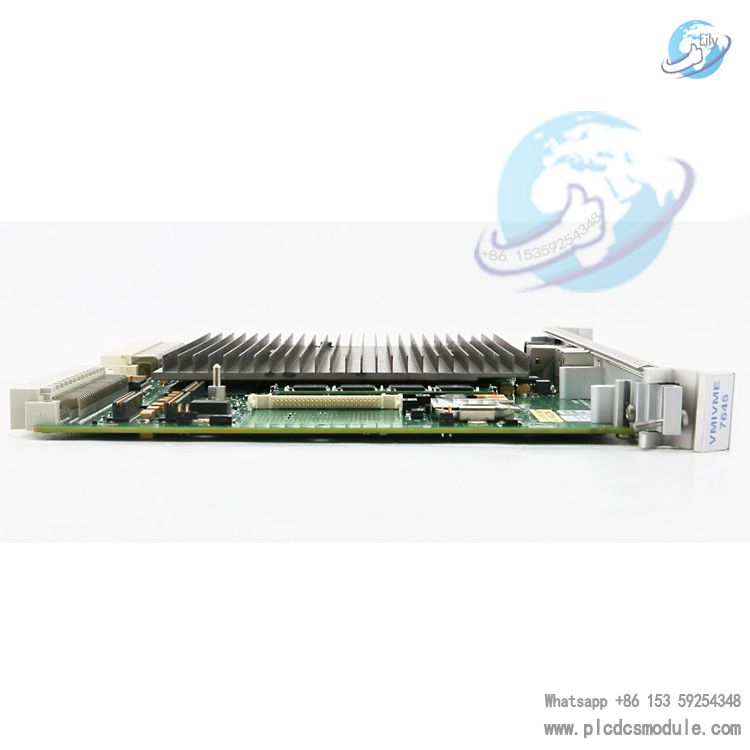

Hardware Architecture: 6U single-slot VME Eurocard form factor, full bus channels via dual VME P1/P2 connectors; each board occupies one independent rack slot
Core Computing Unit: Equipped with ColdFire industrial processor, on-board solid-state storage for local storage of equipment process recipes
Interface Configuration: Multiple RS232 industrial serial ports, bidirectional digital input/output channels, analog acquisition interfaces, and two 100 Mbps Ethernet communication ports
Safety Protection: Hardware programmable watchdog timer with three-level fault response mechanism covering system reset, NMI interrupt and bus fault signaling
System Compatibility: Natively supports VxWorks real-time operating system, fully compatible with complete AMAT host control software suite; lightweight Linux embedded system is also supported
Environmental Resistance: Storage temperature range of -40℃ to +85℃; industrial vibration resistance meets semiconductor equipment standards; all components comply with RoHS clean electronic component specifications
Diagnostic Functions: On-board LED status indicators with visual prompts for five categories: power supply, bus, communication, process operation and faults; supports register readout diagnostics via background system
