ABB S-053M 3BHB012897R0007 ACS 6000 PHASE MODULE

Manufacturer: ABB

Product Number: S-053M 3BHB012897R0007

Product Type: ACS 6000 PHASE MODULE

Country of Origin: Switzerland

✓ Payment Method: Telegraphic Transfer (T/T)

✓ Warranty Period: 12 months

✓ Delivery time: Shipment within 3 days of inventory availability.

Mail： plcdcsmodule@foxmail.com

Phone/Wechat/Whatsapp：+86 15359254348

Note; All products on this site are special products, the market price has been fluctuating, the specific customer service offer shall prevail, because the product is a new product, the picture is not a real shot, please confirm with customer service before placing an order model and product, price and other details, the site used, new are for sale, please contact customer service communication.

S-053M 3BHB012897R0007 phase module serves as the core power branch assembly for the inverter unit of ABB ACS6000 medium voltage converters. Adopting an IGCT three-level topology with integrated water-cooled heat dissipation structure, it matches 5MVA-class INU inverter cabinets and converts DC bus voltage into adjustable three-phase medium-voltage alternating current.

Highly integrated, the module incorporates power semiconductors, water cooling channels, snubber absorption circuits, fiber-optic signal interfaces and condition monitoring sampling circuits. It is the critical hardware enabling high-power motor speed regulation, energy regeneration and harmonic suppression within the ACS6000 drive system.

Designed in accordance with ABB medium-voltage drive specifications, each unit undergoes a full series of factory tests including withstand voltage, temperature rise and overload ageing. Primarily supplied as spare parts for existing ACS6000 installations, the module features a pluggable standalone design that allows individual replacement without dismantling the entire power cabinet.

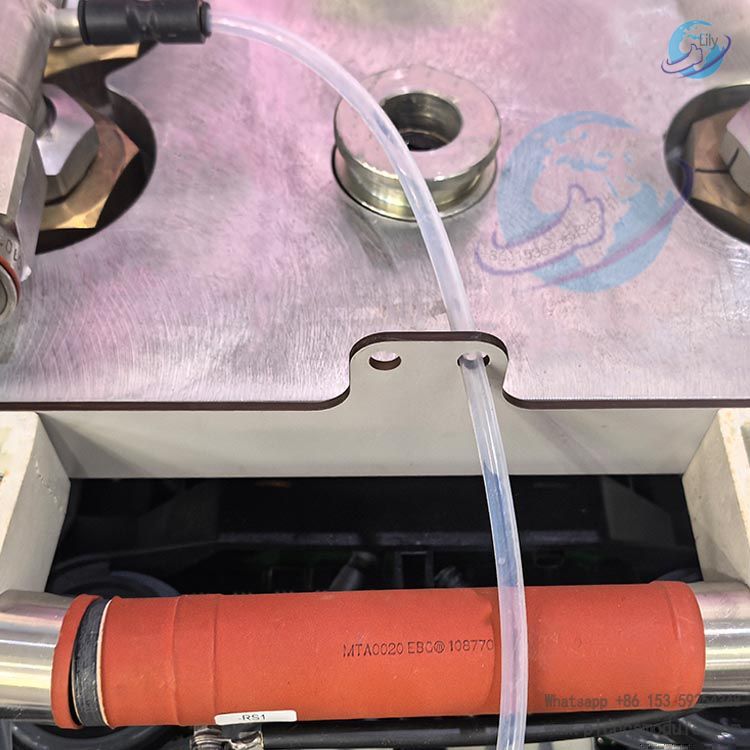

ABB S-053M 3BHB012897R003 PHASE MODULE AC 800PEC..........jpg

Model Code Interpretation

S-053M

S: Category code for Phase Power Module
053: Corresponding to rated power capacity of 5MVA
M: Standard water-cooled base version, differentiated from H-type high-power reinforced variant

Product Features

Power Topology: Three-level IGCT inverter branch equipped with freewheeling clamping diodes. Supports four-quadrant operation, allowing motor braking energy to be fed back to the power grid.

Electrical Ratings: Compatible with 3300V DC bus voltage, matching ACS6000 cabinets with 1725V/3300V grid input. Capable of sustaining 150% rated overload for 60 seconds; instantaneous short-circuit protection activates within less than 2 microseconds at 200% overload.

Cooling Method: Integrated built-in water cooling channels. Allowable inlet water temperature ranges from 5℃ to 45℃. Standard quick-disconnect waterproof joints for connection to closed-loop circulating water cooling units.

Signal Transmission: Fiber-optic pulse drive interfaces eliminate electrical coupling interference. Multiple built-in NTC temperature sensors monitor semiconductor junction temperature in real time.

Mechanical Specifications: Net weight approx. 190kg. Pull-out rail-mounted installation with cabinet safety interlock switch; power supply is disabled if the module is not fully seated.

Protection Performance: Internal circuit boards coated with three-proof coating. Insulation structure complies with medium-voltage safety clearance requirements. Single module protection class IP20; the complete unit assembled in cabinet reaches IP42/IP54.

Monitoring Function: Front-mounted status indicator lights provide real-time feedback of four signal states: running, fault, abnormal water cooling and fiber-optic disconnection. Detailed fault codes can be uploaded to the main control system.

Compliance Standards: Certified to IEC61800-4 medium-voltage drive standard, SIL2 functional safety and IEEE519 harmonic limits, meeting acceptance specifications for heavy industrial projects at home and abroad.

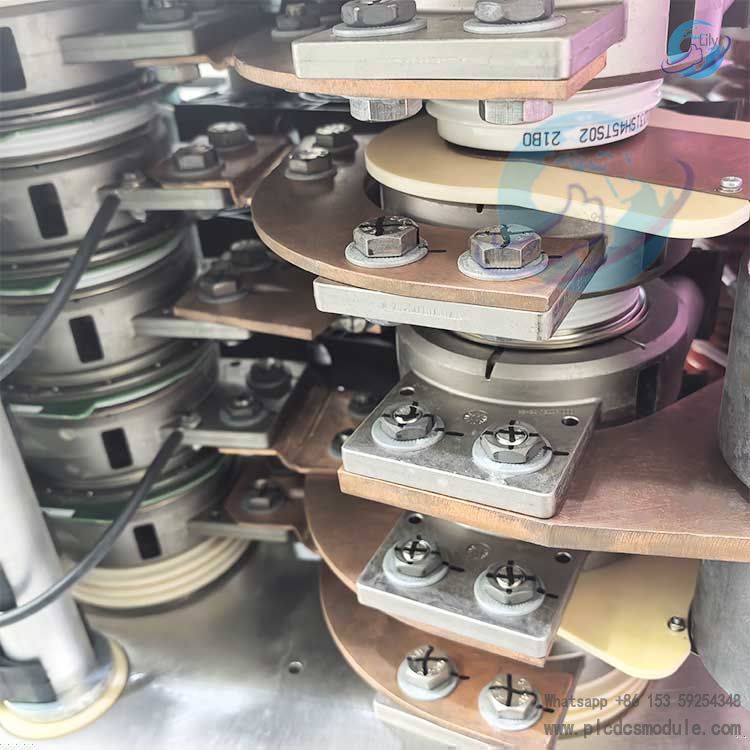

ABB S-053M 3BHB012897R003 PHASE MODULE AC 800PEC........jpg

Application Industries

Power Industry

Medium-voltage drive for large induced draft fans, primary air fans and circulating water pumps in thermal power and hydropower plants; spare parts for frequency conversion renovation of auxiliary power plant equipment.

Metallurgical Industry

High-power drive systems for hot rolling / cold rolling main rolling mills, main sinter exhaust fans and blast furnace blowers.

Mining Industry

ACS6000 frequency conversion equipment for mine main hoists, long-distance belt conveyors, ball mills and semi-autogenous mills.

Cement & Building Materials Industry

High-voltage speed regulation devices for kiln exhaust fans, raw material vertical mills and large cement clinker fans.

Oil & Gas Industry

Medium-voltage variable frequency drives for large compressors, oil-gas mixed transportation pumps and water injection units.

Chemical Industry

Drives for large reactor stirring motors, process compressors and circulating cooling water pumps.

Ship & Offshore Engineering

Medium-voltage drive systems for main ship propulsion and ballast pumps (custom marine versions of ACS6000).

Water Treatment Industry

High-voltage water supply pump units for large municipal sewage treatment and seawater desalination projects.

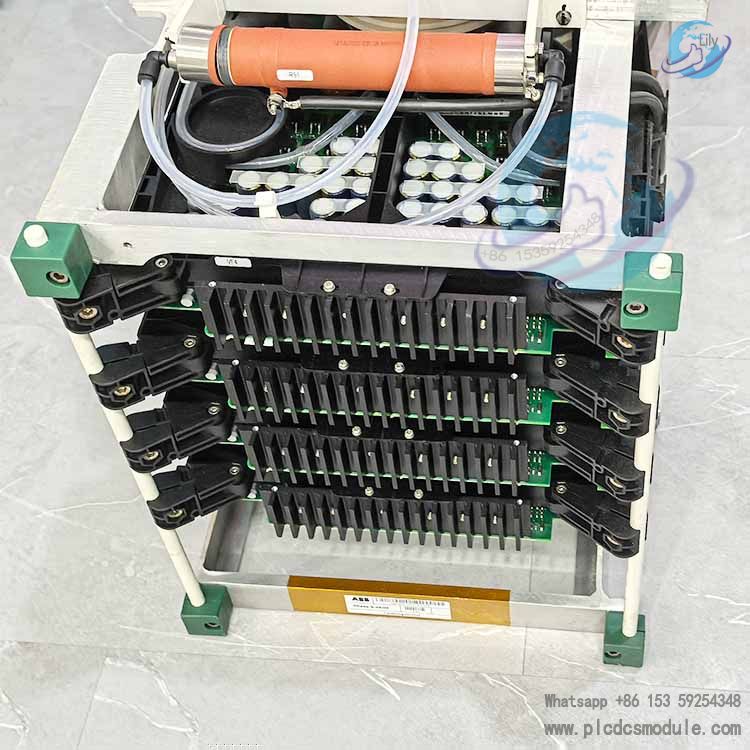

ABB S-053M 3BHB012897R003 PHASE MODULE AC 800PEC..jpg

Product Comparison

Comparison 1: S-053H (Part No. 3BHB012897R0003) Heavy-Duty Reinforced Phase Module

Similarities

Identical mechanical dimensions, mounting rails, water cooling interfaces and fiber-optic communication interfaces; compatible with the same 5MVA ACS6000 inverter cabinets.

Differences

The S-053M standard version features standard-capacity snubber circuits, designed for smooth loads such as fans and water pumps. The S-053H is equipped with upgraded capacitors and clamping diodes, specially engineered for shock loads with frequent start-stop cycles including rolling mills and hoists, delivering superior instantaneous overload resistance.

Comparison 2: S-073M High-Power 7MVA Phase Module

Similarities

Unified water cooling structure, fiber-optic drive design and module disassembly/assembly procedures; compatible control signal protocols.

Differences

Rated power of 7MVA for high-capacity ACS6000 INU cabinets. Upgraded bus terminal dimensions and IGCT power chip specifications, and cannot be directly interchanged with S-053M.

Comparison 3: Standalone Power Units of ACS1000 Series

Similarities

Both are IGCT medium-voltage converter power modules sharing the same water cooling heat dissipation framework.

Differences

ACS1000 units adopt a three-level standalone cabinet structure without pull-out pluggable design, applicable to small-capacity drives ranging from 315kW to 5MW. There is no compatibility in hardware interfaces and main control programs with ACS6000 S-053M, and spare parts cannot be cross-replaced.

Supporting Products

ACS6000 INU-05 Inverter Cabinet (standard mounting carrier for modules)

WCU Water Cooling Unit: closed-circuit circulating cooling set equipped with deionized water filter cartridges

CBU DC Bus Capacitor Cabinet, including pre-charge & discharge switches and earthing protection devices

COU Control Cabinet: AMC main control boards and fiber-optic drive transceiver cards

LSU Diode Input Rectifier Unit / ARU Active Rectifier Unit

VLU Voltage Limiting Protection Unit and RC snubber absorption kits

Original dedicated lifting tools, insulated earthing kits and water cooling sealing gaskets

AF100/Profibus communication adapters and CDP312 drive operation control panels

FAQ

Q1: Are there alternative part numbers for module 3BHB012897R0007?Can modules of different revisions be directly replaced?

A1: Modules of the same model with different revision batches (R0003/R0007) feature fully consistent mechanical and electrical parameters and are directly interchangeable. Only model S-053H can serve as an alternative for impact loads. Other S-series modules with different power ratings are incompatible and must not be mixed.

Q2: What is the standard troubleshooting sequence for module overtemperature alarms?

A2:Check the inlet water flow of the water cooling system and whether the filter is clogged.

Verify wiring of fiber-optic cables connected to NTC temperature sensors.

Measure busbar load current to confirm long-term overrated operation.

Disassemble the module and inspect cooling channels for limescale blockages.

Q3: Does the entire phase module need to be replaced when a fiber-optic communication fault alarm occurs?

A3: Replace fiber-optic cables and clean fiber end faces first, and check for faulty main control transceiver cards. Complete phase module replacement is only required if the fiber interface base is cracked or the internal drive circuit is damaged.

Q4: What is the maximum number of S-053M modules that can be paralleled in one ACS6000 inverter cabinet for capacity expansion?

A4: A standard INU-05 cabinet adopts one module per single branch. Two S-053M modules can be installed in dual parallel branches to expand the unit output capacity up to 10MVA. Modules of the same model and batch must be matched for parallel connection.

Q5: What are the environmental storage requirements for the module? How to protect spare parts for long-term warehousing?

A5: Storage ambient temperature: 0℃ ~ 35℃; relative humidity below 70% without condensation.

For stock stored over 6 months, perform regular no-load power-on and water cooling circulation. Seal circuit boards with moisture-proof packaging to prevent oxidation of metal terminals.
