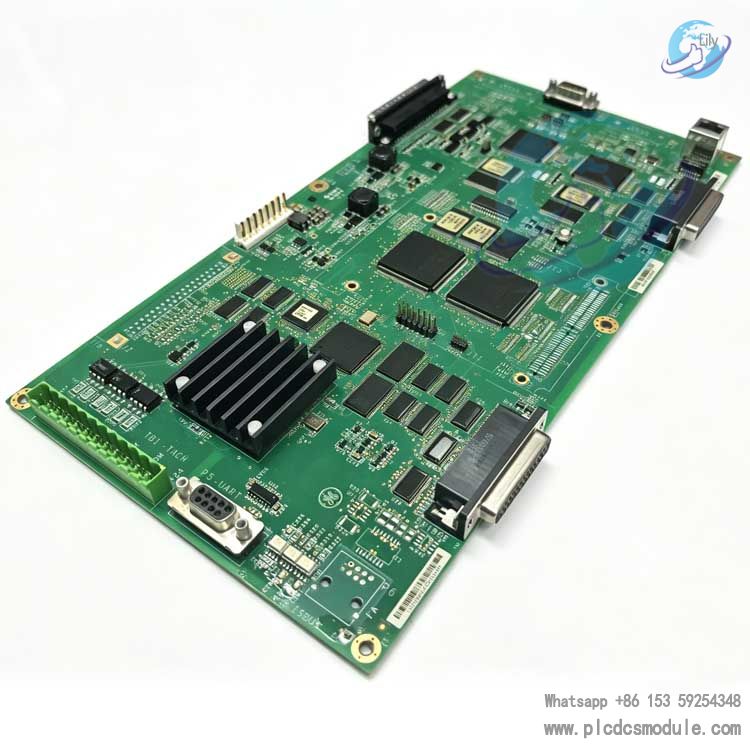

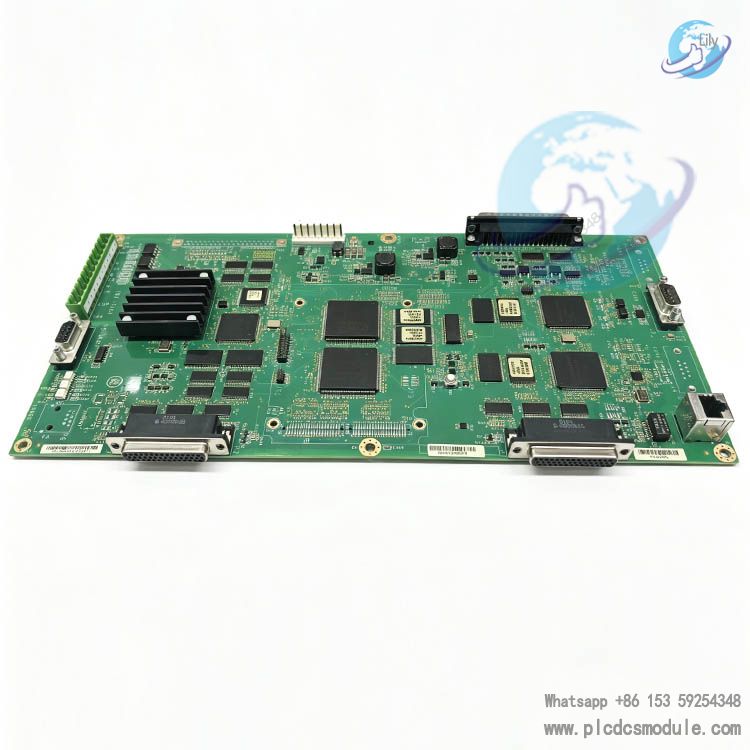

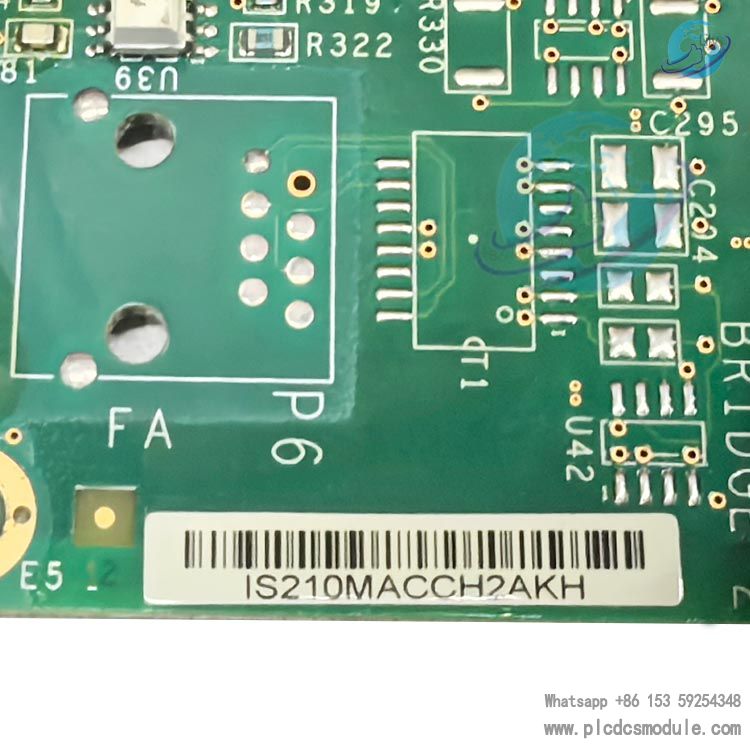

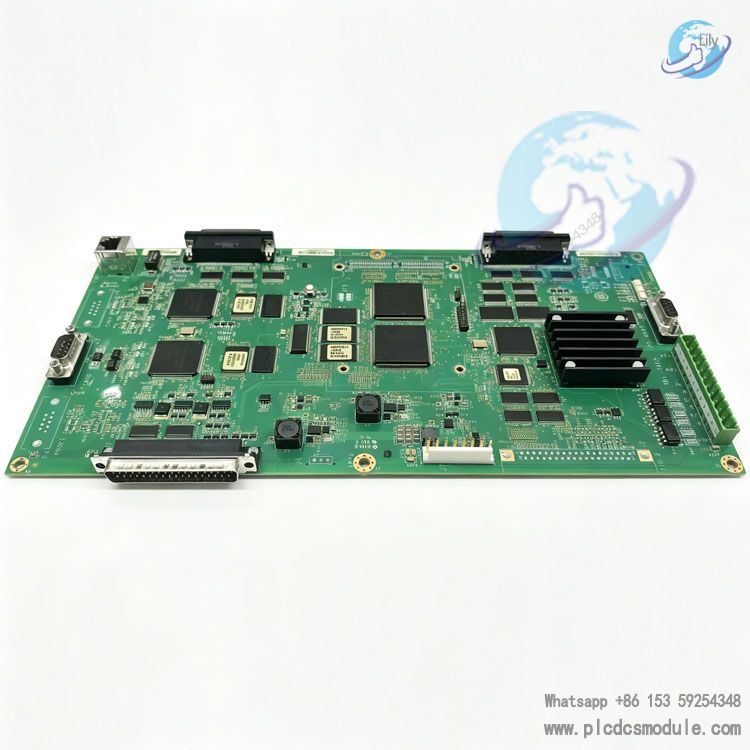

The IS210MACCH2AKH is a high-density communication I/O printed circuit board customized for the GE Speedtronic Mark VIe distributed control system. It belongs to the high-end MACCH series channel control motherboards and serves as the core signal interaction hardware for the TMR triple modular redundant control architecture of industrial units, widely deployed in the automatic control sector of large power equipment.
This industrial dedicated board card is equipped with dual-channel Gigabit Ethernet communication modules and integrated multi-channel integrated signal processing circuits for analog and digital quantities, featuring high hardware integration and strong compatibility. As the mid-tier core signal processing carrier of the Mark VIe control system, the device can accomplish all core tasks in one stop, including high-precision acquisition of on-site sensor signals, control logic operation, high-speed data exchange via backplane bus, and stable transmission over redundant networks. It bridges data transmission channels between the control system and field equipment, ensuring accurate delivery of unit control commands and real-time feedback of operational data.
Model Code Decoding
IS210MACCH2AKH full coding breakdown, complying with the unified naming standard for GE Mark VIe series boards
- IS210: Product series prefix, representing the general I/O and communication backplane category for Mark VIe platform
- MACCH: Functional acronym derived from Multi Analog Channel Communication High-density, denoting high-density multi-analog-channel communication board
- 2: Hardware revision number, the second optimized circuit version with improved network bandwidth and channel isolation performance compared with the first generation
- A: Basic hardware configuration code, standard channel layout variant
- KH: Suffix differentiation code, indicating the dedicated variant equipped with redundant Ethernet ports and compatible with heavy-duty gas turbine TMR racks, to distinguish it from other interface versions such as AEG and AEC within the same series
Product Features
Hardware Specifications
- Power supply: 24V DC, total power consumption ≤5W
- Integrated multiple differential analog input channels and digital discrete I/O channels per single board
- Analog signal acquisition compatible with 4–20mA, 0–10V, thermocouple and RTD signals; 24-bit high-precision analog-to-digital conversion
- Dual 10/100/1000BASE-TX Ethernet ports, supporting industrial communication protocols including TCP/IP and IPsec
- High-speed parallel data exchange via backplane bus; single-cycle signal response time ≤10ms
- Ingress protection rating: IP20, mountable on standard DIN rail racks
- Net weight: 0.24kg; dimensions: 148mm × 103mm × 32mm
- Operating ambient humidity: 5%–95% non-condensing
Functional Characteristics
- Flexible configuration supporting simplex redundancy, dual redundancy and TMR triple modular redundancy system topologies
- Independent programmable signal filtering, range scaling and wire break detection for each channel
- Independent hardware safety trip loop to output protection commands rapidly upon unit abnormal conditions
- Cross-board data synchronization mechanism to guarantee consistent signal timing across triple redundant channels
- Firmware locally stored in on-board flash memory, supporting online non-stop firmware upgrade
- Automatic bypass for faulty channels; failure of a single channel will not disrupt normal operation of other channels
Product Advantages
- Compatible with triple modular redundancy (TMR). The board can be directly installed into TMR three-channel control racks and supports 2-out-of-3 signal voting logic, eliminating the risk of unit shutdown caused by single-channel hardware failure.
- Dual-port hardware-accelerated communication architecture with independent Ethernet processing chips reduces the computing load of the main controller CPU and ensures millisecond-level real-time transmission of control data.
- Full-channel optoelectronic isolation design with a channel-to-ground isolation voltage of 1500 V AC. It effectively suppresses electromagnetic interference generated by power plant inverters and high-power motors and improves the accuracy of collected signals.
- Built-in full-link hardware self-diagnostic routines monitor power supply, communication links and channel component status in real time, enabling precise fault location and shortening on-site troubleshooting time.
- Wide stable operating temperature range: operating temperature from -10°C to 60°C, storage temperature from -25°C to 70°C, suitable for temperature-variable environments such as power plant control rooms and outdoor auxiliary control cabinets of generating units.
- Single-slot compact board design for plug-in mounting on standard rack backplanes without extra wiring modification; compatible replacement for both new and legacy Mark VIe systems.
- Fully compatible with ToolboxST configuration software. All channel parameters, communication protocols and filter thresholds can be batch-configured with one click via software, eliminating the need for hardware jumper adjustments.
- Compliant with CE and UL industrial safety standards. Constructed with surface-mount solid-state components, it features vibration resistance, dustproof and moisture-proof performance for long-term continuous operation in energy industrial applications.
Product Comparison
- IS210MACCH2AKHHigh-density analog channels + dual Gigabit redundant Ethernet ports. Designed for main control of TMR heavy-duty gas turbines. Focuses on high-precision signal acquisition from numerous measuring points and supports triple modular redundant architecture.
- IS210MACCH2AEGBasic single-Ethernet communication variant with half the number of channels. Applied to simplex redundant systems of small turbines. Features lower cost and lacks hardware support for triple modular redundancy.
- IS210AEDBH SeriesBridge interface boards solely for signal transfer between backplanes and terminal boards. Equipped with no independent Ethernet communication and incapable of logic calculation.
- IS215UCVGM Main Controller BoardCore system computing unit without field I/O acquisition channels. Only executes global control algorithms and must work in conjunction with MACCH series signal boards.
Matching Supporting Products
- IS215UCVGM Series Mark VIe System Main ControllerCore unit for overall logic computation, exchanging acquired signals with this board via backplane bus.
- IS200SPROS1A Rack Terminal BoardAdapter carrier for field sensor cables, consistent with the channel terminal definition of this board.
- IS200PSVOH1A System Power ModuleDelivers stable 24V DC power supply to sustain continuous board operation.
- Industrial Redundant SwitchCompatible with dual Ethernet ports to build dual-link redundant communication networks.
- ToolboxST Configuration SoftwareSpecial upper computer program for hardware configuration, parameter commissioning and firmware upgrade.
- TMR Triple Modular Redundant Control RackStandard slot rack enabling three-channel hardware redundant layout.
- Signal Isolation TerminalsMatched for long-distance field sensors to provide secondary reinforcement against electromagnetic interference.
- Spare Flash Memory Chips for BoardsFor local firmware backup and program re-flashing after faults.
Frequently Asked Questions
Q1: Can suffix KH and AEG versions be directly interchanged during procurement?A1: They cannot be used interchangeably. The KH variant is equipped with dual redundant Ethernet ports and more channels, and is designed for TMR triple redundant racks. The AEG is a simplified single-port version. Although their physical slot interfaces are identical, their communication hardware is incompatible. Mixed installation will cause failure of redundant links. You must strictly match the original suffix model of the unit when placing orders.
Q2: Is this board compatible with special voltage conditions of overseas power stations?A2: The board adopts a unified 24V DC power supply standard, compatible with auxiliary power supply systems of power stations worldwide without additional voltage conversion modules. Only power modules certified to meet local standards are required for matching.
Q3: How to troubleshoot when the communication red light of the board flashes continuously during operation?
A3:
Step 1: Check for loose Ethernet cable connectors or faulty switch ports on both network ports.
Step 2: Use configuration software to verify whether the board firmware version mismatches the main controller.Step 3: Clean the oxidized layer on the gold fingers of the backplane slot and re-seat the board.If the above steps fail, the on-board communication chip is defective and spare part replacement is required.Q4: How to resolve severe drift and fluctuation of acquisition values on a single channel?A4: First, check whether the shielding grounding of the field sensor complies with specifications. Second, increase the digital filtering parameter of the channel in ToolboxST software. Third, inspect terminal block wiring for loose connections. If abnormalities persist, the single-channel circuit is damaged; switch to the redundant channel temporarily.
Q7: Can this board be pulled out and replaced separately while the unit is running?A7: Hot swapping is not supported. Mark VIe rack hardware has no live insertion/removal protection circuits. Hot plugging will short-circuit the backplane bus and trigger unit control protection tripping. Cut off the entire 24V power supply before replacement.
