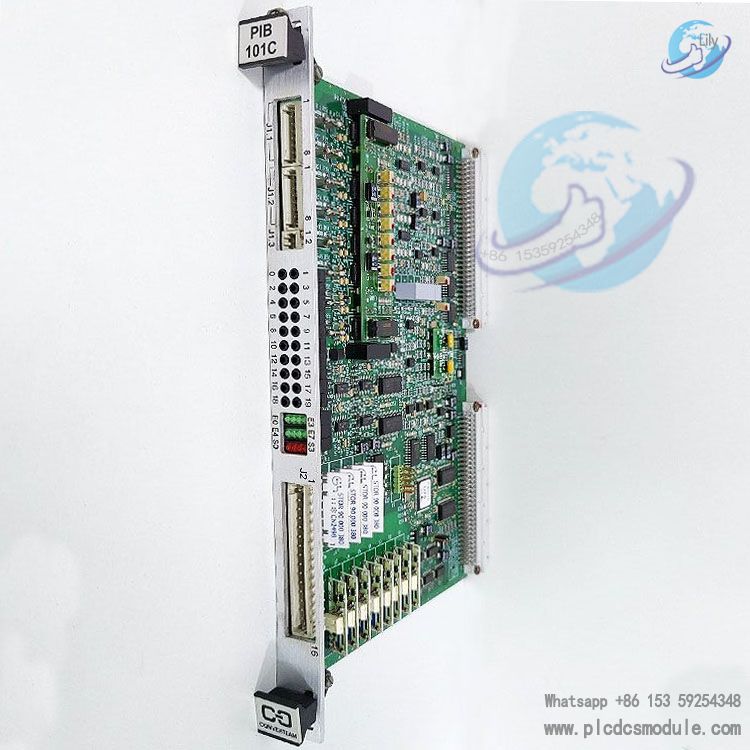

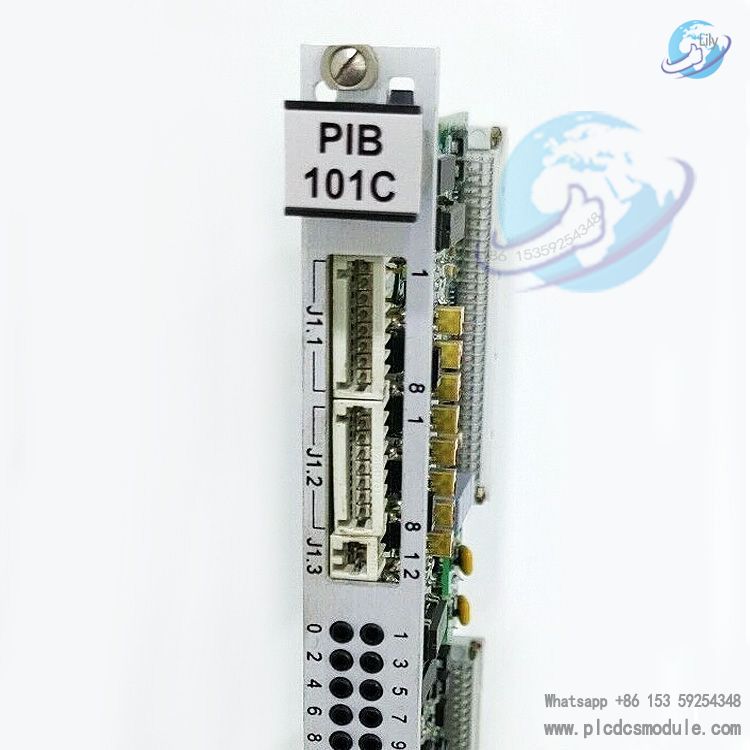

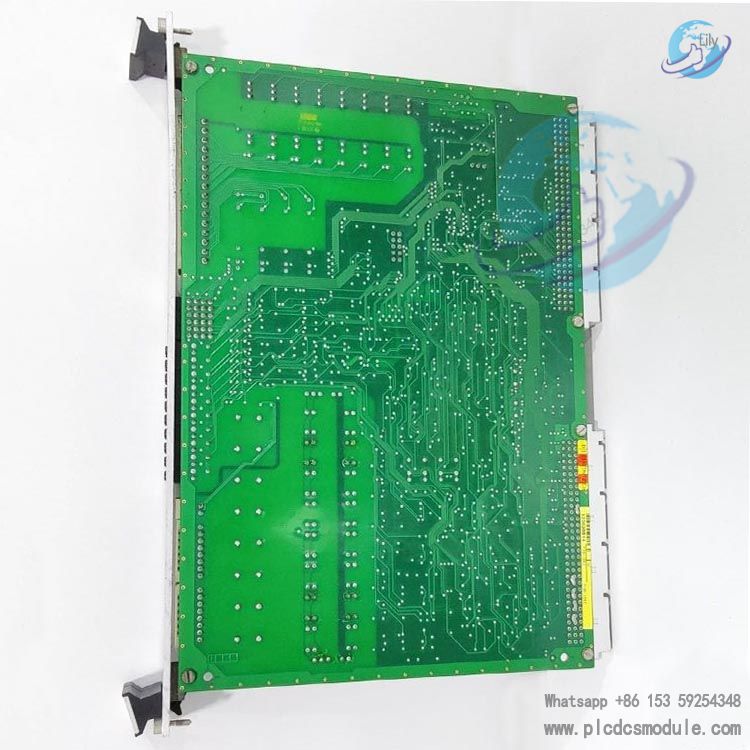

GE CONVERTEAM PIB-101C is a hybrid I/O module integrating power supply interface and analog signal processing. It belongs to the ALSPA field distributed control hardware architecture and undertakes three core functions: analog signal acquisition from field sensors, analog output of control commands, and power distribution for modules inside the cabinet.
This hardware features a standardized rack-mount hot-pluggable structure, suitable for high-electromagnetic-interference industrial scenarios including high-power drives, thermal power plants, and marine propulsion systems. It supports simultaneous connection of voltage-type and current-type analog instruments as well as 24V digital switching signals, serving as the core board for field signal access in distributed control systems.
Technical Features
Multi-channel mixed signal integration: 8 isolated differential analog input channels, 8 analog output channels, 8 isolated 24V digital input channels and 4 isolated 24V digital output channels. A single module covers both analog and digital field signals.
Full-channel electrical isolation design. Insulation isolation is implemented between individual channels as well as between the module and the system backplane. It withstands high-frequency electromagnetic interference and voltage surges at industrial sites, reducing the likelihood of signal drift and data distortion.
Software-adaptive signal ranges. Analog channels support four signal specifications: 0~10V DC, ±10V DC, 4~20mA and ±20mA. Switching between ranges is completed via upper computer configuration software without modifying hardware jumpers.
High-precision ADC/DAC conversion with dynamically adjustable resolution from 12-bit to 16-bit. 16-bit resolution is selected for low-speed monitoring scenarios to ensure detection of tiny signals, while 12-bit resolution is adopted for high-speed control scenarios to boost response speed.
Wide-temperature industrial adaptability. Operating ambient temperature ranges from 0°C to 60°C, and storage temperature ranges from -40°C to 85°C. It is suitable for sites with drastic temperature fluctuations such as outdoor auxiliary equipment compartments, ship cabins and high-temperature boiler rooms.
Low power consumption with total module power below 10W. Dense multi-module rack mounting will not cause local heat accumulation, cutting investment in auxiliary heat dissipation equipment.
Part Number Breakdown
Segment-by-segment interpretation of full code PIB-101C:
- PIB: Series code, full name Power Interface Board. It represents modules of this series with dual functions of power distribution and process signal acquisition, distinguishing them from pure I/O boards and pure communication boards.
- 101: Function channel configuration code. The first digit "1" stands for 1 main power distribution circuit; the middle digit "0" means no independent extended power branch; the last digit "1" indicates basic analog signal processing channel configuration.
- C: Mechanical enclosure suffix, short for Compact. It marks a compact form factor designed for dense slot installation in standard 19-inch control cabinets, saving rack mounting space compared to standard-sized modules of the same series.
Product Characteristics
Tool-free hardware plug-in design with latch-type guide rail mounting. Maintenance and replacement do not require disassembly of the entire wiring terminal block, shortening downtime for overhaul.
Built-in real-time hardware diagnostic unit. Onboard status LEDs distinguish four types of abnormalities: power failure, channel short circuit, communication interruption and out-of-range signals. No external test equipment is required for fault location.
Modular expansion compatibility. The same backplane base can be mixed with other functional boards in the PIB series. The number of input and output channels can be expanded without replacing the rack base.
Standard backplane bus communication. Natively compatible with self-developed field control buses of CONVERTEAM and ALSTOM. It directly exchanges data with the system master controller without additional protocol conversion modules.
Corrosion-resistant PCB conformal coating. The circuit board surface is covered with a moisture-proof and oil-resistant protective coating, supporting long-term operation in corrosive environments such as chemical plants and marine vessels.
Unified wiring terminal base with dedicated wiring backplanes. Terminals are divided for analog signals, digital signals and power supply circuits to achieve clear wiring zoning and lower the risk of wiring errors.
Application Fields
Thermal Power Plants & Gas Turbine Generator Units
Collect analog signals including turbine temperature, oil pressure, vibration and steam pressure; output control signals for regulating valves and excitation equipment.
High-Power Industrial Drive Systems
Support rolling mills, mine hoists and large fan frequency converters. Monitor analog parameters such as motor current, torque and rotational speed, and output speed regulation control commands.
Marine & Offshore Propulsion Systems
Realize monitoring of marine main engines and generator sets on offshore drilling platforms, capable of operating under harsh cabin conditions with high humidity and intense vibration.
Substation & Distribution Network Automation
Acquire signals from bus voltage and current transformers, and output analog control signals for reactive power compensation and voltage regulation devices.
Chemical Process Production Lines
Receive signal inputs from pressure, flow, liquid level and temperature sensors, and regulate actuators including control valves and variable-frequency pumps.
Operating Principle
The module consists of four core circuit units working in coordination: power distribution unit, analog signal conversion unit, digital signal isolation unit, and backplane bus communication processing unit.
24V DC power from the external cabinet is fed into the module’s power distribution unit. After voltage regulation and filtering, one branch supplies power to the module’s internal signal conversion circuits, while the other branch outputs power to other I/O boards within the same rack to realize power distribution for all cabinet modules.
Analog voltage and current signals generated by field sensors are sent to the analog signal conversion unit. Isolation operational amplifiers eliminate interference caused by ground potential differences on site. An ADC then converts continuous analog quantities into digital signals and transmits them to the communication processing unit. Digital regulation commands issued by the main controller are restored to standard analog output signals via a DAC to drive field actuators.
Field 24V digital switching signals pass through opto-isolation circuits to filter interference and are converted into digital switching signals recognizable by the control system.
All collected digital data and module fault diagnostic information are aggregated into the backplane bus communication processing unit. Data is packaged in compliance with the ALSPA bus protocol and transmitted to the system main control CPU. Meanwhile, the unit receives channel configuration parameters and output control commands sent down by the main controller, distributes them to the corresponding signal processing units for execution, and completes the full closed-loop control flow of field signals.
Product Comparison
| Comparison Item | PIB-101C | PIB-100G | PIB-201A | PIB-315B | PIB-504 |
|---|---|---|---|---|---|
| Core Function | Mixed analog & digital I/O plus power distribution | Basic power interface, digital input only | High-power power management board for drive circuit power distribution | Pulse signal acquisition board for speed-regulating pulse processing | Fiber-optic bus communication interface card |
| Analog Channels | 8 analog inputs, 8 analog outputs | No analog channels | No analog channels | No analog channels | No I/O channels, communication only |
| Applicable Scenarios | General process monitoring, generator units | Digital signal monitoring for simple auxiliary equipment | Power supply management for high-power frequency converters | Pulse speed measurement for rolling mills & mine hoists | Long-distance fiber-optic bus extension |
| Enclosure Specification | Compact C form factor for standard slots | Standard regular size | Extended high-power slot | Standard slot | Standard slot |
| Isolation Grade | Full-channel isolation | Digital channel isolation only | Power circuit isolation only | Pulse channel isolation only | Opto-isolation for communication ports |
