6SL3912-5AP36-0AA0 SIEMENS IGBT PowerCard

Overview

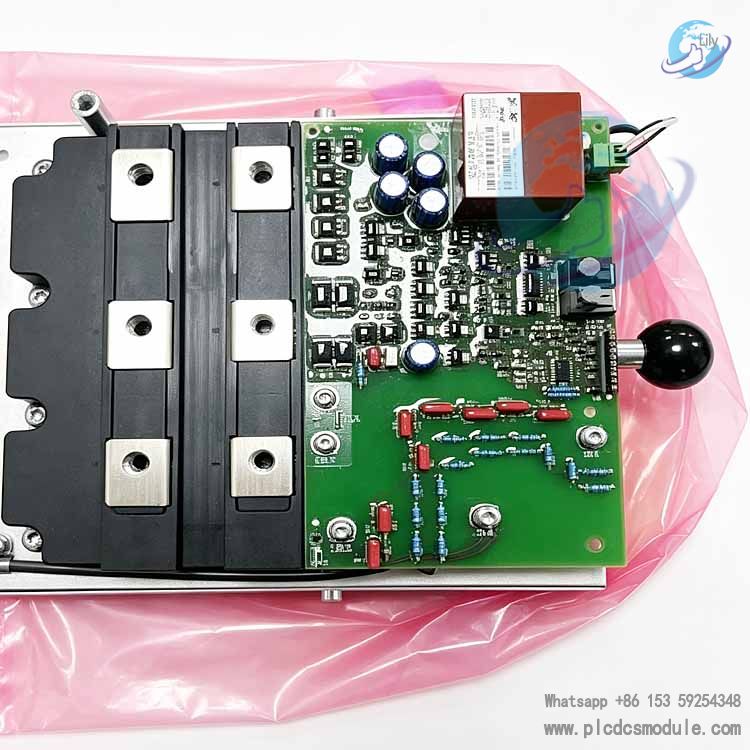

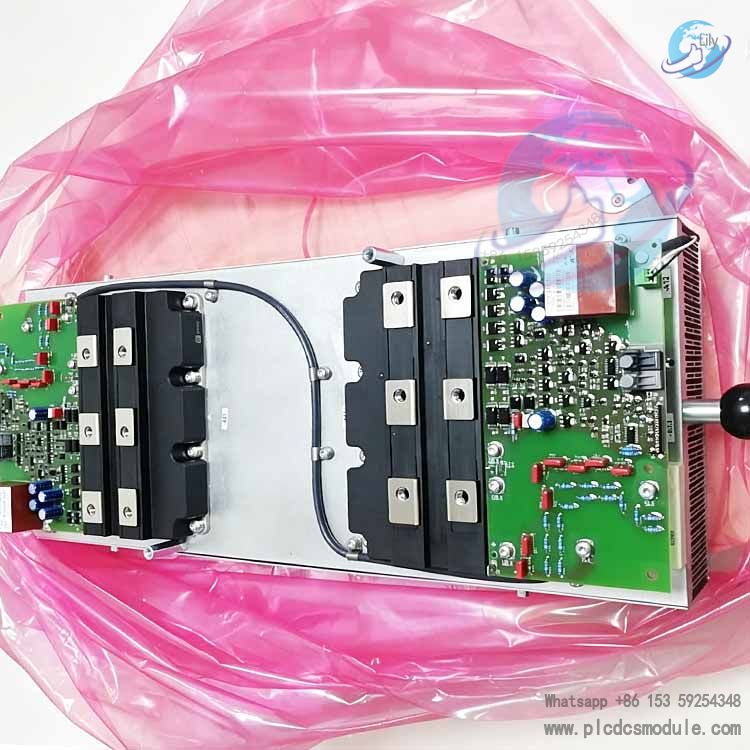

6SL3912-5AP36-0AA0 is SIEMENS IGBT PowerCard, a paired water-cooled IGBT power assembly suitable for SINAMICS GM150 / SM150 IGBT-type medium voltage drives. Equipped with FZ1200 power semiconductor, 6SL3912-5AP36-0AA0 supports a maximum operating voltage of 4.16kV and maximum continuous current of 800A, acting as a core power spare part for medium voltage transmission systems. The assembly is installed in pairs and dissipates heat via water cooling circuits. Fiber optic links provide galvanically isolated signal transmission between high voltage and control circuits to manage power switching, operating data collection and fault monitoring. 6SL3912-5AP36-0AA0 cannot operate independently and must be mounted inside matched power cells cooperating with the main control system. It is widely used for maintenance replacement of high-power fans, pumps and compressor drive units.

Technical Specifications

MLFB Part No.: 6SL3912-5AP36-0AA0

Product Name: IGBT PowerCard (supplied as one pair)

Compatible Units: SINAMICS GM150 / SM150 IGBT Version

Power Semiconductor: FZ1200

Cooling Type: Water-cooled

Max Operating Voltage: 4.16kV

Max Continuous Current: 800A

Signal Interface: Fiber optic communication interface

Installation Method: Drawer mounting inside power cell

Insulation Design: Galvanic isolation between power and control circuits

Configuration: 2 pieces IGBT power cards per set

Product Lifecycle: Production discontinued on 15.05.2023, available as surplus spare

Compliance: CE standard for industrial drive equipment

Core Functional Advantages

6SL3912-5AP36-0AA0 adopts integrated structure, integrating IGBT chips, drive circuits and monitoring circuits on a single board to simplify internal wiring of power cells. Fiber optic communication eliminates electromagnetic interference generated by high voltage loops and improves long-term system stability. Water cooling system stabilizes junction temperature under heavy loads and slows thermal aging of power semiconductors. Built-in multi-layer hardware protection monitors overcurrent, overtemperature and DC bus abnormalities, and transmits fault signals to the main controller instantly. Standard mechanical interface unifies on-site disassembly procedures to shorten equipment downtime. The power card supports comprehensive operation feedback, enabling maintenance staff to locate power circuit faults through monitoring software.

Product Features

6SL3912-5AP36-0AA0 is delivered as a matched pair and cannot work as a single unit. Trench field-stop IGBT chip reduces switching loss and ensures high energy conversion efficiency. Optimized substrate provides enhanced thermal cycling resistance. Built-in short-circuit current limiting function lowers risks of component damage caused by transient faults. Sufficient creepage distance and clearance meet insulation requirements for medium voltage applications. Onboard temperature sensors continuously collect device temperature data. Mechanical outline fits standard power cell slots of GM150/SM150 without cabinet modification. Vibration-resistant structure adapts to harsh working environments in petrochemical, mining and metallurgical industries.

Application Fields

Medium voltage variable frequency drive systems for large process pumps and compressors in petrochemical industry

Induced draft fans, primary air fans and circulating water pump transmission units in thermal and hydropower plants

High-power medium voltage drive equipment for blast furnace blowers and dedusting fans in metallurgy

Drive converters for main drainage pumps and belt conveyors in mining sites

Medium voltage motor speed regulation systems for municipal water supply and sewage pumping stations

High-power drive assemblies for kiln tail fans and raw material mills in cement production lines

Operation Guide

1. Shutdown Process: Cut off high and low voltage power of SINAMICS GM150/SM150 drive. Complete DC bus discharge until voltage reaches safe level and hang maintenance warning signs.

2. Circuit Pressure Relief: Release pressure inside the cooling water circuit to avoid coolant leakage while removing 6SL3912-5AP36-0AA0.

3. Wiring Disconnection: Unplug fiber optic cables, loosen power busbar bolts and unlock the drawer-type power cell.

4. Component Replacement: Remove defective power card, clean contact surfaces, install new 6SL3912-5AP36-0AA0 and fasten water cooling joints and power terminals evenly.

5. Wiring Recovery: Reconnect fiber optic connectors and lock them securely. Check all electrical terminals are tightened to specified torque.

6. Leakage Inspection & Commissioning: Restore cooling water pressure and check for leakage. Perform insulation test before power-on, run no-load test and monitor temperature and current signals of the power card.

7. Load Test: Gradually increase load after stable no-load operation and continuously track all operating parameters of 6SL3912-5AP36-0AA0.

Working Principle

The main drive controller sends driving pulse signals to 6SL3912-5AP36-0AA0 via fiber optics. Isolated drive circuits control the turn-on and turn-off of built-in IGBTs to convert DC power into adjustable-frequency AC power. During operation, 6SL3912-5AP36-0AA0 continuously collects current and temperature data and feeds back signals to the main control system. Cooling water circulation removes heat generated during IGBT switching and keeps chip junction temperature within safe range. Once overcurrent, overtemperature or other abnormalities are detected, internal hardware circuits immediately block IGBT driving pulses and trigger system protection to prevent module breakdown and DC bus short-circuit faults.

Comparison with Similar SIEMENS Products

The air-cooled model 6SL3912-0AP36-0AA0 is also compatible with GM150/SM150 with rated maximum current of 600A, suitable for medium-power equipment installed in well-ventilated control rooms. 6SL3912-5AP36-0AA0 adopts water cooling design with upgraded 800A continuous current rating, offering stronger continuous load capacity for high-power units running under full load for long periods. Two models have similar overall dimensions but incompatible cooling interfaces and cannot be interchanged directly. Another water-cooled power card 6SL3912-5AP34-0AA0 supports maximum 400A current for lower-load drive cells. Drive firmware parameters differ among these models, so parameter verification is required after replacement.

Our Supply Advantages

We maintain ready stock of 6SL3912-5AP36-0AA0 to respond rapidly to emergency on-site equipment repairs. Complete visual inspection and power-on testing services are available with test records provided upon shipment. Partial delivery can be arranged to match phased maintenance schedules. With rich experience supplying medium voltage drive spare parts, we can provide matched power cards and drive boards simultaneously. Stable after-sales support and professional technical team assist customers with model verification and installation guidance. Old component exchange solutions can be offered to reduce overall maintenance costs.
