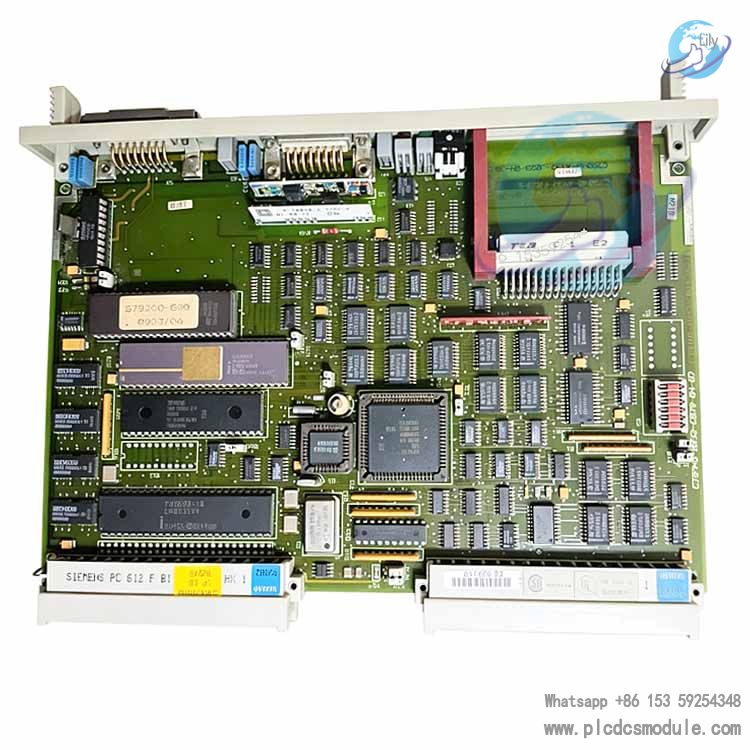

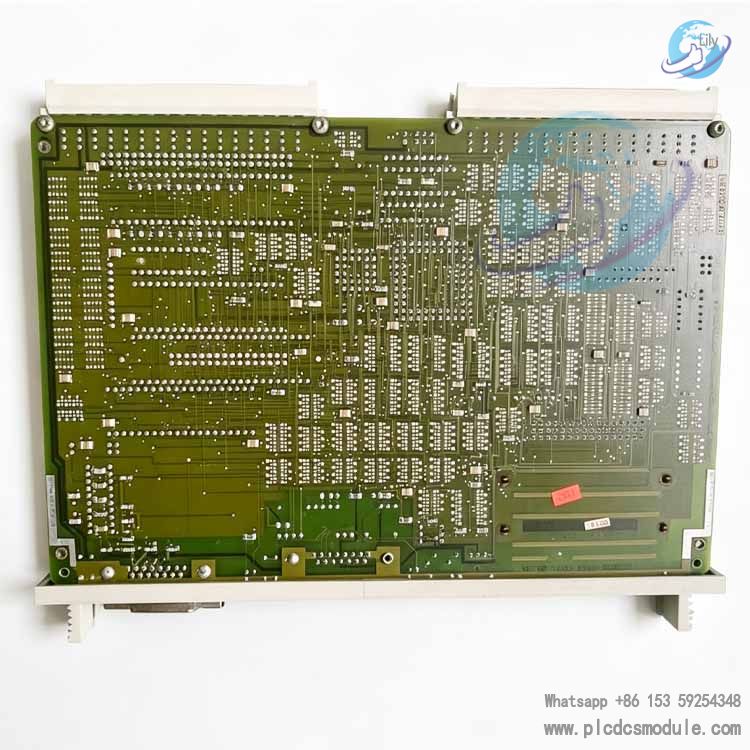

SIEMENS 6GK1143-0AA01 CP143 TF Interface Module

Overview

SIEMENS 6GK1143-0AA01 (CP143 TF) belongs to SINEC H1 series interface module, which serves as an Ethernet communication component dedicated to SIMATIC S5 control systems. 6GK1143-0AA01 establishes stable data transmission tunnels between SIMATIC S5 PLC and industrial Ethernet. It completes data interaction between controllers, upper monitoring equipment and other automation nodes via AP protocol and TF protocol. This rack-mounted plug-in card fits retrofitting projects of legacy S5 automation systems, and it is the core spare part to realize network communication for existing SIMATIC S5 devices.

Technical Specifications

Model: 6GK1143-0AA01

Product Name: CP143 TF SINEC H1 Interface Module

Applicable System: SIMATIC S5 PLC

Communication Standard: SINEC H1 Ethernet

Supported Protocols: AP protocol, TF protocol

Hardware Port: AUI Ethernet interface

Power Requirement: External 15V DC power supply required, no built-in power unit

Installation Type: Slot mounting on S5 rack backplane

Operating Ambient Temperature: 0℃ ~ +60℃

Storage Temperature: -25℃ ~ +70℃

Protection Level: Industrial board for cabinet installation

Dimension: Standard S5 card form factor

Communication Mode: Peer-to-peer data transmission, program upload & download, remote data read and write

Core Functions & Advantages

6GK1143-0AA01 expands Ethernet communication capacity for SIMATIC S5 controllers and removes the restriction that traditional S5 devices only support local programming. Equipped with an independent communication processing chip, 6GK1143-0AA01 processes communication tasks independently without occupying operation resources of S5 CPU, so the stability of control programs can be guaranteed. The hardware can be installed on all mainstream SIMATIC S5 racks, and system upgrading does not require replacing the whole control system. The module supports two transmission modes including periodic data exchange and on-demand communication, which adapts to process data collection, remote program debugging and other scenarios. Reliable continuous operation meets the demand of non-stop production for upgraded metallurgy and power production lines.

Product Features

Standard S5 rack card structure, which can be directly inserted into S5 backplane slots for simple installation.

Independent communication processor separates communication loads and PLC control tasks.

Native support for AP and TF protocols without extra protocol conversion hardware.

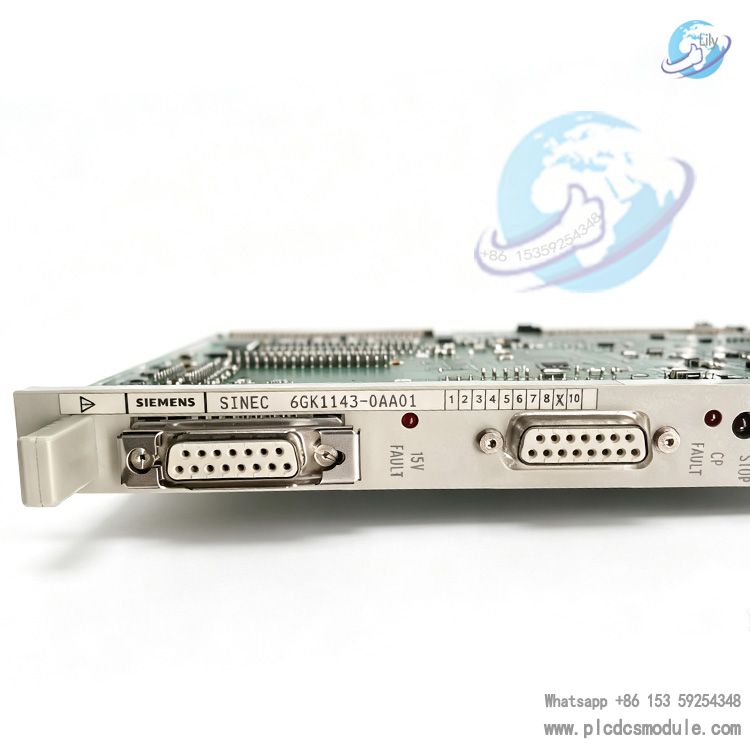

Built-in status LED indicators for intuitive diagnosis of communication link, power supply and module running faults.

Equipped with standard AUI Ethernet port, and it can connect to coaxial Ethernet network with external transceiver.

Adopts industrial-grade electronic components to resist temperature fluctuation and electromagnetic interference inside control cabinets.

Supports multi-station networking to connect multiple SIMATIC S5 control systems through SINEC H1 network.

Application Fields

Retrofit project of auxiliary machinery control systems in power plants

Network upgrading for SIMATIC S5 equipment on metallurgical production lines

Remote monitoring transformation of chemical facilities equipped with legacy S5 PLC

Data acquisition for traditional automation production lines in papermaking and cement industries

Communication capacity expansion of legacy railway signal control systems

Information interconnection of early PLC systems in water treatment industry

Spare part replacement and maintenance scenarios for factories operating SIMATIC S5 equipment

Operation Guide

Step 1: Under power-off status, insert 6GK1143-0AA01 steadily into the idle slot of SIMATIC S5 rack. Confirm full engagement with backplane connector and lock the module buckle.

Step 2: Connect external 15V DC power cables to module terminals, and wire AUI Ethernet cable or external AUI transceiver.

Step 3: Switch on power and check module LED indicators to confirm normal power supply without hardware alarms.

Step 4: Complete parameter configuration for 6GK1143-0AA01 through corresponding SIMATIC programming software, configure station address, communication protocols and data exchange areas.

Step 5: Download configuration parameters to the module, establish network connection and test data sending and receiving between PLCs or between PLC and host computer.

Step 6: Keep continuous trial run and observe communication status indicators to ensure sustained and stable data transmission.

Working Principle

6GK1143-0AA01 acts as an independent communication gateway to forward data between SIMATIC S5 backplane bus and SINEC H1 Ethernet. S5 CPU transmits outbound data to the cache area of 6GK1143-0AA01 via backplane bus. The onboard communication processor encapsulates data packets according to AP/TF protocols and transmits data through AUI interface. Instructions and data issued from external network will be decapsulated by the module and delivered to S5 CPU through backplane bus. The whole data interaction process is scheduled autonomously by the processor carried by 6GK1143-0AA01, realizing data isolation between control layer and network layer.

SIEMENS Peer Product Comparison

6GK1143-0AA01: CP143 TF, designed for SIMATIC S5, SINEC H1 Ethernet, AP/TF protocol, AUI interface, used for legacy S5 networking.

6GK1143-0TA01: Variant model of CP143. Differences exist in protocol configuration, and partial programs cannot be directly compatible with projects using 6GK1143-0AA01.

6GK7343 series: Suitable for SIMATIC S7-300, industrial Ethernet with TCP/IP protocol, unable to be mounted on S5 racks.

6GK7443 series: Designed for SIMATIC S7-400, supports PROFINET and Ethernet. Hardware structure and communication protocols cannot interwork with 6GK1143-0AA01.

6GK15 series: PC communication network cards for connection between computer and PLC. Not rack-mounted controller module and cannot replace 6GK1143-0AA01.

Compatible Matching Product Models

6ES5 S5 CPU Modules (6ES5944-7UA11, 6ES5946-3UA21)

6ES5 Power Supply Modules (6ES5951-7ND11)

AUI Ethernet Transceiver

SINEC H1 Coaxial Communication Cable

SIMATIC S5 UR / CR Rack

Programming Software: COM54, STEP5

Supply Advantages

We maintain spot stock of 6GK1143-0AA01 to rapidly respond to urgent spare part demands of legacy automation systems. Power-on function inspection service can be provided before shipment. Communication testing will be finished to reduce failure risks during field installation. Our team masters the overall architecture of SIMATIC S5 systems, so we can supply complete sets of S5 related cards in one-stop delivery. Long-term stock reservation is supported according to annual maintenance plans of factories. Basic technical consultation service is available to help clients verify hardware compatibility and configuration tips of 6GK1143-0AA01.

FAQ

Recommended SIEMENS Series Products

Technical Document Note

For configuration materials, refer to official SIEMENS SINEC H1 CP143 TF manual. STEP5 and COM54 can be adopted as debugging software. Save original communication configuration parameters of 6GK1143-0AA01 before spare part replacement. Anti-static protection must be taken during transportation and storage.
