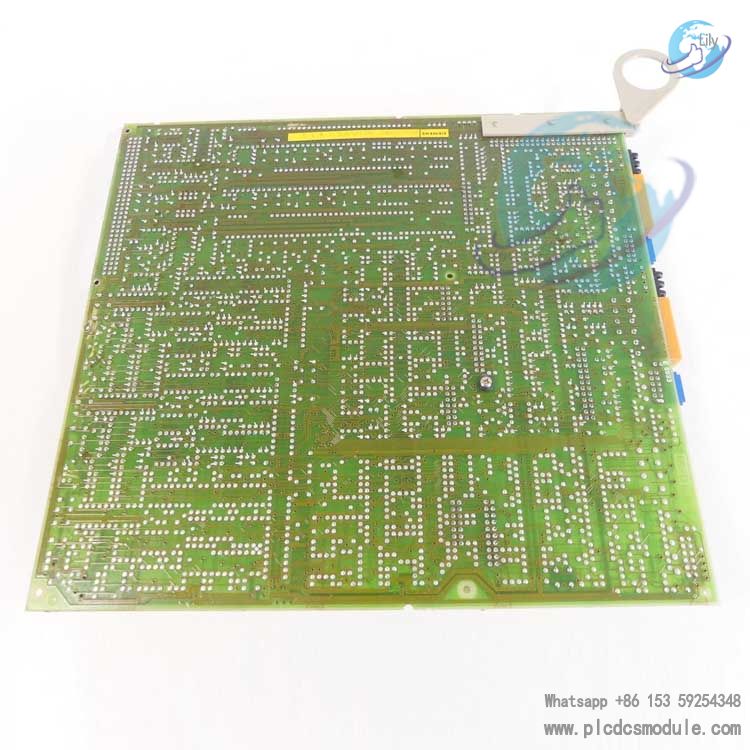

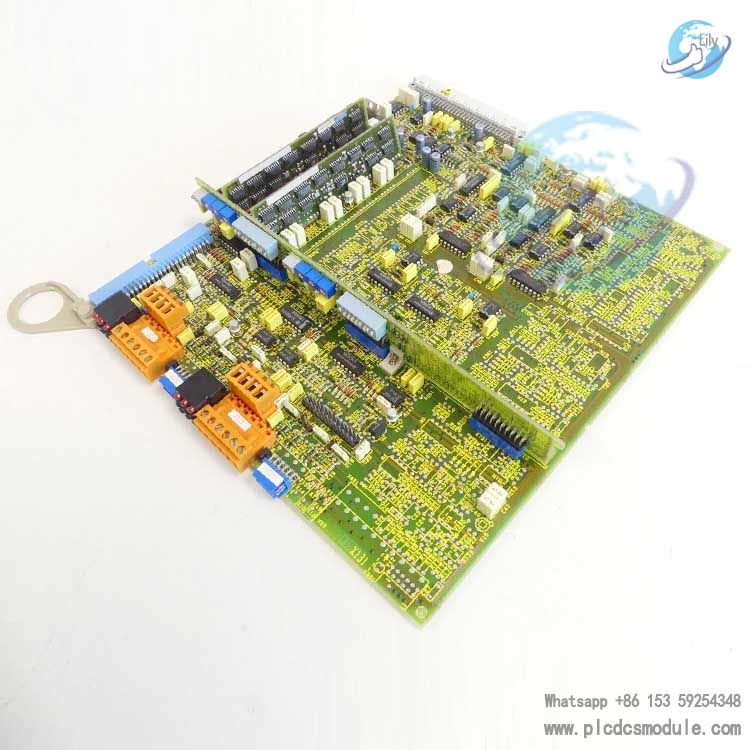

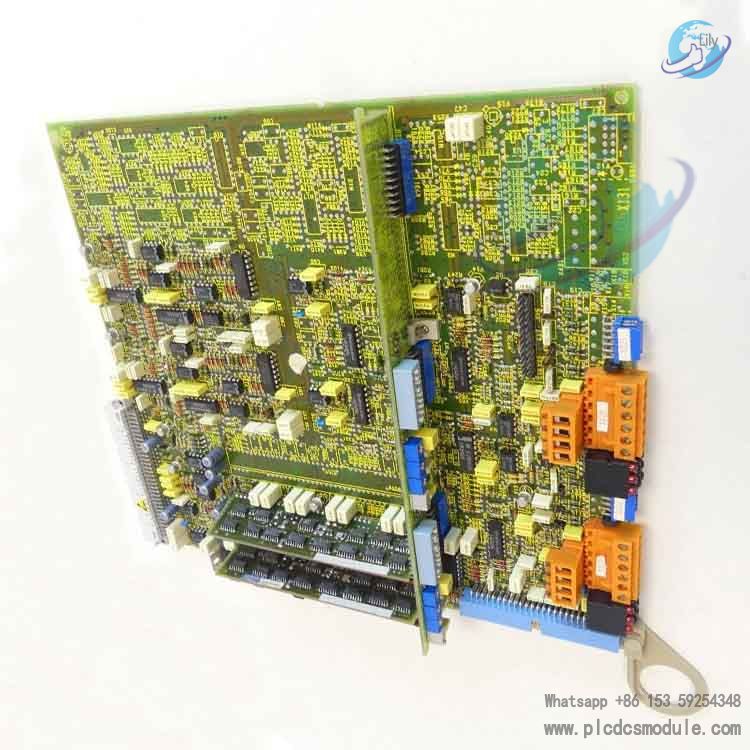

SIEMENS 6SC6100-0NA11 Axis Adjustment Card
Overview
SIEMENS 6SC6100-0NA11 is a dual-axis analog adjustment control board inside the SIMODRIVE 610 drive system, the core control component for legacy AC servo drive architecture. 6SC6100-0NA11 is equipped with analog closed-loop control circuits to support regulation of two servo axes simultaneously. It collects encoder feedback signals to complete closed-loop calculation of speed and torque, matching SIMODRIVE 610 AC frequency converter drive units. Widely used in renovation and spare part replacement of traditional CNC drive systems. With mature analog control architecture, 6SC6100-0NA11 can steadily match early three-phase AC servo motors, and it is one of the most commonly used industrial control boards for maintenance of existing industrial equipment.
Technical Specifications
Model: 6SC6100-0NA11
Description: Axis Adjustment Card
Series: SIMODRIVE 610 AC-FDD
Controlled Axes: 2 axes (analog closed-loop control)
Signal Type: ±10V analog command signal, incremental encoder feedback signal
Mounting: Rack plug-in installation
Operating Temperature: -10℃ ~ +50℃
Protection Class: IP20 (cabinet installation)
Weight: Approx. 1.0kg
Connector: Euro-style terminal connector, ribbon cable interface
Control Mode: Closed-loop speed control, closed-loop torque control
Compatible System: SIMODRIVE 610 AC servo drive system
Core Functional Advantages
1. 6SC6100-0NA11 integrates independent adjustment loops for two axes. Parameters of two channels can be set separately without mutual interference, supporting independent single-axis operation or dual-axis synchronized motion.
2. Complete analog closed-loop control circuit responds quickly to analog command signals, suitable for feed axis control of traditional machine tools requiring stable dynamic response.
3. Built-in hardware limit and current monitoring circuits. Operating status of drives is monitored in real time. Protection signals are triggered rapidly upon abnormalities to reduce damage risks of motors and power modules.
4. Standard plug-in structure simplifies assembly and disassembly, shortening downtime during emergency equipment repair and spare part replacement.
5. Full compatibility with existing SIMODRIVE 610 hardware. Large-scale circuit modification is unnecessary for renovation and spare replacement of legacy CNC systems.
Product Features
Multi-layer industrial PCB with industrial-grade components, strong immunity to power grid interference. All adjustment parameters are tuned by onboard potentiometers without software configuration. Separated layout of signal interfaces isolates power circuits and control circuits to minimize signal crosstalk. 6SC6100-0NA11 hardware architecture is designed for continuous operation under industrial working conditions. Onboard monitoring pins support external fault alarm collection. It complies with SIMODRIVE 610 modular standards, and rack positions are interchangeable with series boards.
Application Fields
Feed drive systems of traditional CNC milling machines and lathes; servo control systems of printing machinery; multi-axis transmission units for textile equipment; servo drives of automated conveying lines; metal stamping equipment; servo control units of legacy imported industrial robots; feeding systems of rubber and plastic molding machines; maintenance and upgrading of all existing automation equipment equipped with SIMODRIVE 610 drives.
Operation Guide
1. Power off the entire SIMODRIVE 610 drive unit completely and discharge residual voltage on DC link. Never plug or unplug 6SC6100-0NA11 under power.
2. Slide 6SC6100-0NA11 steadily into the drive rack along guide rails, lock fasteners, connect ribbon cables and signal connectors, confirm all connectors are fully engaged.
3. Wire encoder feedback cables and analog command cables from upper controller according to drawings, distinguish channel A and channel B of two axes to avoid reversed wiring.
4. Check short circuit risk before power supply. Tune gain, offset and speed limit parameters of two axes separately via onboard potentiometers after power on.
5. Conduct no-load trial run, observe axis smoothness and adjust closed-loop parameters to eliminate vibration. Complete load commissioning after successful no-load test.
6. Record all tuned parameters. Protect interfaces of 6SC6100-0NA11 against dust and moisture during long-term shutdown maintenance.
Working Principle
The upper CNC system transmits ±10V analog speed command to 6SC6100-0NA11. After receiving command signals, the board calculates closed-loop deviation via analog hardware circuits combining actual position and speed feedback from encoders. Regulated output signals are sent to drive power units to adjust output voltage and frequency for precise control of motor speed and torque. 6SC6100-0NA11 continuously samples drive current. Hardware protection will be activated and drive output cut off when current exceeds threshold to realize overload and stall protection. Two axes own independent closed-loop calculation channels to control two sets of servo motors separately.
Comparison with Same-brand Products
6SC6100-0NA11: Dual-axis analog adjustment board, hardware potentiometer parameter tuning, compatible with SIMODRIVE 610 analog drives, no digital communication interface, applicable for early analog CNC systems.
6SC6100-0SA11: Single-axis adjustment board supporting only one servo axis, commonly used for single spindle drive, fewer channels than 6SC6100-0NA11.
6SN series control boards: Designed for SIMODRIVE 611 digital drives, support bus communication and software parameter configuration with higher digitalization. Not compatible with 610 drive racks and cannot replace 6SC6100-0NA11.
6SC6100-0NA01: Early version dual-axis board with different hardware circuits and limited parameter adjustment range. Direct replacement for 6SC6100-0NA11 leads to commissioning differences.
Matching Product Model List
Power drive unit: 6SC6101-0AA00, 6SC6102-0AA00
Power supply module: 6SC6100-0GA12
Servo motor: 1FT5 series 3-phase AC servo motor
Encoder: TTL incremental encoder for SIMODRIVE 610 system
CNC Controller: Legacy SINUMERIK 810, SINUMERIK 820 analog control system
Our Supply Advantages
Sufficient stock of 6SC6100-0NA11 available for urgent equipment maintenance. Full function testing of 6SC6100-0NA11 including signal channel and closed-loop circuit inspection before delivery. Global logistics support. Professional technicians familiar with SIMODRIVE 610 system provide basic support for wiring and parameter tuning. One-stop supply of complete SIMODRIVE 610 modules. Stable supply schedule for long-term bulk purchasers.
FAQ
Q1: Can 6SC6100-0SA11 replace 6SC6100-0NA11 directly?
A1: No. 6SC6100-0SA11 is a single-axis board with different channel quantity and pin definition, which cannot be used as direct replacement of 6SC6100-0NA11.
Q2: Is 6SC6100-0NA11 compatible with SIMODRIVE 611 drive system?
A2: Incompatible. 6SC6100-0NA11 is developed exclusively for SIMODRIVE 610 AC drives. Rack structure and signal protocol differ from 611 series.
Q3: Axis vibrates continuously after powering 6SC6100-0NA11, how to troubleshoot?
A3: Check loose encoder wiring and shielding grounding first. Retune onboard gain potentiometers of 6SC6100-0NA11. Avoid parallel routing of analog command cables and power cables.
Q4: New spare parts are hard to source, how stable are refurbished 6SC6100-0NA11?
A4: Refurbished boards with PCB cleaning, component inspection and aging test can operate stably in industrial sites. Prioritize goods with test reports.
Q5: Can two axes on 6SC6100-0NA11 drive motors with different power ratings separately?
A5: Yes. Two channels are independent with separate parameter tuning, supporting two 1FT5 servo motors of different specifications.
Q6: Does 6SC6100-0NA11 support fieldbus control?
A6: No. 6SC6100-0NA11 is pure analog control board receiving only ±10V analog commands, without Profibus or other digital communication interfaces.
Q7: What are the installation prohibitions for 6SC6100-0NA11?
A7: Hot swapping is forbidden. Discharge DC link voltage before plugging. Do not touch electrolytic capacitors on PCB. Avoid dust and condensation in installation environment.
Q8: Only one axis has no output on 6SC6100-0NA11, common causes?
A8: Loose connector of corresponding channel, damaged computing components of the channel or open-circuited channel potentiometer. Test two channels separately to locate faults.
Recommended Same-series Models
6SC6100-0NA11 Dual-axis Analog Adjustment Board
6SC6100-0NA01 Dual-axis Control Board
6SC6100-0SA11 Single-axis Adjustment Board
6SC6100-0GA12 Drive Power Module
6SC6101-0AA00 Power Drive Unit
6SC6102-0AA00 Power Drive Unit
6SC6100-0AA01 Interface Control Board
6SC6100-0PA11 Signal Processing Board
6SC6103-0AA00 Servo Power Module
6SC6100-0TA11 Feedback Signal Board
6SC6104-0AA00 AC Drive Unit
6SC6100-0KA11 Monitoring Board
Technical Document Remarks
Search technical materials on Siemens Industry Support Center by model 6SC6100-0NA11, refer to SIMODRIVE 610 AC-FDD system manual. This product is discontinued and no official updated documents are released. Commissioning follows original hardware manual. Retune all axis parameters after replacing 6SC6100-0NA11; parameters from old boards cannot be applied directly.
