Woodward 8200‑1312 505XT Steam Turbine Controller
Product Overview

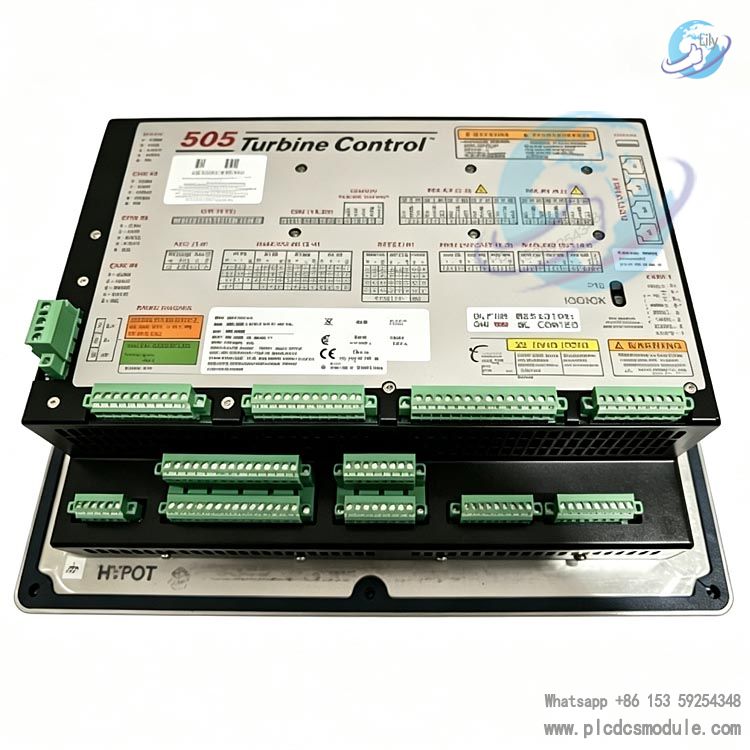

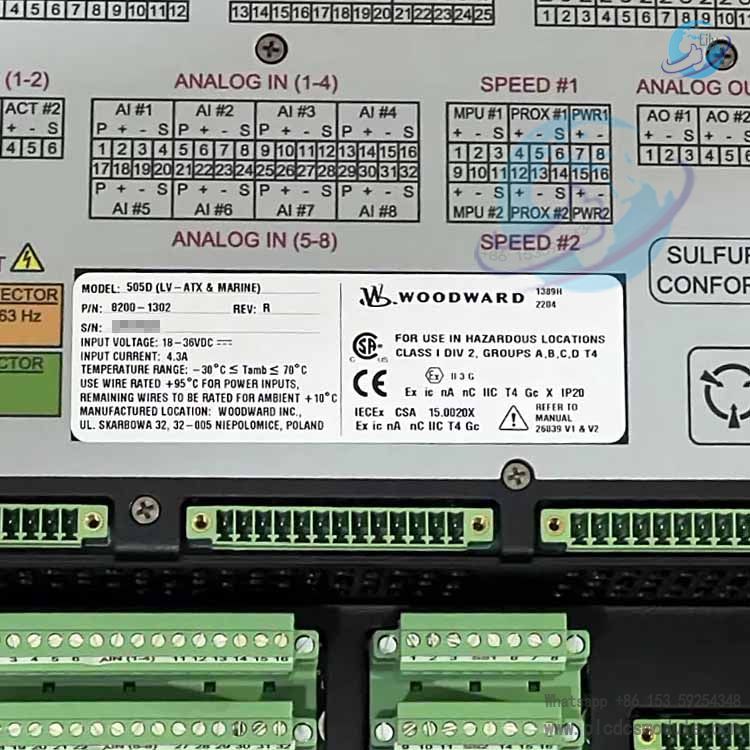

Woodward 8200‑1312 is an integrated LV‑ATX & marine digital steam turbine governor within Woodward 505XT series, engineered specifically for industrial extraction/induction steam turbines. It integrates full speed governing, extraction pressure regulation, turbine interlock protection and graphical HMI in one single unit, acting as the core control brain for medium‑small steam turbine generator sets and mechanical drive turbomachinery. Woodward 8200‑1312 inherits the proven 505 hardware platform, equipped with multiple independent PID control loops, natively supporting single valve or split‑range dual actuator drive, covering power generation, chemical process and marine power applications. After Product Change Notification 07004 issued September 2024, Woodward stopped accepting new orders for 8200‑1312, with equivalent replacement part number 8200‑2312.
The two models deliver identical core control performance, differing only in marine certification and random vibration grade. Woodward 8200‑1312 is pre‑certified with full LR and DNV‑GL marine type approvals, tested to RV1 random vibration standard for cabin/skid mounting, while replacement unit 8200‑2312 removes all marine certifications and downgrades vibration grade to RV5 control room standard for indoor cabinet installation only. The unit integrates LCD operation panel, digital I/O, analog input/output and Ethernet communication ports, enabling full‑cycle turbine startup, load regulation and fault protection without external HMI. Mass quantities of Woodward 8200‑1312 remain in global installed base for spare part replacement and on‑site maintenance.
Technical Specifications
Electrical I/O Specifications
| Spec Item | Standard Rating of Woodward 8200‑1312 |
|---|---|
| Power Supply | 18–36 Vdc low voltage, max power consumption ＜77W, peak current 4.3A |
| Power Hold‑up | ≥14ms under 24Vdc input, retains control logic during brief power dip |
| Speed Sensing | Compatible with active/passive speed probes, 0–6000RPM measuring range, speed control accuracy ±0.1% |
| Analog Input | Isolated 4–20mA input for inlet steam pressure, extraction header pressure, exhaust pressure, generator power signal collection |
| Analog Output | Dual split‑range servo drive outputs, supports ±250mA single‑coil actuators with valve position feedback readback |
| Digital Channels | 16 isolated digital inputs, 12 relay digital outputs for interlock, alarm and start‑stop commands |
| Communication Ports | Ethernet, CAN RTCnet, Modbus RS485, remote parameter configuration and DCS data uploading supported |
Environmental, Vibration & Certification Specs
Random Vibration Grade for 8200‑1312: RV1 cabin/skid standard per MIL‑STD 202F, PSD 0.04G²/Hz (10–2000Hz), 8.2Grms, 1.5‑hour single axis test duration; replacement model 8200‑2312 adopts RV5 control room grade with 1.04Grms, restricted to indoor cabinet mounting only
Operating Temperature: -20℃ ~ +70℃ operational, -40℃ ~ +85℃ storage, conformal coating resists corrosive gases H₂S, NO₂, CO₂
Compliance Certifications: CE EMC, UL safety, original LR Lloyd’s Register, DNV‑GL marine type approval (exclusive to 8200‑1312)
Ingress Protection: Front panel IP54, main body IP30, suitable for indoor or controlled marine engine room environment, not for direct outdoor exposure
Mechanical Dimension & Mounting
Standard flush panel cutout mounting, fits industrial control cabinets and marine console desks; all‑in‑one integrated design eliminates separate controller and display hardware, single unit deploys full control logic.
Core Functional Advantages
Decoupled dual PID for extraction turbines: Woodward 8200‑1312 features independent speed PID and extraction pressure PID with built‑in ratio limiter algorithm, automatically decouple interference between rotational speed and extraction pressure to eliminate fluctuation and overshoot during load variation or extraction flow adjustment.
Full automatic turbine sequencing logic, including warm‑up, speed ramp, critical speed avoidance, grid synchronization, load carry and shutdown interlock programs, supporting one‑touch auto startup to minimize manual operation errors.
Multi‑layer overspeed and process protection: 3 configurable critical speed avoidance bands, overspeed anticipation trip, high/low steam pressure trip, lube oil pressure interlock and vibration shutdown protection, all threshold values customizable via local panel.
Bumpless multi‑mode transfer: seamless switch between speed control, load control, cascade extraction pressure control and remote DCS mode with smooth valve position transition without process disturbance.

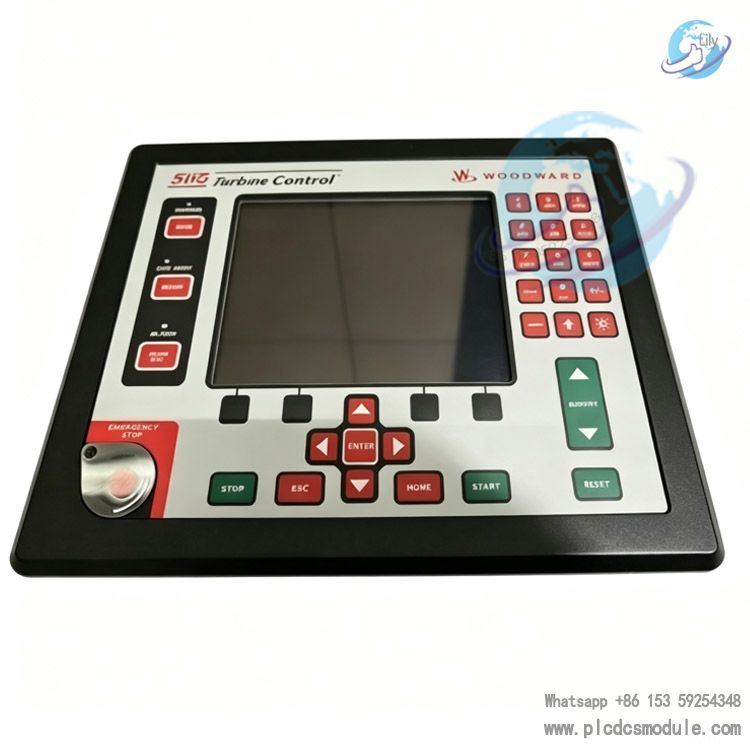

Multi‑language graphical HMI with Chinese support for Woodward 8200‑1312, real‑time display of speed, load, extraction pressure, valve travel and alarm codes; built‑in self‑diagnosis locates faults on I/O, actuators and speed probes.
Remote operation expandability: paired with RemoteView PC software for remote monitoring, parameter modification and trend export; CAN bus extends distributed remote I/O nodes for multi‑unit power plant sites.
Spare part maintenance support: faulty in‑warranty Woodward 8200‑1312 units without aged relay demand follow standard repair workflow; units requiring obsolete relays qualify for 50% discount on replacement 8200‑2312 complete unit purchase.
Product Features
All‑in‑one integrated hardware, main control board, LCD display, I/O terminals and communication modules consolidated into single enclosure, reducing field wiring and potential failure points.
Field‑configurable architecture, no factory return required for logic modification; on‑site engineers customize turbine control algorithms via front panel or GAP programming software for all extraction turbine sizes.
Full galvanic isolation on all analog and digital channels (500Vrms isolation rating), withstand severe electromagnetic interference in marine engine rooms and chemical plants.
On‑board historical data logging, automatically stores 72‑hour operation trends and alarm event logs for post‑failure root cause analysis.
Marine‑enhanced exclusive characteristic of Woodward 8200‑1312: internal relay assembly passes strict marine vibration and humidity testing, the only model in 505 series supporting both onshore power and marine turbomachinery; post‑2024 production units remove marine‑certified hardware.
Unified program framework, base control logic shared with 505D and FLEX500 platforms, engineers master one logic suite to operate full Woodward turbine controller lineup.
Application Fields
Onshore CHP extraction turbine generator units, captive power plants for chemical complexes and paper mill waste heat power generation (Woodward 8200‑1312 spare part retrofits)
Marine steam turbine propulsion systems, vessel waste heat recovery power turbines (only Woodward 8200‑1312 meets marine survey certification requirements)
Refinery & fertilizer mechanical drive steam turbines for centrifugal compressors, large industrial pumps and fans
Distributed energy small steam turbine generators for single/dual extraction industrial turbine retrofit projects
Offshore platform compact steam power units (Woodward 8200‑1312 mandatory, 8200‑2312 disqualified without marine certification)
Brand Series Comparison
| Model | Core Position | Extraction Control Function | Target Application |
|---|---|---|---|
| 8200‑1312 (505XT) | Flagship extraction turbine governor | Dual decoupled PID for single extraction/induction | Marine vessel, onshore extraction steam turbines |
| 8200‑1302 (505D) | Basic single‑inlet speed governor | No dedicated extraction PID, fundamental speed control only | Standard turbines without extraction process |
| 8200‑1342 (FLEX500) | Universal programmable turbomachinery controller | Optional extraction control software package | General steam turbines & centrifugal compressors |
| 8200‑2312 (505XT Replacement) | Onshore control room extraction governor | Full retained extraction PID algorithm | Pure onshore captive power plant retrofits |
Compatible Matching Product Part Numbers
Configuration & Monitoring Software
- 9927-2344 RemoteView Remote Monitoring Software: Real-time HMI mirroring and parameter read/write for Woodward 8200-1312, compatible with all Windows OS versions, 120-minute runtime limit without license activation.
- 9927-2445 FLEX500 GAP Programmer Software: Custom low-level control logic programming and firmware download for Woodward 8200-1312, paired with GAP Editor V3.11 or newer release.
Hardware Peripheral Accessories
- Woodward SPC Servo Actuator Series: Model 1705-402 electro-hydraulic servo valve, matched to analog output channels of Woodward 8200-1312 for steam valve hydraulic positioning.
- Speed Probe Sensor: 8001-001 passive magnetic speed transducer, compatible with frequency sampling terminals of 8200-1312.
- Distributed I/O Modules: RTCnet CAN remote I/O units to expand digital/analog channel capacity for Woodward 8200-1312.
- Analog Isolation Barriers: Explosion-proof safety barriers for 4–20mA analog channels, mandatory for chemical plant and offshore platform installations.
Redundant & Plant-Wide Network Matching Models
8200-1314 VANTAGE XC, 8200-1372 VERTEX Compressor Controller; Woodward 8200-1312 turbine governors interconnect with these compressor controllers via CAN bus for unified multi-unit plant monitoring systems.
FAQ
Q1 Are Woodward 8200-1312 and 8200-2312 fully function equivalent and plug-and-play interchangeable?A1 The two units share 100% identical speed governing, extraction PID, protection interlock and communication performance, matching terminal pinout and front panel operation logic for direct physical swap. Only Woodward 8200-1312 holds LR and DNV-GL marine certifications with RV1 marine vibration rating; 8200-2312 removes all marine accreditations and is limited to indoor control room installation, prohibited for marine vessel applications.
Q2 Existing marine steam turbine fitted with damaged Woodward 8200-1312, can I install 8200-2312 as vessel replacement?A2 Not permitted. Marine classification survey mandates valid LR or DNV-GL type approval for turbine control equipment. 8200-2312 lacks marine certification documents and only meets indoor cabinet vibration standards, risking unstable long-term operation under engine room vibration conditions. Marine projects must source surplus original Woodward 8200-1312 spare units only.
Q3 Is Woodward 8200-1312 exclusively for extraction turbines, can it control standard single-inlet steam turbines without extraction flow?A3 Yes. Woodward 8200-1312 supports deactivating extraction PID loop to operate as a basic single-valve speed governor for non-extraction turbines. Total project cost exceeds dedicated 505D model, so 8200-1302 is recommended for non-extraction turbine applications.
Q4 CPU steady red LED fault upon Woodward 8200-1312 power-up, what troubleshooting steps to follow?A4 Step 1 Verify stable 24V DC supply voltage and eliminate voltage drop issues. Step 2 Disconnect all external I/O wiring and power unit standalone to isolate main board hardware failure. Step 3 Inspect internal relay channel short circuit or servo output overload conditions. Aging internal relays represent the top failure root cause for vintage Woodward 8200-1312 units, replacement with 8200-2312 complete unit available as solution.
Q5 Remote connection failure between RemoteView PC software and Woodward 8200-1312, resolution procedure?A5 Confirm controller Ethernet IP matches PC subnet, disable PC firewall service; inspect shielded communication cable grounding, confirm no port conflict on Woodward 8200-1312 communication ports. Unlicensed software session limited to 120 continuous minutes, restart application to re-establish remote link after timeout.
Q6 Severe extraction pressure oscillation and unstable control response on Woodward 8200-1312, parameter adjustment method?A6 Navigate to configuration menu to adjust ratio limiter curve parameters downward, reduce integral gain on speed PID loop and slightly boost derivative term on extraction pressure PID channel. Inspect 4–20mA pressure transmitter signal for electromagnetic interference, install analog isolation barriers to eliminate signal noise inducing regulation hunting.
