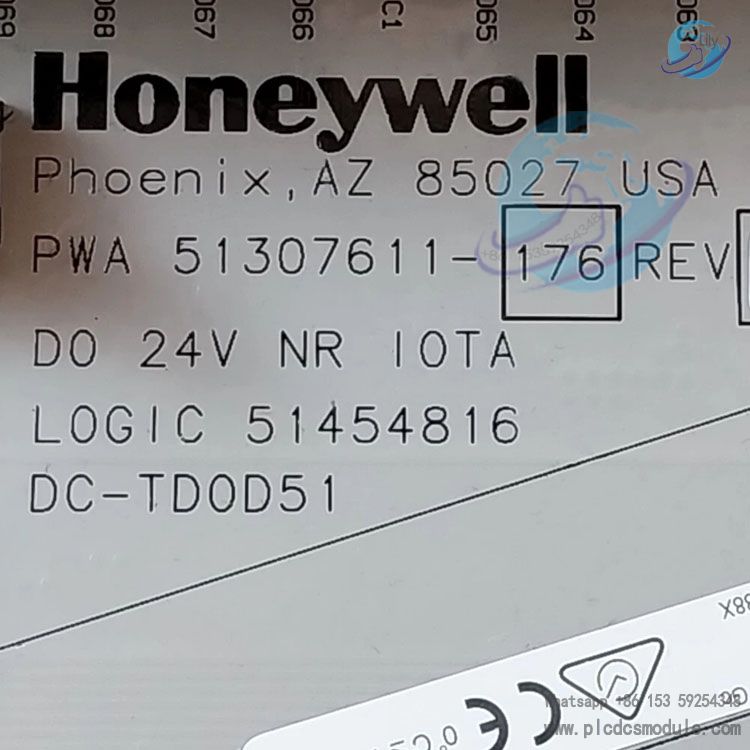

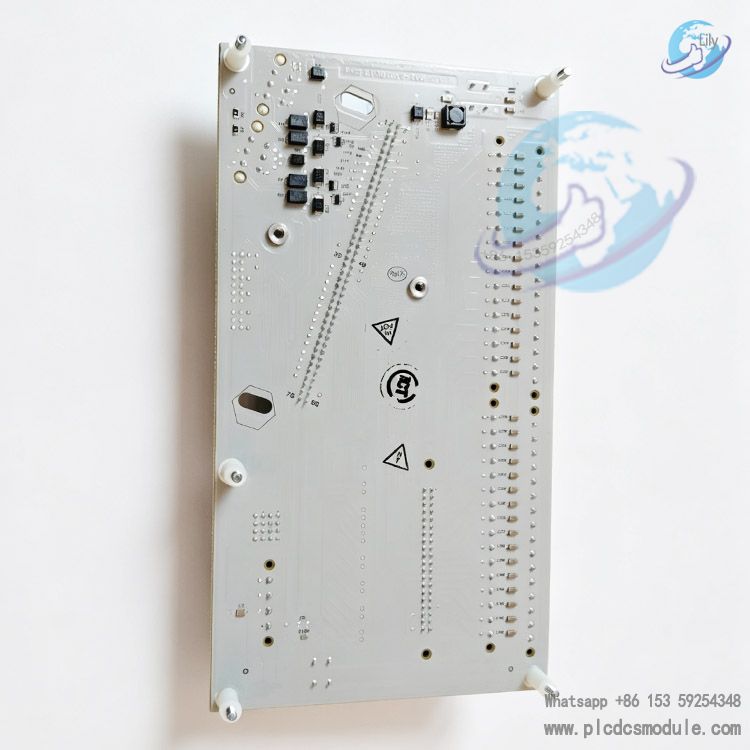

Honeywell DC‑TDOD51 (51307611‑176) DO 24V Buss IOTA Control Module
Product Basic Information
DC‑TDOD51 (Part No. 51307611‑176) is a non‑redundant 24V DC Bus Digital Output IOTA Termination Assembly Module for Honeywell Experion PKS C300 system. It handles field wiring, power distribution and signal transition, and interfaces with the matching IOM input/output module. It converts controller logic signals into 24V DC drive signals to actuate solenoid valves, relays, field indicators and other discrete field devices.
Designed for Series‑C I/O hardware architecture, DC‑TDOD51 mounts in the I/O rack and delivers reliable digital output channels for process control systems. It is widely deployed in chemical, oil & gas, power and other process‑industry sites.
Technical Specifications
Model: DC‑TDOD51 Part Number: 51307611‑176 Module Type: Digital Output IOTA Termination Assembly Output Type: 24V DC Bus‑type Sourcing Output Channel Count: 32 Channels Configuration: Non‑Redundant Compatible IOM Module: CC‑PDOD51 Max Load Voltage: 30V DC Max Current per Channel: 0.1A Isolation Rating: 1000VAC RMS (System‑to‑Field Isolation) Mounting: Slot‑mount on I/O Rack Field Connection: Removable Screw Terminals Operating Ambient Temperature: ‑20℃ ~ +60℃ Relative Humidity: 5%‑95% RH, Non‑condensing Hot‑Swap: Supported Ingress Protection: IP20
Core Advantages
- Channel‑level fault protection. Short‑circuit or over‑current on one channel only disables the faulty channel without affecting remaining channels, minimizing plant‑wide shutdown risk.
- Hardware electrical isolation separates controller logic circuits from field load circuits and blocks field noise from feeding back into the DCS controller unit.
- Hot‑swap capable. Module replacement can be performed without shutting down the cabinet, shortening maintenance downtime.
- Standard rack‑mount design, deeply compatible with Experion PKS C300. No extra conversion hardware is required for signal chain setup.
- Integrated fault diagnostics. Short‑circuit, over‑temperature and load‑fault events are reported back to the control system for fast loop troubleshooting by maintenance personnel.
Product Features
- 32‑channel 24V DC bus digital output, sourcing output for field devices
- Independent per‑channel over‑current protection; faulty channel auto‑shutdown with system alarm flag
- On‑board temperature monitoring; over‑temperature alarm to prevent hardware thermal damage
- Electrical isolation barrier to suppress field interference and protect the controller
- Detachable screw terminals for convenient field wiring and later loop modification
- Status feedback and read‑back for closed‑loop output monitoring
- Direct slot‑in installation for Series‑C I/O rack, simple assembly
- Software‑based diagnostic support; module and channel status readable directly from Honeywell system HMI
Application Fields
- Petrochemical DCS process control systems
- Oil & gas production and transmission automation cabinets
- Thermal power & cogeneration plant process control
- Water and wastewater treatment automation projects
- Pharmaceutical process automation systems
- Discrete valve and relay logic control for paper‑making and metallurgy
- Plant interlock logic outputs for driving field solenoid valves and audible‑visual alarms
Product Comparison
DC‑TDOD51 (51307611‑176) is the non‑redundant DO IOTA. Its redundant counterpart is DC‑TDOD61. DC‑TDOD61 supports dual‑IOM redundant configuration for fault tolerance, suitable for safety‑critical interlock loops, yet consumes double rack slots with higher procurement cost. DC‑TDOD51 works with single IOM for non‑critical points and saves rack space and project budget.
Compared with relay‑output IOTA CC‑TDOR01: DC‑TDOD51 uses solid‑state 24V DC bus output for low‑power 24V field loads. CC‑TDOR01 uses relay dry contacts, supports mixed AC/DC load voltages and offers higher per‑channel current capacity.
Compatible Products
IOM Module: CC‑PDOD51 Redundant Peer IOTA: DC‑TDOD61 Digital Input IOTA: DC‑TDIL51 System Controller: C300 Controller I/O Rack: Series‑C I/O Rack Terminal Accessory: FC‑TERM‑0001 Bus Terminator
Frequently Asked Questions
Q: Can DC‑TDOD51 (51307611‑176) run standalone without IOM module?
A: No. DC‑TDOD51 is an IOTA termination base. It must pair with CC‑PDOD51 IOM. The IOM performs signal processing while DC‑TDOD51 handles wiring and power transition.
Q: What is the main difference between DC‑TDOD51 and DC‑TDOD61? How to select for projects?
A: DC‑TDOD51 is non‑redundant with single‑IOM operation. DC‑TDOD61 is redundant and supports dual‑IOM hot‑standby. Use DC‑TDOD61 for critical interlock loops and DC‑TDOD51 for ordinary control points.
Q: Will the whole DC‑TDOD51 module fail if one channel is short‑circuited on site?
A: No. Per‑channel independent protection shuts down only the faulty channel; the other 31 channels keep working, and the system raises a soft fault alarm for the affected channel.
Q: Does DC‑TDOD51 support hot‑swap? What precautions apply for live removal / insertion?
A: Hot‑swap is supported. Confirm online module replacement is enabled in system software before operation. Avoid touching live metal contacts on terminals and take ESD precautions to prevent component electrostatic damage.
Q: What is the maximum load per channel for DC‑TDOD51?
A: Max 0.1A per channel. Loads shall be 24V DC low‑power solenoid coils or relays. High‑power loads exceeding current rating are prohibited.
Q: Which Honeywell control systems are compatible with DC‑TDOD51 (51307611‑176)?
A: It is built for Experion PKS C300 with Series‑C I/O hardware and is incompatible with older‑generation I/O racks.
Q: What troubleshooting steps should be taken for reported channel faults?
A: First check field wiring for short‑circuit and defective load coils; verify tight terminal connections; check status of paired CC‑PDOD51; validate system hardware configuration.
Q: Does DC‑TDOD51 accept external 24V power supply or is it rack‑powered?
A: Powered by I/O rack. External 24V supply is not recommended. Additional external power may cause loop conflict and module damage.
Related Honeywell Part Numbers
DC‑TDOD61 DO 24V Buss Redundant IOTA Module
DC‑TDIL51 DI 24V Non‑Redundant IOTA Module
DC‑TDIL61 DI 24V Redundant IOTA Module
CC‑PDOD51 24V Bus Digital Output IOM Module
CC‑PDIL51 24V Digital Input IOM Module
CC‑TAIX51 Analog Input Non‑Redundant IOTA
CC‑TAIX61 Analog Input Redundant IOTA
CC‑TAOX51 Analog Output Non‑Redundant IOTA
CC‑TDOR01 Relay Output Non‑Redundant IOTA
CC‑TUIO01 Universal I/O Non‑Redundant IOTA
CC‑PAOH51 HART‑capable Analog Output IOM
CC‑PAIX51 Analog Input IOM
CC‑PDOB01 Bus Digital Output IOM
CC‑TPOX01 Profibus DP IOTA Module
FC‑TERM‑0001 Bus Terminator
Important Notes
- DC‑TDOD51 (51307611‑176) works exclusively with Series‑C I/O rack. Confirm rack hardware revision before installation to avoid incompatibility.
- Observe 0.1A maximum per‑channel load current. Over‑current will trigger persistent channel fault alarms.
- Apply proper ESD protection during installation and maintenance. Static electricity may cause latent internal component damage.
- Perform wiring work with power removed. Tighten terminal screws; loose connections lead to intermittent channel faults.
- Select DC‑TDOD51 in system hardware configuration. Incorrect configuration results in abnormal channel output.
- Store away from humid and corrosive atmosphere to prevent circuit‑board corrosion and degradation.
