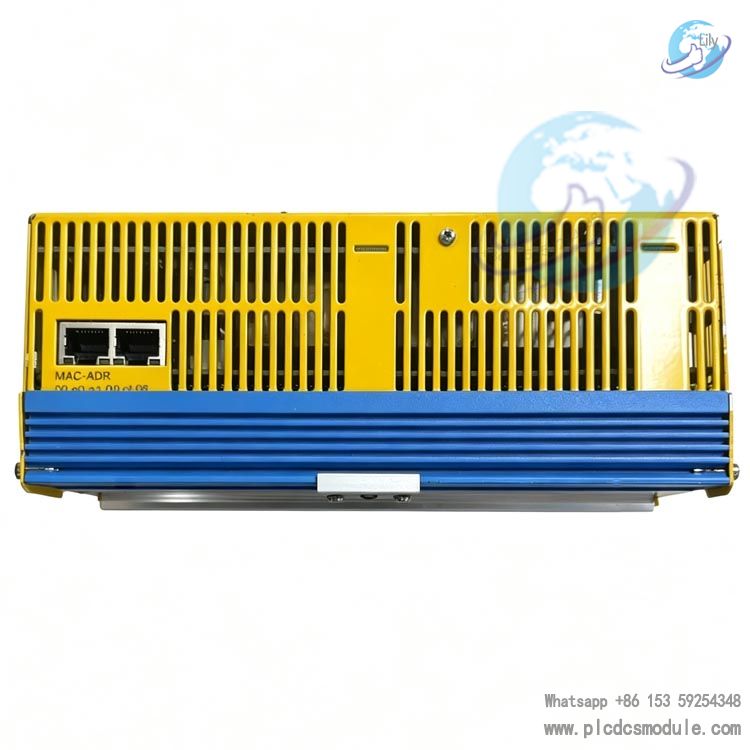

HIMA HIMatrix F2DO801 982200407 Digital Output Module
Product Basic Information
HIMA HIMatrix F2DO801 (Part No. 982200407) is a HIMatrix‑series remote safety I/O module equipped with 8‑channel safety relay digital output channels. It receives commands from safety controllers via SafeEthernet safety Ethernet to drive field actuators. The HIMA HIMatrix F2DO801 982200407 cannot run user logic independently and must be networked with HIMatrix‑series CPU controllers. Certified for SIL3, PL e and Cat.4, it is configured with ELOP II Factory engineering tool and widely used for distributed safety loop point expansion in process industry and machinery safety applications. Built‑in dual‑channel forcibly‑guided relay structure enables channel fault self‑diagnosis and single‑channel fault isolation. All outputs switch to safe de‑energized state upon major module failure, meeting functional‑safety requirements for high‑risk industrial scenarios.
Technical Specifications
| Output Channels: | 8‑channel passive normally‑open safety relay outputs |
| Switching Voltage: | 5V~250V AC / 250V DC |
| Switching Current: | Min. 10mA, Max. 3A; derate to 0.5A per channel for continuous operation at 60 °C ambient |
| Communication Interface: | 2‑port RJ‑45 10/100BASE‑TX with integrated switch, SafeEthernet safety Ethernet |
| Supply Voltage: | 24V DC, tolerance ‑15%~+20%, ripple ≤15% |
| Power Consumption: | Approx. 4W |
| Logic‑to‑Output Isolation: | 500V DC |
| Response Time: | ≥20ms |
| Mounting: | 35 mm DIN‑rail mounting |
| Operating Temperature: | 0 °C ~ +60 °C |
| Storage Temperature: | ‑40 °C ~ +85 °C |
| Ingress Protection: | IP20, cabinet‑mount only |
| Safety Certifications: | SIL3 (IEC 61508), PL e (EN ISO 13849‑1), Cat.4 (EN 954‑1), ATEX Zone 2, UL508 |
| Weight: | Approx. 1.3 kg |
| Part Number: | 982200407; equivalent hardware revision 982200481 for SILworX tool |
Core Advantages
- Three‑relay series output architecture: each channel contains two forcibly‑guided safety relays plus one conventional relay. Relay welding and contact anomalies are detected in real‑time to mitigate dangerous‑failure risks.
- Dual RJ45 ports with embedded switch support daisy‑chain topology, reducing external switch hardware and enabling flexible distributed I/O deployment.
- Full channel‑level diagnostics: single‑channel faults only de‑energize the affected loop, trigger ERROR LED and upload fault codes for rapid on‑site troubleshooting without shutting down remaining channels.
- Compact DIN‑rail form factor optimizes cabinet space; seamlessly integrated into the full HIMatrix ecosystem for straightforward project expansion by adding extra F2DO801 modules.
- ATEX Zone 2 qualified for cabinet‑internal deployment in chemical and oil‑gas sites without hardware modification.
Product Features
- Passive relay contacts directly interface with AC/DC field loads including valves, audible‑visual beacons and contactors.
- Front‑panel RUN, ERROR status indicators plus eight independent channel LEDs for direct visual status of operation, faults and output states.
- Supports MOT (Maintenance Test) and FTT (Fault Tolerance Time) diagnostic functions with continuous relay‑loop self‑checking; complete fault logs are readable via configuration software.
- Fail‑safe behaviour: all outputs de‑energize to safe state upon severe module faults; only faulty channels are isolated for single‑channel events while remaining channels keep safe operation.
- Reset button for IP‑address and access‑permission reset, supporting commissioning and field maintenance.
- Robust EMC performance for harsh electromagnetically‑disturbed plant environments.
Application Fields
- Oil & Gas: wellhead safety control, pressure trip loops, pipeline safety interlocks
- Chemical Processes: SIS safety instrumented systems, BMS burner management, F&G fire‑and‑gas system output expansion
- Machinery Safety: presses, cranes, conveyor systems, robot safety actuator loops
- Railway safety‑related remote I/O nodes
- Pharmaceutical process safety interlocks
- Distributed safety output expansion inside Zone 2 hazardous‑area cabinets
HIMA Product Comparison
| Item | HIMA HIMatrix F2DO801 982200407 | F2 DO16 01 | F3 DIO8/8 01 |
|---|---|---|---|
| I/O Type: | Remote output I/O, digital‑output only | Remote output I/O, 16‑channel DO | All‑in‑one controller, 8DI+8DO |
| Output Channels: | 8 safety relay outputs | 16 relay outputs | 8 safety outputs |
| Independent Logic Execution: | No, requires CPU controller | No, requires CPU controller | Yes, standalone safety logic |
| Configuration Tool: | ELOP II Factory (for PN 982200407) | ELOP II Factory / SILworX | ELOP II Factory / SILworX |
| Positioning: | Distributed point expansion | High‑density output expansion | Compact all‑in‑one safety controller |
Related Matching Products
- CPU Controllers: F35 03, F30 03, F60 CPU03
- Remote Digital‑Input I/O: F1 DI16 01
- Additional Output Expansion: F2 DO16 01
- Power Supply Module: F60 PS01
- Rack Unit: F60 GEH01
- Programming Software: ELOP II Factory (matching F2DO801 PN 982200407)
Associated HIMA Part Numbers
F1 DI16 01, F2 DO16 01, F35 03, F30 03, F3 DIO 8/8 01, F3 DIO 16/8 01, F3 DIO 20/8 02, F60 CPU 03, F60 PS 01, F60 GEH 01, F2 AIO 04 01, F3 AIO 04 01, F1 DI08 01, F2 DO16 02, F35 034
FAQ
Q: Can HIMA HIMatrix F2DO801 982200407 run standalone without a CPU controller?
A: F2DO801 is a remote I/O module without logic‑processing capability. It cannot work independently; it must connect to HIMatrix‑series safety controllers and receive control commands over SafeEthernet.
Q: What is the hardware difference between part number 982200407 and 982200481? Can they be directly interchanged?
A: Hardware bodies are identical; the only difference is compatible configuration software. 982200407 works with ELOP II Factory; 982200481 works with SILworX. Direct swap‑out is invalid; project configuration must match the corresponding tool before download.
Q: Can F2DO801 relay outputs drive continuous 2A loads?
A: Maximum rated switching current is 3A. For continuous operation at 60 °C ambient, derate single‑channel load to 0.5A. For high‑current loads, add intermediate contactors to extend relay‑contact service life.
Q: ERROR LED stays lit and some outputs fail to actuate, what are typical causes?
A: Likely root causes include abnormal relay feedback, contact welding or external‑load short‑circuit. Read fault codes via configuration tool to identify the faulty channel, inspect field wiring and loads, replace module if necessary.
Q: Does HIMA HIMatrix F2DO801 support PROFIBUS or Modbus?
A: Native interfaces are dual SafeEthernet RJ45 ports only. Modbus / PROFIBUS are not supported directly. Such protocols require additional communication expansion through a HIMatrix controller.
Q: May F2DO801 be installed inside ATEX Zone 2 field cabinets?
A: The module carries ATEX Zone 2 certification for installation inside suitable Zone‑2 certified enclosures only. It shall not be exposed directly to hazardous gas atmospheres.
Q: What key items should be checked upon receiving purchased F2DO801 units?

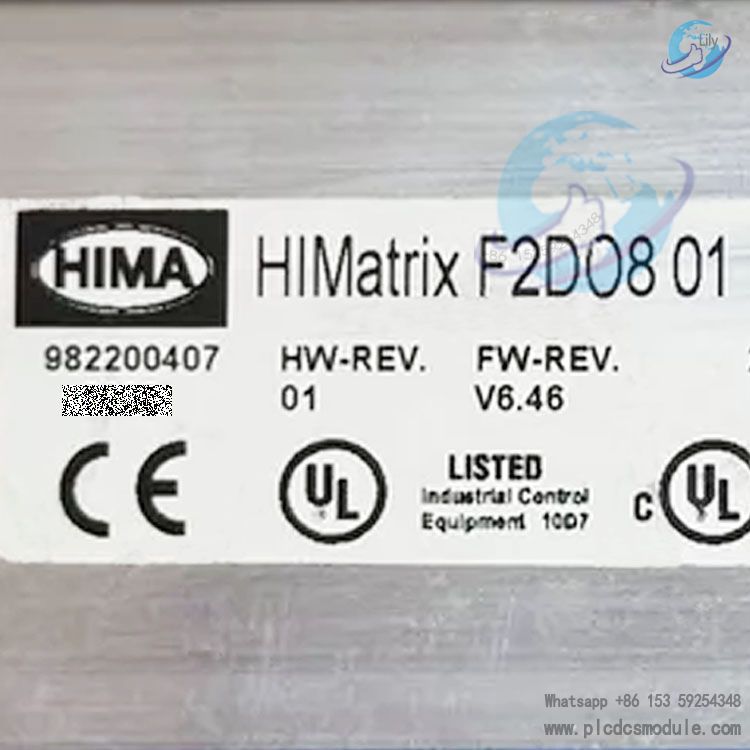

A: Verify label marking HIMatrix F2 DO 8 01 and part‑number 982200407, confirm software compatibility with project configuration tool, inspect hardware for physical damage and intact connectors.
Q: Can the F2DO801 be hot‑swapped when faulty?
A: Hot‑swap under power is not permitted. Power must be removed before module replacement. Configuration parameters shall be re‑downloaded after replacement.
Important Notes
- IP20 protection rating: install only inside sealed industrial control cabinets, avoid direct exposure to dust and condensation.
- Power supply must be 24V DC PELV/SELV safety‑isolated source with time‑delay fuse fitted on supply circuit.
- Apply ESD electrostatic‑discharge protection during wiring operations; static electricity may damage internal circuitry.
- Observe derating specifications; reduce output load current at high ambient temperature to preserve relay‑contact lifetime.
- Never suppress module diagnostic alarms under fault conditions; this will invalidate SIL3 safety functions.
- Do not modify hardware assembly; physical alteration voids all safety certifications.
