HIMA X‑DI1601 985210222 Digital Input Module
Product Overview
The HIMA HIMax X‑DI1601 985210222 16-channel digital input module is designed for safety instrumented systems to acquire field discrete signals. HIMA X‑DI1601 985210222 receives 24VDC field contact signals and uploads status to the HIMax safety controller, meeting SIL2 and SIL3 safety loop requirements. The module is installed in HIMax backplane slots and comes with channel-level diagnostics. It is widely deployed in high-risk industrial safety interlock scenarios such as chemical, power and oil & gas industries. Featuring high diagnostic coverage for fail-safe response, HIMA X‑DI1601 985210222 serves as a commonly used I/O unit for ESD, F&G and BMS safety systems.
Product Parameters and Physical Specifications
| Model: X‑DI1601, Part Number 985210222 |
| Module Type: Digital Input Module |
| Channel Count: 16 DI Channels |
| Rated Input Voltage: 24VDC (SELV/PELV) |
| Voltage Tolerance Range: -15% ~ +20% |
| Operating Temperature: 0℃ ~ +60℃ |
| Storage Temperature: -40℃ ~ +85℃ |
| Relative Humidity: 5%~95%, non-condensing |
| Protection Class: IP20 |
| Mounting Method: HIMax backplane slot mounting |
| Safety Certification: TÜV certified, supports SIL2/SIL3 applications |
| Form Factor: Compact board with on-board LED status indicators |
| Response Speed: High-speed signal acquisition to satisfy fast detection of safety loops |
Core Advantages
- HIMA X‑DI1601 985210222 features comprehensive channel diagnostics to detect open-circuit and short-circuit anomalies and report faults in advance.
- The module supports single-module or redundant architecture configuration to adapt to project requirements of different SIL levels.
- On-board status LEDs allow field maintenance personnel to quickly identify channel, module and bus faults.
- Modular hot-swap design enables cabinet maintenance without extensive rewiring, shortening downtime for overhaul.
- Natively compatible with the full HIMax system, allowing mixed configuration with CPUs, communication and analog modules of the same series.
- High electromagnetic interference resistance for stable long-term operation in central control cabinets with heavy industrial electromagnetic environments.
Product Features
- 16 independent digital inputs; each channel can be individually configured for signal logic.
- Fail-safe design: the safety system enters predefined safe state once module self-test fails.
- Channel-level circuit diagnostics to continuously monitor the health status of field loops.
- Supports hot-swap replacement to perform online spare part change under permitted system conditions.

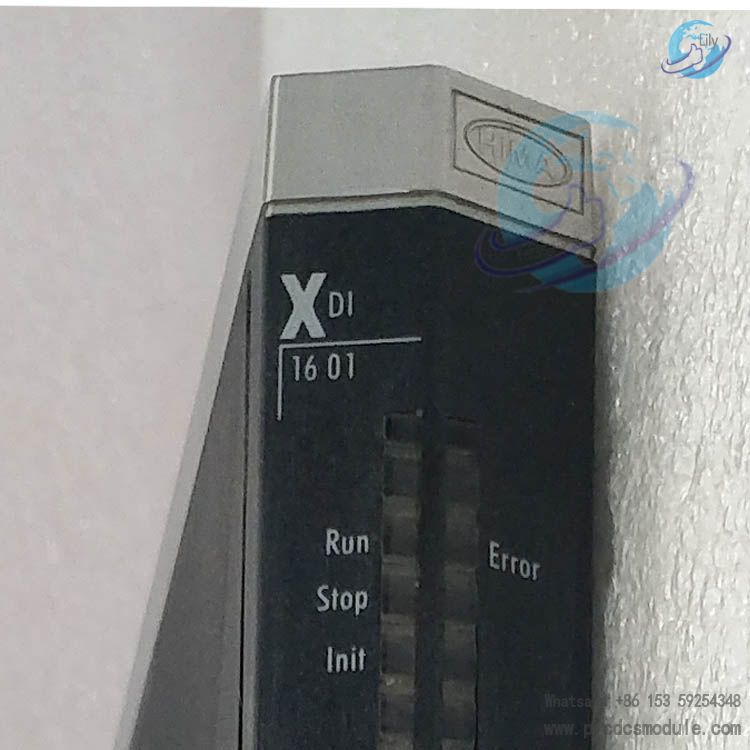

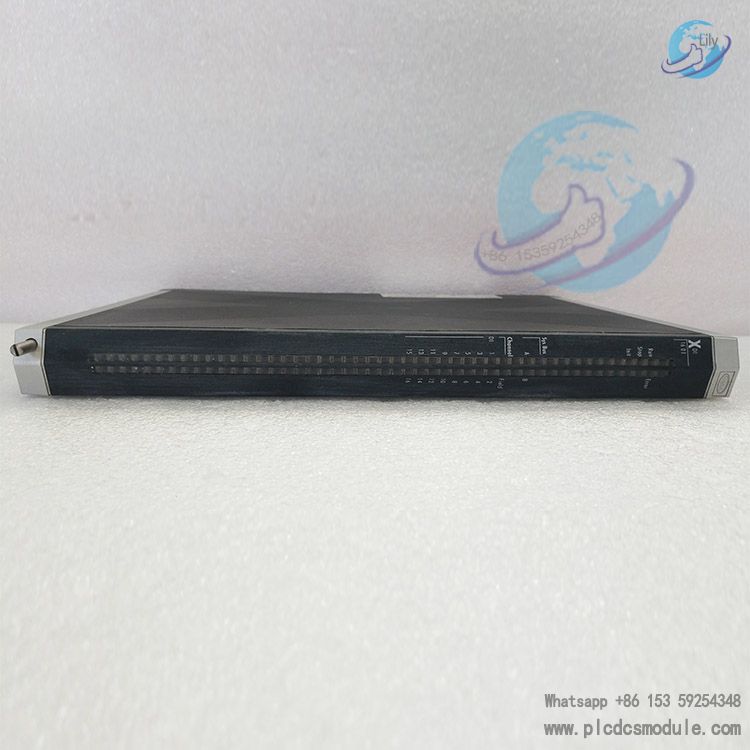

- LED indicators display module power supply, bus communication and input status of each channel in groups.
- Compatible with SILworX software for configuration, parameter download and online diagnostic review.

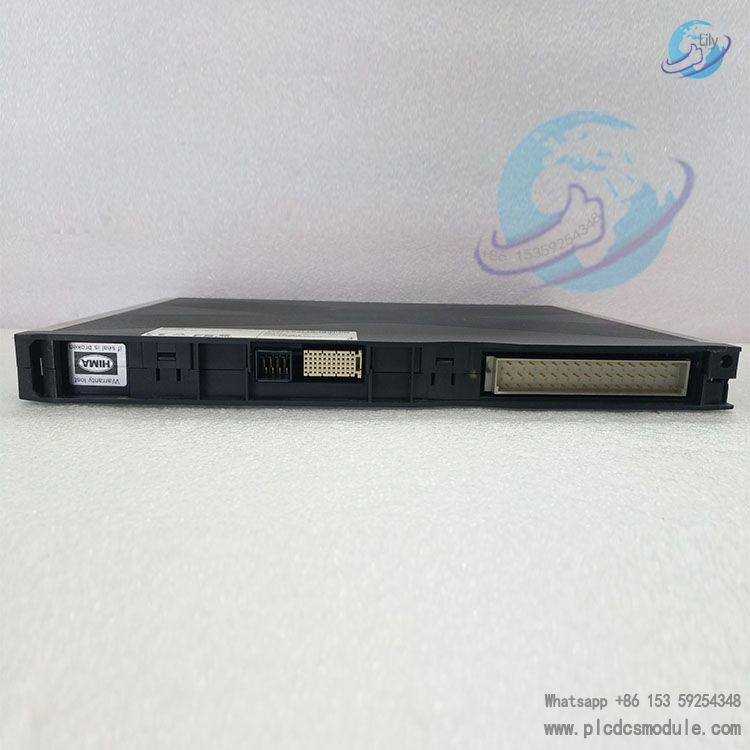

- Bus interface directly connects to HIMax backplane system bus with low signal transmission latency.
Application Scenarios
- Safety Instrumented System (SIS) signal acquisition for limit switches, pressure switches, temperature switches and emergency stop button contact signals on site.
- Emergency Shutdown System (ESD) for monitoring process safety interlock switch status and triggering shutdown protection logic.
- Fire & Gas System (F&G) for collecting discrete alarm signals from flame detectors, smoke detectors and combustible gas detectors.
- Burner Management System (BMS) for reading burner safety switches and valve position feedback signals.
- Safety interlock monitoring for boilers and steam turbines in power industry.
- Safety protection loop signal acquisition for oil & gas production and long-distance pipeline stations.
- Safety status acquisition of process equipment in chemical plants and refineries.
Product Comparison
X‑DI1601 985210222 is a 16-channel DI module suitable for medium and small-scale discrete signal acquisition. Compared with X‑DI3201 of the same series which provides 32 channels for high-density DI point projects; X‑DI6401 is a 64-channel high-density digital input module for large-scale centralized I/O collection. X‑DI1601 has fewer channels per unit, so faults on a single module affect a smaller scope. It is ideal for projects with scattered safety loop points requiring risk isolation. In contrast to analog module X‑AI3201, HIMA X‑DI1601 985210222 only processes discrete signals and cannot acquire 4-20mA analog signals. The two types are often used together in one HIMax cabinet for mixed deployment.
Related Supporting Products
- X-CPU01 Processor Module
- X-CPU31 Processor Module
- X-SB01 System Bus Module
- X-BASE-PLATE-18-01 HIMax Backplane
- X-COM01 Communication Module
- X-CA004 System Cable
- X-FTA003 Field Terminal Assembly
Selection & Procurement Guidelines
- First confirm the system platform: HIMA X‑DI1601 985210222 only adapts to HIMax system and cannot be used on HIMatrix or HIQuad platforms.
- Calculate total DI channel quantity for the project and reserve 10%~15% spare channels; redundant configuration of modules shall be considered for redundant loops.
- Verify on-site signal type: this module only supports 24VDC dry contact digital input and does not accept AC signals.
- Confirm SIL level requirements. SIL3 safety functions need redundant architecture configuration in accordance with IEC61508 specifications; evaluate supporting models of backplane and power supply.
- Provide full model plus part number X‑DI1601 985210222 during procurement to avoid shipment errors caused by part number confusion.
- Check hardware revision and confirm compatibility between hardware revision number and SILworX version of existing system software.
Pitfall Avoidance & After-sales
Pitfall Avoidance Points
Do not deploy HIMA X‑DI1601 985210222 on non-HIMax platforms; hardware cannot be recognized. Field wiring must comply with SELV safety loop specifications; high voltage is prohibited to access DI channels. Distinguish digital input and digital output modules during selection; never use DI modules to replace DO modules for driving field valves. Confirm supporting backplane, FTA terminal board and system cable models at the same time when purchasing; missing parts prevent direct commissioning. Control temperature and humidity in storage environment; transport with anti-static packaging as static electricity may cause latent damage to modules.
After-sales Points

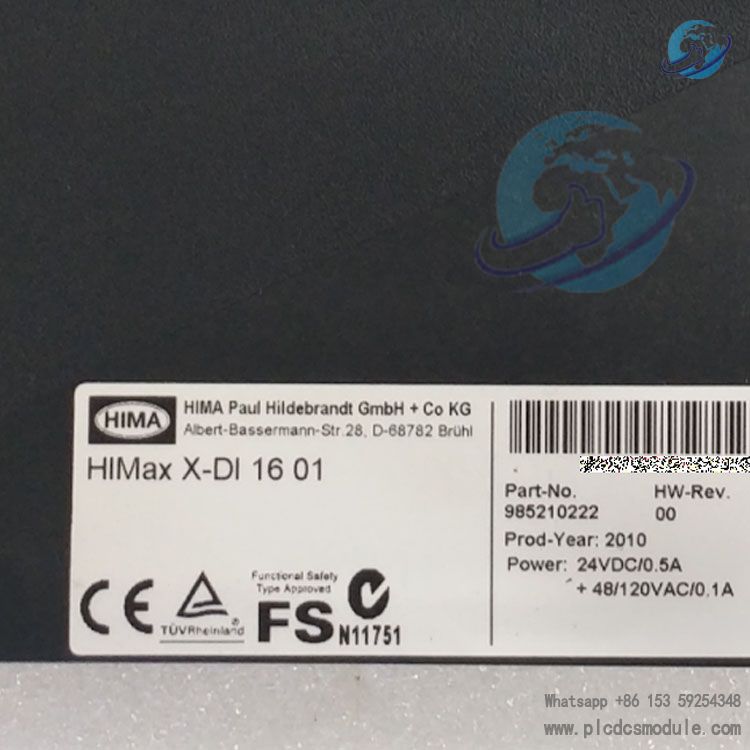

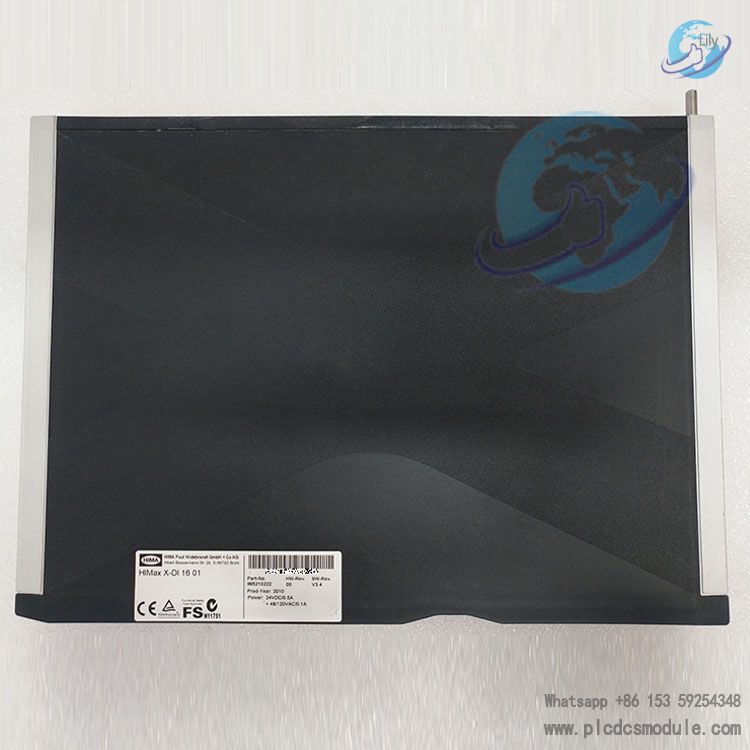

Check label model and part number 985210222 immediately after delivery; inspect appearance for collision and board damage. Provide SILworX diagnostic logs for faulty modules to locate channel or hardware faults. Spare part replacement must be carried out by personnel familiar with HIMax safety systems to prevent safety loop failure.
FAQ
Q: Can HIMA X‑DI1601 985210222 be directly used in HIQuad system?
A: No. X‑DI1601 985210222 is HIMax platform I/O module. Its hardware structure and bus protocol are incompatible with HIQuad. Platform matching must be confirmed during model selection.
Q: What input signal type does each channel of HIMA X‑DI1601 985210222 support?
A: Only 24VDC dry contact discrete signals such as limit switches, emergency stop buttons and pressure switches (passive contacts). AC voltage signals are not supported.
Q: HIMA X‑DI1601 985210222 supports SIL3 application. Can a single module satisfy SIL3 directly?
A: A single module cannot directly meet SIL3. SIL3 safety functions require redundant architecture configuration as per IEC61508 specifications together with calculation and verification.
Q: Does HIMA X‑DI1601 985210222 support hot swapping?
A: The module hardware supports hot-swap operation on backplane, but it must be executed under maintenance mode permitted by safety system. Random plugging is forbidden under normal online production conditions.
Q: Will I receive wrong goods if only X-DI1601 is written on the purchase order for HIMA X‑DI1601 985210222?
A: There is a risk. Boards of the same series may share the same model name with different part numbers. The complete X‑DI1601 985210222 must be filled in purchase orders.
Q: Does the supporting FTA terminal board for HIMA X‑DI1601 985210222 need separate procurement?
A: Yes. The module body does not contain field wiring terminal assemblies. X-FTA series terminal boards and system cables need to be ordered separately as accessories.
Q: What is the common root cause if all indicators of HIMA X‑DI1601 985210222 go out?
A: Prioritize backplane power supply and bus connection inspection, then check for module hardware damage. Read detailed fault diagnostics via SILworX.
Q: When HIMA X‑DI1601 985210222 channel reports open-circuit fault, is the module damaged?
A: Not necessarily. This fault is mostly caused by broken field contact loop or loose terminals. Troubleshoot field wiring first before judging module hardware failure.
Same Brand Product Models
- X-DI3201, Digital Input Module
- X-DI6401, Digital Input Module
- X-DO3201, Digital Output Module
- X-DO2402, Digital Output Module
- X-AI3201, Analog Input Module
- X-AO1601, Analog Output Module
- X-CPU01, Processor Module
- X-CPU31, Processor Module
- X-SB01, System Bus Module
- X-COM01, Communication Module
- X-CI2401, Counter Module
- X-HART3201, HART Communication Module
- X-MIO7/601, Overspeed Trip Mixed I/O Module
- X-FAN1803, Fan Module
- X-BASE-PLATE-18-01, HIMax Backplane
Notes
HIMA X‑DI1601 985210222 is safety-related hardware. Installation and commissioning personnel must receive HIMax safety system training. Cabinet installation must comply with EMC specifications; power cables and safety signal cables shall be routed separately. Take ESD anti-static protection during module handling, disassembly and installation. Use SILworX software for configuration and program download; software version shall match CPU firmware version. Complete overall safety loop function test before project commissioning. Dispose of the product in accordance with industrial electronic waste regulations; random discarding is prohibited.
