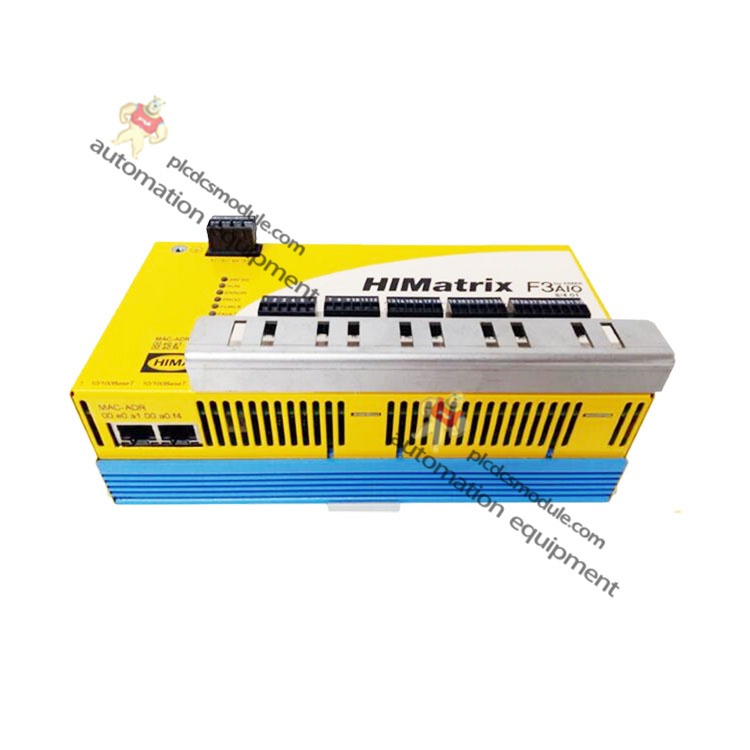

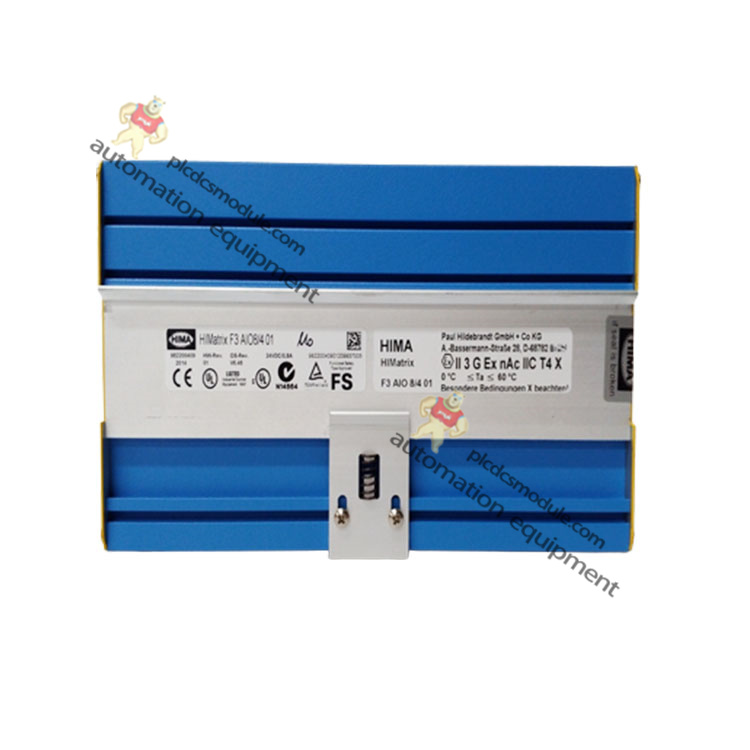

HIMA F3 AIO 8/4 01 982200409｜HIMatrix F3AIO8/401 Safety Analog I/O Module
Product Basic Information
HIMA F3 AIO 8/4 01 (Part No. 982200409) belongs to the HIMatrix F3 series remote safety I/O module, used to expand distributed analog signal points for HIMax and HIMatrix safety controllers. F3 AIO 8/4 01 is equipped with 8‑channel safety analog inputs and 4‑channel analog outputs. It exchanges data with the main controller via SafeEthernet safety Ethernet. The module itself does not run user control programs; it only performs field analog signal acquisition and output forwarding.
This card obtains TÜV functional safety certification and meets SIL3, PL e, Cat.4 levels. It is suitable for distributed safety point deployment in process industry. F3AIO8/401 supports installation in Ex‑zone2 hazardous areas. It adopts metal housing with DIN‑rail mounting, ideal for dense point expansion in cabinet scenarios.
Technical Specifications
| Channel Configuration | Analog Input: 8‑channel safety analog input, 4‑20mA signal, supports active / passive transmitters, wire break and short‑circuit circuit diagnosis, compatible with HART7 pass‑through Analog Output: 4‑channel analog output, 4‑20mA active output, short‑circuit protection, read‑back monitoring. Output channels have no native safety certification; safe shutdown is realized through main controller logic. |
| Electrical Parameters | Operating Voltage: 24VDC, voltage fluctuation range ‑15%~+20%, SELV/PELV safety isolated power supply required Power Consumption: Typical 6W (excluding loop power supply) Resolution: 16‑bit signed Accuracy: ±0.1% full scale (25℃ ambient temperature) Response Cycle: ≥20ms safety processing cycle Isolation Level: Channel‑to‑channel, channel‑to‑backplane 500VAC isolation |
| Communication & Mechanical | Communication Interface: 2‑port RJ45 10/100Mbps Ethernet, built‑in switch, SafeEthernet protocol, supports redundant network topology Mounting: DIN‑rail snap‑in mounting Protection Class: IP20 Housing Material: Metal casing Standard Ambient Temperature: 0℃~+60℃; wide‑temperature, railway‑coated and marine versions are optional Configuration Software: SILworX, ELOP II Factory. Different programming tools correspond to different hardware variant models Part Number: 982200409 is the standard version part code for F3 AIO 8/4 01 |
Core Advantages
- F3 AIO 8/4 01 integrates analog acquisition and analog output into one single remote I/O unit, reducing module quantity inside cabinet and saving installation space.
- Complete circuit diagnosis of the module can quickly identify transmitter wire break and short‑circuit faults, with diagnosis coverage higher than 99%, shortening on‑site troubleshooting time.
- Dual Ethernet ports with built‑in switch provide flexible networking and cabling, support safety redundant network architecture without additional external industrial switches.
- Supports HART signal pass‑through. Digital information of HART instruments can be read via function blocks, covering both conventional 4‑20mA analog signals and smart instrument data.
- Meets Ex‑zone2 installation requirements. It can be deployed close to hazardous explosion‑proof areas to shorten analog signal cable length and reduce risk of signal interference.
- Standard HIMatrix system protocol realizes seamless connection with mainstream HIMA safety controllers with unified configuration and commissioning workflow.
Product Features
- All analog input channels of F3AIO8/401 obtain safety‑related certification; analog output channels realize safety cut‑off logic via upper‑level controller program.
- Multiple status LED indicators are integrated on front panel. Power, run, error, fault and communication status can be viewed directly. Basic status judgment can be completed on‑site without software.
- Hot‑pluggable detachable terminal blocks allow on‑site wiring and maintenance without removing the module body.
- Multiple hardware variant versions cover general industrial, low‑temperature, railway transit and marine high‑salt‑fog working conditions. Hardware coating adapts to harsh field environments.
- The module is only responsible for I/O data forwarding. All safety logics run on main controller, complying with HIMatrix distributed remote I/O architecture design.
- Abundant internal diagnostic information; complete fault codes can be read through configuration software to locate channel‑level failures.
Application Fields
- Petrochemical SIS safety instrumented system for distributed pressure, liquid level and temperature transmitter signal acquisition.
- ESD emergency shutdown system for nearby acquisition of distributed on‑site analog signals in plant area to trigger interlock protection.
- BMS burner management system for boiler process analog monitoring and regulating valve output control.
- Distributed signal expansion in cabinets of oil‑gas platforms and offshore facilities, I/O point expansion for space‑limited cabinets.
- Safety control system for machinery manufacturing, safety monitoring of process analog parameters.
- Railway transit supporting safety equipment (select railway‑coated variant F3 AIO 8/4 014).
- I/O point expansion for cabinets near Ex‑zone2 hazardous division in chemical industry.
Product Comparison
| Item | F3 AIO 8/4 01 | F3 DIO 8/8 01 | F2 DO16 01 |
|---|---|---|---|
| Signal Type | Analog Input + Analog Output | Digital Input + Digital Output | Digital Relay Output Only |
| Channel | 8 Safety AI + 4 AO | 8DI+8DO | 16 Relay Output |
| Safety Certified Channel | All input channels | Input & output channels | Output channels |
| Suitable Scenarios | Transmitter & regulating valve analog signals | On‑off valves, limit switches | High‑power switching load output |
| HART Support | Supports HART7 pass‑through | Not supported | Not supported |
Relevant Matching Part Numbers
- Controllers: F35 03, F30 03, F35 011
- Same‑series Remote I/O: F3 DIO 8/8 01, F3 DIO 16/8 01
- Power Unit: HIMA 24V SELV safety isolated power supply module
- Matching Cables: RJ45 industrial shielded Ethernet cable, HIMatrix system terminal cable
Recommended HIMA Products
- F35 03 Safety Controller
- F30 03 Safety Controller
- F3 DIO 8/8 01 Remote I/O Module
- F3 DIO 16/8 01 Remote I/O Module
- F3 DIO 20/8 02 Remote I/O Module
- F1 DI 16 01 Remote Input Module
- F2 DO 4 01 Remote Output Module
- F2 DO 8 01 Remote Output Module
- F2 DO 16 01 Remote Output Module
- F2 DO 16 02 Remote Output Module
- F3 AIO 8/4 011 Wide‑temperature Analog I/O Module
- F3 AIO 8/4 014 Railway‑version Analog I/O Module
- F60 CPU 03 Controller Module
Precautions
- F3 AIO 8/4 01 cannot run independently. It must work with HIMax or HIMatrix main controller and cannot execute safety logic programs alone.
- The analog output channels have no SIL safety rating by hardware. For project design, safety cut‑off action must be completed by main controller safety program.
- Power supply must adopt SELV/PELV safety‑isolated 24VDC power supply. Ordinary non‑isolated power supply input is strictly prohibited. A time‑delay 10A fuse shall be configured for module power loop protection.
- Please confirm software variant during model selection. Hardware for SILworX version cannot be mixed with hardware for ELOP II Factory version.
- ESD anti‑static operation shall be performed during installation and maintenance. Static electricity may cause latent damage to internal components of module.
- Ex‑zone2 application is only valid for cabinet mounting. The module body shall not be directly placed in Zone1/0 hazardous areas.
- Hardware part numbers differ for different temperature variants. Full part number 982200409 together with suffix variant must be verified for spare‑part replacement.
FAQ
Q：Can F3 AIO 8/4 01 work standalone without CPU?
A：No. F3AIO8/401 is a remote I/O device only for signal acquisition and forwarding. All safety logics run on main controller. It shall work within HIMax or HIMatrix controller system.
Q：Do the 4 analog output channels of F3 AIO 8/4 01 have SIL3 safety level?
A：The analog output hardware itself has no SIL3 certification. Safe shutdown is realized via safety logic issued by main controller over SafeEthernet. Only 8 analog input channels are counted into SIL safety loop for project safety calculation.
Q：Which software tool version does part number 982200409 correspond to?
A：Part No.982200409 corresponds to SILworX configuration software version; ELOP II Factory uses another set of part numbers. Please confirm engineering software during procurement and spare‑part ordering.
Q：Can F3AIO8/401 connect with HART smart transmitters?
A：Yes. The module supports HART7 pass‑through. HART digital data of smart instruments can be read by SILworX function blocks while analog loop keeps standard 4‑20mA signal.
Q：The module reports channel fault, how to locate problem quickly?
A：Check front‑panel LED status first, then read module fault codes in SILworX. Fault codes can distinguish external wire break/short‑circuit from module hardware failure. Disconnect field instrument to judge whether fault comes from field loop or module hardware.
Q：Can F3 AIO 8/4 01 be directly installed in Zone1 hazardous explosion‑proof area?
A：Not supported. The module is only allowed to be installed inside Ex‑zone2 cabinet, and cannot be deployed directly in Zone0, Zone1 hazardous areas.
Q：Will old program be automatically downloaded to new F3 AIO 8/4 01 after spare‑part replacement?
A：It will not download automatically. After hardware replacement, you need to download project configuration to this remote I/O unit again in SILworX. Inconsistent hardware variant will trigger download error.
Q：What are dual RJ45 Ethernet ports for?
A：Built‑in switch supports daisy‑chain networking and redundant network configuration. Two ports have no fixed input/output direction, flexible for HIMatrix distributed I/O network construction.
