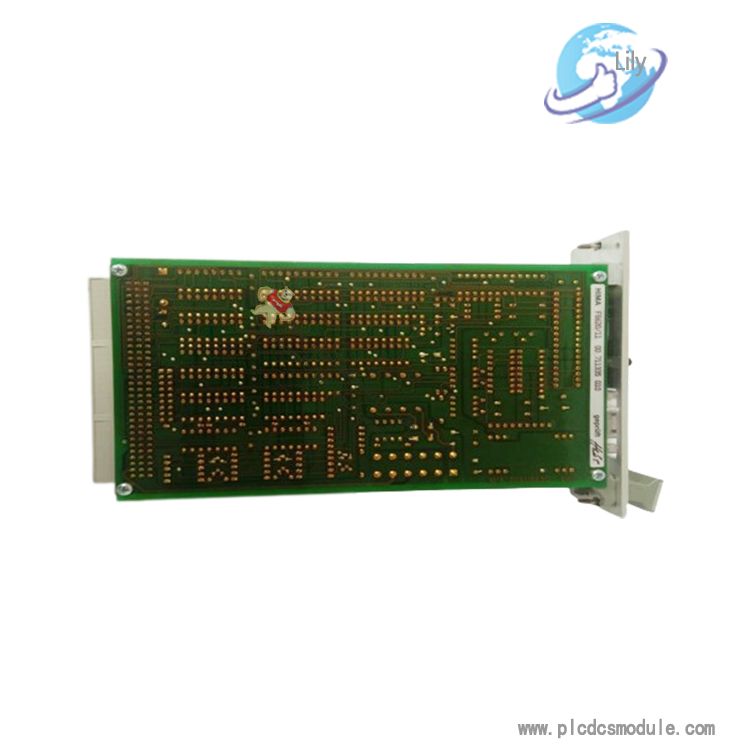

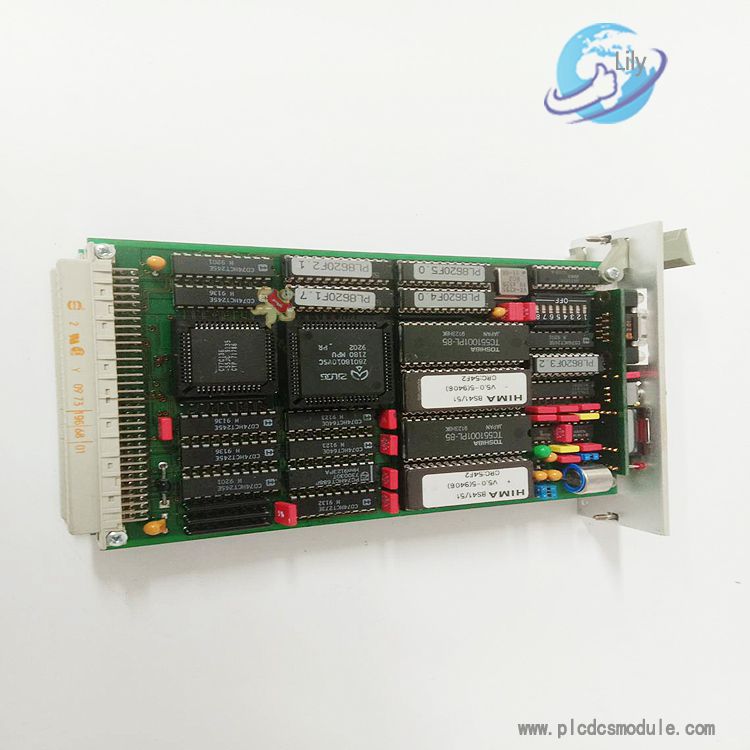

HIMA F8620 Central Processing Unit (CPU) module
Product Description
The HIMA F8620 CPU module is the core central processing unit of the HIQuad safety system. It undertakes logical operation, task scheduling, I/O bus management and field‑device communication interaction for the entire safety instrumented system. Adopting a dual‑processor verification architecture, the F8620 CPU module meets IEC 61508 SIL3 safety level and is designed for safety‑critical conditions such as ESD emergency shutdown and Fire & Gas (F&G) applications. The F8620 supports redundant operation mode and relies on comprehensive on‑board self‑diagnosis mechanisms to maintain deterministic system response under harsh working conditions including petrochemical, oil‑gas production and power generation protection. As the main control hardware of the system, the F8620 directly determines the computing performance and fault‑tolerance capability of the complete safety system.
Technical Specifications
| Operating Power Supply | 24V DC |
| Safety Level | IEC 61508 SIL3 |
| Processor Architecture | Dual 32‑bit RISC redundant processors |
| Memory Configuration | 512KB RAM, 256KB Flash ROM |
| Communication Interfaces | Dual serial RS485 interfaces, redundant system bus interface |
| Operating Temperature | ‑25℃ ~ +70℃ |
| Storage Temperature | ‑40℃ ~ +85℃ |
| Humidity Condition | 5%‑95%, non‑condensing |
| Overall Dimension | 172×110×41mm |
| Module Weight | 450g |
| Diagnostic Capability | Full‑loop hardware self‑test, fault status LED panel indication |
| Supported Protocols | Modbus RTU, Profibus, internal high‑speed system bus |
| Mounting Type | Rack‑mount plug‑in card, compatible with HIQuad rack base |
Core Advantages
- Dual processors compare calculation results in real‑time. Once a single component abnormality occurs, the module switches directly to fail‑safe status to avoid safety risks caused by single‑point failure.
- Complete on‑board diagnostics cover memory, bus and communication links. Faults can be quickly located to shorten on‑site troubleshooting time.
- Supports redundant hot‑standby deployment. When the primary F8620 fails, the backup unit takes over operations seamlessly to ensure uninterrupted safety processes.
- Strong time determinism with stable and controllable logic scan cycle, meeting millisecond‑level response requirements for emergency shutdown systems.
- Hardware is compatible with the full HIQuad hardware ecosystem and can connect directly with series I/O modules, reducing project integration and commissioning workload.
- Wide temperature and humidity hardware tolerance, suitable for industrial sites with heavy vibration and large temperature differences such as offshore platforms and chemical plants.
Product Features
- The F8620 CPU module panel is equipped with run and fault status indicator LEDs, allowing maintenance personnel to read module operating status directly on‑site.
- Independent safety firmware runs without relying on external operating systems, avoiding safety hazards brought by general system vulnerabilities.
- Fault events are cached locally with diagnostic logs retained for later event review.
- Supports SILworX engineering software for program download, parameter configuration and online monitoring.
- The system bus realizes high‑speed data exchange with I/O cards, uniformly collects field signals and issues safety output commands.
- Multi‑protocol support for connection with third‑party instruments and host monitoring systems to realize data interconnection between safety systems and factory DCS.
Application Fields
- Oil & Gas industry: Offshore oil production platforms, refinery ESD emergency shutdown systems, Fire & Gas (F&G) monitoring systems.
- Chemical industry: Reactor safety interlock, process‑unit safety instrumented SIS control systems.
- Power industry: Turbine protection, boiler safety interlock, generator set safety protection loops.
- Coal chemical industry: Unit interlock protection, toxic and flammable gas linkage disposal.
- Others: Safety shutdown protection for critical factory equipment, safety control solutions for hazardous areas.
HIMA Product Comparison
| Item | F8620 CPU Module | F8650 CPU Module | F8860 CPU Module |
|---|---|---|---|
| Applicable System | HIQuad H51q | HIQuad H51q | HIMax Large‑scale System |
| Safety Level | SIL3 | SIL3 | SIL4 |
| Redundancy Capability | 1oo2D Dual Redundancy | 1oo2D Dual Redundancy | Quadruple Redundancy Architecture |
| Processing Performance | Medium, small‑to‑medium projects | Medium‑high, medium‑scale projects | High‑performance, large multi‑node projects |
| Main Positioning | Mainstream small‑to‑medium safety projects | Medium‑scale expansion projects | Complete SIS for large‑complex plants |
Matching Accessories
FAQ
Q:Does HIMA F8620 support hot‑swap operation?
A: The F8620 CPU module itself does not support hot‑swap. Matching I/O modules support hot‑swap. CPU module replacement requires system shutdown or switchover to redundant standby unit before execution.
Q:What is the maximum safety integrity level achievable for F8620 module?
A: The hardware itself meets SIL3. The overall system SIL level depends on overall architecture configuration, logic program and selected matching I/O cards.
Q:Do version suffixes such as F8620/4, F8620/11 need to be distinguished when purchasing F8620?
A: Yes. Different suffix versions differ in firmware and hardware revisions. Please check the complete original part number for direct version matching when placing orders.
Q:Can F8620 directly replace F8650 CPU module?
A: Direct interchange is not allowed. There are differences in firmware and hardware logic. Replacement requires re‑completion of engineering configuration download plus full loop testing.
Q:What are common causes for red LED fault indication on F8620 front panel?
A: Possible causes include bus communication failure, memory self‑test failure, firmware version mismatch, fault of matching I/O modules and abnormal supply voltage. Read diagnostic logs for further fault localization.
Q:Can F8620 connect with third‑party DCS systems?
A: Yes. Data exchange with third‑party DCS can be realized via Modbus RTU and Profibus protocols with supporting communication modules.
Q:How many F8620 CPU modules can be configured within one HIQuad rack?
A: Standard configuration is 2 pieces for 1oo2D dual‑redundancy architecture. Multiple independent CPU groups running simultaneously in single rack are not supported.
Q:Which engineering software is required for F8620 program configuration?
A: SILworX software is required for logic programming, parameter setting, program download and on‑site diagnostics.
Recommended HIMA Part Numbers
F3231
F3330
F3421
F3501
F7133
F7233
F7533
F8621
F8622
F8624
F8603
F8650
F8860
F6210
F6010
Precautions
- ESD protection shall be implemented during storage and installation of F8620 CPU module; static electricity may cause latent damage to internal hardware.
- Strictly follow 24V DC power supply specification for field operation; voltage out‑of‑range will trigger module fault alarms.
- Always verify complete part‑number during version replacement; mismatched suffix versions may lead to firmware incompatibility and system startup failure.
- Full functional loop test must be performed after hardware replacement to confirm normal interlock logic before putting into production service.
- Avoid long‑term exposure to dust and corrosive gas for operating equipment; ensure cabinet ventilation and heat dissipation.
