Kollmorgen S77202-NANANA Servo Drive
Product Introduction
S77202-NANANA is the standard base model of Kollmorgen S700 series high-performance digital servo drives. Built on a mature high-power servo drive hardware platform, it features ultra-high dynamic response, high-precision control, multi-protocol compatibility and flexible expansion. This model is a factory standard version without customization or extensions. It is equipped with dual-channel STO safety function, standard EtherCAT and CANopen mainstream communication buses. It can stably adapt to complex industrial motion scenarios with heavy load, high speed and multi-axis synchronization. It is widely compatible with various high-precision automation equipment, meeting the demands of both new machine assembly and retrofitting of legacy equipment.
Model Interpretation

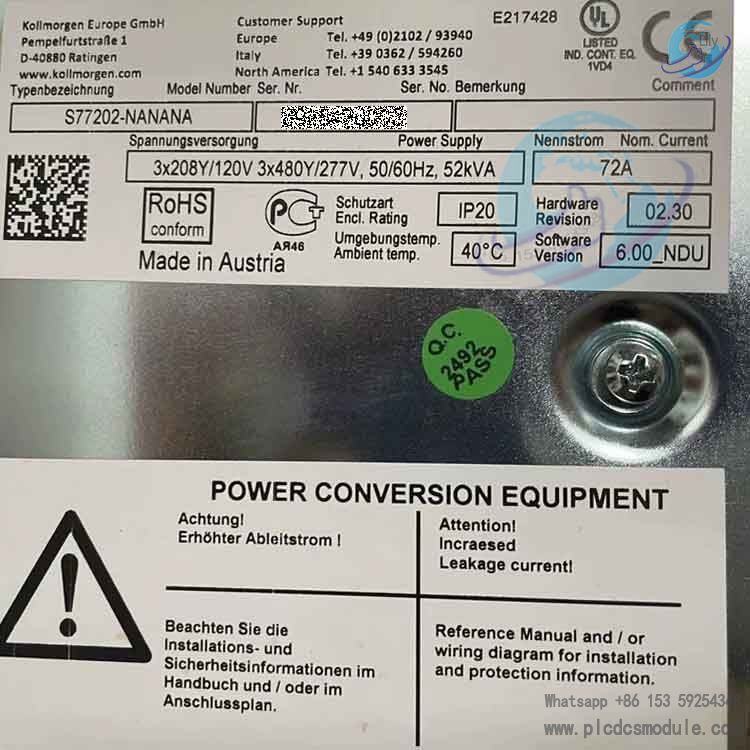

The complete model code of S77202-NANANA has clearly defined parameters, and each field corresponds to hardware configuration and functional attributes, as detailed below:
- S7: Represents Kollmorgen classic S700 series digital servo amplifiers, designed for high-performance and expandable industrial servo drive
- 72: Rated continuous output current of 72A RMS for the unit, suitable for high-power servo motors
- 0: General power supply specification, supporting three-phase 208~480VAC industrial standard supply voltage
- 2: Standard dual-channel STO Safe Torque Off function, meeting high-end machinery safety standards
- NANANA: Factory standard base configuration, no expansion cards, no special customized hardware, no optional accessories, loaded with general standard firmware
Core Electrical Specifications
Adopting the core hardware architecture of S700 series, this model delivers stable electrical parameters to meet the requirements of industrial heavy-load high-precision operation. Key parameters are listed below:
| Power Supply Parameters | Three-phase AC 208V(-10%)~480V(+10%), 50/60Hz; DC bus operating range 290–675VDC, compatible with mainstream industrial power supplies worldwide |
| Output Performance | Continuous rated output current 72A RMS, peak current 140A (2 seconds duration), standard switching frequency 8kHz, ideal for high-inertia heavy-load servo motors under rapid start-stop and fluctuating load conditions |
| Control Performance | 62.5μs ultra-high precision sampling for current loop, realizing three closed-loop control of current, speed and position, greatly improving machine motion accuracy and cyclic operation tact time |
| Protection & Heat Dissipation | IP20 protection class, designed for cabinet mounting; base version without built-in fan, optional controlled fan can be added on demand to enhance heat dissipation |
| Safety Rating | Built-in dual-channel STO Safe Torque Off function, up to SIL CL3 safety level, compliant with industrial machinery safety design specifications |
Interface & Communication Capabilities

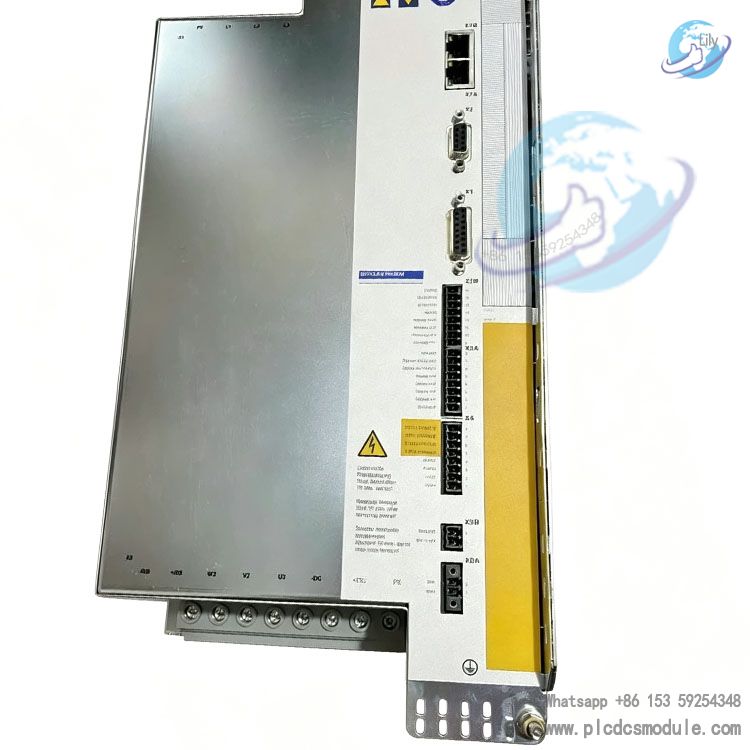

The unit integrates diversified communication, feedback and I/O interfaces, compatible with new and old control systems with strong hardware expandability to satisfy various machine control requirements:
- Fieldbus Communication: Onboard EtherCAT and CANopen real-time industrial buses, with RS232 debug interface. It also supports pulse/direction command input, seamlessly connecting to mainstream high-end controllers and traditional motion control systems
- Feedback Compatibility: Fully compatible with Resolver, AquadB incremental encoder, SSI absolute encoder, ComCoder and other feedback types. It supports SFD3, Hiperface DSL single-cable motor feedback solutions to simplify on-site wiring and reduce failure risks
- Expansion Capacity: Reserved 3 dedicated expansion slots. I/O expansion cards, encoder simulation cards, PROFINET, PROFIBUS and other fieldbus options can be installed as required. MMC memory card is supported for fast parameter backup, firmware copy and batch equipment commissioning and replacement
- Built-in Functions: Equipped with auto-tuning, mechanical resonance suppression and cogging torque compensation functions to adaptively optimize machine operation and reduce on-site debugging difficulty. Local macro programming on drive is available to execute simple motion sequences independently
Product Certifications
The drive has obtained CE, UL, TÜV and other authoritative industrial certifications, complying with global industrial equipment safety and EMC standards. It meets export and compliance requirements for automation equipment worldwide and fits global production scenarios.
Application Fields
Benefiting from high power, high dynamics, high precision and high stability, this servo drive is widely used in various high-end industrial automation scenarios, mainly including: metal working machine tools, high-speed packaging machinery, paper making and printing equipment, high-end textile machinery, heavy-duty material handling equipment, multi-axis synchronized automatic production lines, precision test benches, gantry heavy-duty motion equipment and other fields with strict requirements on motion control accuracy, response speed and equipment stability.
Core Product Advantages
- High Power & High Dynamic Performance: 72A continuous output current together with high peak overload capability easily drives heavy-load, high-inertia servo motors. It responds rapidly during high-speed start-stop and fast reversing, suitable for high-frequency and heavy-duty operation conditions
- Full-scenario Communication Compatibility: Supports both high-end real-time bus EtherCAT and traditional pulse control mode, suitable for legacy equipment renovation and new machine R&D with excellent universality
- Modular Flexible Expansion: Open hardware expansion architecture. Functions such as bus and I/O can be expanded by installing optional parts without replacing the main unit, adapting to diversified machine control needs and lowering equipment upgrade cost
- Standard High-order Safety Function: Factory-equipped SIL3 dual-channel STO safety function. No extra safety relay is required, simplifying machine safety circuit design and reducing hardware cost and failure points
- Efficient Commissioning & Maintenance: Intelligent auto-tuning and resonance compensation reduce debugging barriers. MMC card for fast parameter copying greatly shortens on-site commissioning, equipment repair and replacement cycle
- Broad Motor Compatibility: Compatible with multiple feedback protocols. It can perfectly match full series of Kollmorgen AKM servo motors and most third-party industrial servo motors for flexible equipment matching and lower system cost
Precautions for Use
S77202-NANANA is a factory standard base configuration model with no expansion cards or customized functions onboard. If PROFINET communication, extended I/O, built-in cooling fan and other enhanced functions are required, corresponding hardware options shall be ordered separately. The equipment has IP20 protection rating and is only for installation inside closed industrial control cabinets. Direct installation in open-air, humid or heavily dusty environments is prohibited.
FAQ
Q1:What does NANANA stand for in S77202-NANANA?
A1:
NANANA is Kollmorgen’s standard base configuration code. It means the servo drive is delivered as factory bare unit without optional expansion cards, hardware customization or special firmware, loaded with general standard program. It is the most basic and universal standard model, and hardware functions can be expanded later on demand.
Q2:What communication methods does this drive support? Can it connect to ordinary domestic controllers?
A2:
The unit is equipped with EtherCAT and CANopen buses, and also supports traditional pulse + direction control. It can connect to high-end bus motion controllers as well as conventional domestic pulse controllers. Both new and legacy control systems are compatible, matching most automation machine control schemes.
Q3:Can the built-in STO function meet machine safety certification requirements?
A3:
Yes. This model comes with dual-channel independent STO Safe Torque Off function up to SIL CL3 safety level, conforming to EU and domestic industrial machinery safety standards. It can be directly adopted in machine safety circuit design without additional safety relays and satisfy safety certification requirements for most industrial machines.
Q4:What power range of servo motors can this drive support? Can it work under heavy-load conditions?
A4:
Rated continuous output current is 72A with peak current 140A. It is designed for high-power heavy-load applications and can drive medium & large inertia high-power servo motors. It fully meets heavy-load, frequent start-stop and multi-axis synchronous high-intensity working conditions for machine tools, gantry equipment, material handling and other applications with excellent dynamic response and load stability.
Q5:Does the drive come with built-in cooling fan? How to use it under high ambient temperature?
A5:

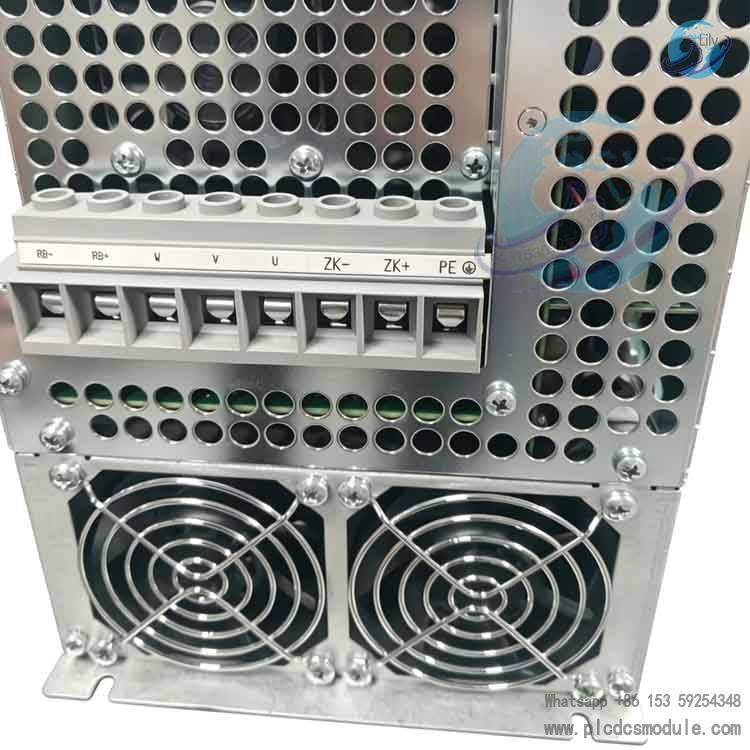

The base version of S77202-NANANA has no built-in cooling fan and relies on natural heat dissipation. If the unit runs continuously under heavy load or the cabinet temperature is high, dedicated controlled fan option can be installed later to enhance heat dissipation and ensure long-term stable operation.
Q6:Can it drive third-party servo motors or only Kollmorgen motors?
A6:
This drive is not limited to original motors. It supports general feedback protocols including Resolver, SSI, AquadB, Hiperface DSL, compatible with most mainstream standard servo motors in the market. There is no binding requirement on original motors, lowering equipment matching cost.
Q7:How to back up and copy parameters in batch for mass equipment commissioning?
A7:
MMC memory card is supported. Commissioned parameters and firmware can be backed up to memory card with one click. Parameters can be imported in batch to multiple drives without tuning unit by unit, greatly improving efficiency for mass production, commissioning and maintenance.
Q8:What are the installation environment requirements for this drive?
A8:
IP20 protection class, for cabinet installation only. The installation environment shall be dry, free of corrosive gas and excessive dust with good ventilation. Direct use in open-air, humid, water-logged or heavily dusty harsh environments is forbidden, otherwise service life and operation stability will be affected.
