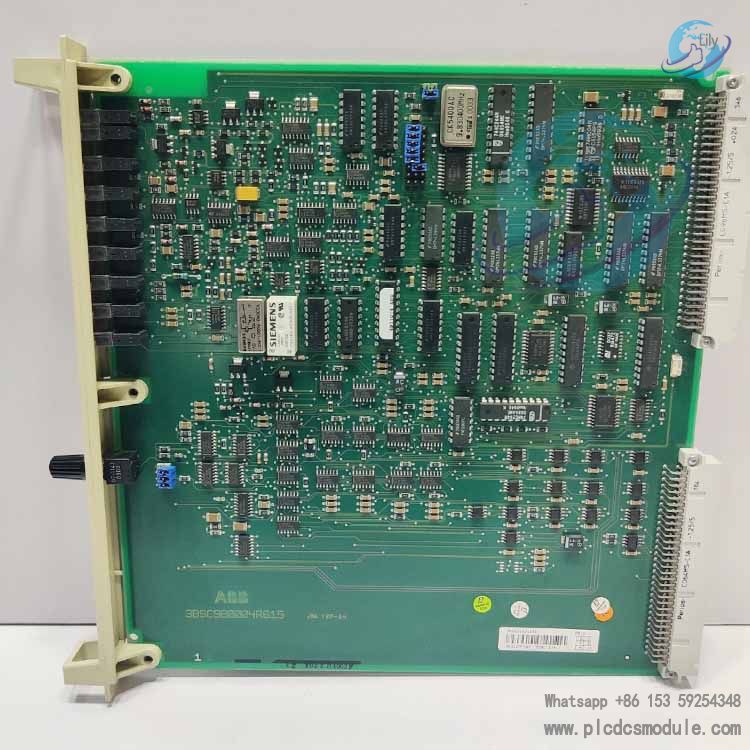

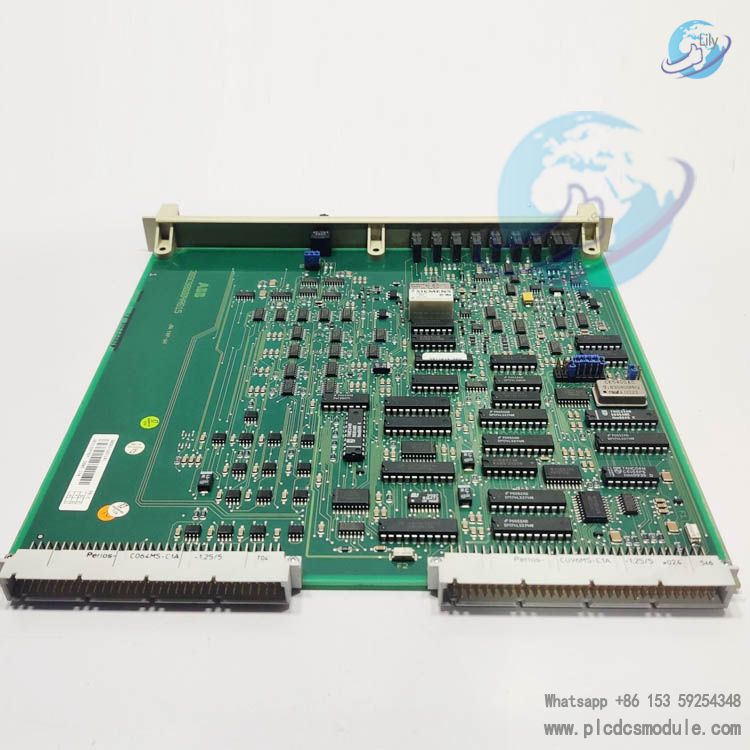

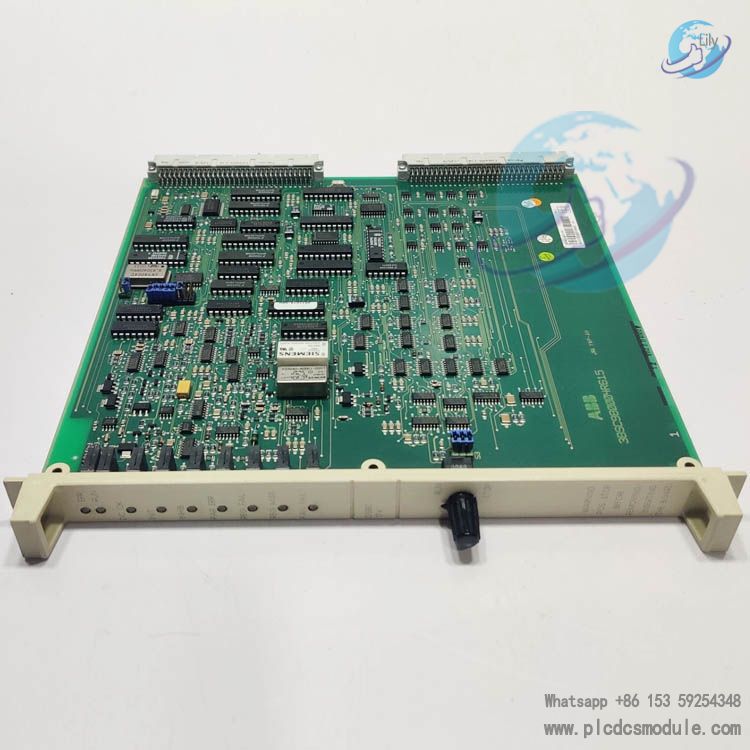

ABB DSBC 174 3BSE012211R1 is an S100 I/O bus extender module for Advant OCS DCS system. It extends the S100 internal I/O bus to connect multiple DSRF subracks, expanding the I/O capacity of the controller. It is widely used for maintenance and spare replacement on legacy ABB Advant S100 automation platforms.
FAQ
Q: What is DSBC174 3BSE012211R1?
A: It is an S100 I/O bus extender module under Advant OCS system.
Q: Which racks work with DSBC174?
A: It matches DSRF 185 and DSRF 185M I/O subracks.
Q: What is the main purpose of this module?
A: Extend the S100 bus to link extra I/O subracks and expand I/O points.
Q: Can DSBC174 communicate directly with field instruments?
A: No, it only extends the internal S100 backplane bus, not fieldbus.
Q: Is DSBC174 still in new production?
A: It is a legacy discontinued part, supplied as replacement spare.
Q: What is the difference between DSBC174 and DSBC176?
A: Both are S100 bus extenders, with different bus timing and connection rules, not interchangeable.
Q: What to inspect for used DSBC174?
A: Check board corrosion, connector pins, no burn damage and bus communication test.
