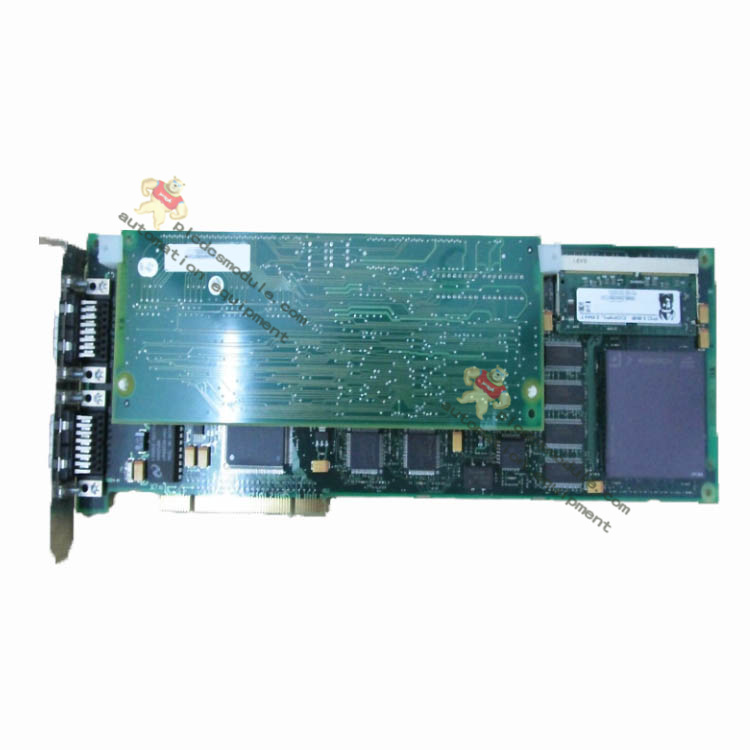

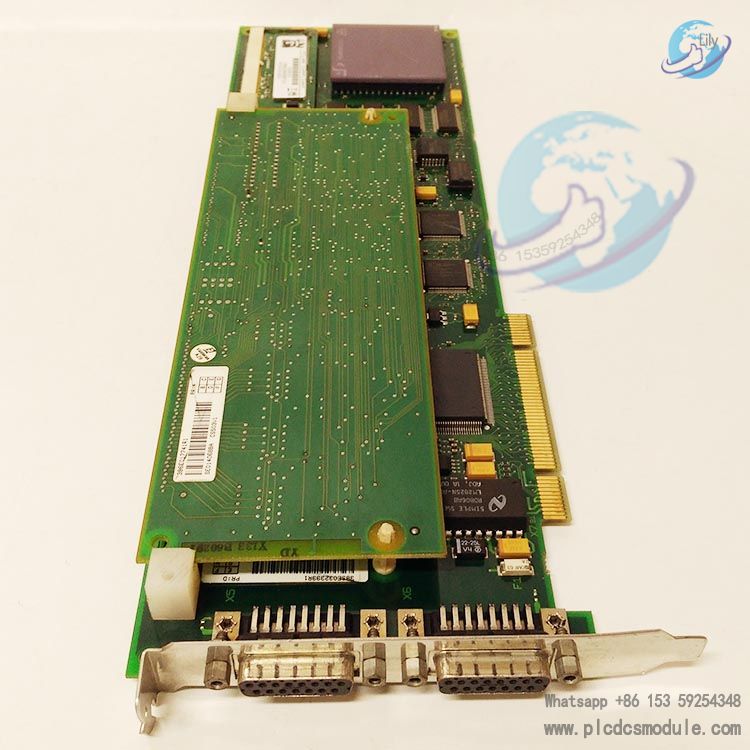

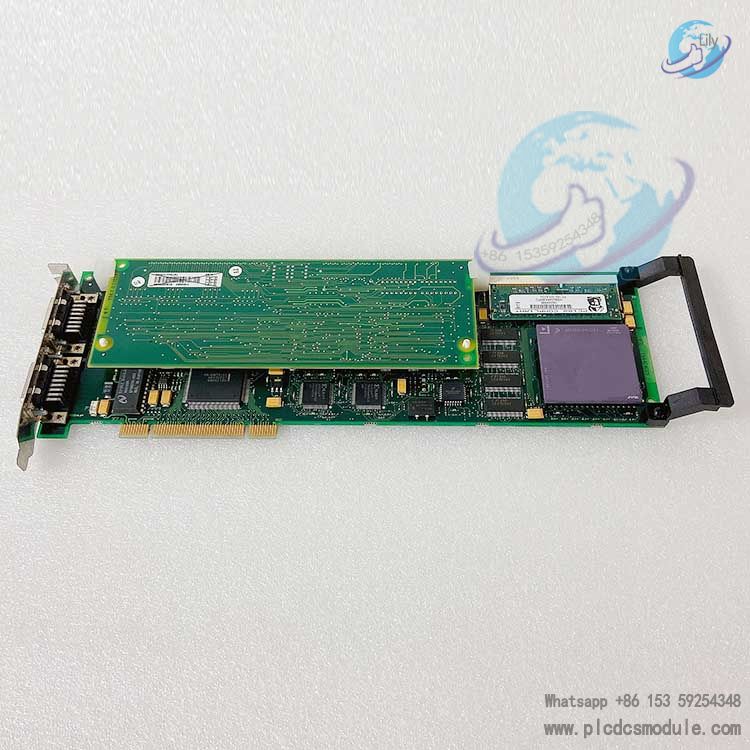

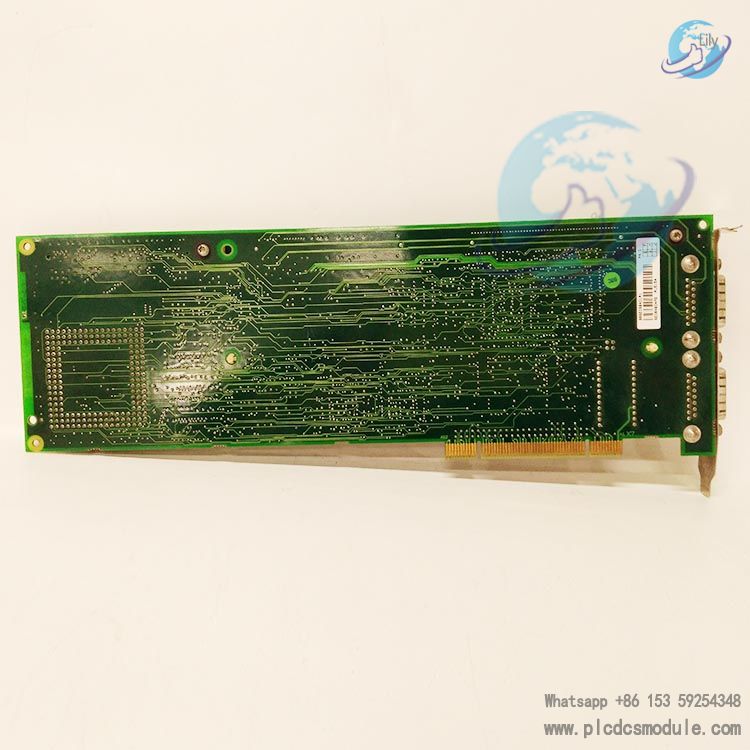

The ABB PU515A (Order No. 3BSE032401R1) is a Real-Time Accelerator (RTA) board designed for the ABB Advant OCS system. Compliant with the PCI bus standard, it is equipped with 16 MB memory and dedicated processing chips. Its core function is to offload real-time computing and high-speed communication tasks from AC800M controllers or Advant Station 500 engineering workstations, greatly improving system response speed and control accuracy. It serves as a key hardware acceleration unit for applications requiring high-frequency sampling, complex algorithms and hard real-time performance.
Key Technical Specifications

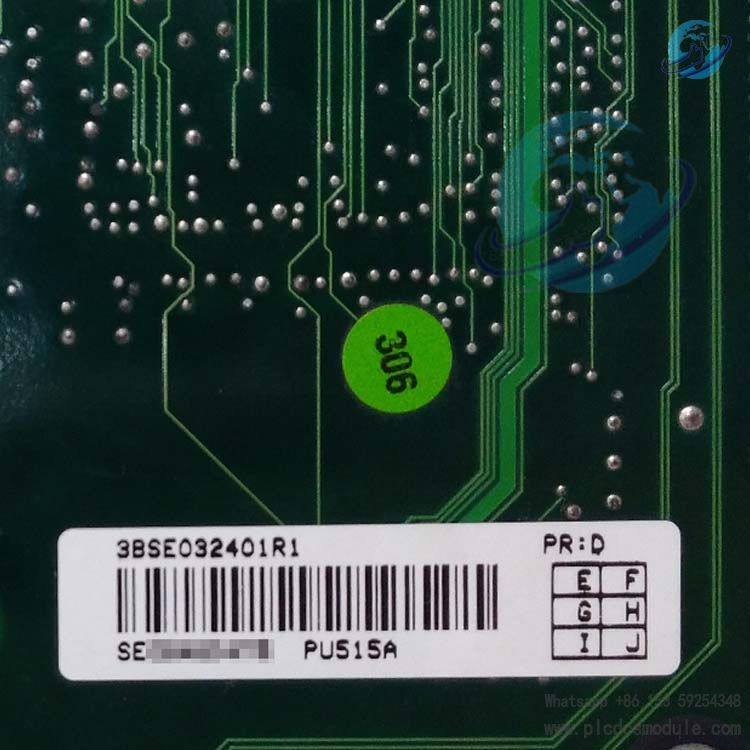

Model: PU515A, 3BSE032401R1
Hardware Form Factor: Standard PCI bus board. Dimensions: 330mm×127mm×51mm; Weight: approx. 0.3kg.
Processing Performance: Equipped with a dedicated real-time processor and 16 MB high-speed memory. It supports high-frequency sampling up to 20 kHz and operation of complex control algorithms.
Communication Interfaces: Dual-channel MB300 (dedicated industrial Ethernet). No USB port. The bus protocol is compatible with MOD 300 software stack.
Electrical Parameters: Power supply: +3.3VDC / +5VDC; Power consumption: approx. 5W. Built-in overload and short-circuit protection.
Environmental Adaptability: Operating temperature: 0℃ ~ +55℃; Storage temperature: -25℃ ~ +85℃; Ingress protection: IP20.
Diagnostic Functions: Onboard LED status indicators. It supports hardware self-test and fault code reporting for rapid troubleshooting.
Core Advantages
Hardware-level Real-time AccelerationBuilt with independent FPGA/DSP processing units to offload loads from the main CPU. The control loop response latency is no more than 1 ms, delivering 5 to 10 times performance improvement over conventional solutions.
Dual-channel MB300 Redundant CommunicationAdopts dedicated MB300 industrial Ethernet bus with dual-channel redundancy. The communication speed reaches 100 Mbps to ensure zero packet loss for critical data transmission.
Plug-and-Play & Seamless IntegrationNatively compatible with ABB AC800M and Advant OCS systems. It supports hot swapping, enabling on-site replacement without system shutdown. It can also be used for upgrading and replacing legacy models including PU515, PU518 and PU519.
Industrial-grade High Reliability DesignIt operates stably within 0℃ to +55℃ and features strong electromagnetic interference resistance. The coated circuit board provides moisture and corrosion protection, making it ideal for harsh working conditions in power, petrochemical and other industries.
Application Industries
Power & EnergyReal-time monitoring, unit coordinated control and grid frequency regulation for thermal, hydropower and wind power plants, ensuring millisecond-level response.
Petrochemical IndustryReactor control, closed-loop regulation of pipeline pressure and flow, and safety instrumented system (SIS) for refining facilities.
Metallurgy & SteelSpeed synchronization, closed-loop temperature control and high-precision tension control for steel rolling production lines.
Advanced ManufacturingPrecision motion control, robot collaboration, high-speed data acquisition and machine vision processing.
Rail TransitReal-time communication of signal systems and high-speed data processing for on-board control units.
Product Comparison
| Comparison Items | PU515A (3BSE032401R1) | Legacy Models: PU515/PU518/PU519 |
|---|---|---|
| Memory Capacity | 16 MB (High-speed) | 8 MB (Standard) |
| Communication Channels | Dual MB300 channels (Redundant) | Single MB300 channel |
| Processing Performance | FPGA + DSP, response ≤ 1 ms | General-purpose processor, response: 5–10 ms |
| Compatibility | Compatible with legacy models for direct replacement | Not applicable for new model upgrade |
| Operating Temperature | 0℃ ~ +55℃ | 5℃ ~ +50℃ |
| Maintainability | Hot swap & LED diagnosis for easy maintenance | No hot swap function, basic diagnosis only |
FAQ
Q: Which ABB systems is PU515A compatible with?A: It is exclusively designed for ABB Advant OCS, AC800M controllers and Advant Station 500 engineering workstations, and incompatible with non-ABB systems. Please verify your system model before purchase.
Q: Can PU515A replace PU518?A: Yes. As an upgraded version of PU518, it features full hardware compatibility and shared software configuration. No program modification is required after replacement; simply reload the configuration.
Q: What parameters need to be checked before purchasing?A: Focus on the order number (3BSE032401R1), hardware version and firmware version to match your existing system. Also confirm the power supply and communication interface to avoid compatibility issues.
Q: The Run indicator does not flash after power-on. How to troubleshoot?A: First check if the PCI slot provides normal +3.3V/+5V power and ensure the board is fully seated. If power is normal, the firmware may be corrupted or the hardware faulty. Reflash the firmware or replace the board accordingly.
Q: What causes frequent MB300 communication disconnections?A: Common causes include aged cables, missing terminating resistors or mismatched baud rate. Install 120Ω terminating resistors at both ends of the MB300 bus, use shielded twisted-pair cables and keep them away from strong interference sources such as frequency converters.
Q: How to resolve overtemperature alarms on PU515A?A: Check if the chassis fan speed reaches no less than 2000 rpm and clear blocked vents and dust on the board. If the ambient temperature exceeds 55℃, install additional cooling fans or improve cabinet heat dissipation.
Q: The system fails to recognize the board after hot swapping PU515A?A: Ensure the new board has the same firmware version as the original one. Restart the controller, rescan hardware in Control Builder, then load and download the configuration for normal recognition.
