It features powerful computing capability, flexible expansion architecture and full redundancy design, enabling millisecond-level control cycles, supporting large-scale I/O expansion and multi-protocol communication.It serves as the core hardware for building high-availability industrial control systems.

Hardware Architecture and Components

1. Monolithic Integrated Design

2. Core Processing and Memory

• Processor: Equipped with a Freescale PowerQUICC III MPC8270/MPC8641 processor running at 450 MHz, serving as a high-performance 32/64-bit computing core. It executes only 0.043 ms per 1000 Boolean operations and supports multi-task priority scheduling.
• Memory Configuration: Standard 256 MB high-speed RAM (208.985 MB available for applications), paired with 16 MB Flash PROM for firmware storage, meeting the requirements of large-scale complex control programs and massive data processing.
• Auxiliary Components: Built-in real-time clock (RTC), LED status indicators, INIT reset button, and SD card interface for program backup and restoration. No internal battery; clock synchronization relies on the CNCP protocol, with a synchronization accuracy of 1 ms between controllers.

3. Onboard Native Communication Interfaces

• Ethernet Ports: 2 RJ45 Ethernet ports (CN1, CN2), supporting redundant configuration for connection to the control network. Compatible with TCP/IP, UDP/IP and other protocols, with a unique hardware MAC address.
• Serial Port: 1 isolated RJ45 serial port (COM4), dedicated for connection to configuration tools (such as Control Builder), enabling secure and isolated engineering commissioning.
• CEX-Bus Expansion Bus: Built-in communication expansion bus for extending third-party communication interface modules (e.g., Profibus, Modbus, Ethernet/IP, OPC UA, etc.), supporting redundant communication interface configuration. Can be used with the BC810 Interconnection Unit to divide the CEX-Bus into independent segments, enhancing bus availability.

• Optical Modulebus: Connects S800 I/O units via optical fiber, supporting up to 7 I/O clusters, with each cluster supporting 12 S800 I/O modules to meet large-scale distributed I/O expansion requirements.

•


  Technical Specifications

  Parameter	Specification
  Order Number	PM891K01, 3BSE053241R1
  Processor	450MHz PowerQUICC III 32/64-bit CPU
  Memory	256MB RAM, 16MB Flash (firmware storage)
  Control Performance	Min program cycle 1ms; supports 32 tasks/controller, 128 application diagrams
  I/O Expansion	Optical Modulebus: 7 S800 I/O clusters (≤12 units/cluster); CEX-Bus: ≤12 communication modules
  Power Input	24V DC (19.2–30V DC), redundant power supported
  Power Consumption	Typical 660mA, Max 750mA; Power: 15.8W (Max 18W)
  Physical Dimensions	245mm (W) × 105mm (H) × 280mm (D), Weight 2.1kg
  Protection Class	IP20 (EN 60529/IEC 529), no extra cabinet required
  Environmental Adaptability	Operating temp 0–60℃; Humidity 5%–95% (no condensation); Complies with IEC/EN 61131-2 (vibration/shock)

Functions & Benefits

1. Full Redundancy Design (High Availability)

• CPU Redundancy: Supports 1:1 hot standby redundancy with seamless switchover between primary and backup controllers. Full-link redundancy covers CPU, CEX‑Bus, communication interfaces, and S800 I/O to ensure uninterrupted system operation.
• Communication Redundancy: Dual redundant Ethernet ports, redundant CEX‑Bus communication modules, and redundant Optical Modulebus eliminate single points of communication failure.
• Power Redundancy: Supports 24V DC redundant power input with real-time power status monitoring.

2. Modularity and Scalability

• Step-by-Step Expansion: CEX‑Bus and Optical Modulebus support on-demand expansion of communication and I/O capabilities, accommodating full lifecycle capacity expansion from small to extra-large control systems.
• System Compatibility: Fully compatible with ABB Ability™ System 800xA and Advant Controller 800M systems, enabling seamless integration with S800 I/O, S900 I/O, and other modules.

3. Reliability and Usability

• Fault Diagnosis: LED indicators + event logs + built-in web server enable fast local and remote fault location and diagnosis.
• Easy Maintenance: Monolithic design reduces hardware connection points; SD card interface supports fast program backup/restore; one-touch INIT reset for quick recovery.
• EMC Performance: Full series with EMC certifications, suitable for harsh industrial electromagnetic environments and ensuring stable operation.

Applications

• Power Industry: DCS control for power plants, substation automation, power grid dispatching control.
• Process Industry: Continuous process control for petrochemical, oil refining, coal chemical, and fertilizer production.
• Metallurgy Industry: High-precision control for blast furnace, converter, continuous casting, and rolling mill production lines.
• Manufacturing: Automated production line control for automotive, paper, cement, and other discrete manufacturing.
• Infrastructure: Intelligent control for water treatment, wastewater treatment, urban heating and gas supply systems.

Related and Expansion Components

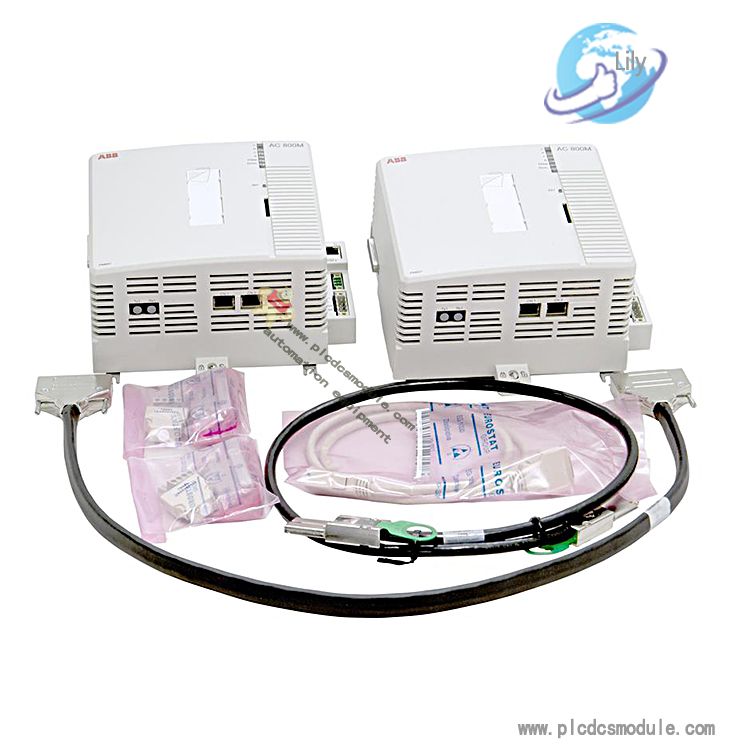

• Redundant Pairing: Can form a redundant CPU pair with PM891K02 for hot standby switchover.
• CEX‑Bus Expansion: BC810 CEX‑Bus Interconnection Unit (for segmentation and higher availability); various communication interface modules (Profibus DP, Modbus TCP, Ethernet/IP, OPC UA, etc.).

• I/O Expansion: S800 series analog/digital I/O modules, safety I/O modules, and special function modules.
