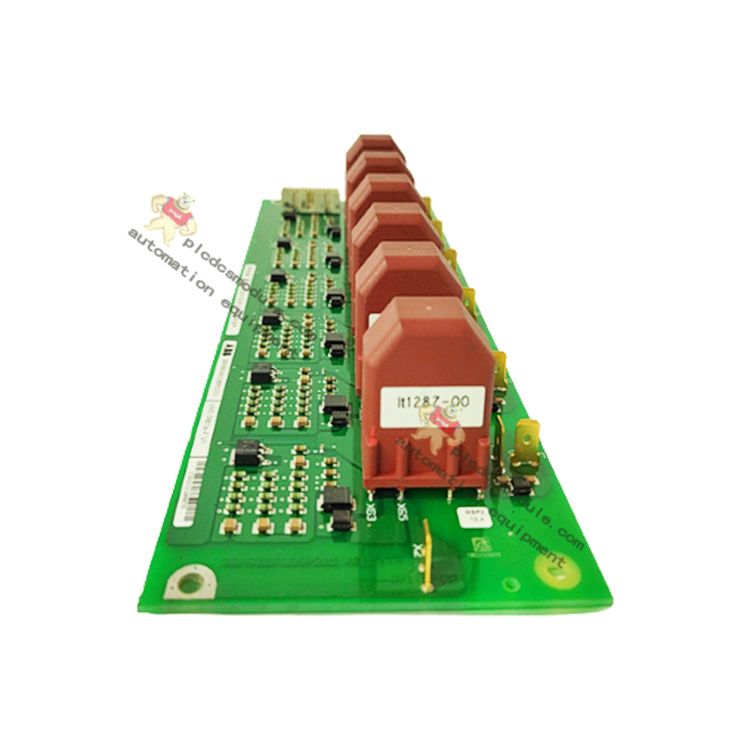

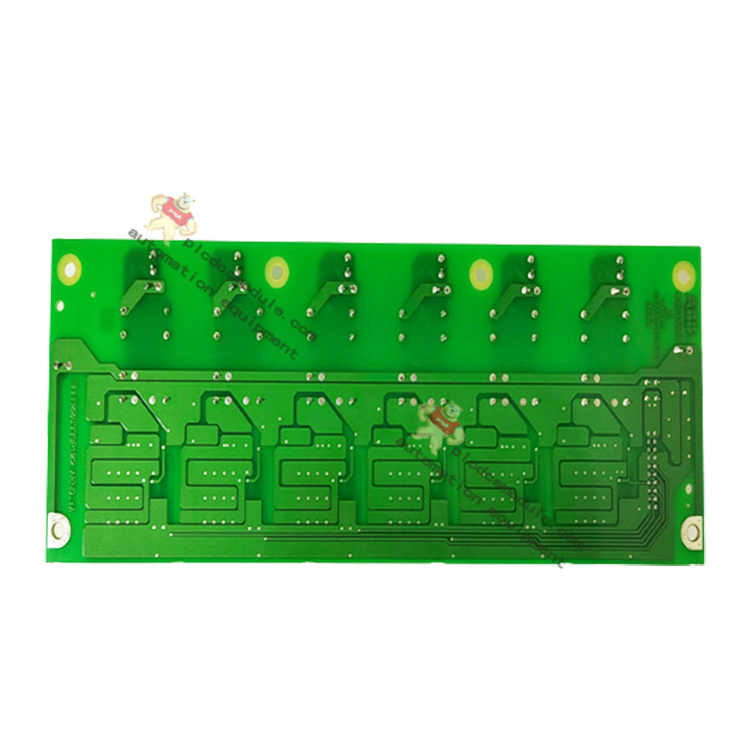

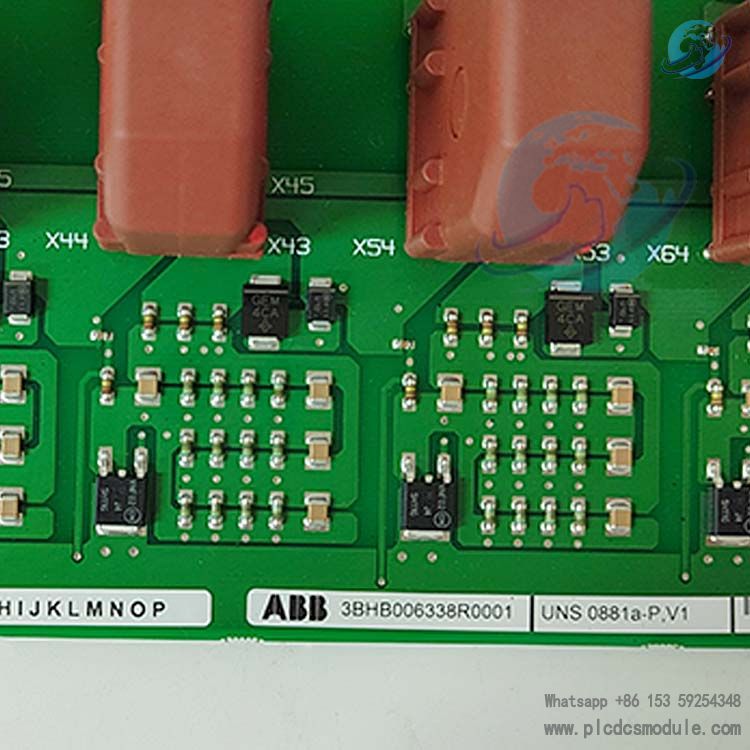

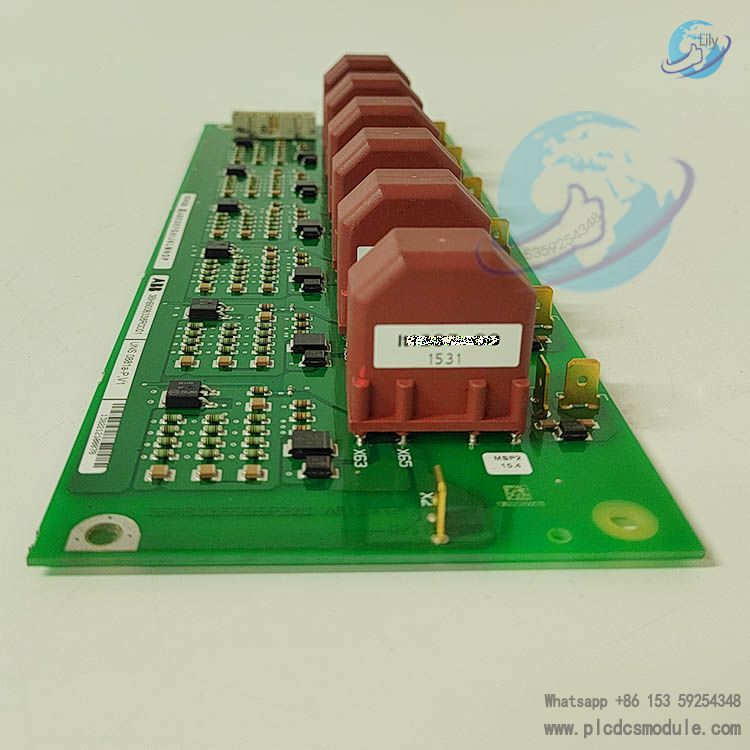

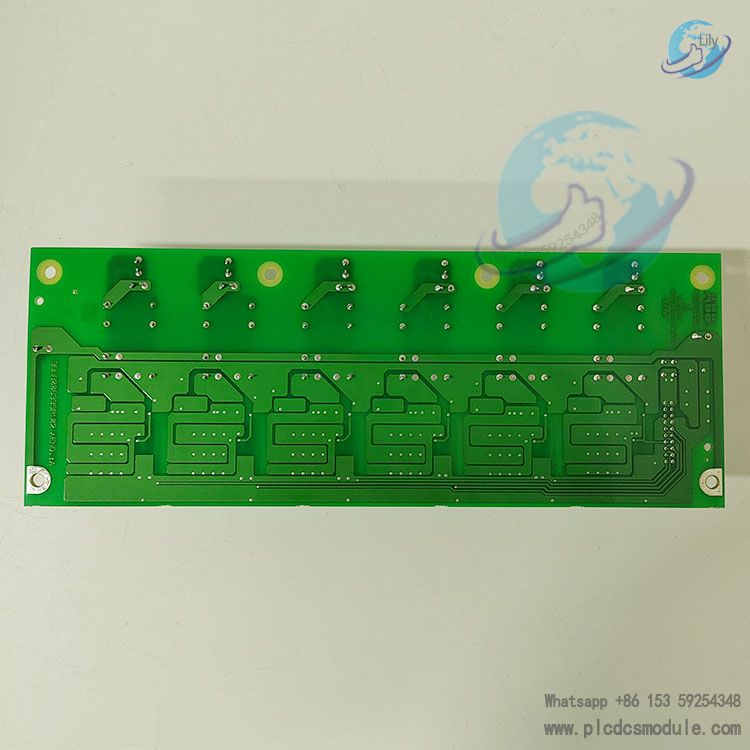

ABB UNS0881a-P,V1 3BHB006338R0001 GDI PCB Module
Product Overview
The ABB UNS0881a-P,V1, part number 3BHB006338R0001 GDI PCB Module is an official ABB Gate Drive Interface printed circuit board, designed as a core hardware component for ABB UNITROL static excitation systems, mainly UNITROL 6000 X-Power series generator excitation equipment.
GDI stands for Gate Drive Interface. This PCB acts as the signal bridge between the main excitation controller and power semiconductor devices (thyristors, IGBTs). It converts digital logic commands from the control CPU into high-speed gate trigger pulses, and delivers real-time fault monitoring and protection signals for power semiconductors. It guarantees fast, stable and accurate excitation regulation for synchronous generators, which is critical to maintain generator terminal voltage and grid stability in power plants.
Built per ABB industrial power electronics specification, UNS0881a-P,V1 features galvanic isolation between low-voltage control circuit and high-power power stage, suppressing high voltage interference and improving system safety. Its compact PCB structure supports quick on-site replacement, reducing generator downtime during maintenance and overhaul of UNITROL excitation systems.
Key Features
- Official ABB GDI gate drive interface PCB, model UNS0881a-P,V1, order code 3BHB006338R0001
- Designed for ABB UNITROL 6000 static excitation system for synchronous generators
- High-speed pulse generation for thyristor / IGBT gate triggering
- Galvanic isolation between control side and high-power power circuit
- Built-in device fault detection and protection feedback for power semiconductors
- Compact modular PCB design, easy installation and field maintenance
- Rugged industrial PCB construction for continuous operation in power station cabinets
- Strictly compliant with ABB power electronics design and testing standards
Technical Specifications
| Item | Parameter |
|---|---|
| Manufacturer | ABB |
| Full Model | UNS0881a-P,V1 |
| Part Number | 3BHB006338R0001 |
| Product Type | GDI PCB Module (Gate Drive Interface Board) |
| Compatible System | ABB UNITROL 6000 Static Excitation System |
| Core Function | Gate trigger pulse output & power semiconductor protection monitoring |
| Isolation | Galvanic isolation between control and power circuit |
| Dimension | 270 mm × 100.2 mm × 100.2 mm |
| Net Weight | Approx. 0.24 kg |
| Operating Environment | Industrial control cabinet, 0 ~ +55°C |
| Application Target | Synchronous generator excitation control |
Applications
The ABB UNS0881a-P,V1 3BHB006338R0001 GDI PCB Module is widely deployed in power generation sites with ABB UNITROL 6000 excitation systems:
- Hydropower generator sets
- Gas turbine & steam turbine power plants
- Cogeneration power stations
- Synchronous compensator / phase modifier voltage regulation
- Power plant excitation system spare parts replacement, system upgrade and retrofit
It is a critical spare part for power plant maintenance teams when repairing UNITROL 6000 excitation cabinets.
Frequently Asked Questions
Q: What does GDI mean for ABB UNS0881a-P,V1?
A: GDI = Gate Drive Interface. This PCB board sends gate drive pulses to thyristors or IGBTs inside the UNITROL excitation system and returns fault status signals.
Q: Which UNITROL system is 3BHB006338R0001 compatible with?
A: It is mainly designed for ABB UNITROL 6000 X-Power static excitation systems for synchronous generators.
Q: What is the role of UNS0881a-P,V1 in the excitation cabinet?
A: It is the intermediate signal board between the main control board and power semiconductors. It translates control logic into trigger pulses and provides overcurrent / fault protection feedback.
Q: Can UNS0881a-P,V1 replace UNS0881a-P,V2?
A: V1 and V2 are different hardware revisions. Direct replacement is not recommended. Verify the original part number and system firmware before swapping.
Q: Is galvanic isolation included on this GDI PCB?
A: Yes. ABB designed galvanic isolation to separate low voltage control logic from high power circuits to avoid high voltage damage to the controller.
Q: What industries use ABB 3BHB006338R0001?
A: Thermal power, hydropower, gas turbine power stations, industrial self-owned power plants.
Q: Is this board a DCS module or excitation dedicated board?
A: It is a dedicated power electronics PCB for UNITROL generator excitation systems, not a general DCS I/O card.
Q: What should be noticed during installation?
A: Electrostatic protection is required. Power off the whole excitation cabinet before replacement. Follow ABB UNITROL service manual for wiring and testing.
