ABB PCS6000 Medium-Voltage Full-Power Converter: Product Overview & Technical Specifications
Against the backdrop of rapid global growth in renewable energy and rising demand for industrial power, medium-voltage high-power converters have become core equipment ensuring efficient power conversion, stable grid connection, and reliable drive operation. As a flagship product of ABB’s power electronics technology, the ABB PCS6000 is a medium-voltage full-power converter series designed specifically for large-scale wind power generation, grid energy storage, and heavy industrial drive applications. With its leading IGCT technology, modular architecture, and ultra-high operating efficiency, it has set a global benchmark in high-power power conversion.
Product Positioning & Core Purpose
The ABB PCS6000 belongs to ABB’s medium-voltage (MV) full-power converter family, primarily positioned to deliver efficient, stable, and flexible power conversion and grid-connection solutions for high-power applications rated 4MW to 20MW+. Breaking through the power limitations of conventional low-voltage converters, it is based on a nominal voltage of 3.3kV (extensible to 4.16kV, 6.6kV, 6.9kV, etc.) and adopts a three-level NPC (Neutral Point Clamped) voltage-source topology. This design balances high-power output, low harmonic distortion, and high operational reliability, making it ideal for onshore and offshore large-scale wind farms, grid-scale energy storage, and heavy industrial drives where strict requirements apply to equipment stability, power density, and lifecycle cost.
Technical & Design Advantages
1. Leading IGCT Semiconductor Technology

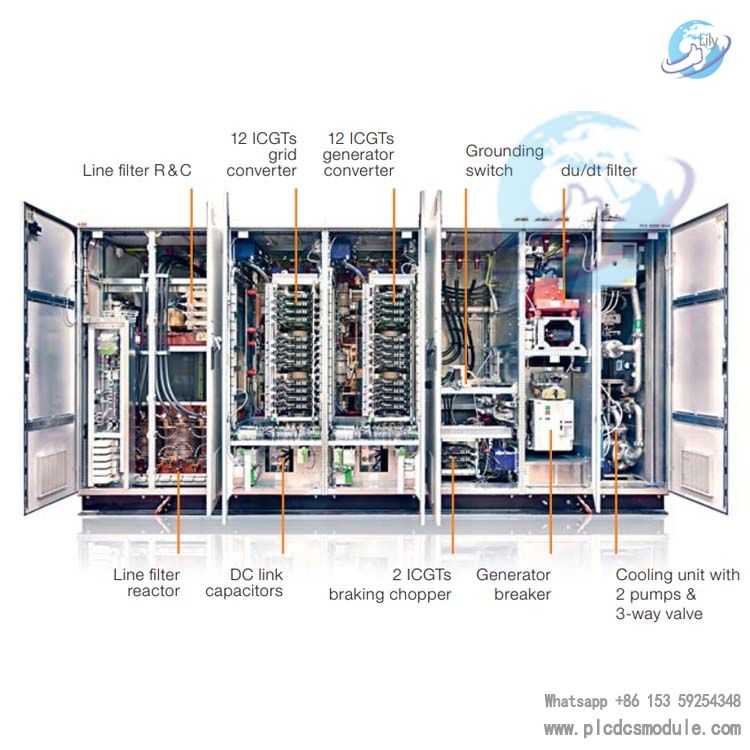

The PCS6000 uses ABB’s proprietary Integrated Gate-Commutated Thyristor (IGCT) technology instead of conventional IGBT devices, offering lower conduction losses, higher switching frequencies, and superior overcurrent capability. A single converter requires only 26 IGCTs for full-power output without device paralleling, greatly reducing component count, lowering failure risk, shrinking equipment size, and improving power density. Paired with self-healing film capacitors, it further enhances system stability and service life.
2. Ultra-High Efficiency & Low-Loss Design
The product achieves a nominal operating efficiency of over 98%. The three-level topology effectively reduces harmonic distortion, and with active filtering technology, harmonics are suppressed within standard limits to minimize grid pollution. Medium-voltage operation significantly reduces loop current, lowering cable losses and heat generation. Compared with low-voltage solutions, it can reduce cable costs by 15%–30% while lightening the load on cooling systems, substantially cutting energy costs over long-term operation.
3. Modular & Compact Design
The entire series features a standardized modular architecture, with separate power modules, control modules, and cooling systems for easy on-site installation, maintenance, and expansion. Single-unit power ranges from 4MW to 15MW, with parallel connection of two units extending capacity to 20MW+. The converter supports nacelle, tower-base, or indoor floor mounting, with an ingress protection rating up to IP54, enabling operation in harsh environments such as high humidity, high salt mist offshore, and industrial dust.
4. Advanced Control & Grid Compatibility
Equipped with the ABB AC 800PEC controller and FPGA deterministic control chip, it provides millisecond-level response, enabling precise four-quadrant operation, dynamic reactive power regulation, and Fault Ride Through (FRT) capability. It fully complies with major global grid codes (including IEC 61400-21, China’s GB/T 19963, etc.), supports 50/60Hz grid frequencies, and adapts to weak grids, voltage sags, and swells to ensure uninterrupted grid-connected operation.
5. Intelligent Digitization & Low-Maintenance Features
Built-in remote monitoring and diagnostics support real-time data acquisition, condition analysis, and fault pre-alarming, allowing remote commissioning and maintenance to reduce on-site service frequency. Its fuse-free design eliminates the need for cumbersome fuse replacement after faults. Paired with a closed-loop deionized water / glycol liquid cooling system, it delivers high heat dissipation efficiency and simple maintenance, effectively lowering lifecycle maintenance costs.
Main Application Areas
1. Large-Scale Wind Power Generation (Core Application)
As a mainstream converter choice for large-scale wind turbines (8MW–20MW+) worldwide, the PCS6000 is compatible with permanent magnet synchronous generators, induction generators, and both direct-drive and geared turbine architectures. It has been deployed in flagship offshore wind projects such as the UK’s Dogger Bank. It enables maximum wind energy capture, stable grid connection, and low-voltage ride through, helping wind farms increase energy production and reduce the Levelized Cost of Energy (LCoE).
2. Grid-Scale Battery Energy Storage Systems (BESS)
Used as a power conversion system (PCS) in large-scale lithium-ion or flow battery energy storage plants, it supports peak shaving and valley filling, frequency regulation, voltage stabilization, and backup power. It enables bidirectional high-efficiency charging and discharging with fast response, supporting renewable energy plants to mitigate grid fluctuation and improve power system stability.
3. Static Synchronous Compensator (STATCOM)
STATCOM solutions based on the PCS6000 platform provide dynamic reactive power compensation for industrial sites, renewable energy plants, and weak grids, quickly suppressing voltage fluctuations and flicker, improving power factor, and enhancing transmission efficiency.
4. Heavy Industrial Drives
Applied to large pumps, fans, compressors, rolling mills, and other equipment in mining, metallurgy, petrochemical, and other industries, it enables stepless speed regulation of medium-voltage motors, reducing startup shock, optimizing process efficiency, and lowering energy consumption and equipment wear.
5. Other High-Power Applications
Including static frequency converters (SFC), shore power for ships, photovoltaic grid connection, and rail transit power supply, meeting diverse high-power conversion and regulation requirements.
Technical Specifications (Wind Standard Version)
| Parameter Category | Specification |
|---|---|
| Product Type | Three-level NPC, four-quadrant voltage-source converter |
| Nominal Voltage | 3.3kV (optional 4.16kV / 6.6kV / 6.9kV) |
| Power Range | Single unit 4MW–15MW, dual unit 20MW+ |
| Nominal Current | Up to 2200A |
| Operating Efficiency | ≥98% |
| Semiconductor Device | IGCT (Integrated Gate-Commutated Thyristor) |
| Cooling Method | Closed-loop liquid cooling (deionized water / glycol) |
| Ingress Protection | IP54 |
| Operating Frequency | Grid side 50/60Hz, machine side 0–120Hz |
| Mounting | Nacelle / tower base / indoor floor |
| Compliance | IEC 61400-21, IEEE 1547, GB/T 19963, etc. |
Recommended ABB PCS6000 Models
Below are mainstream models and core configurations of the PCS6000 series for different applications. For detailed specifications and pricing inquiries, please consult the product page.
- PCS6000 Wind 4MW4MW wind-specific converter, 3.3kV, suitable for small-to-medium offshore/onshore wind turbines.
- PCS6000 Wind 8MW8MW medium-voltage full-power converter, modular IGCT design, nacelle mounting compatible.
- PCS6000 Wind 12MW12MW high-power wind converter, dual IGCT modules, high-efficiency liquid cooling, for 10MW+ turbines.
- PCS6000 Wind 15MW15MW flagship wind converter, supports parallel expansion to 20MW+, designed for offshore wind farms.
- PCS6000 BESS 10MW10MW energy storage converter, bidirectional four-quadrant operation, dedicated to grid-scale energy storage.
- PCS6000 STATCOM 20Mvar20Mvar static synchronous compensator, dynamic reactive power compensation for grid stability.
- PCS6000 Drive 6MW6MW industrial drive converter, for heavy-duty motor applications in metallurgy and mining.
- 3BHS351272PCS6000 standard control module, AC 800PEC controller, universal for wind and energy storage.
- 5SHY4045L0006PCS6000 dedicated IGCT power module, 4.5kV/4500A, core power device.
- 3BHE055094R0002PCS6000 GBU72 cooling system module, closed-loop liquid cooling, compatible with the full series.
