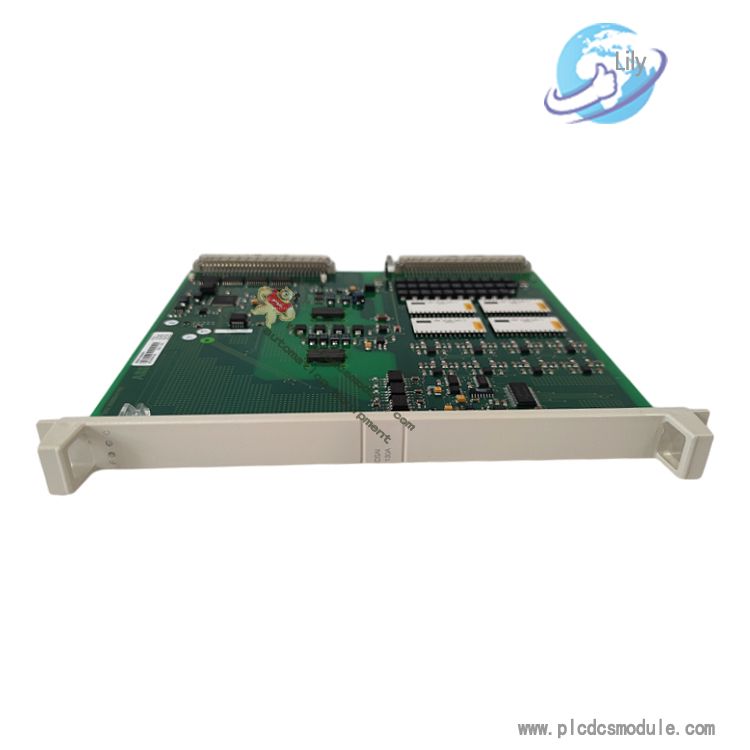

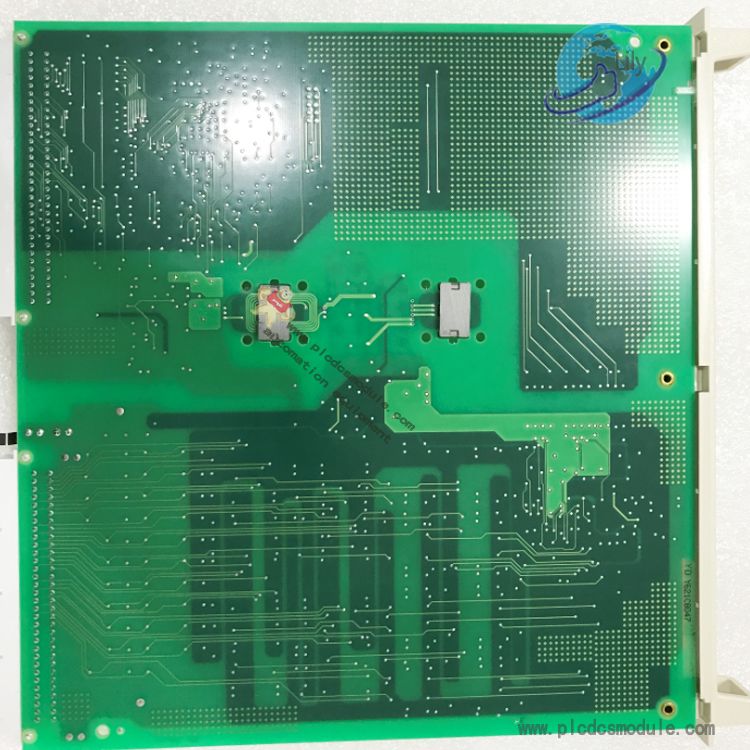

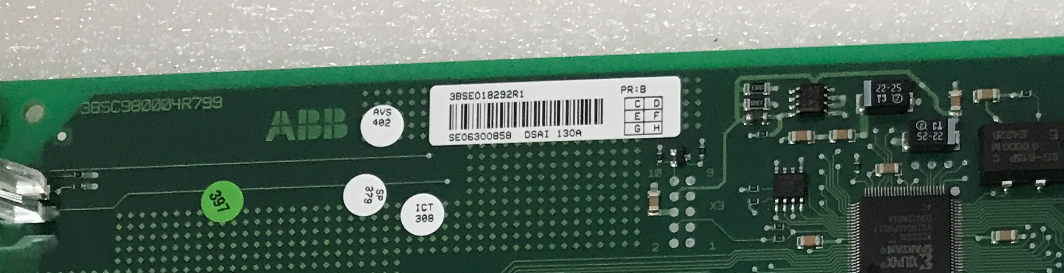

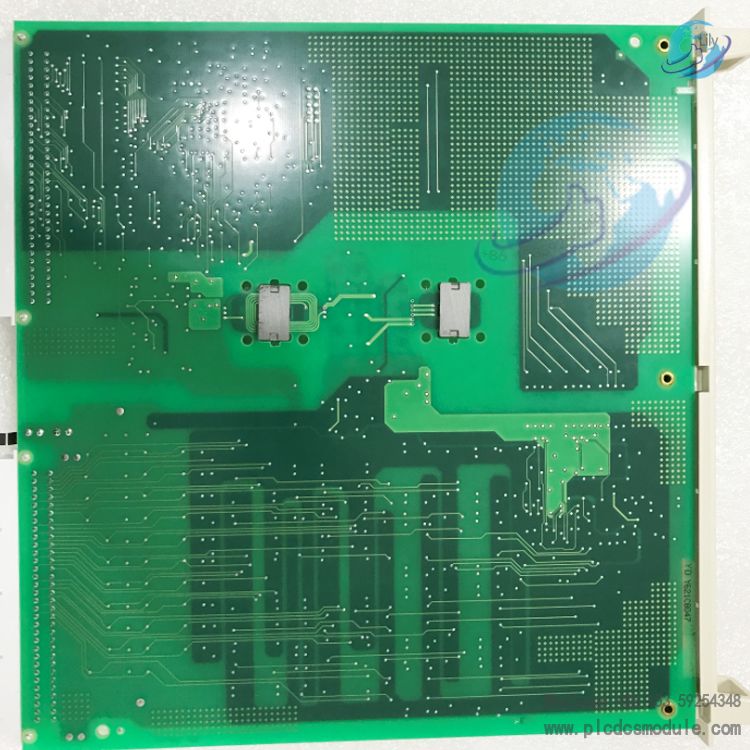

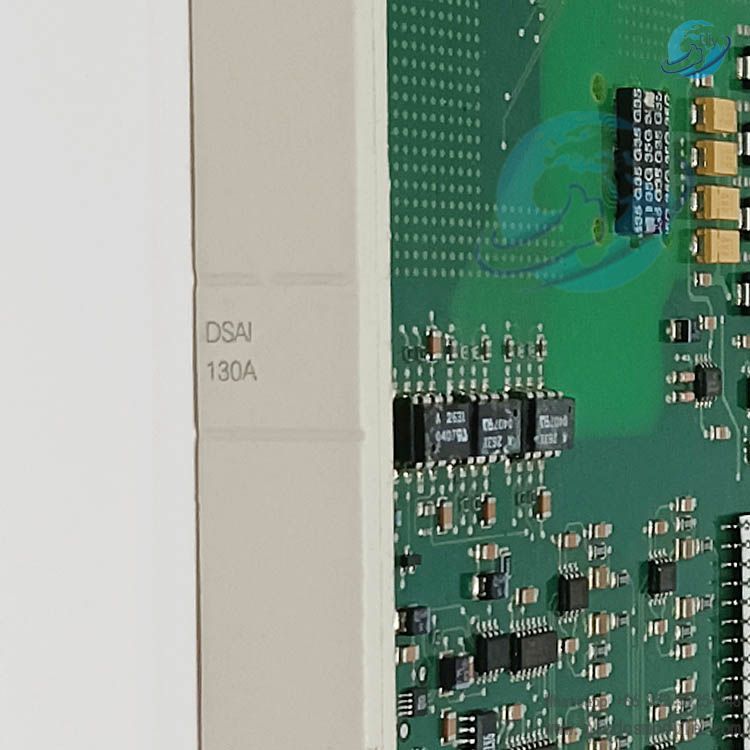

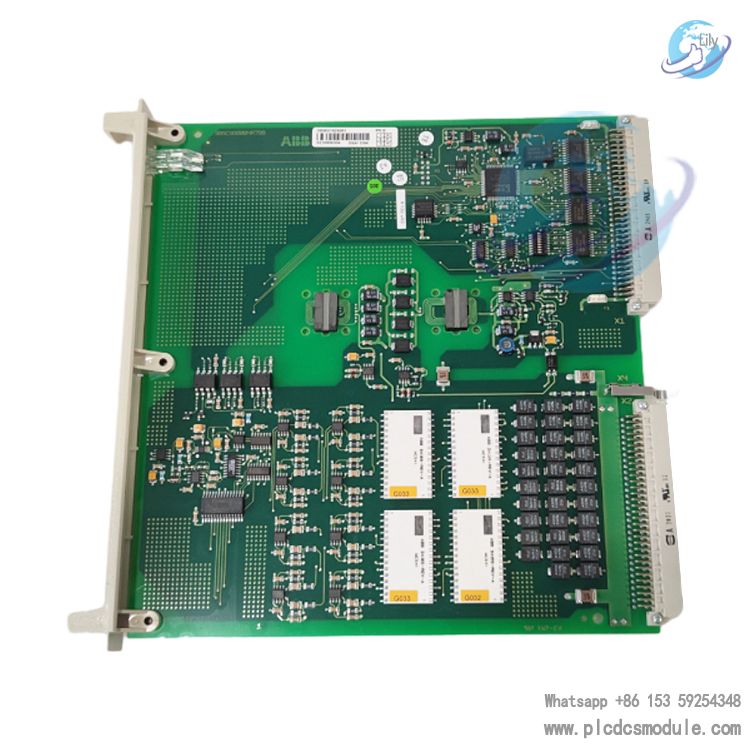

DSAI130A (Order No.: 3BSE018292R1) is a high-precision analog input module from ABB S800 I/O series, designed for use with the AC 800M control system and manufactured in Sweden. It converts analog signals from on-site sensors measuring temperature, pressure, flow and other parameters into digital signals for processing by DCS and PLC systems. As a core I/O component linking field instruments and control systems, it is widely applied in continuous process industries with stringent requirements for acquisition accuracy and reliability, including thermal power, chemical, metallurgy and water treatment sectors.
DOCUMENT DOWNLOAD
DSAI 130A Analog Input Board 3BSE018292R1.pdf
Product Advantages
Ultra-high Accuracy and StabilityIt features a DC signal accuracy of ±0.05% FS, ±0.1℃ for Pt100 RTDs and ±0.2% FS for thermocouples. With 16-bit resolution, low temperature drift and high common-mode rejection ratio (CMRR), it guarantees long-term stable acquisition of critical parameters.
Full Channel Isolation & Strong Anti-interference CapabilityConfigurable for 8 single-ended channels or 4 differential channels. It provides 2500V AC isolation between channels and between channels and ground. Equipped with EMI protection and shielding design, it operates reliably in environments with dense high-power equipment and intense electromagnetic interference.
Multi-signal Compatibility for Simplified System DesignNatively supports 4–20 mA / 0–20 mA, 0–10 V / 1–5 V, K/J/T/E/S/R/B type thermocouples and Pt100/Cu50 RTDs. No additional signal conversion modules are required, cutting hardware costs and wiring complexity.
HART Communication & Intelligent MaintenanceBuilt-in HART protocol enables remote access to diagnostic data, configuration information and process data of smart instruments, reducing on-site inspection work. It supports hot swapping and redundant configuration. Faulty modules can be replaced online without system shutdown to ensure uninterrupted production.
Industrial Durability & Wide Temperature AdaptationAdopts reinforced PCB and industrial-grade components with IP20 protection rating. The operating temperature ranges from -20℃ to +60℃, delivering reliable performance under harsh conditions such as high temperature, humidity and vibration.
Product Features
Channel Configuration8 single-ended channels or 4 differential channels, configurable via software. Each channel features independent isolation to eliminate crosstalk.
Signal AcquisitionEquipped with 16-bit ADC and a sampling rate of 1000 Hz. It supports digital filtering, linearization, cold junction compensation for thermocouples and wire break detection.
Electrical SpecificationsPower supply: 24 V DC ±4 V; Power consumption: approx. 5 W; Isolation voltage: 2500 V AC (1 minute).
Communication PerformanceSupports HART protocol. It seamlessly integrates with ABB AC 800M and Advant OCS, and is compatible with redundant systems.
Diagnostic FunctionsBuilt-in module self-diagnosis, channel wire break/short circuit detection and over-range signal alarm. All fault information can be uploaded to the controller.
Physical Dimensions324 mm × 22.5 mm × 225 mm, weight: 0.32 kg. Designed for standard DIN rail mounting.
Application Scenarios
Thermal Power GenerationMonitoring of boiler temperature, pressure and flow; parameter acquisition for steam-water systems; combustion control loop.
Petrochemical IndustryMonitoring of reactor temperature, tower pressure and flow; collection of tank liquid level and BOG pressure; measurement of key parameters at LNG receiving terminals.
MetallurgyTemperature and pressure acquisition for blast furnaces and converters; rolling mill parameter monitoring; circulating water system control.
Water Treatment & Environmental ProtectionMonitoring of water pH value, conductivity and dissolved oxygen; control of wastewater flow and pressure; collection of environmental emission parameters.
Intelligent ManufacturingMonitoring of production line temperature, pressure and vibration; equipment status supervision; data acquisition for energy management systems.
Frequently Asked Questions
Q1: No data is received and the RUN indicator flashes.A1: ① Poor bus contact: Re-insert the module and clean the contacts.② Incorrect address configuration: Verify the bus address (0–125) and ensure no duplicate addresses.③ Excessive bus load: Limit the number of modules on a single bus to no more than 32.④ Damaged cable: Replace the bus cable.
Q2: Large temperature deviation occurs on thermocouple acquisition.A2: ① Abnormal cold junction compensation: Check the built-in compensation sensor and enable the compensation function in configuration.② Mismatched type: Confirm the thermocouple type in configuration matches the actual device.③ Oxidized wiring: Clean and retighten the terminal connections.④ Sharp ambient temperature changes: Keep the module away from heat or cold sources to stabilize the ambient temperature.
Q3: Severe fluctuation of 4–20mA signals.A3: ① Poor grounding: Implement common grounding for the module and field instruments to avoid ground potential difference.② Severe electromagnetic interference: Use shielded cables and keep them away from high-interference equipment such as inverters and motors.③ Improper filter settings: Increase the filter time constant in configuration.④ Defective sensor: Calibrate or replace the transmitter.
Q4: Does it support redundancy? How to configure it?A4: It supports 1:1 redundancy. Configuration steps:① Install two DSAI130A modules on the rack.② Enable the redundancy function in configuration and set master and slave modules.③ The system synchronizes data automatically. The slave module will perform bumpless switchover once the master module fails.
Q5: Is hot swapping supported? Is power-off required?A5: Hot swapping is available and power-off is not needed. Simply remove the faulty module and insert a new one. The system will automatically recognize the new module and resume communication without affecting other channels.
Q6: Is it compatible with legacy systems such as Bailey INFI 90?A6: Yes. The DSAI130A can directly replace legacy I/O modules with compatible wiring and enhanced functions, serving as a cost-effective and efficient solution for legacy system upgrades.
