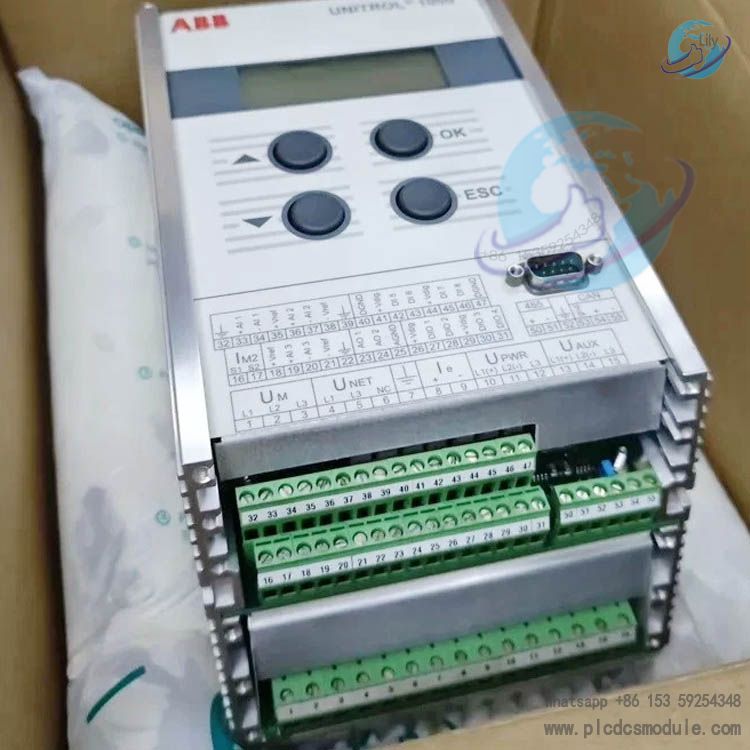

ABB UNITROL 1000 3BHE014557R0003 is the first-generation compact digital excitation voltage regulator of the UNITROL 1000 series. It serves as the core excitation control unit for medium and small-sized synchronous motors and generator sets, and is suitable for excitation regulation of synchronous equipment ranging from 100 kVA to 80 MVA.
The device adopts an independent dual-processor architecture to separate control and communication computing tasks. Equipped with an IGBT power output circuit, it supports wide-range AC and DC auxiliary power supply. It integrates complete logics for voltage regulation, reactive power management, system stabilization and fault protection, and adapts to harsh operating conditions across various scenarios including land-based power plants, marine vessels, rail transit and standby power supplies.
Over 40,000 sets have been deployed and operated worldwide, complying with grid connection standards of multiple countries. Matched with the CMT1000 commissioning software, it enables parameter tuning, fault recording and online monitoring. Its modular hardware design facilitates cabinet integration as well as on-site retrofitting and upgrades.
Part Number & Product Positioning Analysis
Breakdown of Part Number Segments
- 3BHE: Standard prefix for ABB power control hardware, identifying excitation control boards as the product category.
- 014557: Fixed material code segment for the basic control unit of UNITROL 1000.

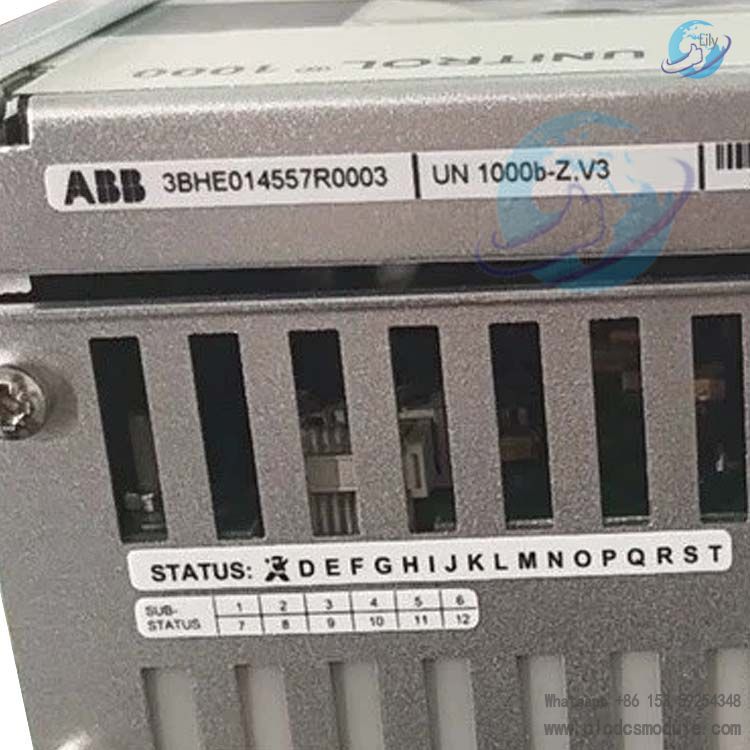

- R0003: Code distinguishing hardware versions and functional configurations, corresponding to the base model Z.V3. It features standard I/O configuration and basic communication modules without extended power output modules, and must be paired with an external IGBT power unit to form a complete excitation system.
Series Positioning Differentiation

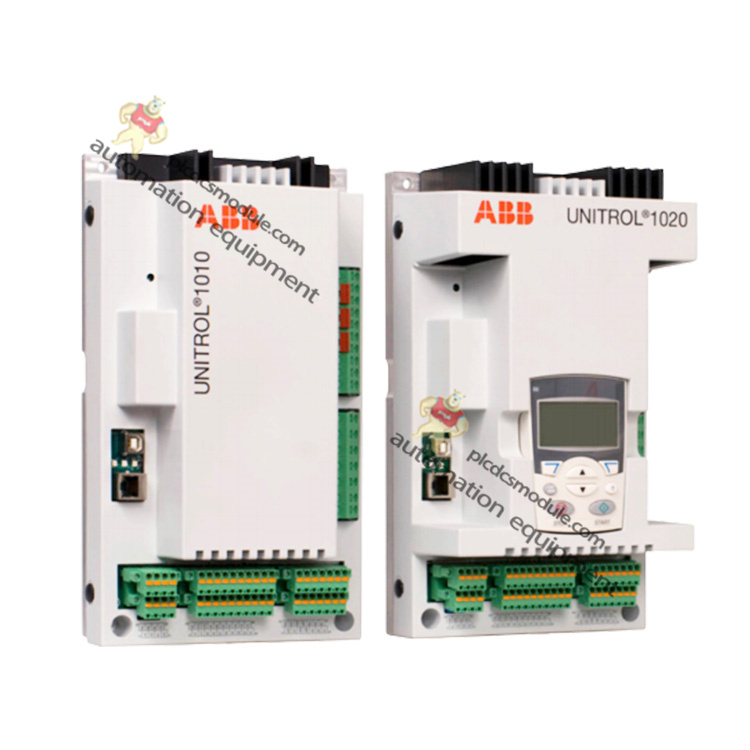

The UNITROL 1000 product family consists of three complete units: UNITROL 1005, UNITROL 1010 and UNITROL 1020. The part number 3BHE014557R0003 is a universal main control board compatible with different power output units:
- UNITROL 1005: Designed for small-capacity generator sets
- UNITROL 1010: Continuous excitation current of 10 A
- UNITROL 1020: Continuous excitation current of 20 A with short-time overload capacity up to 40 A
This mainboard adopts a unified software core. The upper limit of excitation current is only differentiated by matching hardware output modules, while three universal software function packages (LIGHT / BASIC / FULL) are available for all variants.
Core Hardware Architecture & Electrical Specifications
Processor & Memory
- Main control unit: Independent 32-bit 100 MHz RISC control processor plus dedicated communication co-processor; control operation and communication tasks run without resource contention.
- Memory: 512 KB operating RAM, 2 MB flash memory for program storage and fault event logging. It can store 2 hours of continuous operating waveforms and hundreds of fault event logs.
Power Supply Input (Wide-range AC/DC Compatibility)
- AC input: 16～250 VAC, wide frequency range of 25～600 Hz, compatible with two power supply modes: generator residual voltage and station auxiliary power.
- DC input: 18～300 VDC, suitable for DC battery backup excitation power supplies.
- Maximum peak withstand voltage: 420 VP, equipped with hardware surge suppression circuit.
Measurement Acquisition Channels
- Voltage measurement: Single-phase / two-phase / three-phase terminal voltage acquisition, maximum 500 VAC, measurement accuracy better than ±1%.
- Current measurement: 1～5 A CT secondary signals for single-phase synchronous machine stator current; full-range 0～40 A excitation current acquisition with resolution below 100 mA.
- Frequency measurement: 10～150 Hz, compatible with power frequency, variable-frequency marine and locomotive variable-speed generator sets.
I/O Interface Configuration (Standard Version 3BHE014557R0003)
- Digital Inputs: 6 channels of 24 VDC isolated DI; threshold levels 5 V (low) / 13 V (high), impedance less than 2 kΩ, used to collect hard contacts for grid synchronization, switch status and fault signals.
- Digital Outputs: 4 relay DO channels (5 A @ 250 VAC) and multiple transistor outputs (max. 150 mA), for driving alarm, trip and synchronization signals.
- Analog Channels: 4 analog inputs (0–10 V / 4–20 mA) and 2 analog outputs, for connection to DCS and external setpoint signals for reactive power regulation.
Communication Interfaces
- RS485 Modbus RTU: Standard onboard interface for connection to PLCs and remote monitoring systems.
- USB commissioning port: Local parameter tuning via CMT1000 software.
- Optional Ethernet expansion: Modbus TCP for interfacing with ABB 800xA DCS platform.
- CAN bus: Interconnection of multiple equipment within the unit, supporting reactive power load sharing for parallel generators.
Mechanical & Environmental Parameters
- Overall dimensions: 110 × 125 × 110 mm, weight approx. 0.8 kg; dual mounting options: standard DIN rail mounting and panel cutout mounting.
- Ingress protection rating: IP20 (for cabinet interior installation).
- Operating temperature: -20℃～+60℃; storage temperature: -40℃～+85℃.
Application Scenarios
Onshore Power Generation
Diesel/gas generator sets, medium & small hydroelectric/steam turbine generators (100 kVA to 80 MVA), and industrial self-owned power plants.
Marine Power Systems
Main synchronous generators and shaft generators for vessels, compliant with DNV classification standards.
Rail Transit
Synchronous traction generators for diesel locomotives and on-board auxiliary power units.
Industrial Synchronous Motors
Excitation control for reactive power compensation of large synchronous compressors and synchronous water pumps.
Standby Emergency Power Supplies
Uninterrupted generator sets for critical loads in data centers, hospitals and chemical plants.
Frequently Asked Questions
Q1 How to confirm whether 3BHE014557R0003 matches the capacity of the existing generator set before purchasing?A1 This model is compatible with generator sets up to 30 MVA with a continuous excitation output of 20 A. If the rated excitation current of the generator set exceeds 20 A, the UNITROL 1020 equipped with the PM40 module shall be selected. Provide the excitation parameters on the generator nameplate to verify the material version prior to purchase.
Q2 Can 3BHE014557R0003 directly replace the old UNITROL 1000-7 voltage regulator?A2 It features fully compatible hardware mounting dimensions and terminal definitions for direct mechanical replacement. Import the parameter file of the original unit via CMT1000 software; full re-tuning is not required.
Q3 What faults cause frequent minor fluctuations of terminal voltage during long-term equipment operation?A3 First check for loose connections or insufficient terminal torque of PT voltage transformers. Second inspect oxidation on excitation output terminals. Finally read logs via CMT1000 to determine drift of PID gain parameters, and perform auto-tuning to restore stable voltage output.
Q4 Are extra accessories required for this model in offshore marine vessel applications?A4 An IP54 sealed protection kit must be matched for marine use, together with DNV-certified material versions. Install anti-moisture heaters inside the cabinet to prevent circuit board corrosion under high salt spray environments.
Q5 Is it available to purchase the bare circuit board separately without the operation panel?A5 The 3BHE014557R0003 comes standard with an LCD keypad panel; no standalone material code is offered for panel-free boards. An Ethernet module can be fitted for remote commissioning, and the local panel cannot be purchased separately.
Q6 How to handle the excitation circuit open-circuit fault code triggered during power-on self-test?A3 Troubleshoot in three steps: cut off power and measure continuity of the rotor excitation winding; check for loose wiring between the regulator and rectifier bridge; confirm no short-circuit breakdown inside the thyristor crowbar circuit.
Q7 How to debug uneven reactive power distribution among multiple parallel generator sets?A7 Enable the reactive load sharing function in CMT1000 software, unify the voltage droop parameters of all units to maintain a consistent bus voltage reference, then restart the regulators and re-run load tests.
Q8 Can the software package of this model be upgraded to the FULL version for advanced grid functions?A8 The underlying hardware does not support upgrading to FULL software. If advanced functions such as fault ride-through and a complete PSS toolbox are required, directly select the fully configured UNITROL 1020 model at the time of purchase.
