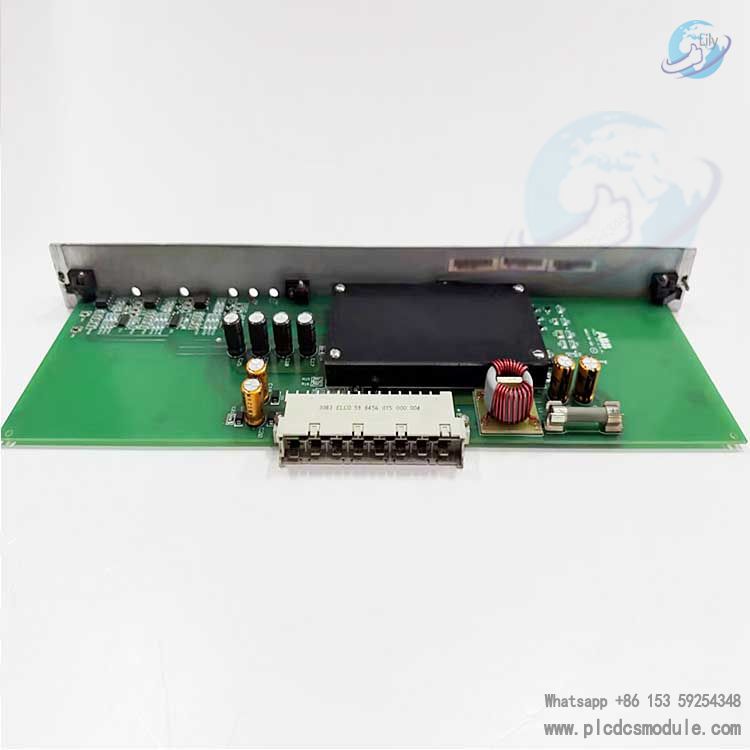

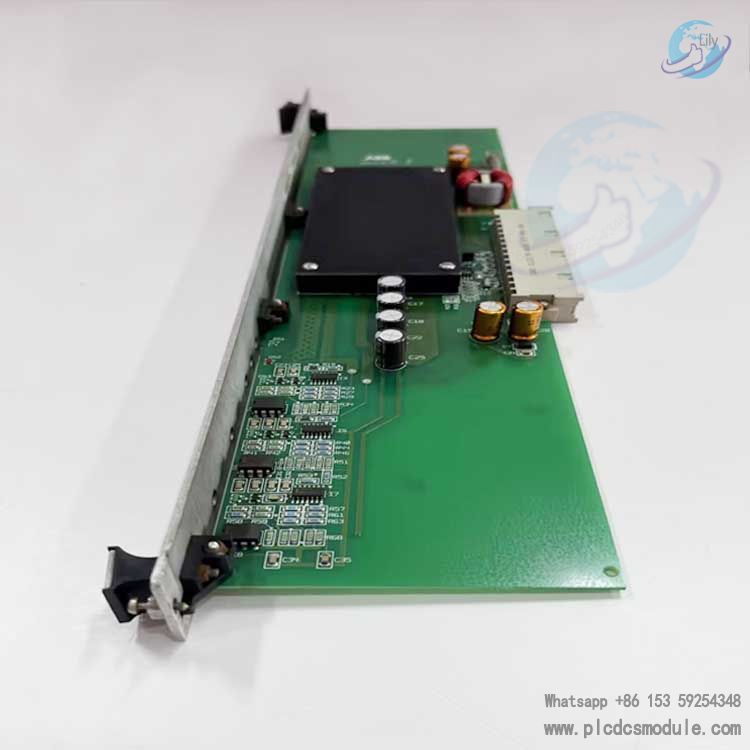

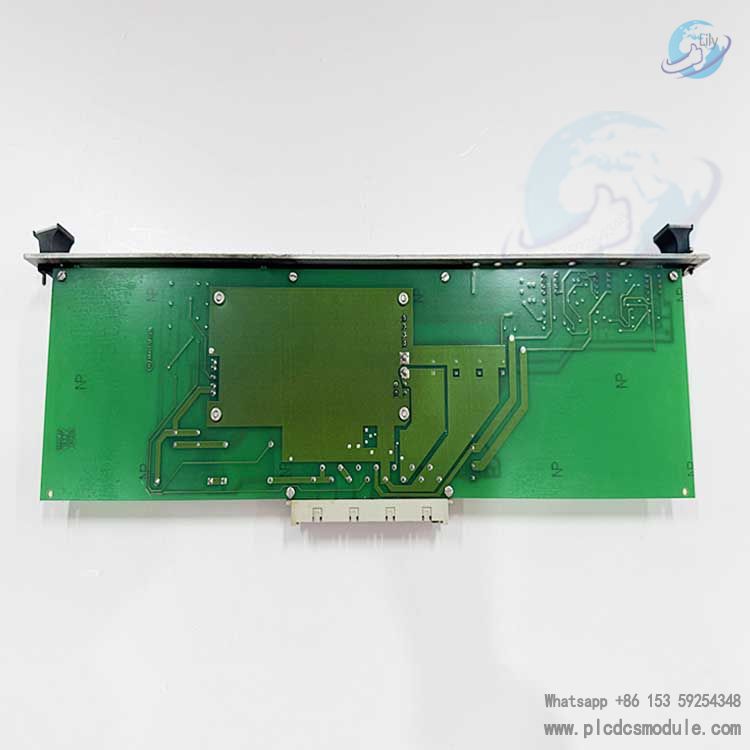

The ABB 086370-001 ECPSR Measurement Processing Board, with a gross weight of 1.5 kg, is categorized as spare parts. It is a non-customized product with a minimum order quantity of 1 piece. This board is applied to industrial automation equipment, electrical devices, etc., to collect, convert, and process signals from various sensors, providing data support for control systems and helping improve the monitoring and control accuracy of equipment operation.
Function
The ABB 086370-001 ECPSR Measurement Processing Board is typically used for measurement and processing of various physical quantities. It can collect sensor signals such as current, voltage, temperature, and pressure, convert analog signals into digital signals, and provide accurate data for subsequent control systems or monitoring systems through calculation and analysis. It has functions like signal filtering, amplification, and calibration to enhance measurement accuracy and reliability.
Application Scenarios
This board is widely applicable to ABB industrial automation equipment, control systems, and related electrical devices. For example, in industrial robot control systems, it measures parameters such as joint position and speed to achieve precise motion control; in frequency converters, motors, and other equipment, it monitors operating status parameters like current, voltage, and temperature for fault diagnosis and protection; in power system automation devices, it measures power parameters such as grid voltage, current, and power to provide data support for power monitoring and dispatching.
Technical Parameters
Due to the lack of specific product manuals, only the possible parameter range can be inferred. In general, the ABB 086370-001 ECPSR Measurement Processing Board may have multiple input channels to collect signals from multiple sensors simultaneously. The input signal types may include analog inputs (such as 0-10V, 4-20mA, etc.) and digital inputs. The sampling frequency may vary according to specific application requirements, typically ranging from tens of Hertz to several kilohertz. The measurement accuracy may reach a high level, for example, the analog measurement accuracy is about ±0.1% to ±0.5% FS (full scale). For accurate product information, it is recommended to contact ABB customer service or refer to relevant product manuals and technical documents.
