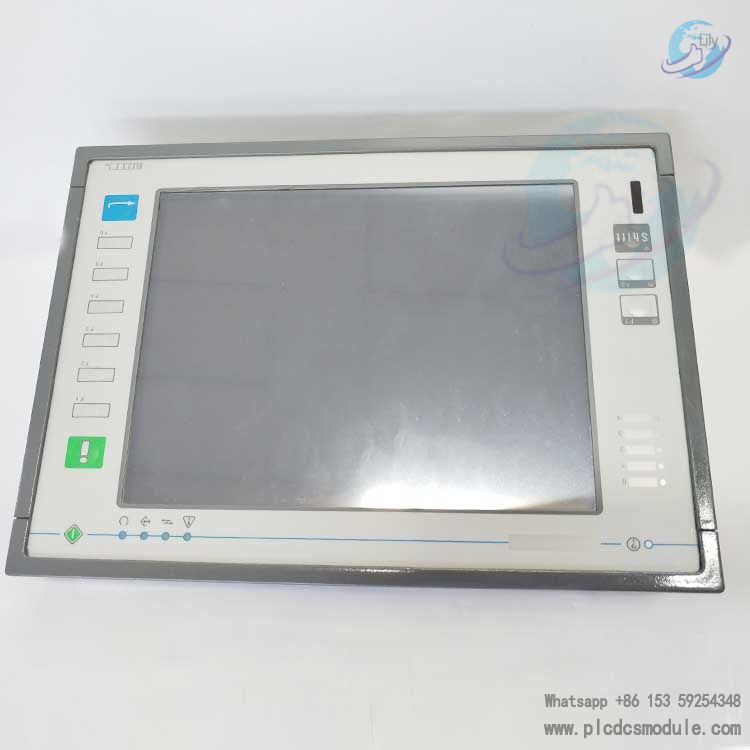

UNIOP ETT-VGA-0045 is a 10.4-inch industrial touch screen panel with high-resolution VGA display, clearly presenting data and graphics. Equipped with a resistive touchscreen, it supports intuitive operations like tapping and sliding. Featuring recipe functions, Uninet networking, and user-defined characters, it directly connects to PLC programming ports. With an operating temperature range of 0℃ to 45℃ and IP65 protection, it adapts to various industrial environments, widely used in industrial automation, process control, monitoring alarms, and other systems.
Basic Parameters
Screen Size: 10.4 inches
Display Type: TFT LCD
Resolution: 640×480 pixels
Touchscreen Type: Resistive
Backlight: CCFL
Input Power: 24V DC (+10%, -15%)
Product Series: UNIOP ETT-VGA Series
Warranty Period: 365 days
Appearance and Dimensions
Dimensions:
Recorded as 190mm×120mm×30mm in some sources.
Also noted as 15.00×11.00×5.00 inches (approximately 381mm×279.4mm×127mm), possibly varying slightly by version or measurement method.
Weight: Approximately 0.5kg or 7.00lbs (about 3.18kg), with differences in different materials.
Performance Features of UNIOP ETT-VGA-0045
High-Definition Display: With VGA resolution, it clearly presents various graphics, text, and data, ensuring users can easily view and identify screen content.
Touch Interaction: Equipped with a resistive touchscreen, supporting multiple operations like tapping, dragging, and sliding for intuitive and convenient device interaction.
Rich Display Capability: Supports 30×80 character display (30 lines per page, 80 characters per line) and graphic-text display, meeting diverse information display needs.

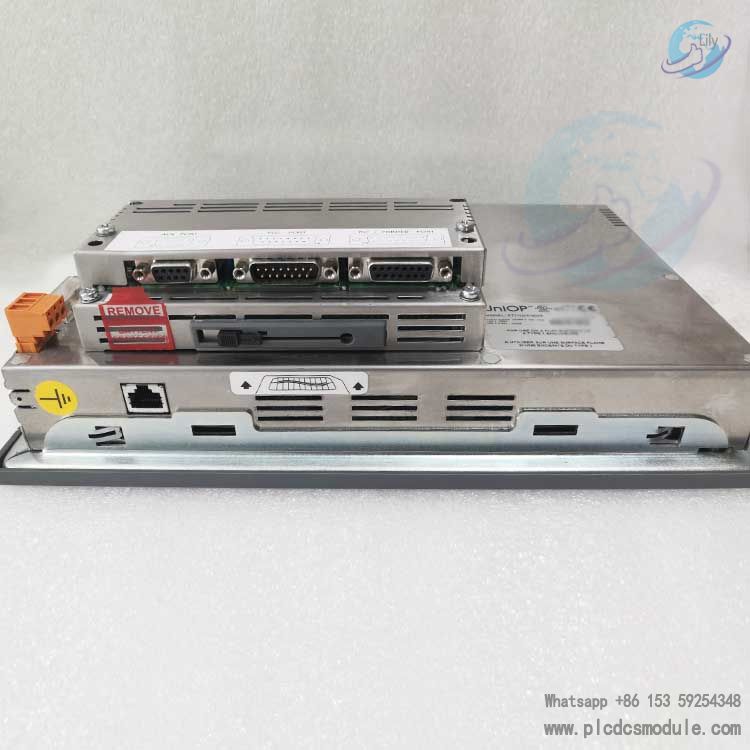

Multiple Communication Interfaces: Typically equipped with Ethernet, RS-485, RS-232, RS-422, etc., enabling easy connection with computers, PLCs, and other devices for data transmission.
Diversified Functions: Features recipe management, Uninet networking, user-defined characters, and direct connection to PLC programming ports.
Strong Environmental Adaptability: Operates at 0℃–45℃ (some sources show -20℃–+70℃), stores at -40℃–+85℃, and has IP65 protection for dust and water resistance in various industrial environments.
Application Fields of UNIOP ETT-VGA-0045
Industrial Automation: Used in industrial production lines to monitor processes, adjust equipment parameters, and display production data, enabling automated control and management of production flows.
Process Control: In process control for chemical, pharmaceutical, food & beverage industries, it real-time displays key parameters (temperature, pressure, flow, etc.) and allows operational adjustments to ensure stable and safe production.
Human-Machine Interface (HMI): As an interactive interface, it provides intuitive operations for operators to monitor equipment status, execute control commands, and obtain real-time data, enhancing work efficiency and accuracy.
Monitoring & Alarm Systems: Integrates monitoring systems to real-time track parameters. It triggers alarms instantly upon detecting anomalies, notifying operators to take actions and safeguard system safety.
Data Visualization: Visualizes historical data, trend analysis, and key performance indicators (KPIs), assisting users in data management, analysis, and optimization of production processes and decision-making.
