GCD207B101 3BHE024642R0101 is a high-performance inverter module belonging to ABB Large Industrial Drives product family, specifically designed for medium and high-voltage industrial drive systems, mainly compatible with ABB ACS 6000 and ACS 880 medium and high-voltage frequency converter platforms, and primarily used for speed regulation and energy conversion of AC motors; as the "power core" of the frequency converter, this module converts direct current (DC) into alternating current (AC) with adjustable frequency and voltage through IGBT (Insulated Gate Bipolar Transistor) power devices, which enables precise speed control of medium and high-voltage motors (3.3 kV~10 kV) while also featuring functions such as energy feedback, overload protection, and harmonic suppression, and its design complies with the IEC 61800-5-1 medium and high-voltage drive standard, adopting modular power units, multi-layer heat dissipation structures, and high-voltage isolation technology to operate stably in industrial environments with temperatures ranging from -10℃ to +50℃, under strong electromagnetic interference (such as arcs in high-voltage cabinets), and in high-dust scenarios, thus being widely used in industries such as power, metallurgy, and mining that require high-power motor speed regulation; compared with ordinary low-voltage inverter modules, GCD207B101 has high power density and direct adaptation capability for medium and high voltages, with the rated power of a single module ranging from 100 kVA to 500 kVA, and it can be connected to medium and high-voltage motor systems without an additional step-up transformer, which significantly simplifies the drive system architecture and reduces equipment footprint and energy consumption.

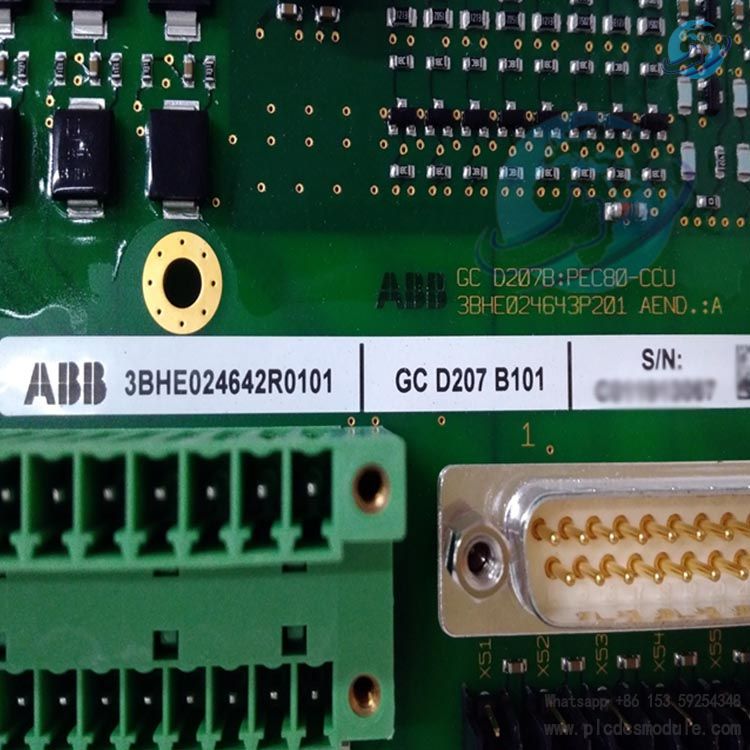

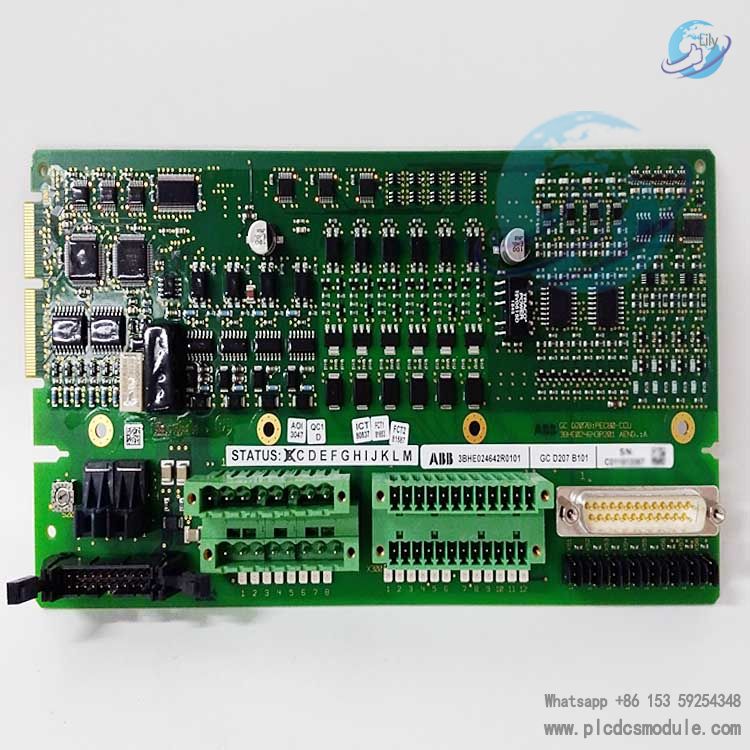

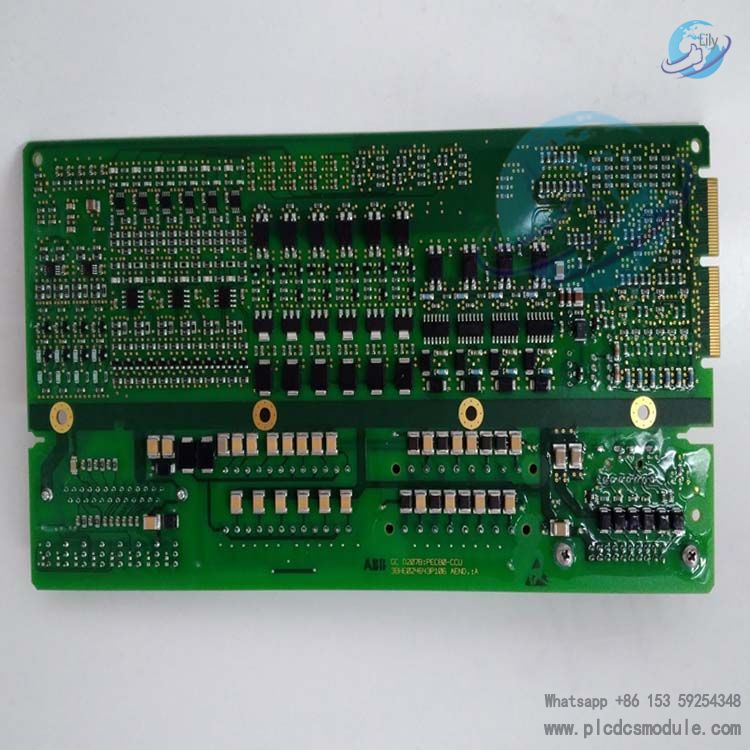

ABB GCD207B101 3BHE024642R0101 Inverter module GC D207 B101
ABB GCD207B101 3BHE024642R0101 Inverter module GC D207 B101
