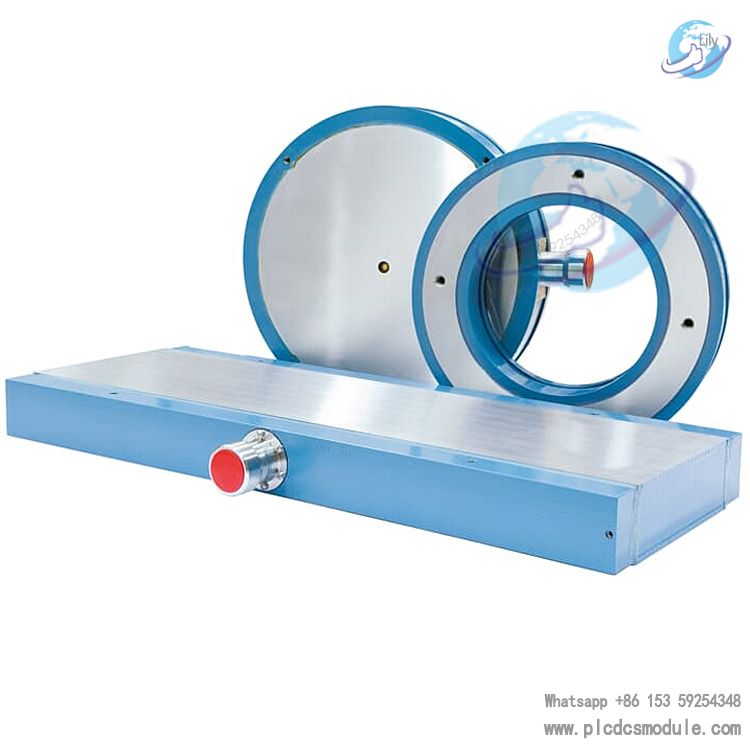

With a nominal load rating of 16 MN, the sensor is ideal for installation under mill screws.It features exceptional overload capacity, high signal output, and excellent immunity to interference, enabling accurate capture of roll force data.This provides reliable support for roll gap adjustment, force distribution balancing, and bearing condition monitoring in rolling mills.It is also compatible with the Millmate Controller 400 control system for efficient signal processing and transmission,making it a critical measuring device for ensuring process quality and productivity in modern steel rolling operations.

Core Technical Parameters

• Nominal load: 16 MN
• Inner diameter (ID): 450 mm
• Outer diameter (OD): 500 mm
• Maximum cable length (2 sensors connected to one control unit): 16 m
• Maximum cable length (4 sensors connected to one control unit): Not applicable (-)

Accuracy & Performance Parameters

• Accuracy class: ±0.5% Fₙₒₘ
• Linearity error: ≤ ±0.5% Fₙₒₘ
• Hysteresis: ≤ 0.2% Fₙₒₘ
• Repeatability error: ≤ ±0.1% Fₙₒₘ
• Calibration error: 0.1%
• Compression at nominal load: 0.05 mm
• Zero drift: ≤ ±0.01%/°C
• Sensitivity drift: ≤ ±0.01%/°C
• Minimum error compensation temperature range: +20 ~ +80 °C

Environmental & Protection Parameters

• Operating temperature range: -10 ~ +90 °C
• Short-term maximum allowable operating temperature: +110 °C
• Storage temperature range: -40 ~ +90 °C
• Insulation accuracy retention: Measuring accuracy maintained even at insulation levels as low as 10 kΩ
• Overload capacity: 700% of nominal load (no mechanical damage); 300% of nominal load (no permanent change in measured values)

Structural & Design Parameters

• Core material: Square core with precision machining, externally fitted with shrink-fit stainless steel protection ring
• Number of internal sensors: 1500 units, ensuring accurate measurement even under uneven load distribution
• Signal output: 500 mV high output, excellent signal-to-noise ratio
• Component features: High-stability components enclosed in stainless steel protection housing, with built-in calibration and temperature compensation
• Signal interchangeability: Fully calibrated output signals for sensors of the same model and size, allowing full interchangeability

Mounting & Compatibility Features

• Standard mounting position: Under the mill screw, can be installed as an integrated unit with thrust bearings and pressure plates; no machining required on the mill stand surface, resulting in low installation cost and easy maintenance.
• Mounting requirements: Ensure all forces act through the sensor; measuring point as close to the roll gap (force source) as possible; minimize bending, lateral and torsional loads on the sensor.
• Compatible control unit: Millmate Controller 400 (PFVA 401), requiring dedicated matching unit PFVO 142/143 (one per sensor, can be installed up to 25 m from the sensor).
• Cabling recommendation: Prefer connectorized cables over fixed cables for improved installation flexibility and maintainability.

Main Models of ABB Millmate PFVL141C Series Circular Force Sensors

Covering various nominal load ratings and suitable for different rolling mill applications:

• PFVL141C-1.6MN (Nominal load 1.6MN, ID150mm/OD210mm)
• PFVL141C-5MN (Nominal load 5.0MN, ID270mm/OD320mm)
• PFVL141C-10MN (Nominal load 10MN, ID360mm/OD410mm)
• PFVL141C-14MN (Nominal load 14MN,ID420mm/OD470mm)
• PFVL141C-16MN (Nominal load 16MN, ID450mm/OD500mm)
• PFVL141C-18MN (Nominal load 18MN, ID480mm/OD530mm)
• PFVL141C-20MN (Nominal load 20MN, ID510mm/OD560mm)
• PFVL141C-25MN (Nominal load 25MN, ID570mm/OD620mm)
• PFVL141C-31MN (Nominal load 31MN, ID630mm/OD710mm)
• PFVL141C-40MN (Nominal load 40MN, ID720mm/OD800mm)
• PFVL141C-50MN (Nominal load 50MN, ID780mm/OD860mm)
