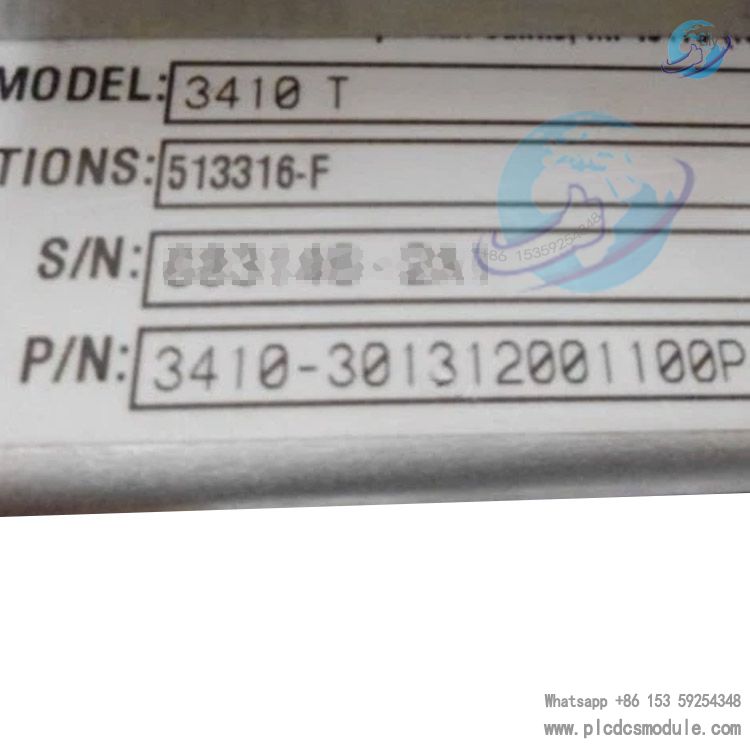

XYCOM 3410T 3410-301312001100P NSMP is a 10.4-inch industrial-grade touch panel computer belonging to the XYCOM 3400 series.
It is specially designed for harsh industrial environments such as factory floors, integrating display, control and communication functions, and providing stable and reliable human-machine interaction and data processing capabilities.
Core Technical Specifications

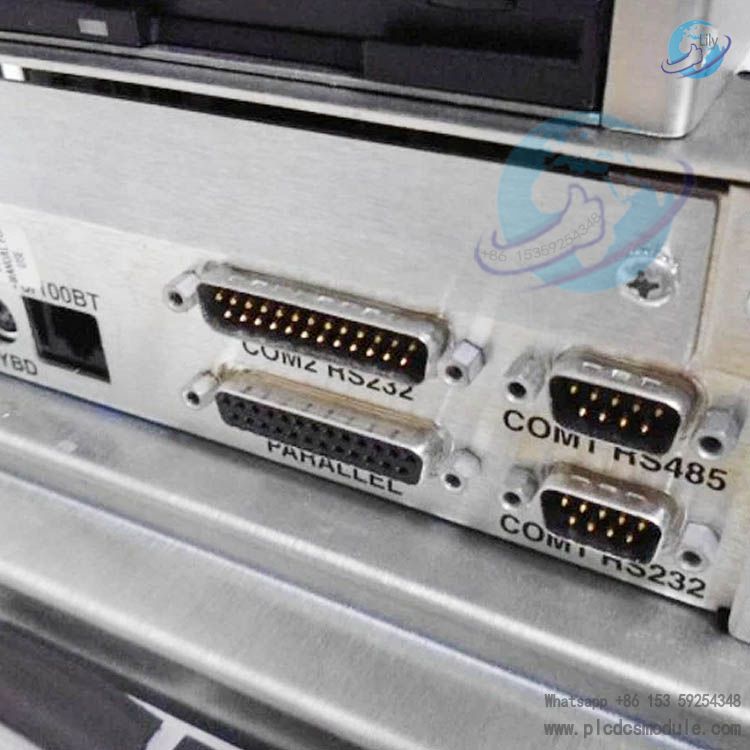

Display 10.4-inch color TFT flat panel, resolution 640×480 (VGA), analog resistive touch screenProcessor AMD M5X86 processorMemory / Storage Max. 64MB DRAM; 6GB hard disk standard, optional CompactFlash memoryOperating System Pre-installed MS-DOS, Windows 98 or Windows NTCommunication Interfaces Built-in 10/100 BaseT Ethernet; parallel port, RS-232, RS-485, PS/2 keyboard & mouse port, IrDA infrared interfaceExpansion Supports PC/104 expansion, up to 2 expansion cardsPower 40W power supply; AC: 90–250V AC, 50–60Hz, 1A (max.); DC: 18–36V DC (nominal 24V), 2.5A (max.)Environmental Specifications Operating temperature: 0°C–50°C; Storage temperature: -20°C–60°C; Humidity: 20%–80% RH (non-condensing); Protection: front panel NEMA 4/4X/12, IP65Physical Dimensions Width 13.00" (330.2mm) × Height 11.00" (279.4mm) × Depth 4.50" (114.3mm); Mounting depth 3.50" (88.9mm); Weight 11 lbs (5.0kg)
Key Features and Benefits
Industrial Ruggedness
Front panel with IP65 / NEMA 4/4X/12 rating, waterproof, dustproof and oil‑resistant for direct washdown.Certified UL 1604 for hazardous locations, suitable for chemical, petroleum and other special environments.
Intuitive Touch Control
Analog resistive touchscreen supports operation with gloves, with responsive performance ideal for complex industrial workflows.
Open and Compatible Platform
Based on standard PC architecture with preinstalled mainstream operating systems.Supports industrial communication protocols including OPC, DDE and ActiveX, enabling seamless integration with PLCs, SCADA systems and enterprise databases.
Flexible Expansion and Configuration
Supports PC/104 expansion slots for optional I/O, motion control and other modules.Storage configurable with hard drive or flash memory to match diverse data read/write requirements.
High-Reliability Design
Fanless thermal design reduces failure points.Wide-temperature, vibration-resistant (15g peak, 11ms) and shock-resistant construction supports 24/7 continuous industrial operation.
Installation and Maintenance
Installation
Standard flush panel mounting for control cabinets and operator stations.Mounting depth is only 88.9mm for space efficiency.
Ensure matching panel cutout dimensions and secure with included fasteners to maintain front panel sealing and IP65 protection.Installation in hazardous areas must comply with UL 1604 standards for proper electrical connections and grounding.
Maintenance Guidelines
- Routine Care: Wipe the touchscreen and front panel with neutral detergent; avoid corrosive solvents. Regularly inspect connections and ventilation paths.
- Component Replacement: Modular replacement supported for memory, hard drive/flash memory and PC/104 cards. Backlight lamp replaceable per manual to extend display life.
- Troubleshooting: Diagnose using built-in hardware self-test. For power or interface issues, first verify wiring and power stability.
