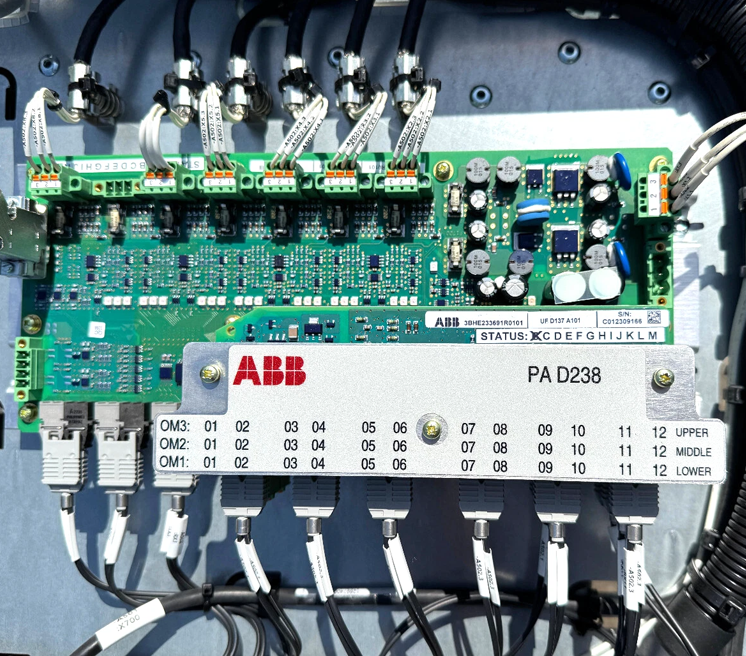

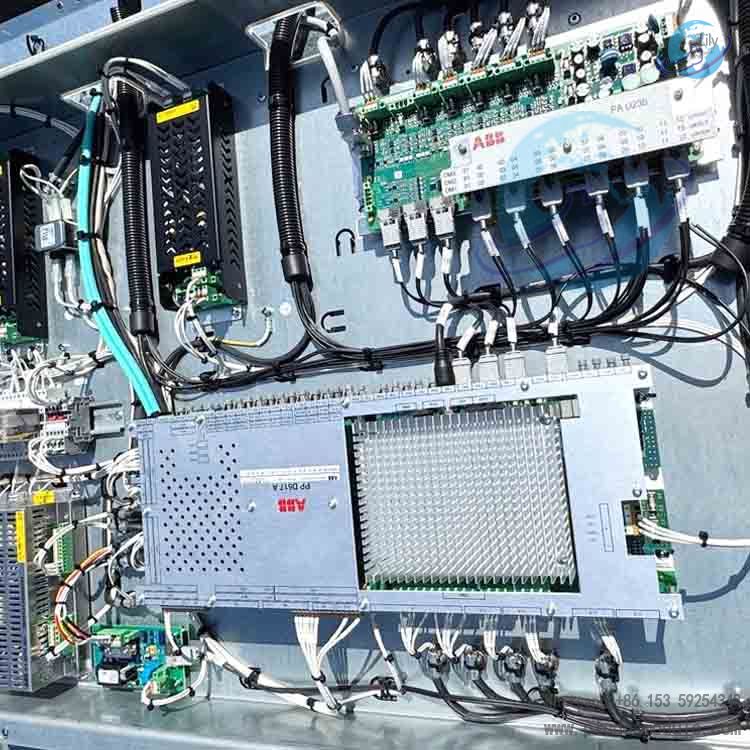

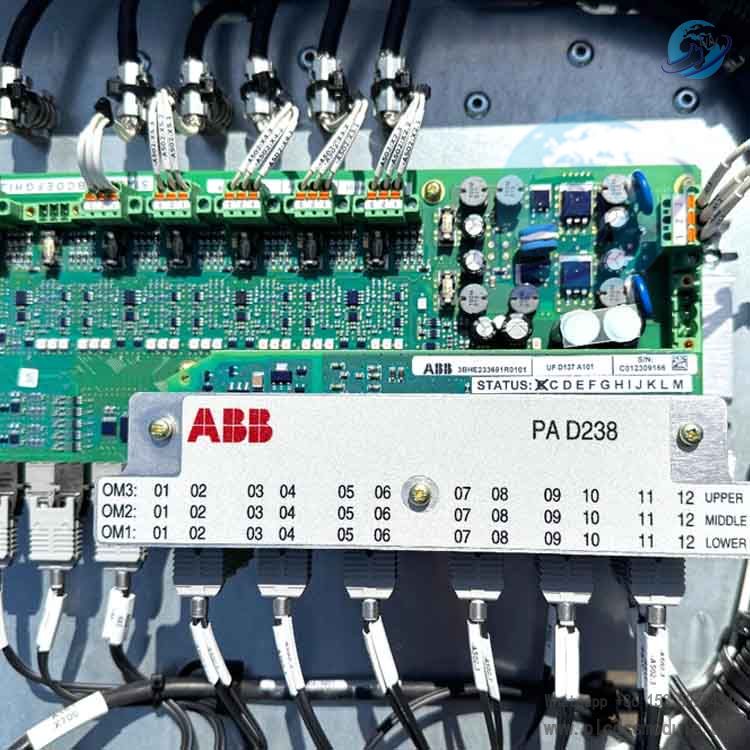

ABB PA D238 3BHE233691R0101 + 3BHE014658R0103 is a high-performance relay digital output module designed by ABB specifically for industrial traction control systems and complex automation applications.It belongs to the PEC INT / PA D238 A101 series of PEC interface boards, with electrical designations covering A501 to A503.As a key execution component of the traction I/O interface, it connects the FPGA control unit with field actuators to achieve reliable digital output and command transmission.Featuring a modular design, high anti-interference capability and stable relay driving performance, it is widely used in harsh industrial environments such as traction systems and industrial automation control.Together with the traction I/O interface (including analog inputs, optical module communication and FPGA control) as provided, it forms a complete closed loop of signal acquisition, control and output, ensuring efficient and coordinated operation of the system.
Product Core Positioning & Application Scenarios
This module serves as an important digital output terminal in ABB’s PEC interface board portfolio. It is specifically designed to match the PEC INT / PA D238 A101 PEC interface board and is electrically compatible with three designations: A501, A502, and A503, making it fully suitable for the traction I/O interface system as described.
Its core function is to convert control commands issued by the FPGA (the core for I/O control and communication) into relay switching signals capable of driving field actuators. It bridges the signal conversion gap between the control unit and actuators, representing a critical link for executing control commands in traction systems.
Target applications focus on traction control systems and various industrial automation equipment, especially scenarios requiring stable digital output and highly reliable connections.
These include gate drive communication support in traction systems, actuation control following current transducer signal feedback, and driving of related actuators via the HVD-board interface.
It can work seamlessly with the analog inputs (current transducer input, HVD-board interface, PT100), optical modules (gate drive communication), and FPGA control unit of the traction I/O interface to form a complete traction control I/O chain, meeting industrial requirements for accuracy, timeliness, and stability in signal output.
Model Analysis & Hardware Composition

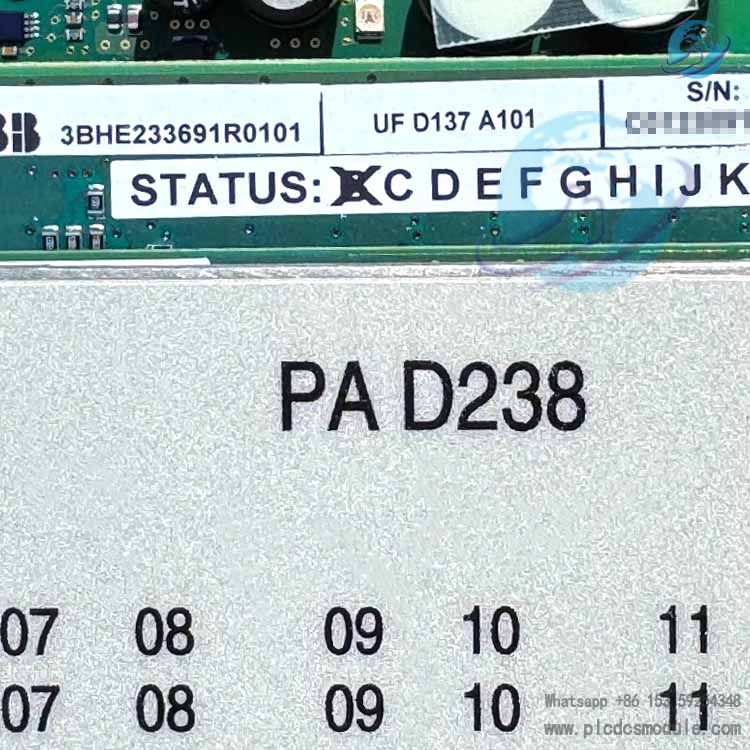

- Main Module (3BHE233691R0101)As the core of the unit, it undertakes relay driving, signal conversion, and communication with the PEC interface board. Equipped with a high-performance relay unit, it supports multiple digital output channels and can directly receive control signals from the FPGA. It converts electrical signals into mechanical contact actuation to drive external components such as contactors and solenoid valves.Meanwhile, the module features a standardized interface for the PEC interface board, enabling quick integration into the traction I/O interface system and coordinated communication with optical modules and analog input units, ensuring efficient transmission of control commands.
- Auxiliary Module (3BHE014658R0103)As a supporting component for the main module, it is mainly responsible for power supply, signal isolation, and protection functions. Adopting advanced signal isolation technology, it effectively suppresses electromagnetic interference (EMI) in industrial environments, preventing external interference from affecting output signal stability and ensuring reliable operation under complex industrial electromagnetic conditions.In addition, the auxiliary module provides overcurrent and overvoltage protection to avoid damage caused by abnormal power supply or load overload, extending service life. This aligns with ABB’s consistent design philosophy of high reliability for industrial products, similar to the redundant protection concepts used in its high-end controllers.
Functions & Technical Features
- Relay Digital Output FunctionThe module is equipped with multiple standardized digital output channels, each fitted with an independent relay supporting dry contact output. It can directly drive various industrial actuators with stable output and rapid response at the millisecond level, accurately executing control commands issued by the FPGA.This meets real-time control requirements in traction systems such as gate drive control and actuator linkage.The output channels feature strong load capacity suitable for actuators of different power ratings and support contact status feedback, enabling the FPGA to monitor output status in real time and achieve closed-loop control.
- Coordinated Communication with Traction I/O InterfaceThe module is seamlessly compatible with the traction I/O interface system described and supports bidirectional communication with the FPGA control unit via the internal bus.It receives control commands from the FPGA while feeding back its own operating status (e.g., relay contact status, module fault information), facilitating FPGA-based I/O control and communication management.It also indirectly cooperates with optical modules in the traction I/O interface through FPGA signal scheduling to realize communication linkage with gate drives, ensuring overall coordination of the traction system.Its communication compatibility complies with ABB AC500 series PLC protocol specifications and supports various industrial communication logics.
- High Reliability & Anti-Interference CapabilityConstructed with industrial-grade components, the module operates within a temperature range of -40℃ to +85℃, adapting to harsh industrial environments including extreme temperatures, humidity, and vibration.Signal isolation in the auxiliary module effectively separates input and output signals and suppresses electromagnetic interference, preventing disturbances from analog inputs such as current transducers and PT100 from affecting digital output stability — similar to the anti-interference design of ABB’s AI810 analog input module.Additionally, the module supports self-diagnosis to monitor its status in real time. In the event of relay failure or abnormal power supply, it promptly sends fault signals to the FPGA for quick system troubleshooting and maintenance.
- Standardization & CompatibilityDesigned strictly in accordance with ABB’s PEC interface board standards, the module supports electrical designations A501 to A503 and can directly replace older modules in the same series without major modifications to the traction I/O interface system.It uses industrial-standard interfaces for convenient wiring, field installation, and commissioning.Compliant with IEC and other international industrial standards, it ensures compatibility with actuators and control equipment from different manufacturers, improving system integration flexibility.
- Adaptation to Special Requirements of Traction SystemsIn response to the analog input characteristics of the traction I/O interface (current transducer input, HVD-board interface, PT100), the module’s output logic can be linked with feedback from these analog signals.Through FPGA logic control, it implements digital output control based on analog signal monitoring — for example, quickly outputting a control signal to cut off relevant actuators when abnormal current is detected by a current transducer.This adapts to the special control requirements of traction systems and ensures their safe and stable operation.
Advantages & Application Value
1. Product Advantages
2. Application Value
