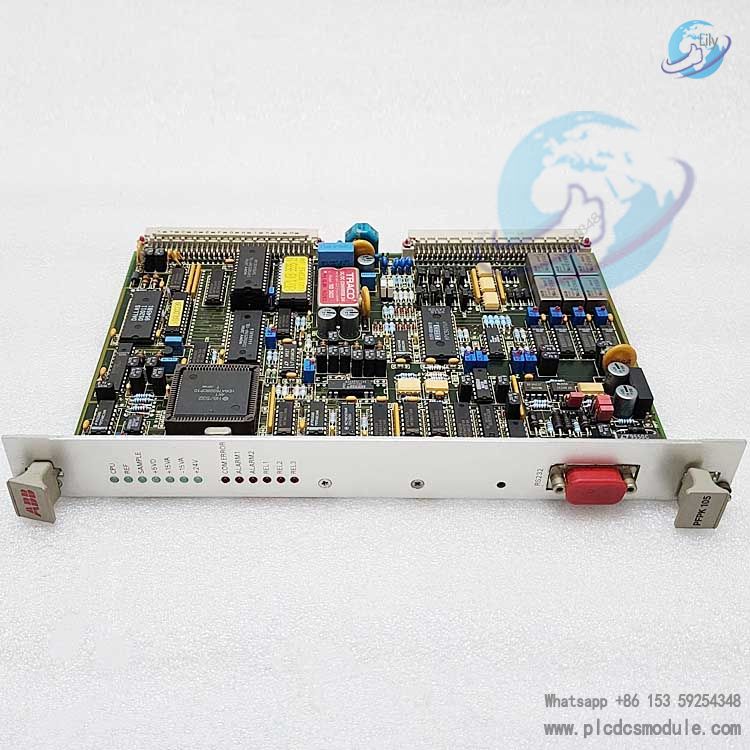

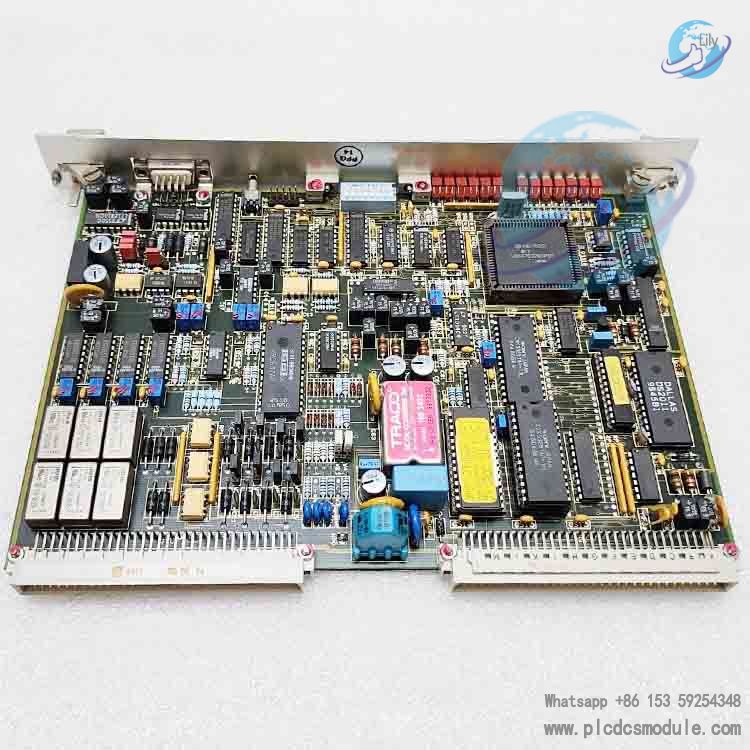

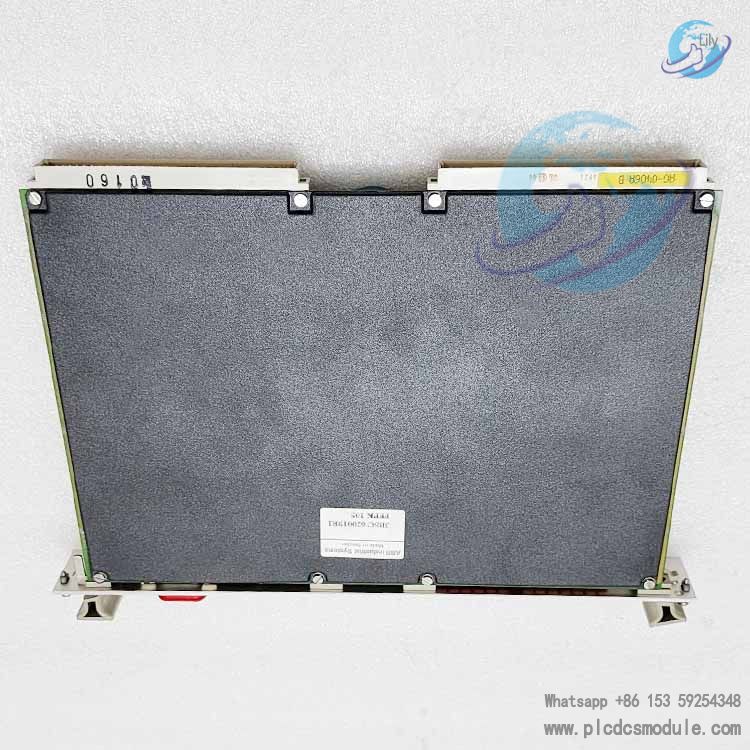

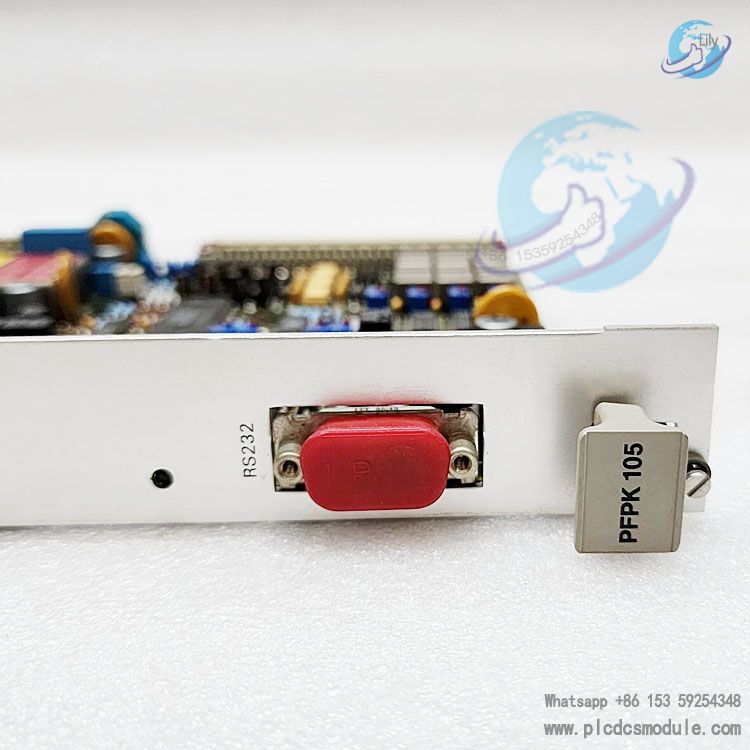

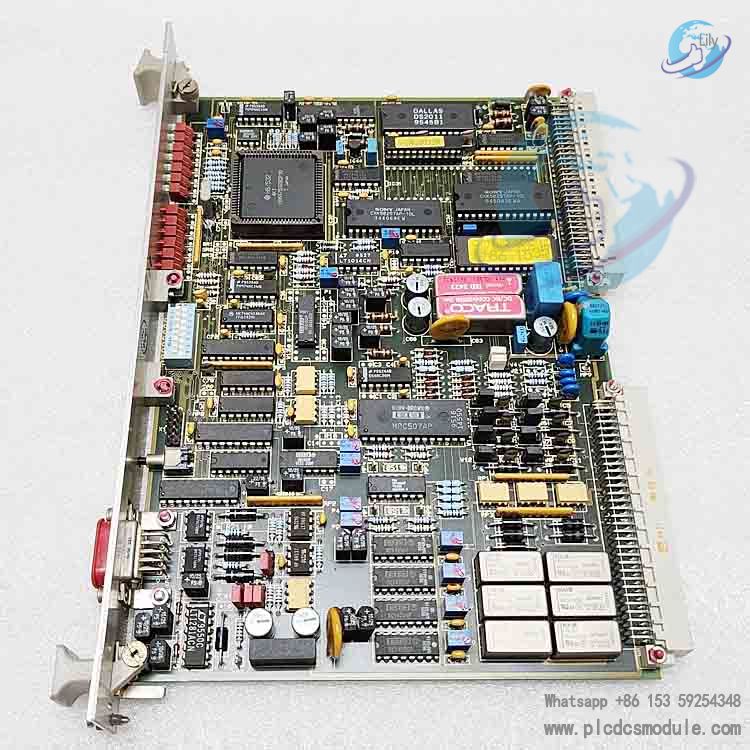

PFPK 105 (Product Code: 3BSC620019R1) is a core processor board in ABB process control system (DCS). It is a high-precision printed circuit board (PCB) specially designed for signal processing, command transmission and system coordinated control in industrial automation applications, making it one of the key components ensuring stable and efficient operation of ABB DCS systems.
Developed and manufactured by ABB based on its profound technical expertise in power and automation, this board features high reliability, strong anti-interference performance and easy maintenance, and is suitable for harsh industrial environments.
It is widely used in automation control systems across various industrial sectors, undertaking the core task of bidirectional interaction between field signals and the main control unit.
As an important bridge connecting the field execution layer and the system control layer, it provides solid support for the real-time performance and accuracy of the entire automation system.
Basic Parameters
- Model: PFPK 105
- Order No./Part No.: 3BSC620019R1
- Product Type: DCS dedicated processor board, printed circuit board (PCB)
- Applicable System: ABB Process Automation Control System (DCS), seamlessly compatible with ABB related modules and main control units
- Operating Environment: Temperature range -20℃ ~ 60℃, humidity range 5% ~ 95% (non-condensing), suitable for complex industrial environments including dust and electromagnetic interference
- Protection Level: Meets industrial-grade protection standards; PCB coated with anti-corrosion and anti-interference treatment to enhance stability in harsh environments
- Module Structure: Modular design, supports hot swapping, fits ABB standard racks for easy installation
- Power Supply: Supports industrial standard DC power input with high voltage stability, equipped with overload and short-circuit protection to ensure board and system safety
Functions and Features
(I) Core Functions
- Signal Processing and ForwardingPrimarily responsible for receiving analog or digital signals from industrial sites. After high-precision conversion and filtering, signals are stably transmitted to the main control unit. It also receives control commands issued by the main control unit and accurately outputs them to lower-level execution equipment, ensuring accuracy and real-time performance of signal transmission and normal execution of system control logic.
- System Coordinated ControlAs a key node in the DCS system, it cooperates with other modules in the system (such as I/O modules and communication modules), participates in the execution of overall control strategies, coordinates the operating status of various devices, and improves the coordination and stability of the entire automation system.
- Fault Detection and DiagnosisEquipped with multiple built-in fault detection mechanisms, it monitors the board’s own operating status (power supply, signal transmission, etc.) and connected modules in real time. Once an abnormality is detected, it quickly feeds back fault signals, helping technicians locate fault sources and reduce maintenance difficulty and time cost.
- Data Buffering and SynchronizationProvides data buffering capacity to temporarily store on-site collected signal data and commands from the main control unit to prevent data loss. It also synchronizes data with the main control unit to ensure system data consistency.
(II) Product Features
- High ReliabilityDesigned in accordance with ABB industrial-grade standards and tested for environmental adaptability and long-term operation reliability. With high-quality components and scientific PCB layout, it effectively reduces electromagnetic interference, improves circuit stability and impact resistance, supports 24/7 continuous operation on industrial sites, and features an extremely low failure rate.
- Modular and Easy MaintenanceAdopts a standardized modular structure supporting hot-swapping and quick replacement. Installation, replacement and upgrade can be completed without system shutdown, greatly reducing downtime, on-site maintenance workload and improving operation and maintenance efficiency.
- High Precision and Real-Time PerformanceDelivers high-precision signal conversion, accurately processes various industrial field signals with low transmission delay, ensures fast response of system control commands, and meets strict real-time control requirements in process automation.
- Strong CompatibilitySpecially designed for ABB DCS systems, it is seamlessly compatible with ABB control modules, communication modules, power modules and other same-series products. It can be integrated into existing systems without additional debugging and adapts to automation control scenarios of different scales.
- Safety and ComplianceMeets international industrial safety standards and integrates multiple protection mechanisms including overload, short-circuit and over-temperature protection. It protects the board itself from damage and prevents board faults from affecting the normal operation of the entire DCS system, ensuring safe and stable industrial production.
Application Scenarios
- Petrochemical Industry: Used in automation control systems for petroleum refining, chemical raw material production and other processes, responsible for on-site signal acquisition and control command transmission to ensure continuous and safe operation of production flows.
- Power Industry: Applied in DCS systems for thermal power plants, substations and other facilities, participating in control and monitoring of power generation and transmission processes to ensure stable power supply.
- Metallurgical Industry: Deployed in automation control for iron and steel, non-ferrous metal smelting and other production processes, processing various on-site signals, coordinating equipment operation, and improving smelting efficiency and product quality.
- Building Materials Industry: Suitable for automated production lines of cement, glass and other building materials, in charge of process control and signal transmission to maintain stable production technology.
- Other Industries: Also applied in automation control systems for papermaking, natural gas processing and other industrial fields, providing core support for the automation and intelligentization of various industrial productions.
Product Advantages
- Brand AssuranceAs a global leader in power and automation technologies, ABB is widely recognized for product quality and technical expertise, ensuring superior stability and compatibility of the board.
- Outstanding PerformanceHigh-precision signal processing, low-latency transmission, and strong anti-interference capability enable reliable operation in complex industrial environments and meet demanding automation control applications.
- Easy Operation and MaintenanceHot-swappable design and built-in fault diagnosis greatly reduce maintenance costs and downtime losses, improving overall system O&M efficiency.
- Long Service LifeStrict testing procedures and high-quality component selection ensure long-term stable operation and extended service life, lowering replacement costs for users.
