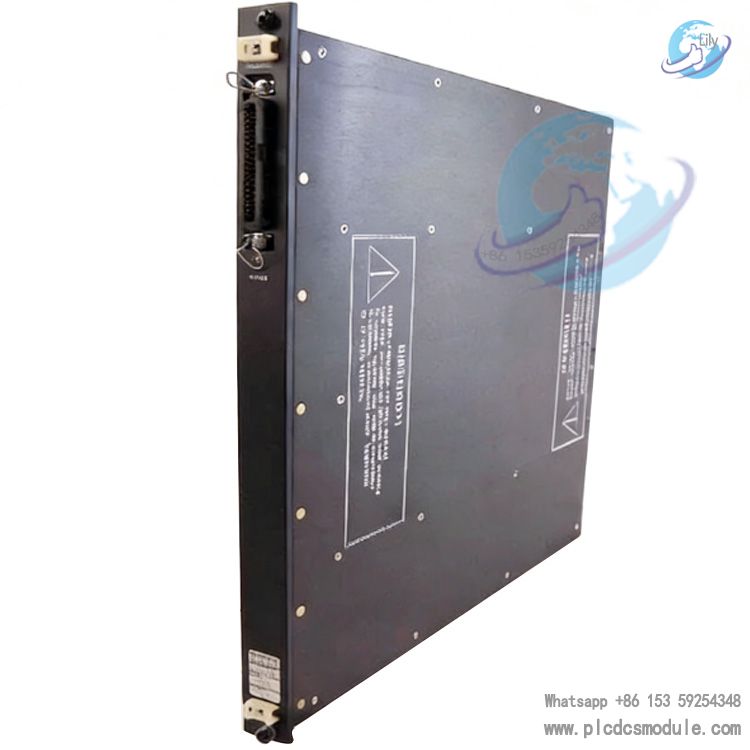

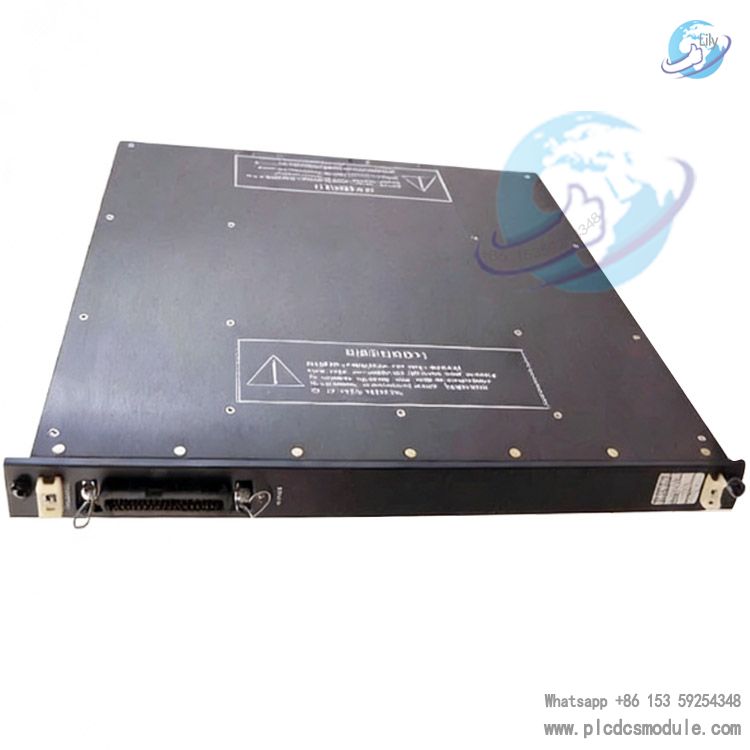

Triconex 2755 (Model 3000104-001) is an Interface Termination Card (ITC) for the EcoStruxure Tricon Safety Instrumented System (SIS) by Schneider Electric (formerly Triconex). It is specially designed to provide reliable physical connection and signal routing between Tricon controllers, field I/O modules, and field devices. As a key supporting component of Triconex Triple Modular Redundancy (TMR) architecture, it serves high-integrity industrial applications including Emergency Shutdown (ESD), Fire & Gas (F&G) detection, and turbine protection. It enables safe and stable signal exchange between the system and field devices via standardized interfaces, complying with IEC 61508 SIL 3 safety integrity level requirements.
1. Core Specifications
Basic Information
- Manufacturer: Triconex (Schneider Electric)
- Model: 2755, Part Number: 3000104-001
- Type: Interface Termination Card (ITC) / Connector Interface Module
- Compatible Systems: Tricon, Tricon CX series safety controllers
Physical & Environmental Parameters
- Mounting: Plug-in mounting on Tricon chassis backplane
- Operating Temperature: -40℃ to +70℃
- Storage Temperature: -40℃ to +85℃
- Relative Humidity: 5%–95% (non-condensing)
- Weight: Approx. 1kg (2.3 lbs)
- Dimensions: 43×41×9mm
Electrical & Connection Features
- Signal Compatibility: Supports field wiring routing for digital and analog I/O signals
- Isolation: Electrical isolation between channels and between field wiring and logic circuits for improved noise immunity
- Interface Type: Compatible with Triconex proprietary ELCO or D-Sub connectors and standard termination panels
- Wiring: Designed for field terminal blocks, simplifying field wiring and maintenance
Safety & Approvals
- Safety Certifications: IEC 61508 SIL 3, TÜV approval for SIS applications
- Compliance: CE, UL, CSA certified
Redundancy: Compatible with Tricon TMR architecture and supports fault-tolerant operation
Key Functions
- Physical Connection Hub: Acts as an intermediate link between Tricon controller I/O modules and field devices (sensors, actuators), providing standardized wiring interfaces and unifying internal and field wiring practices.
- Signal Isolation & Protection: Provides electrical isolation between channels, field side and system side, blocking interference and protecting core controller circuits from field electrical faults.
- Hot-Swappable: Supports online maintenance of Tricon systems; can be inserted or removed during operation without shutdown, ensuring production continuity.
- Diagnostic Support: Works with Tricon system self-diagnostics to help locate field wiring and interface connection faults, simplifying troubleshooting.
- Standardized Installation: Compatible with Triconex termination panels and chassis, enabling modular, standardized cabinet layout and reducing installation and wiring complexity.
Typical Applications
- Oil & Gas: ESD systems, fire & gas detection, wellhead safety control for offshore platforms and onshore oilfields
- Chemical & Refining: Reactor safety interlocks, distillation unit ESD, Burner Management Systems (BMS)
- Power: Gas/steam turbine protection, boiler safety control, power plant emergency shutdown
Metallurgical & Pharmaceutical: Safety interlocks for high-risk processes, critical equipment protection
FAQ
Q1: What is the relationship between the 2755 module and Tricon I/O modules?A: The 2755 is an Interface Termination Card (ITC), not a functional I/O module. It only handles physical connection and signal routing. It must be used with Tricon digital/analog I/O modules to achieve actual signal input/output functions.
Q2: Does this module support hot-swapping?A: Yes. As a Tricon system component, the 2755 can be inserted or replaced online during normal system operation without shutdown, in line with Tricon’s online maintenance design.
Q3: Is the 2755 suitable for SIL3 safety applications?A: Yes. The module is compatible with Tricon SIL3-certified systems and can meet IEC 61508 SIL 3 requirements when used with qualified I/O modules and proper system configuration.
Q4: How to determine if the 2755 module is faulty?A: Check module status indicators and diagnostic logs via Tricon controller diagnostic software (such as TriStation), combined with field wiring inspection, to locate faults in interface connections or isolation circuits.
Q5: Are there replacement models for this module?A: Triconex offers compatible ITC modules for different system versions. Specific replacement part numbers should be confirmed via Schneider Electric’s official product catalog or technical support.
