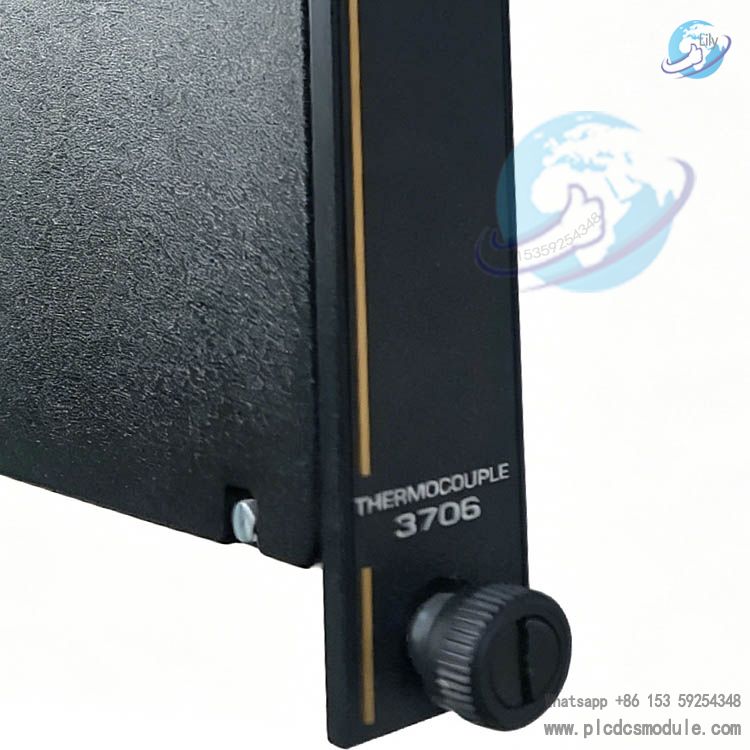

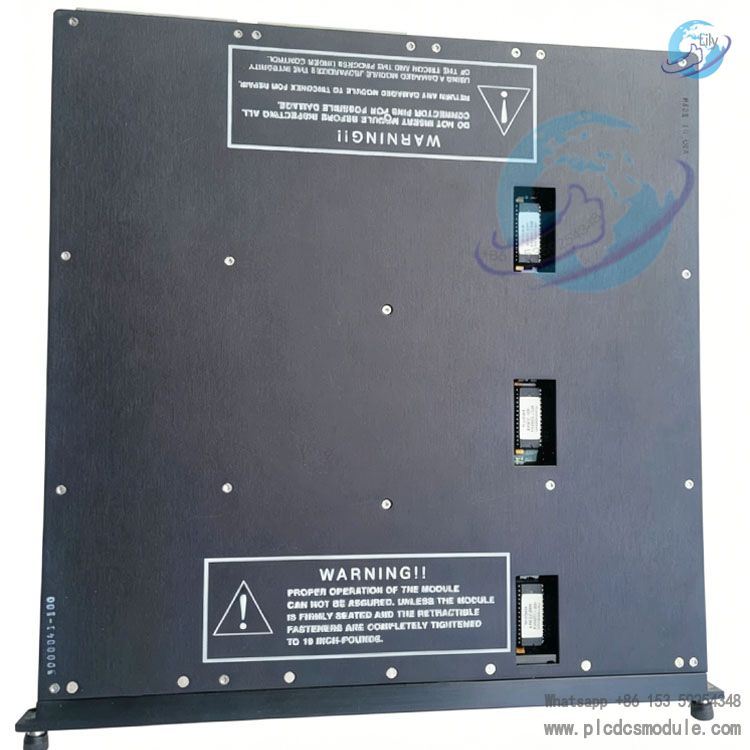

The TRICONEX 3706 (superseded model: 3706A) is a dedicated TMR triple modular redundant thermocouple analog input module for Schneider Tricon Safety Instrumented System (SIS). Designed by the original manufacturer complying with IEC 61508 SIL 3 safety certification standards, this card is engineered to acquire low-level millivolt temperature signals from industrial thermocouples; it performs cold-junction compensation, thermocouple non-linearity conversion and analog-to-digital conversion before transmitting processed data to the Tricon main processor.
Adopting fully triple-redundant independent acquisition channels alongside a 2-out-of-3 voting algorithm, the module features 32-channel differential DC-coupled inputs with native compatibility for three mainstream industrial thermocouple types: J, K and T. It serves as core hardware for temperature acquisition in ESD Emergency Shutdown Systems, FGS Fire & Gas Systems and critical equipment interlock applications. Wired via matching dedicated External Terminal Panel (ETP), it is compatible with all Tricon mainframe racks ranging from V9 to V12, enabling safety-grade temperature monitoring for high-risk processes in petrochemical, thermal power and related industries.
Product Features
(1) Electrical and Channel Specifications
Input Specification: 32-channel fully differential DC-coupled non-isolated inputs; each channel supports J/K/T type thermocouples with an input range of 0~100 mV (standard millivolt output of thermocouples).Temperature Resolution: 16-bit signed analog-to-digital conversion with a minimum resolution of 0.125°C and full-scale accuracy of ±0.1% FS.Channel Update Rate: 20 ms per-channel polling scan for all channels to meet fast acquisition requirements of interlock logic.Thermocouple Conversion: Factory pre-programmed J/K/T thermocouple lookup tables onboard; hardware-based automatic linearization, with digital output in either °C or °F transmitted to the main processor.
(2) Architecture & Communication
Architecture: Full TMR (Triple Modular Redundant) design incorporating three independent onboard processors; communicates with the Tricon main MP via proprietary backplane bus of the Tricon system.Accessories: Mandatorily installed with original factory ETP external terminal panels and dedicated flat cables; direct field wiring to module terminals is prohibited.
(3) Environmental & Physical Specifications
Dimensions: 273×213×25 mm, conforming to standard Tricon rack slot dimension; net weight: 1.4 kg.Storage Temperature: -40°C ~ +85°C, suitable for wide-range spare parts warehouse storage conditions.Safety Certifications: SIL3 certification, ATEX compliance (intrinsically safe loops require matching safety barriers), and CSA industrial safety certification.
Core Advantages
SIL3 Safety Grade plus TMR Triple Modular Redundancy Fault ToleranceEquipped with three independent sampling circuits, three separate AD conversion paths and 2-out-of-3 data voting logic. Failure of any single acquisition loop will not disrupt channel output, eliminating single-point failure risks. Compliant with IEC 61511 process safety standards and delivering system availability of no less than 99.999%.
High-Density & Cost-Effective Acquisition32 thermocouple input channels per module. Compared with equivalent 16-channel isolated thermocouple cards from the same manufacturer, it drastically reduces rack slot occupation, terminal board quantity and field wiring costs, making it the preferred option for large-scale temperature measurement points.
Onboard Hardware Cold Junction Compensation (CJC)High-precision temperature sensing components mounted on the PCB realize automatic cold-junction compensation. No extra field compensation cables are needed, avoiding temperature reading errors caused by manual compensation operations.

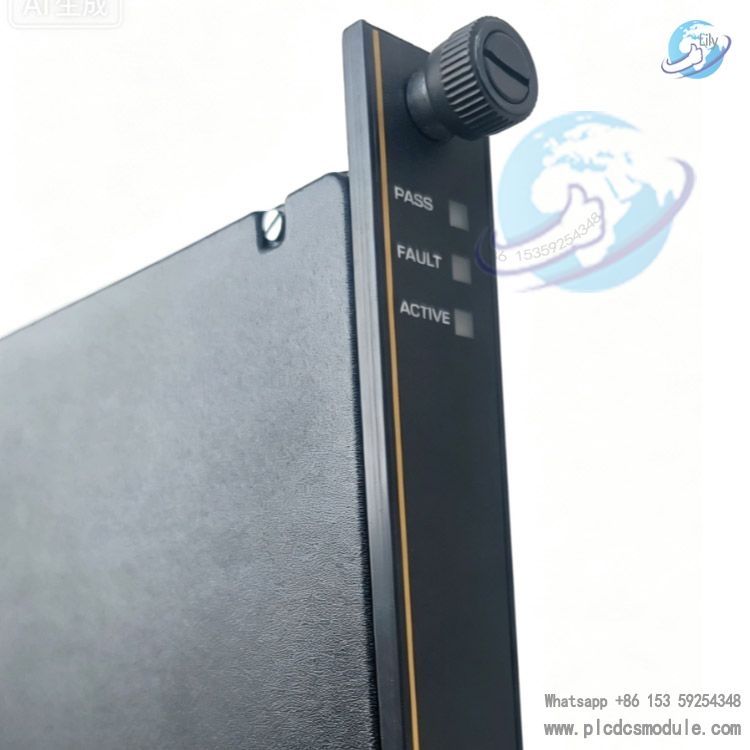

Channel-wise Comprehensive Diagnostics & Open-Circuit DetectionAutomatically diagnoses and reports single-channel faults including thermocouple open circuit, short circuit and over-range conditions. Dedicated LED indicators alert on module hardware defects and backplane communication faults for accurate fault pinpointing.
Online Hot-Swap (Hot-Spare) FunctionFaulty modules can be replaced live without plant shutdown or disconnection of field thermocouple wiring, greatly shortening equipment maintenance downtime.
Robust Wide-Range Industrial Environmental ResistanceOperating temperature range: -20℃ ~ +70℃, relative humidity 5%~95% non-condensing; resistant to 2G vibration (10~500Hz) and 30G shock, suitable for high-temperature and high-humidity cabinet environments in chemical and thermal power plants.
Application Scenarios
1. Petrochemical Industry
- ESD emergency interlock for refining units: SIS temperature acquisition for reactor, heater and cracking furnace wall/tube; emergency feed cutoff and flameout interlock activate upon overtemperature.
- FGS fire & gas system: Explosion-proof thermocouple temperature detection for tank and pump house ambient conditions; fire protection interlock triggers at high-temperature pre-alarm.
- Safety temperature monitoring for critical measuring points of hydrogenation units and distillation columns.
2. Thermal Power & Cogeneration Plants
SIS temperature measurement for boiler drum, water wall and superheater tubes to implement over-temperature protection interlock for furnace tubes; safe temperature monitoring of turbine casing and bearing pads for turbine trip protection via ETS system when overheating occurs.
3. Metallurgy & Coal Chemical Industry
Safety thermocouple temperature measurement for coking furnaces and blast furnaces; furnace shutdown interlock on furnace overtemperature; SIS bed temperature monitoring of catalysts inside coal-to-gas reactors.
4. Explosion-Proof Workshops for Pharmaceutical & Fine Chemicals
Safety interlock temperature monitoring for explosion-proof reactors; SIS temperature detection for over-temperature pressure relief and feed cutoff of high-risk reaction kettles.
Comparison of Tricon Thermocouple & Analog Input Modules
| Model | Channels | Supported Thermocouple Types | Isolation Method | TMR Architecture | Application |
|---|---|---|---|---|---|
| 3706 | 32 | J/K/T | Non-isolated differential input | TMR | Mass quantity normal-temperature J/K/T measuring points, cost-sensitive projects, projects with limited cabinet slots |
| 3708E | 16 | J/K/T/E/R/S/B/N | Per-channel galvanic isolation | TMR | Explosion-prone heavy EMI field, mixed multiple thermocouple grades, intrinsically safe explosion-proof loops |
| 3700A | 32 | 0~5V voltage only (no TC support) | Non-isolated differential input | TMR | 4–20mA & voltage analog signals, non-temperature measurement applications |
| 3703E | 16 | Universal voltage (optional limited TC function) | Per-channel isolation | TMR | High-precision low-count voltage acquisition, rare temperature measurement |
Selection Summary
Select Model 3706 for bulk temperature measurement only with J/K/T thermocouples;Select Model 3708E for multi-grade thermocouple + isolated explosion-proof applications;Select 3700 series for non-temperature analog signal acquisition.
FAQ
Q1: What is the difference between 3706 and 3706A? Which model to purchase?
A: 3706A is the upgraded successor released by the original manufacturer, featuring improved CJC cold-junction compensation accuracy and enhanced power frequency noise immunity; it is the current active production model. 3706A is pin-to-pin compatible for spare part replacement of legacy 3706 on existing systems; procure 3706A uniformly for all new projects.
Q2: Can 3706 directly connect to E/R/S/B/N type thermocouples?
A: Only J/K/T thermocouple lookup tables are pre-programmed into factory hardware firmware, so other thermocouple types are unsupported. Model 3708E isolated thermocouple module is mandatory for such applications.
Q3: Is original factory ETP terminal panel a mandatory matching part? Are third-party terminal panels usable?
A: Original OEM ETP terminal panel is required. Dedicated proprietary communication protocol is applied between module and terminal board; third-party terminals cannot realize CJC cold-junction compensation or channel diagnostics and shall never be substituted.
Q4: What extra accessories are required for installation in hazardous explosion-proof areas?
A: Safety barriers with matching explosion-proof rating are required for intrinsically safe circuits. The 3706 module itself is non-ex rated and shall be mounted inside safe-area cabinets, with safety barriers installed on field-side thermocouple wiring within hazardous zones.
Q5: Module red LED blinks with fluctuating or over-range temperature readings on individual channels?
A: ① Reversed thermocouple polarity or mismatched compensation cable grade; ② Broken thermocouple wire triggering built-in open-circuit diagnostic alarm; ③ Loose wiring on terminal panel – retighten terminal connections.
Q6: Universal high/low temperature offset across all channels indicating failed cold-junction compensation?
A: ① Loose flat cable linking ETP terminal panel and module; ② Abnormal CJC sensor caused by drastic cabinet ambient temperature swing – replace terminal panel; ③ Accidental CJC function disabled in software – re-enable cold-junction compensation via configuration.
Q7: Two redundant 3706 modules installed; can the faulty unit be hot-swapped without system shutdown?
A: Online hot-swap is permitted under TMR hot-spare configuration; the system automatically synchronizes configuration after replacement. Do not keep the system running with incomplete single-redundancy status over 24 hours to eliminate risks of losing redundant protection upon a secondary fault.
Q8: Frequent minor temperature drifting caused by severe on-site electromagnetic interference?
A: The 3706 adopts non-isolated circuit design. Separate thermocouple cables from power cables in different wiring ducts, use fully shielded thermocouple wiring with single-point grounding. Replace with isolated 3708E modules for heavy EMI environments.
Q9: Configuration download completes normally but no temperature values displayed on channels?
A: ① No power supply to ETP terminal panel; ② Bent or damaged pins on flat connecting cable; ③ Wrong thermocouple type selected in TriStation configuration (e.g. Type T set for Type K input) – verify configuration parameters.
