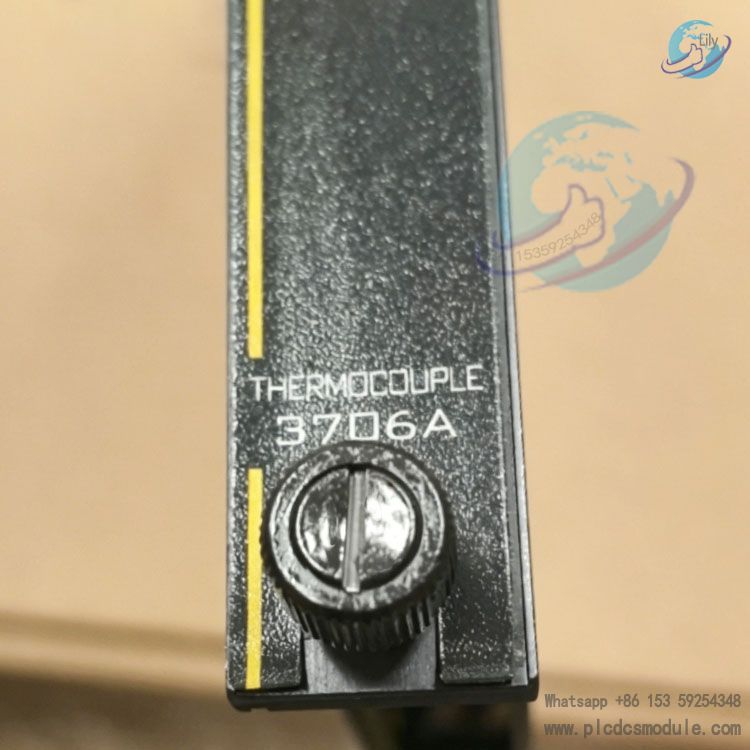

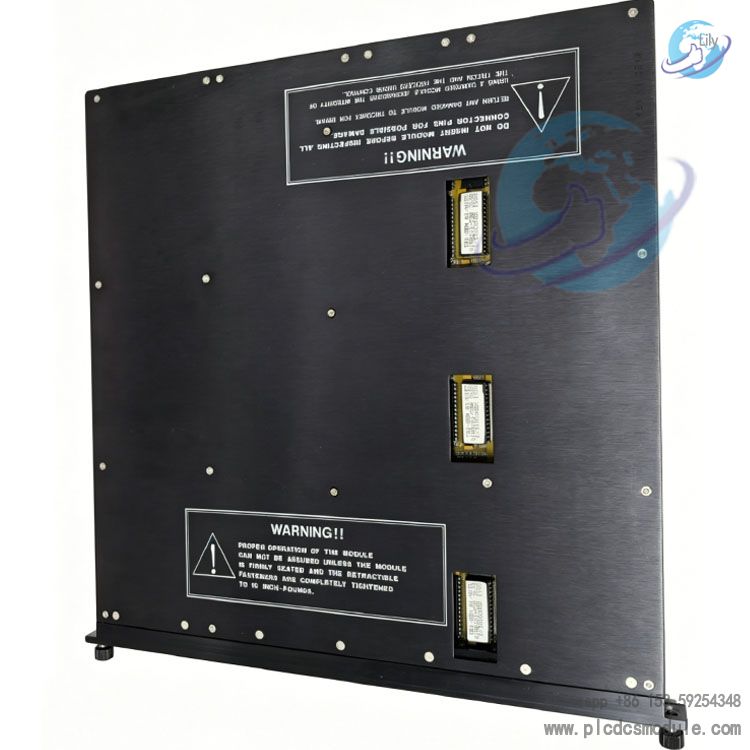

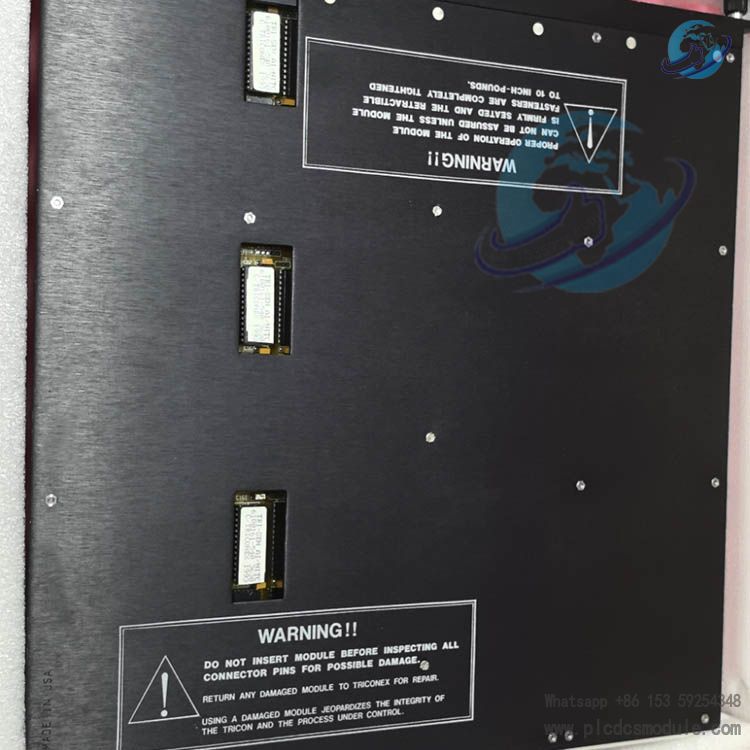

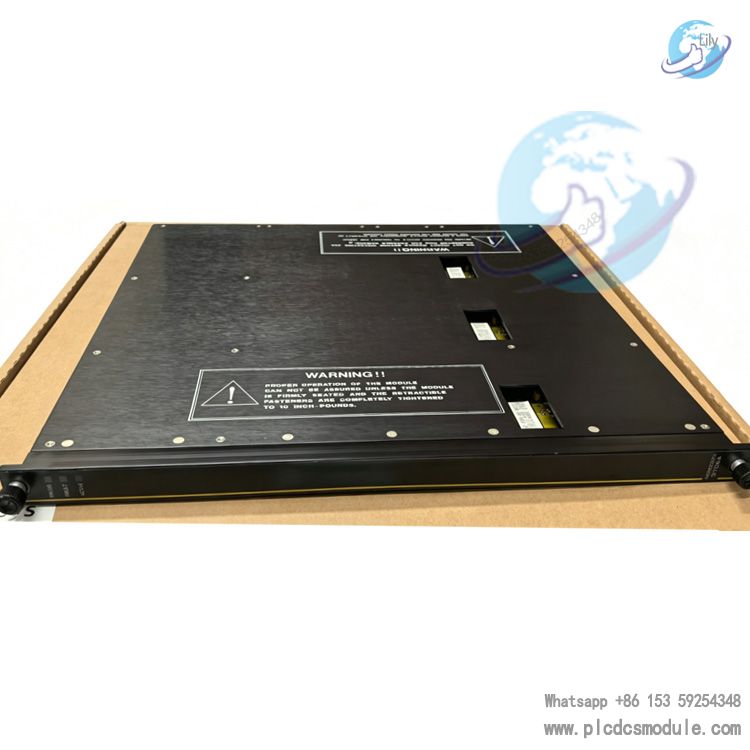

The Triconex 3706A is a TMR triple-modular redundant thermocouple analog input module dedicated for Invensys Tricon safety control systems. Developed to acquire temperature measurement signals from field J/K/T-type thermocouples, it leverages the Tricon triple redundant platform to linearize weak millivolt signals from thermocouples, implement cold-junction compensation and analog-to-digital conversion, then transmits processed 16-bit digital data to the main processor. It serves as a core temperature acquisition card for SIL1~SIL3 safety interlock systems including ESD, BMS and FGS.
Equipped with 32-channel differential non-isolated thermocouple inputs in a DC-coupled design, the module requires matching external terminal panels (ETP) for field wiring. It delivers high-precision temperature measurement for high-risk applications in petrochemical and power industries, and acts as the primary cost-effective thermocouple input module within the Tricon product lineup.
Download
Technical Specifications
(I) Hardware Parameters
Channel Configuration: 32-channel differential DC-coupled non-isolated inputs, compatible only with J, K and T-type thermocouples (Model 3708 additionally supports E-type). Maximum single-channel sampling cycle is 50 ms; input signals freeze for 1 second temporarily when a spare module is hot-inserted before normal acquisition resumes.
Electrical Specifications: Typical input impedance 22 MΩ; minimum common-mode rejection ≥−85 dB across DC to 60 Hz, normal-mode rejection −17 dB at 60 Hz. Each channel withstands up to ±10 V common-mode voltage and continuous 110 VAC input for surge breakdown protection.
Accuracy Ratings
| Thermocouple Type | Temperature Range | Typical Accuracy @ 25℃ Ambient |
|---|---|---|
| Type J | −157~0℃: ±2.8℃; 0~1093℃: ±2.3℃ | −157~0℃: ±3.9℃; 0~1093℃: ±2.8℃ |
| Type K | −157~0℃: ±3.4℃; 0~1371℃: ±2.3℃ | −157~0℃: ±5.0℃; 0~1371℃: ±3.4℃ |
| Type T | −161~0℃: ±2.8℃; 0~400℃: ±1.7℃ | −161~0℃: ±5.0℃; 0~400℃: ±2.8℃ |
LED Definition: Three front-panel indicators: PASS (self-test OK), FAULT (channel/hardware failure), ACTIVE (module communication running). No dedicated CJ FAULT indicator for cold-junction error (CJ FAULT LED is exclusive to 3708E).
Physical Dimensions: Standard Tricon rack form factor, module weight 2.1~2.7 kg. Mechanically keyed slot design prevents incorrect insertion into analog voltage AI slots.
(II) Software Configuration Features
TriStation 1131 Programmable Configuration: Individual channels allow flexible setup of thermocouple type within software; open-circuit fault trending (upscale/downscale) is determined by paired terminal board selection and cannot be configured via module software.
Data Format: Processed temperature resolution: 0.125℃ per count; 16-bit signed integer transmitted to MP main processor, compatible with SOE sequence-of-event timestamp logging.
Core Advantages
TMR Triple Modular Redundant Safety Architecture with Superior Fault ToleranceThree independent internal acquisition circuits perform parallel sampling inside the module. The main processor adopts median voting algorithm; single-channel failure will not disrupt normal signal collection of the entire module or measuring points. Stable operation is maintained even with two faulty channels at maximum. Certified per IEC61508 SIL3, it is applicable to temperature measurement for safety-critical loops.
High-density 32-point Layout Reduces Procurement & Cabinet Investment32 channels per module. Compared with isolated counterpart 3708E (16 channels per card), it cuts per-channel procurement cost greatly and saves rack slot space, delivering remarkable savings on cabinet and cabling expenses for large-scale temperature measurement applications.
Built-in Full-range Signal Compensation Ensures High Measurement AccuracyEquipped with distributed Cold Junction Compensation (CJC) via matched terminal boards and segmented linearization algorithm for thermocouples. Preloaded J/K/T thermocouple reference tables from factory. No external signal conditioner is required; full-range error is calibrated at production to minimize on-site calibration workload.
Full-channel Onboard Self-diagnosis plus Hot-swap RedundancyContinuous real-time diagnostics detect thermocouple open circuit, short circuit and cold-junction sensor malfunction. The FAULT LED illuminates and triggers cabinet system alarm upon faults. Faulty modules support online hot-swap replacement without system shutdown; redundant spare modules enable bumpless switchover with zero plant outage risk.
Robust Resistance to Harsh Industrial Environments
Operating ambient temperature: 0~60℃ (32~140℉). Compliant with IEC60068 standards for temperature-humidity cycling, vibration and EMC immunity. Rated for 8kV air discharge and 4kV contact discharge ESD protection, suited for refinery and power plant sites with heavy dust and intensive electromagnetic interference.
Application Scenarios
1. Petrochemical Industry (ESD Emergency Shutdown & BMS Burner Management System)
Multi-point temperature measurement on reactor shell and catalyst bed of hydrogenation, cracking and rectification units; overtemperature interlock triggers ESD feed cutoff. It monitors burner tip temperature of process heaters to realize flameout protection under BMS control. Model 3706A is the preferred option for bulk J/K-type thermocouple applications.
2. Thermal Power & Gas Turbine Industry (Unit Safety Interlock)
Temperature acquisition for boiler water wall, turbine casing and flue duct, furnace overtemperature interlock protection, plus temperature monitoring for coal pulverizers and gas burners; ideal for mass K-type thermocouple collection.
3. Coal Chemical & Fine Chemical Industry (FGS Fire and Gas System)
Shell temperature surveillance for reactors and incinerators; abnormal over-temperature triggers firefighting linkage and feed shutdown. For medium-to-large plants with hundreds of temperature points, 3706A’s high-density design effectively reduces cabinet occupation.
4. Metallurgy & Papermaking Kiln Control
Multi-point temperature sampling for rotary kilns and thermal treatment furnaces; over-temperature interlock shuts down equipment for protection. Cost-effective choice for large quantities of J/T thermocouple points.
Model Selection Guidance
Opt for isolated 3708E when field sites suffer severe high-voltage inverter interference or thermocouple cables run across high-voltage cabinets; deploy 3706A for conventional centralized control room with dense field wiring and numerous measuring points.
Installation & Commissioning Guide
Step 1: Rack Hardware Mounting
With power fully cut off, align the 3706A module with mechanically keyed dedicated TC slots of Tricon main rack (Model 8110) or expansion racks (8111/8121), then insert and lock into position. Fit blank filler plates (8105) onto vacant slots to maintain air duct ventilation and heat dissipation.Connect the module to external dedicated cold-junction ETP terminal panels via factory-specified cables. Standard cable length is 10 ft (3 m), custom maximum available length 99 ft (30 m). Unauthorized non-original replacement cables are prohibited.
Step 2: Field Thermocouple Termination
Match thermocouple positive/negative polarity strictly to channel terminals on ETP boards and classify according to J/K/T thermocouple grades; use identical thermocouple type for all points on a single terminal board.Terminal boards integrate built-in cold-junction compensation sensors. Ensure ambient temperature difference between terminal panel and module is less than 5℃ to prevent excessive cold-junction compensation error.
Step 3: Configuration via TriStation1131 Software
Add 3706A in hardware configuration and assign corresponding TC type (J/K/T) channel by channel.Set upscale/downscale open-circuit detection mode per terminal board specification, then download hardware configuration to Tricon MP main processor (3008).Read uploaded temperature variables from the module in control logic, and configure over-temperature interlock & fault alarm logics.
Step 4: Power-up and Commissioning
Power on terminal boards and field thermocouple loops first, then energize the system rack power supply.Normal hardware status: steady ON PASS LED, flickering ACTIVE LED and extinguished FAULT LED on 3706A front panel.Short respective thermocouple terminals per channel to verify open-circuit alarm function, and cross-check measured temperature against local field instruments point by point.
Step 5: Routine Maintenance & Spare Management
Install spare 3706A modules in identical rack slots for standby redundancy. Faulty modules can be hot-swapped online; spare cards automatically synchronize configuration data and restore signal acquisition within 1 second after replacement.
FAQ
Q1: Can 3706A measure Type E thermocouple directly?A: Per original datasheet, 3706A has factory-fixed thermocouple lookup tables only for J/K/T types and does not support Type E. Purchase 3708E for Type E measurement.
Q2: Cost-effective selection between 3706A and 3708E for large-scale temperature measurement in new projects?A: Choose 3706A for cost savings (half cost per point for 32 channels) when thermocouple cables run inside control room within 30 meters without crossing inverters or high-voltage motor cabinets. Select isolated 3708E if wiring passes through high-voltage or heavy variable-frequency equipment areas to avoid reading drift from electromagnetic interference.
Q3: What accessories are required for purchase?A: Matching TC-specific ETP terminal panels plus interconnecting cables are mandatory. Only genuine OEM TC terminal panels guarantee accurate cold-junction compensation; custom-made terminal boards cause excessive CJC error. Spare stock recommendation: 10% of installed quantity for backup modules.
Q4: Warranty period for new modules? Can it supersede legacy 3706?A: Standard 12-month factory warranty on brand-new units. 3706A is fully compatible with Tricon controller firmware V9.6 and above, enabling seamless drop-in replacement of original 3706 without program revision.
Q5: Troubleshooting for steady red FAULT LED on 3706A?
- Single-point fault: Open circuit or reversed short-circuit on corresponding thermocouple wiring; inspect field cable termination.
- Full-card fault: Defective cold-junction sensor on terminal board, broken interconnect cable or loose module latch; replace terminal board or reseat module.
- Configuration mismatch: Incorrect thermocouple type set in TriStation; amend configuration and redownload to controller.
Q6: Unstable, drifting temperature readings?A: ① Excessive ambient temperature gap between module and terminal board leads to faulty cold-junction compensation; stabilize cabinet ambient temperature.② Thermocouple cables laid alongside power cables resulting in heavy EMI; upgrade to shielded thermocouple wires or switch to isolated 3708E.③ Oxidized terminal contacts; retighten all field wiring terminals.
Q7: Is hot-swap permitted without system shutdown upon module failure?A: Yes, thanks to TMR redundant design. Online replacement requires no plant shutdown. Spare module synchronizes configuration automatically; measurement data freezes for merely 1 second during swap with zero risk of spurious interlock trip.
Q8: Partial normal readings while sporadic fluctuation on individual points within one channel group?A: Check loose wiring or cracked, leakage-prone thermocouple elements at problematic spots. Since 3706A is non-isolated, single-point leakage may slightly affect adjacent channels; migrate to 3708E if interference remains severe.
Q9: Module fails to run with non-blinking ACTIVE LED after TriStation configuration download?A: ① Misinserted into analog AI slot instead of dedicated TC keyed slot; relocate module to correct TC rack position via mechanical keying.② Wrong part number selected in hardware setup (configured as 3708E); edit configuration and redownload.③ Faulty backplane I/O bus; replace rack backplane or I/O extension cable.
