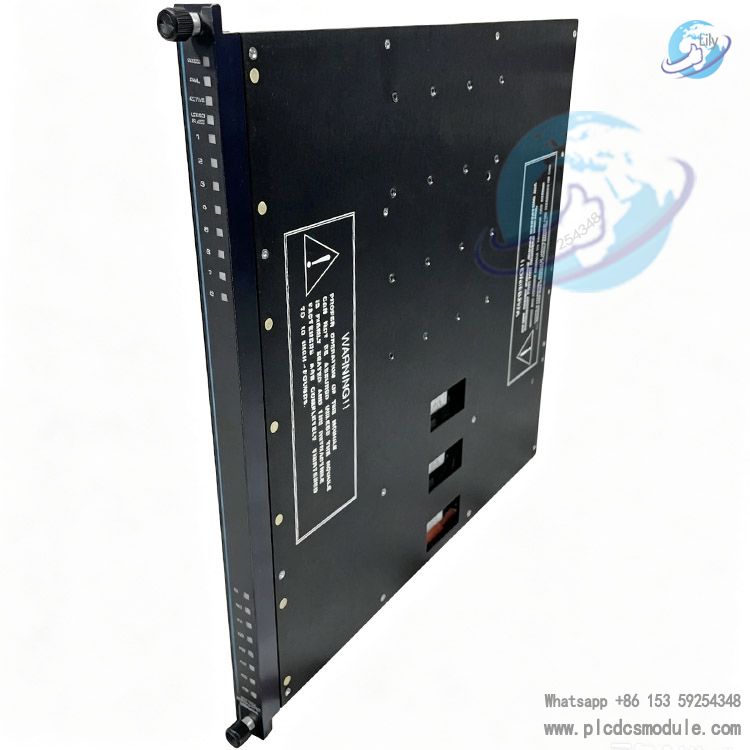

The Triconex 3604A is a SIL3-rated 16-channel sourcing digital output module for Schneider’s Triconex Tricon safety control system. Originally engineered as a dedicated DO card for safety interlock ESD systems, BMS burner management systems and F&G fire & gas systems, it is compatible with the full range of redundant safety controller racks of Tricon V9 and V10 platforms.
Designed on TMR Triple Modular Redundant architecture, the module provides 16 channels of 24VDC sourcing outputs with built-in circuit readback diagnostics and load open-circuit detection. It delivers discrete safety drive signals for field solenoid valves, audible & visual alarm beacons and emergency shutdown trip valves, serving as the standard output card for critical safety loops in petrochemical, thermal power and coal chemical industries.
Core Advantages
TMR Triple Modular Redundant Fault Tolerance for Zero Single-Point FailureThree independent internal circuits run in parallel with 2-out-of-3 voting logic. Failure of one single circuit will not disrupt overall module output performance, complying with fail-safe design principles and mandatory SIL3 safety loop specification requirements.
Full-channel Closed-loop Diagnostics for Early Fault Pre-warningIntegrated with three diagnostic functions: OVD output voting diagnosis, output readback and load open-circuit scanning. Short circuit, open circuit and missing load faults on every channel are monitored in real time and uploaded to the controller’s SOE event log to enable predictive maintenance.
Hot-Swap & Hot-Standby Redundancy SupportedThe module can be replaced live without equipment shutdown or power cut to the system. Master-standby dual-module hot-backup configuration is available; faulty modules switch seamlessly to standby units to guarantee uninterrupted critical interlock operation.
ATEX Approved for Hazardous & Harsh Operating ConditionsCertified to ATEX intrinsic safety standards for direct installation in Zone 1 hazardous chemical areas. Wide operating temperature range, dust resistance and robust EMC performance make it suitable for high-temperature, humid and high-interference cabinet environments in petrochemical and power plants.
Original Standard CompatibilityPlug-and-play with all Tricon controllers; natively supported by TriStation1131 programming software with no extra driver setup required, compatible with Tricon remote I/O rack expansion architecture.
Technical Specifications
Channel Specification: 16 isolated sourcing outputs at 24VDC with 1500VDC opto-isolation per channel. Channels are divided into four independent power groups of four channels each; a fault within one group will not affect other groups.
Electrical Performance: Rated field supply 24VDC; maximum load 250mA per channel, short-term peak current ≤500mA. Output response time <1ms, turn-off delay <0.5ms, electrical switching endurance over 100 million cycles.

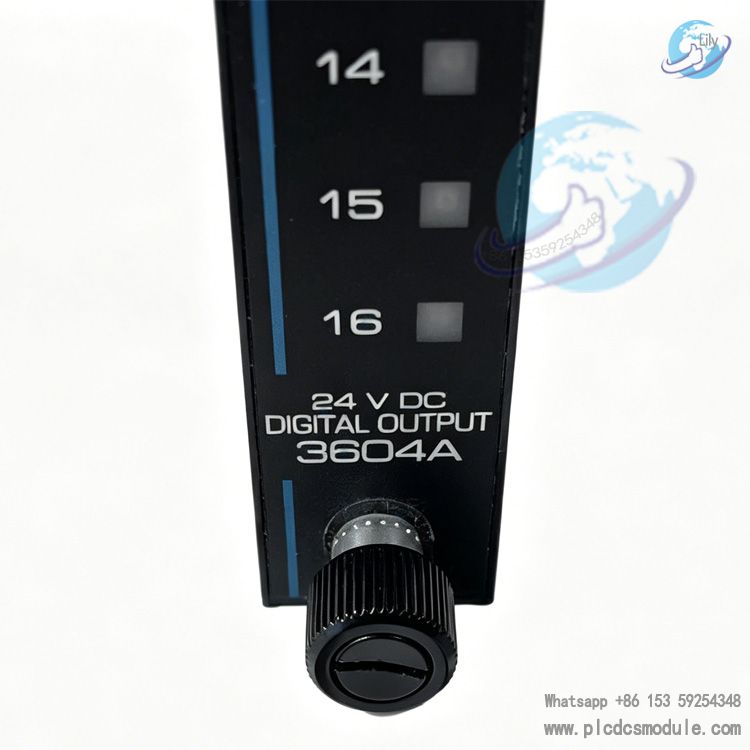

Diagnostic Hardware: Each channel features a dual-color LED indicator (green for normal operation, red for fault). Front panel includes PASS, FAULT, LOAD and PWR status LEDs for on-site local fault identification.
Power Supply & Power Consumption: Powered via redundant backplane power from Tricon rack; total module power consumption ≤4.5W to minimize cabinet heat generation and power loading.
Configuration Features: Individual channel diagnostics, fault latch output and fail-safe zero-state mode can be enabled or disabled within TriStation1131 to match varied process interlock logics.
Application Fields
1. Oil & Gas Industry
- Refinery and long-distance pipeline ESD emergency shutdown: drives feed cut-off solenoid valves and emergency vent valves.
- Wellhead BMS burner management: controls ignition solenoids and flame-out protection switches.
- Tank farm Fire & Gas system: triggers audible/visual alarms and emergency tank isolation valves upon fire or combustible gas detection.
2. Thermal & Cogeneration Power Plants
- Turbine TSI protection and boiler FSSS furnace safety system: controls fuel shutoff valves, fan trip interlocks and flame safeguard solenoids.
- Denitrification FGD flue gas interlock: discrete output for emergency bypass dampers.
3. Fine Chemical & Coal-Chemical Industry
- Reactor SIS safety instrumented system: interlock feed cut-off and pressure relief valves upon over-temperature/over-pressure; shutdown interlock for hazardous area gas detection.
4. Pharmaceutical & Chemical Fiber Industry
Hazardous area safety interlock, dust collector emergency stop and fire sprinkler linkage control.
FAQ
- Q: Is original terminal board 9671-810 mandatory for 3604A? Can domestic terminal substitutes be used?A: Original 9671-810 terminal base is compulsory for SIL safety loops. Generic domestic terminals cannot support circuit readback functions and fail to satisfy SIL3 acceptance criteria. Approved alternative terminals are permissible for non-safety auxiliary loops only upon assessment by design institute.
- Q: What is the recommended spare quantity for project procurement?A: 1 spare piece for systems with ≤10 pieces of 3604A; 2 spares for 10~30 pieces. For quantities above 30, prepare spares at 10% of total quantity per standard Tricon industry spare procurement practice.
- Q: Can 3604A be mixed into legacy Tricon V8 systems?A: 3604A is natively designed for V9/V10 firmware. Legacy V8 controllers require firmware upgrade; back up application program in advance before upgrading.
- Q: What fault does dark PASS LED and steady red FAULT LED indicate?A: ① Abnormal backplane power supply;
- ② Internal module circuit damage;
- ③ Faulty rack backplane slot. First replace with a spare 3604A in the same slot. If fault transfers to new module, send faulty card back to factory for repair.
- Q: No channel output with no fault indication on front panel, how to troubleshoot?A: ① Check missing phase of field 24VDC power supply;
- ② Open load coil fails to trigger open-circuit diagnosis caused by abnormal load resistance;
- ③ Tags are forced OFF in application program, remove force command and retest.
- Q: Recurring load open-circuit alarms during operation while field equipment is intact?A: ① Excessive 24VDC voltage drop due to undersized cable gauge;
- ② Loose terminal connections;
- ③ Load resistance below module detection threshold, install matched current-limiting resistors.
- Q: Is controller shutdown required for hot-swapping 3604A?A: The module is factory-designed for hot-swap; regular replacement needs no controller shutdown or redundant switchover. Avoid swapping during critical interlock execution window to prevent transient disturbance to field loads.
