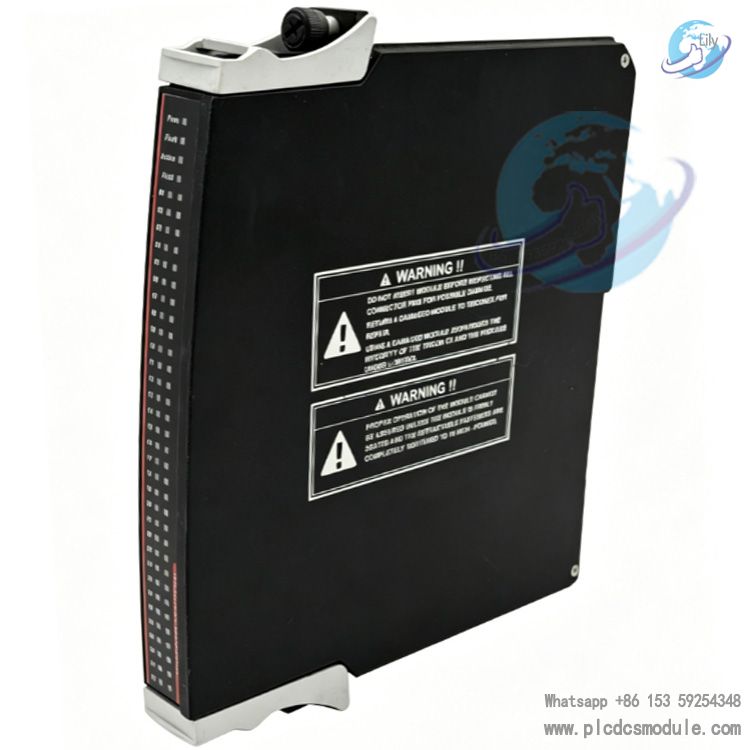

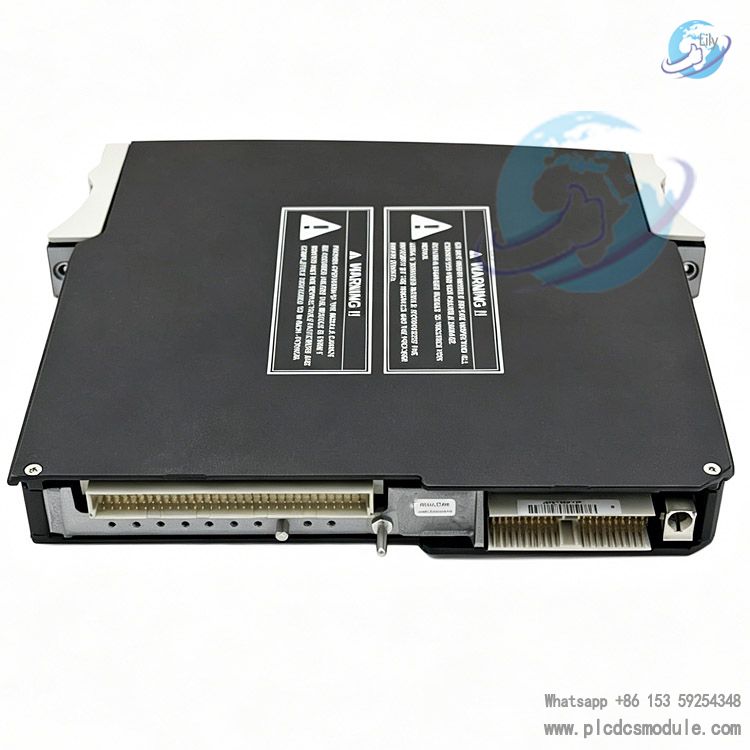

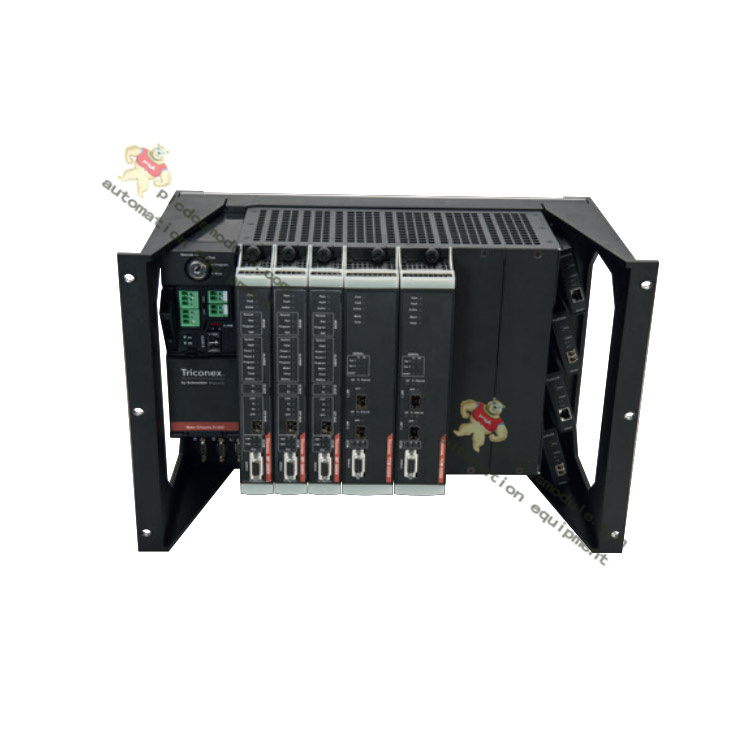

The TRICONEX DI3506X is a loop-monitored digital input module exclusively developed for the Tricon-series SIS safety instrumented systems under Schneider Electric’s Triconex brand. Manufactured in the United States, it is engineered for high-safety-critical applications including ESD emergency shutdown, BMS burner management and turbine unit protection in key process industries. Compliant with the IEC 61508 standard and certified for SIL3 safety integrity level, this module primarily acquires digital contact signals from field dry contacts, NAMUR sensors, proximity switches, emergency stop pushbuttons and other discrete field devices. Its built-in loop diagnostic circuitry continuously detects open-circuit and short-circuit faults on field wiring, and transmits validated digital signals to Tricon main processor cards for safety logic computation. As a core I/O component of safety interlock systems for high-risk sectors such as petrochemical and power generation, it is compatible with all rack base configurations of both Tricon Classic and Tricon CX product lines.
Download
Key Basic Specifications
- Rated input voltage: 24 VDC; 16-channel isolated digital input per module
- Opto-isolation withstand voltage per channel: 1500 VDC
- Operating input voltage range: 18 ~ 32 VDC
- Input current: 6 ~ 9 mA
- Signal response time: <3 ms
- Power consumption: 3.2 W
- Ambient operating temperature: -40 ℃ ~ +70 ℃
- Ingress protection rating: IP20

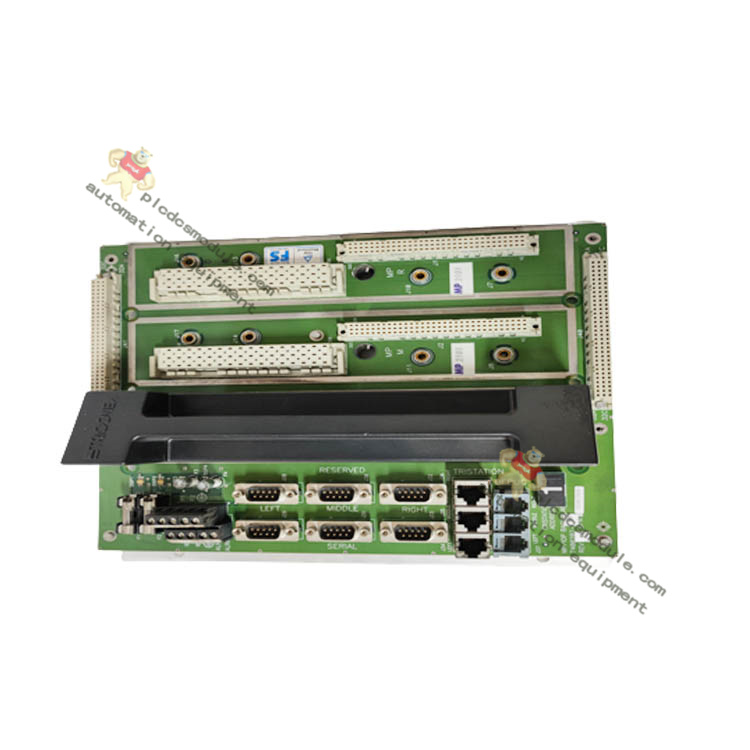

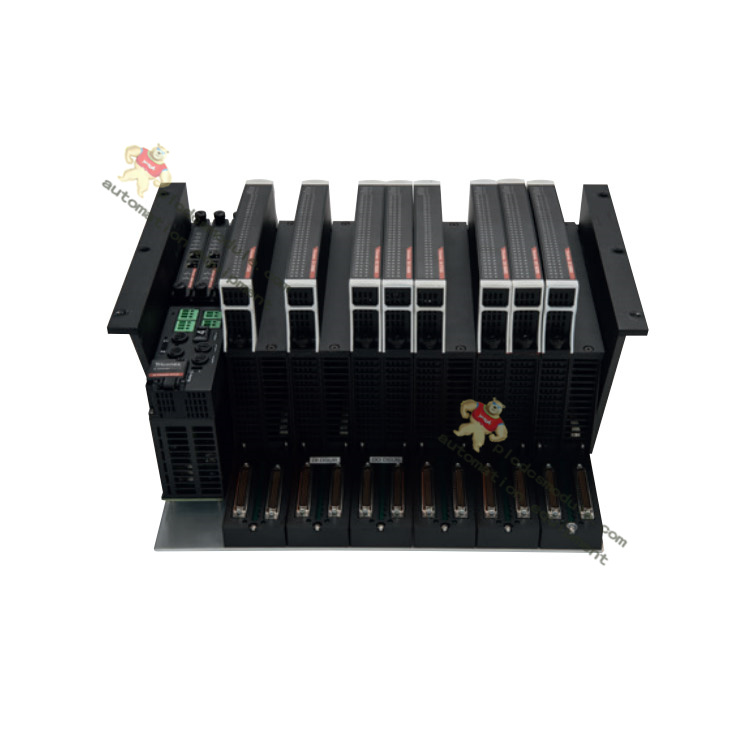

- Mounting form: rack slot installation with mechanical keying for anti-misplugging; hot-swap capable under live power
Core Advantages
TMR Triple Modular Redundant Hardware ArchitectureThree fully independent redundant circuits for internal signal acquisition, logic processing and bus communication are integrated inside the module. Signal collection will not be interrupted upon single-component failure, delivering overall system availability of no less than 99.999% to meet the fault tolerance requirements of SIL3 safety loops, which stands apart from conventional single-channel DI modules.
Full-channel Online Loop MonitoringThe standout differentiated feature of DI3506X. Equipped with matching end-of-loop EOL resistors, it enables real-time self-diagnosis of open circuits, short circuits and welded contact faults. Ordinary DI modules only judge on-off status and fail to detect hidden wiring faults, so this function drastically cuts the risks of unintended shutdown or fail-to-trip of safety systems.
Non-damaging Hot-swap MaintenanceFaulty modules can be pulled out and replaced online without shutting down the running system. Redundant links switch over seamlessly with zero signal interruption; on-site replacement requires no unit outage to mitigate production loss for petrochemical and power plants.
Robust Performance for Harsh Industrial ConditionsDesigned with wide operating temperature range and strong anti-EMI capability, it has passed EMC certification for petrochemical hazardous classified areas. Well suited for cabinet environments with dust, high humidity and drastic temperature fluctuation, with a designed service life over 10 years per single module.
Native Compatibility with Tricon PlatformIts native bus protocol matches Tricon main processor cards with no intermediate adapter modules required. It supports SOE Sequence of Events logging with time-stamp accuracy ≤1 ms to facilitate fault tracing and troubleshooting.
Specific Features
(1) Electrical and Channel Characteristics
It comes with 16 mutually electrically isolated input channels. Each single channel can be configured for four input modes: dry contact, PNP, NPN and NAMUR sensor, enabling mixed configuration of diverse signal sources on one module.Programmable loop diagnosis: After installing EOL resistors, the module automatically identifies four working statuses including contact closed, contact open, wiring short-circuit and wiring open-circuit, and uploads corresponding fault codes to the host system.Transient overvoltage protection: Withstands transient surge voltage up to 36 VDC to prevent channel circuit burnout caused by abnormal voltage intrusion from field power supply.
(2) Diagnostic and Software Features

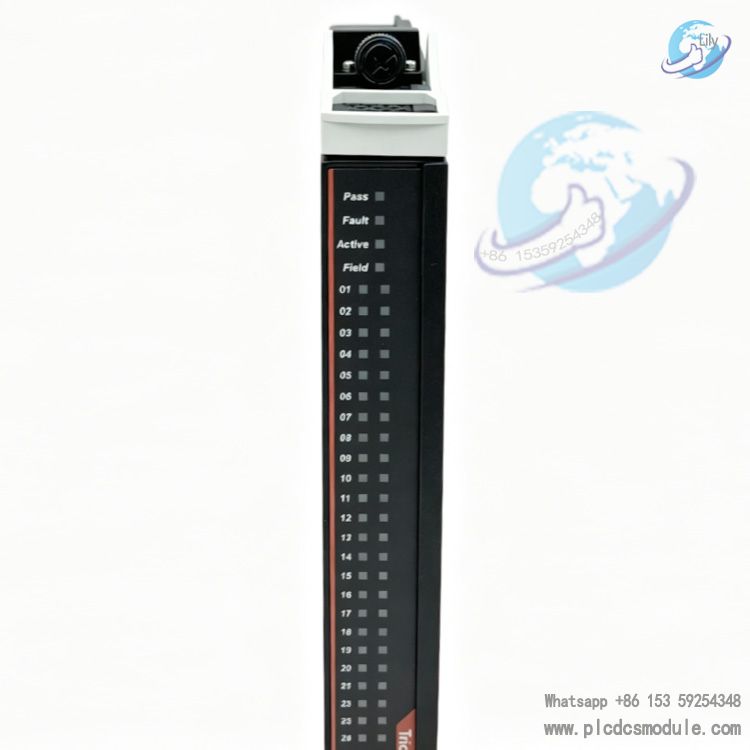

Full-time self-diagnosis: Power-on self-test plus periodic runtime inspection; fault location accurate down to individual channel. Alerts pop up and fault logs are saved in the Tricon EDM diagnostic software once abnormalities occur.Keyed mechanical slot: Physical coding prevents mis-insertion into AI/AO slots so as to avoid hardware damage from wrong installation.Zoned indicator lamps: Front panel is equipped with power LED, module health LED and 16-channel status LEDs for quick on-site visual troubleshooting of faulty channels.
(3) Environmental & Mounting Specifications

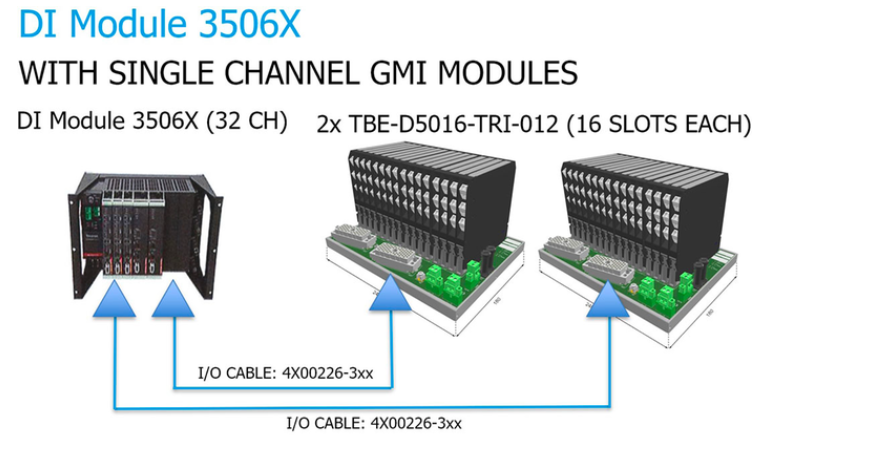

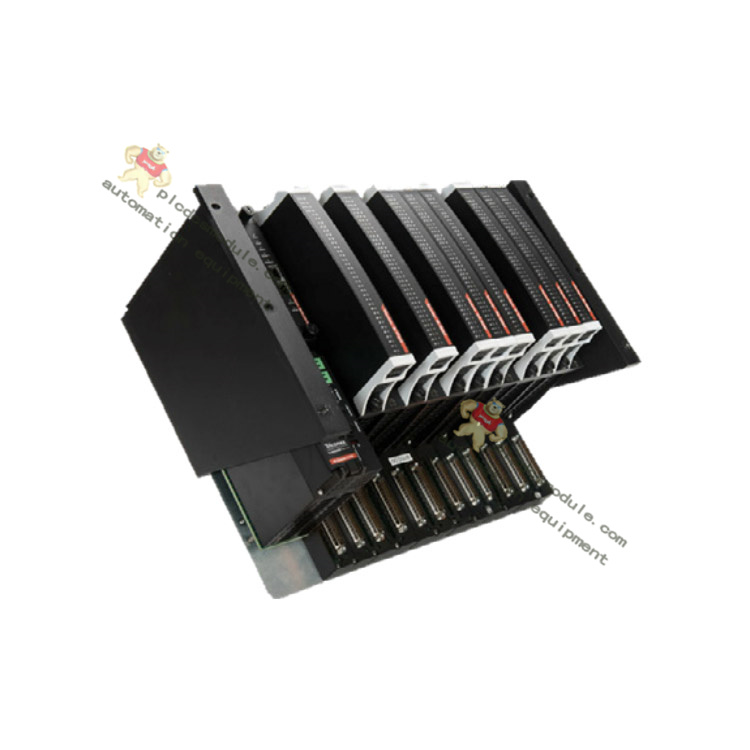

Standard slot-mounted design for Tricon racks, compatible with original terminal bases and prefabricated cabling to support compact cabinet layout.Temperature & humidity adaptability: Storage temperature: -40℃ ~ +85℃; operating temperature: -40℃ ~ +70℃; relative humidity: 5%~95% RH non-condensing, applicable to environments free of corrosive gas.
Application Scenarios
1. Oil & Gas Industry
- Refinery SIS/ESD emergency shutdown system: Collect feedback signals from safety valves, emergency stop pushbuttons of compressors, high/low-pressure pressure switches and liquid level interlock switches to trigger unit interlock shutdown once parameters exceed preset limits.
- Long-distance pipeline compressor stations: Acquire status signals of valve limit switches and pump start/stop feedback, as well as leak detection switches to realize emergency pipeline cut-off interlock protection.
2. Thermal Power, Cogeneration & Nuclear Power Industry
- ETS turbine trip protection for power units: Collect contact signals of turbine main stop valve position, lube oil pressure switches and overspeed protection switches.
- Boiler BMS burner management safety system: Monitor discrete signals from flame detector dry contacts, damper limit switches and ignition sequence control switches to avoid furnace deflagration hazards.
3. Fine Chemical & Pharmaceutical Chemical Industry
- Reactor SIS safety interlock: Gather signals from overtemperature, overpressure and high-level interlock switches plus emergency stop buttons installed in hazardous classified areas to eliminate explosion risks of reaction kettles.
- Status monitoring for safety doors and protective guard limit switches of equipment in explosion-proof workshops.
4. Coal Chemical & Fertilizer Industry
Interlock system for synthetic ammonia and methanol plants, used for signal collection of safety switches on recycle compressors, gasifiers and feedback contacts of vent valves.
Module Parameter Comparison
| Parameter | DI3506X | 3503E | 3501E |
|---|---|---|---|
| Channels per Module | 16 isolated DI channels | 32 isolated DI channels | 32 non-isolated DI channels |
| EOL Loop Diagnosis | Full-channel open/short-circuit monitoring available (core advantage) | No loop diagnosis, only on-off signal acquisition | No diagnostic function |
| Safety Rating | SIL3, dedicated for SIS | SIL3, for general interlock | SIL2, for conventional DCS signal acquisition |
| Input Voltage | 24VDC (Range:18~32VDC) | 24VAC/DC universal | 24VDC |
| Typical Application | ESD/SIS safety interlock & critical hazardous classified loops | Conventional process switch pickup, non-critical interlock | Ordinary equipment status monitoring, non-safety points |
| Hot-swap Capability | Supported | Supported | Not supported |
Selection Recommendation
Choose DI3506X for critical SIS safety loops; select 3503E for bulk conventional process points; adopt 3501E for non-safety auxiliary signal collection.
FAQ
Q: How to distinguish suffix variants when placing orders? Are there alternative part numbers available?
A: The standard part DI3506X has no split suffix versions. No fully hardware-compatible replacement within the same product line. To cut project cost, 3503E can be used on separated non-critical loops (EOL diagnosis removed), yet it is not a valid replacement for formal SIS projects.
Q: Are terminal boards and EOL resistors supplied as factory standard with modules? Can domestically manufactured spare parts be mixed for installation?
A: Modules ordered separately exclude terminal bases and EOL resistors, which need independent ordering. Original factory terminals are recommended for SIS safety applications; certified domestic terminals are acceptable for general projects. EOL resistors must be 1kΩ; incorrect resistance value will render loop diagnostics invalid.
Q: Module OK indicator turns red with fault alert, while field signal acquisition remains normal. Root cause?
A: In most cases, loose field wiring or detached end-of-loop EOL resistor triggers abnormal loop detection during module self-test. Check the faulty channel number via EDM diagnostic software, retighten wiring or reinstall missing resistor to clear alarm; TMR redundant signal acquisition stays unaffected.
Q: Unwired channels constantly report open-circuit faults after EOL diagnosis is activated.
A: Disable diagnosis function for unused channels in configuration software. Unterminated vacant channels are defaulted as open wiring; switch off per-channel diagnosis to eliminate recurring alarms.
Q: Rules for module hot-swap; is full system shutdown required?
A: Thanks to TMR design, hot swap is permissible online without plant outage. Confirm redundant communication links are healthy before card removal. Frequent plug/unplug under complete rack power-off is forbidden to prevent backplane bus damage.
Q: Repeated burnout of DI3506X at identical rack slot, troubleshooting guidance?
A: ① Short-circuit or voltage surge from reversed field cabling; ② Poor cabinet grounding leading to static damage across channels; ③ Abnormal power supply feeding terminal base. Inspect field loops and grounding resistance one by one (standard ground resistance ≤4Ω).
Q: Partial channels fail to return signals after configuration download via software.
A: Verify channel parameter setup inside TriStation software (wrong selection between dry contact and NAMUR mode) and mismatched terminal wiring positions; redownload configuration then reset the module.
Q: Intermittent signal dropout under low ambient temperature (-35℃).
A: Inspect cabinet temperature control heater. Minimum rated operating temperature for DI3506X is -40℃; signal fluctuation arises from over-limit ambient temperature or loose terminals caused by cold shrinkage.
Q: Calculation standard for spare part stocking quantity?
A: Reserve DI3506X spares at 10% of total installed quantity for general SIS systems. For critical-unit ESD loops, configure spare rack slots plus backup modules on a one-to-one basis to shorten emergency maintenance downtime.
