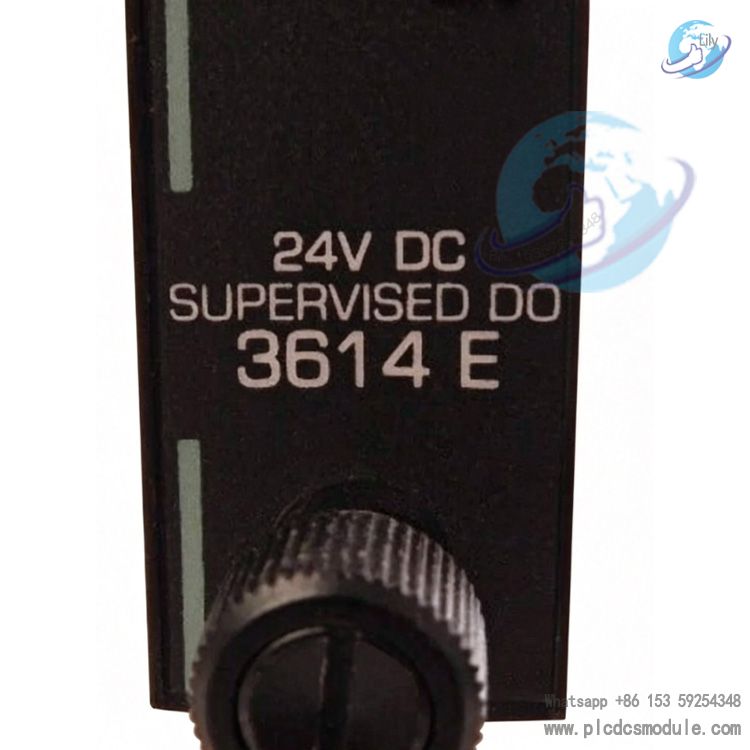

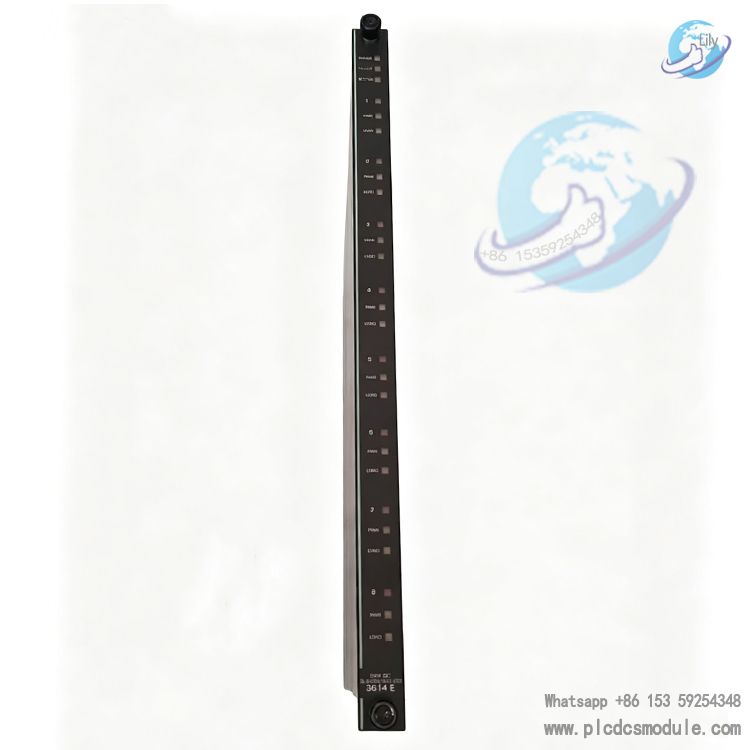

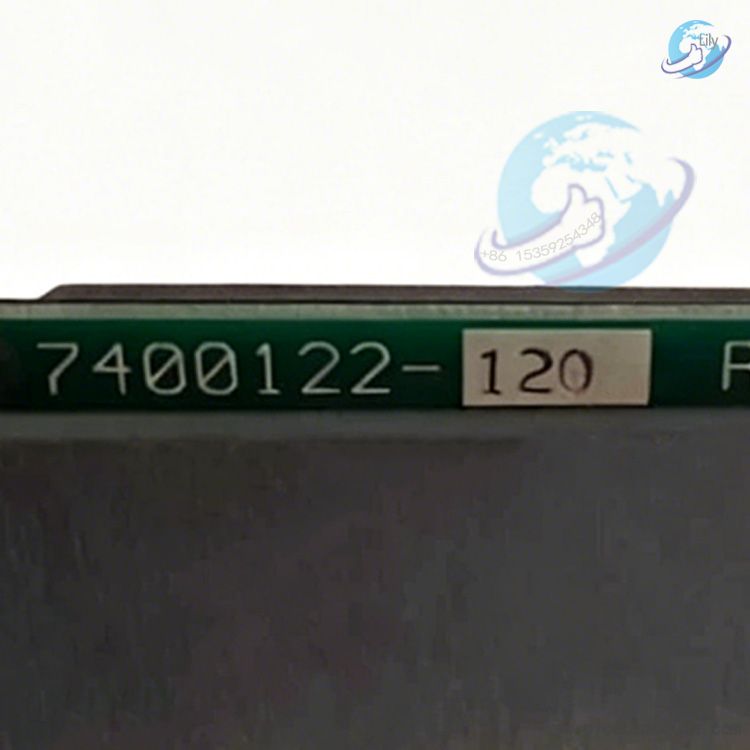

TRICONEX 3614E (Order No. 7400122-120) is an 8-channel 24VDC TMR supervised digital output module exclusively for Tricon V9–V11 systems. As a core I/O component of Schneider Electric’s Triconex safety control system, it adopts Triple Modular Redundancy (TMR) architecture and is equipped with comprehensive output loop supervision and diagnostic functions. Developed for critical control applications requiring SIL 1 to SIL 3 safety integrity levels, including de-energize-to-trip and energize-to-trip configurations, the module supports on-line maintenance and fault isolation without disrupting ongoing production processes. It serves as the standard safety output component for high-risk continuous-process industries such as oil & gas, petrochemical, nuclear power and chemical processing.
DOCUMENT DOWNLOAD
Product Advantages
TMR Triple Modular Redundancy plus 2-out-of-3 Voting: Three fully isolated channels perform independent parallel computation with four-layer hardware voting at the output terminal. Single or multiple-point faults will not interfere with output performance, eliminating single-point failure risks.
Full Loop Supervision & Diagnostics (SDO): Built-in dual-loop voltage and current feedback enables real-time detection of field faults including open load circuits, power loss, blown fuses and load short-circuits. Hidden latent faults can be identified even during prolonged steady output operation.
Online Hot-Swap & Automatic Hot-Standby Switchover: Faulty modules can be replaced under powered condition; hot-standby configuration delivers bumpless switching to allow maintenance without plant shutdown and maximize system availability.
SIL 3 Safety Certification: Complies with IEC 61508 and IEC 61511 functional safety standards, suitable for safety loops such as emergency shutdown (ESD), burner management and fire & gas systems.
Robust Environmental Compatibility: Certified for Class G3 corrosive atmosphere, featuring superior vibration & shock resistance and wide operating temperature range for harsh environments including offshore platforms and refinery units.
Product Specifications
Model: 3614E, Part No. 7400122-120Type: TMR Supervised Digital Output (SDO)Output Count: 8 channels with common ground connectionRated Voltage: 24 VDC (operating range: 20–36 VDC)Output Rating: 0.5 A per channel; 4 A surge for 10 msMinimum Load Current: 50 mADiagnostic Function: Full supervision over output switches, field wiring, load and supply; short-circuit detection requires external secondary power supplyFault Handling: Faulty channels are automatically isolated while healthy channels take over to maintain outputs at safe stateIsolation Rating: 1500 VDC field-to-logic channel isolationLED Indicators: Global PASS/FAULT/ACTIVE indicators plus independent per-channel PWR/LOAD status LEDsLogic Power Consumption: ＜15 WCertifications: TÜV SIL 3, CE, FM, CSA, BV Marine, NRC Class 1E nuclear qualified
Application Scenarios
Emergency Shutdown System (ESD): Interlock control for shutdown valves, emergency furnace trip and compressor protection.
Fire & Gas System (F&G): Interlock driving of fire pumps, deluge sprinkler systems, alarm beacons and exhaust ventilation equipment.
Burner Management System (BMS): Safety control for fuel shutoff valves, igniters and flame supervision circuits.
Nuclear Class 1E Safety-Related Systems (qualified part number only)
Critical actuator loops for offshore platforms, long-distance oil & gas transmission pipelines and petrochemical refining facilities.
High-integrity circuits requiring continuous static output and pre-fault early detection capability.
Product Comparison
Model | Spec | Features | Application |
|---|---|---|---|
3614E | 8CH/24VDC Super TMR DO | Full diag, short detect, SIL3 | Safety critical control |
3615E | 8CH/24VDC Super TMR DO | Low power, 10mA min load | IS & tiny load |
3624 | 16CH/24VDC Super TMR DO | High density, fuse-less | Compact safety scenario |
3604E | 16CH/24VDC Non-super TMR DO | No diag, low cost | Ordinary control |
3664 | 32CH/24VDC Dual Red DO | Economical redundancy | Non-safety high availability |
FAQ
Q1: What faults can the supervised function of 3614E detect?It monitors open/missing load, field power loss, blown fuse, output short-circuit and internal switch failure in real time, triggering LOAD/PWR indicators and FAULT alarm.
Q2: What is OVD diagnosis? Can it be disabled?OVD stands for Output Voting Diagnosis, which identifies latent faults via microsecond transient switching. It may be disabled for pulse-sensitive loads, yet periodic manual testing is required to maintain diagnostic coverage.
Q3: Is secondary power supply mandatory for 3614E?Secondary supply is only needed for Short-Circuit Detection (SCD). Standard wiring suffices for open-circuit, power and load monitoring without secondary power.
Q4: Does 3614E support hot swap? Will replacement disrupt operation?Online hot-swap available. Faulty module replacement and bumpless auto switchover via hot standby cause no process interruption or spurious trip.
Q5: What safety level does 3614E comply with?Certified to IEC 61508 SIL 3, applicable to top-tier safety loops including ESD, BMS and F&G.
Q6: How to select between 3614E and 3615E?
- 3614E: Standard 24V supervised DO, 50mA min load for general industrial applications
- 3615E: Low-power variant, 10mA min load for IS and low-current circuits
Q7: FAULT LED on but output remains normal?Single channel failure occurs while TMR redundancy keeps normal output. Replace module promptly to prevent loss of redundancy.
