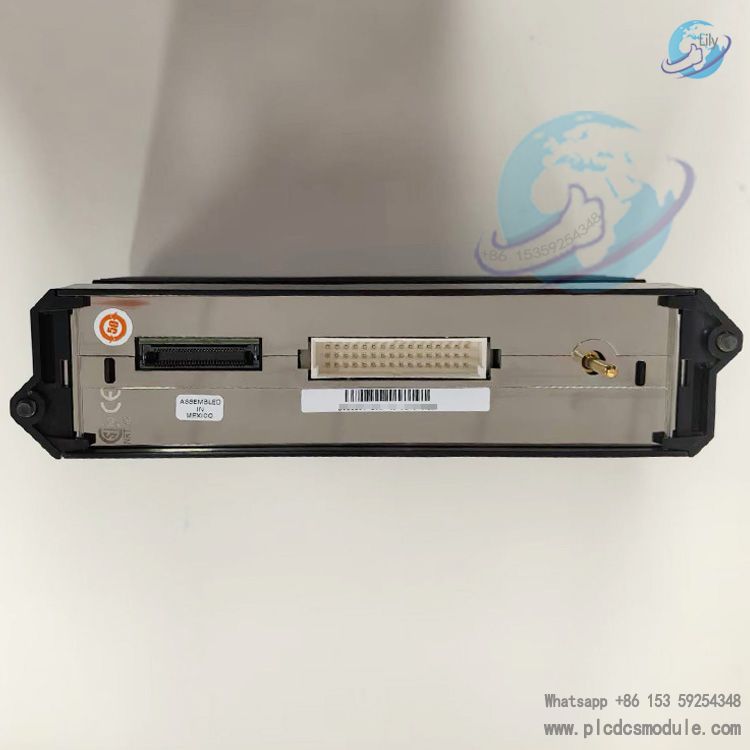

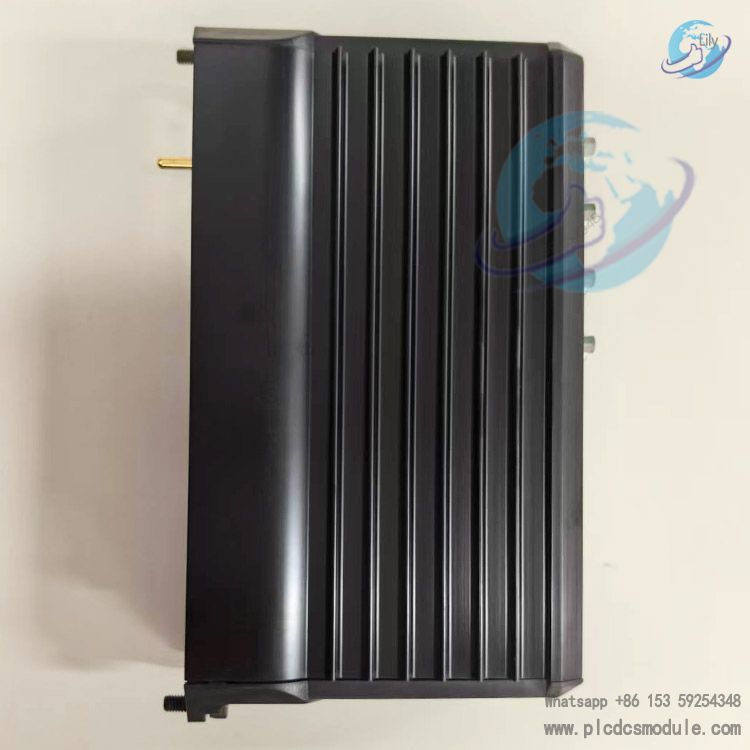

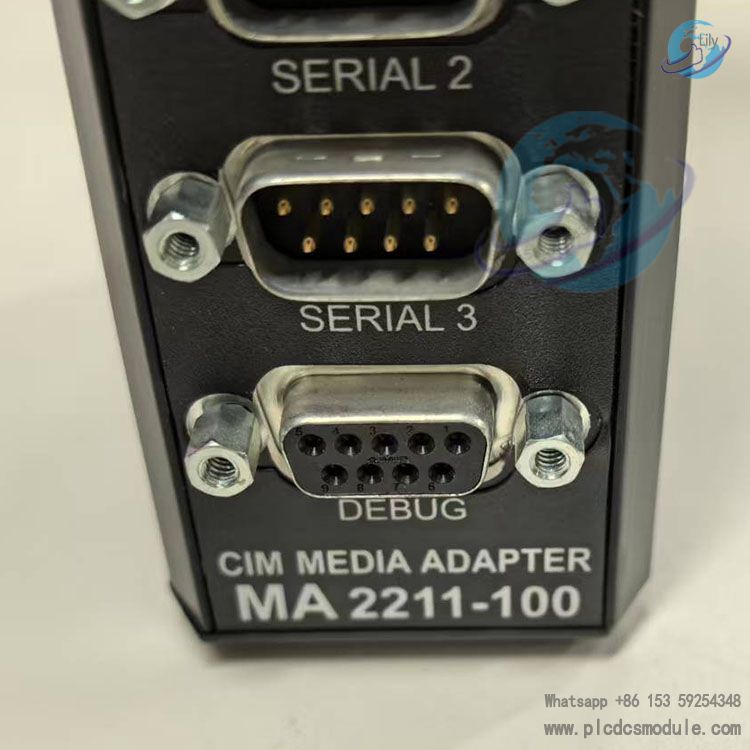

The TRICONEX MA2211‑100 CIM Media Adapter is a CIM (Controller Interface Module) media adapter developed by Schneider Electric under its TRICONEX brand, specifically designed for highly reliable industrial control systems including Tricon, Tricon CX, Trident, and Tri‑GP.
Its core function is to enable seamless and highly reliable communication conversion between control systems and industrial networks, particularly PROFINET, delivering stable I/O data transmission and system expansion capabilities for safety-critical applications.
Integrating a Simplex PROFINET I/O controller, it supports multi-port Ethernet configuration and is compatible with the full range of TRICONEX safety control systems.
Compliant with SIL 3 safety integrity level and stringent industrial environmental requirements, it serves as a core communication adapter for process control, safety interlocking, and automation in critical infrastructure.
Technical Specifications
Model: MA2211‑100Manufacturer: TRICONEX (a brand under Schneider Electric)Compatible Systems: Tricon, Tricon CX, Trident, Tri‑GP safety control systemsCommunication Interface: Built-in Simplex PROFINET I/O controller; supports 1 to 3 Ethernet ports (LAN2) for flexible networkingCommunication Protocols: PROFINET, compatible with TRICONEX proprietary communication protocolsPower Supply: 24 VDC (wide voltage compatibility: 10–30 VDC)Power Consumption: Typical 5 WOperating Temperature: -40°C to +70°CStorage Temperature: -55°C to +90°CEnvironmental Protection: Humidity ≤95% (non-condensing); resistant to electromagnetic interference, vibration and shock, suitable for harsh industrial sitesSafety Certifications: IEC 61508 SIL 3, IEC 62443, NERC CIPPhysical Specification: Modular card design, suitable for standard TRICONEX rack mounting
Core Functions & Advantages
- Highly Reliable Communication AdaptationBuilt-in dedicated PROFINET controller enables direct connection between TRICONEX safety systems and industrial Ethernet without additional gateways, reducing potential failure points.Multiple Ethernet ports support redundancy and flexible networking, ensuring high availability of communication links for critical process control applications.
- Seamless System IntegrationPlug-and-play design ensures full compatibility with TRICONEX controllers and I/O modules, allowing integration into existing systems without complex configuration.Supports interoperability with PLC, DCS, and SCADA systems to achieve plant-wide data sharing and centralized monitoring.
- Safety & Stability AssuranceCompliant with SIL 3 safety integrity level to meet the highest reliability requirements of safety-critical industries such as petrochemical, power generation, and nuclear power.Electrical isolation design effectively suppresses on-site electromagnetic interference, guaranteeing accurate data transmission and system stability.Industrial-grade hardware with wide temperature, wide voltage, and anti-vibration capabilities adapts to extreme industrial environments and reduces maintenance costs.
- Flexible Expansion & Ease of UseModular architecture supports on-demand expansion of system I/O and communication capabilities to suit projects of various scales.Supports hot-swapping (in selected configurations), allowing online maintenance without system interruption and improving operational efficiency.
Applications
- Petrochemical IndustryCommunication adaptation for safety instrumented systems (SIS) and process control networks in refineries and chemical plants.
- Power & EnergyCommunication expansion for unit control and grid security monitoring systems in power plants and substations.
- Metallurgy & ManufacturingSecure communication links for blast furnace control, production line automation, and robot collaborative control.
- Nuclear Power & Critical InfrastructureSafety control communication for nuclear power plant auxiliary systems and critical urban water supply/gas supply facilities.
- Mining & Rail TransitHighly reliable data transmission adaptation for underground mine safety monitoring and train operation control.
FAQ
Q1: What is the difference between the MA2211‑100 and a standard PROFINET gateway?A: Standard gateways focus on general protocol conversion, while the MA2211‑100 is a native adaptation module for TRICONEX safety systems with a built-in dedicated controller. It meets SIL 3 safety integrity level, features lower communication latency and higher reliability, integrates seamlessly with TRICONEX systems, and poses no compatibility risks.
Q2: How many Ethernet ports does this module support, and what networking modes are available?A: It supports 1, 2, or 3 Ethernet ports (LAN2), configurable for single-port independent communication, dual-port redundancy, or multi-port segmented networking to adapt to different network architectures and reliability requirements.
Q3: Does it support hot-swapping, and is system shutdown required for maintenance?A: Hot-swapping is supported (with a compatible TRICONEX hot-swappable rack). Online replacement does not disrupt system operation, greatly reducing downtime and improving production continuity.
Q4: Which TRICONEX controller models is it compatible with?A: It is fully compatible with the full range of Tricon, Tricon CX, Trident, and Tri‑GP controllers, serving as a standard communication expansion module for TRICONEX safety systems.
Q5: Is installation and configuration complicated, and is special software required?A: It features a plug-and-play design, with hardware installation compatible with standard TRICONEX racks. Configuration is performed via TRICONEX dedicated configuration software (such as TriStation 1131), which has a user-friendly interface and supports online diagnostics and parameter adjustment.
Q6: Does the module support redundant configuration?A: It supports communication port redundancy and module-level redundancy (dual-module configuration required), ensuring that single-point failures do not affect system communication and meeting the requirements of the highest safety integrity level applications.
