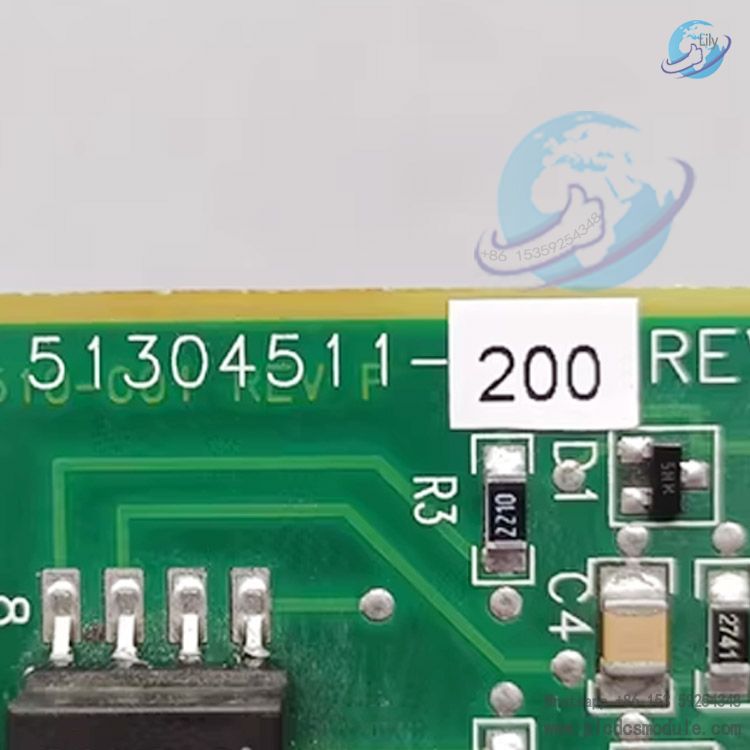

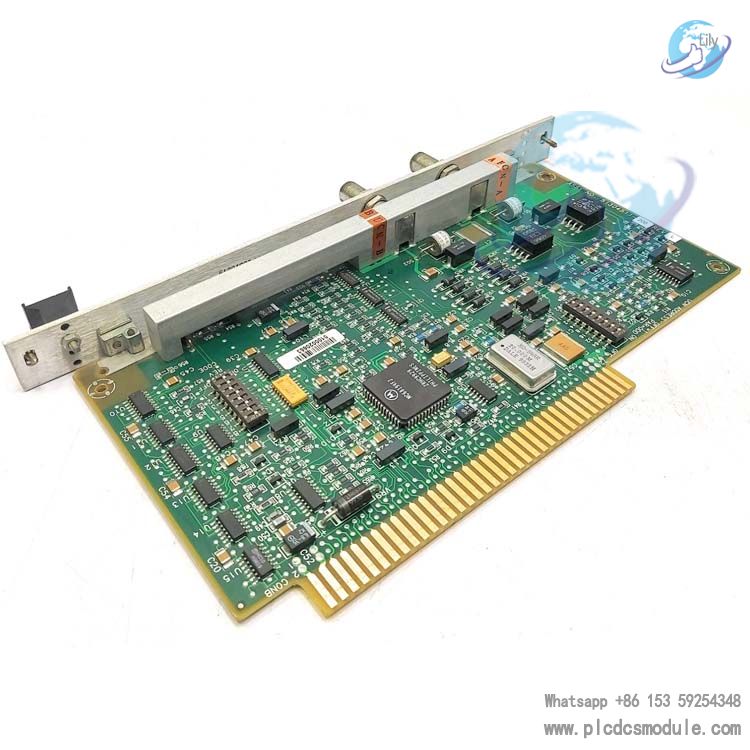

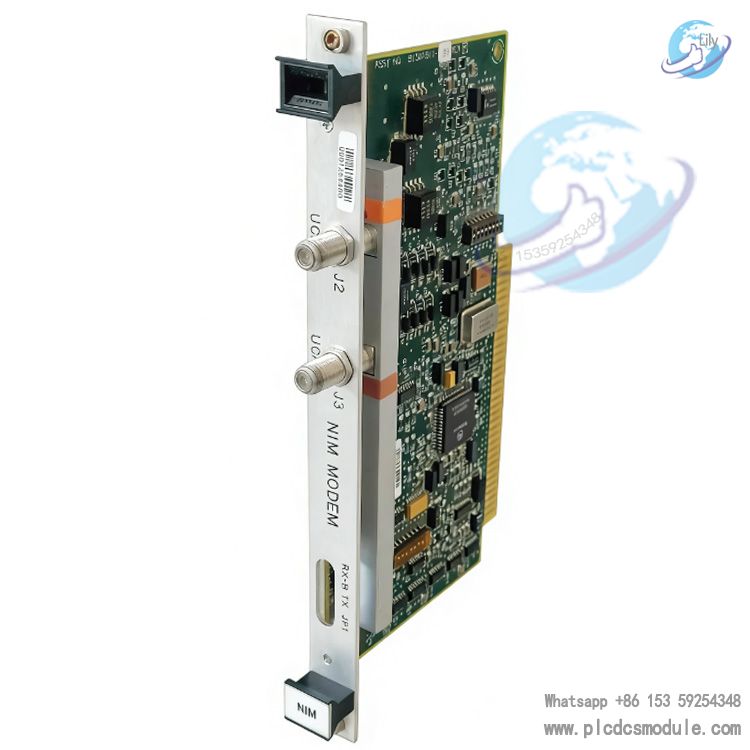

Honeywell 51304511-200 is a NIM (Network Interface Module) modem board specially designed by Honeywell for the TDC 3000 distributed control system (DCS). It serves as a core communication component for implementing network interconnection within the TDC 3000 system. This CE-certified Paddle Card is primarily designed to establish a high-speed communication bridge between the Universal Control Network (UCN) and the Local Control Network (LCN), while also supporting interconnection requirements for xPM, LM nodes and point databases.
As a new-generation integrated module, it fully replaces the combined functions of PNM, PNM I/O, PNI I/O and miniature coaxial cables used in early NIM setups, greatly simplifying the system architecture and improving communication stability and data transmission efficiency. Featuring industrial-grade hardware construction suitable for harsh industrial environments and supporting redundant configuration, it is a critical component ensuring reliable network communication in DCS systems for process industries such as petroleum, chemical and power generation. Its replacement model is AC02W36-L0481.
Technical Specifications
- Model: 51304511-200
- Replacement Model: AC02W36-L0481
- Product Type: NIM modem circuit board (dedicated for TDC 3000)
- Compatible System: Honeywell TDC 3000 DCS system
- Network Interface: Dual redundant network cable interfaces for UCN (Universal Control Network) A and B
- Communication Function: Interconnection between UCN and LCN networks, node and point data transmission
- Data Rate: Adaptive support from 50 kbps to 2 Mbps, up to 1.2 Mbps
- Physical Dimensions: 2 cm × 13.3 cm × 23.7 cm
- Weight: 0.3 kg
- Power Supply: Powered by TDC 3000 system backplane
- Power Consumption: < 5 W
- Environmental Rating: Operating temperature -40℃ ~ 70℃, humidity 5% ~ 95% (non-condensing)
- Certifications: CE, RoHS
- Redundancy Support: Supports NIM module redundant configuration
Features & Benefits
- Integrated Communication ReplacementSingle board integrates functions of multiple traditional components, eliminates obsolete coaxial cables, reduces failure points, lowers system maintenance complexity, and improves communication link reliability.
- Dual Network Redundant CommunicationEquipped with two independent UCN A and B network interfaces, supporting redundant communication. Automatic seamless switchover in case of single network failure ensures uninterrupted data transmission for the DCS system.
- High-Speed & Stable Data TransferCompliant with UCN high-speed communication standards, supporting adaptive data rates from 50 kbps to 2 Mbps. Meets low-latency, high-reliability transmission requirements for real-time process data, point information, and SOE (Sequence of Events).
- System Node CompatibilityFully compatible with various control nodes such as xPM and LM within the Honeywell TDC 3000 system, enabling bidirectional synchronization and interaction of point databases between LCN and UCN.
- Industrial-Grade Robust DesignAdopts wide-temperature, anti-interference hardware design, suitable for industrial sites with electromagnetic interference and temperature/humidity fluctuations, meeting 24/7 continuous operation demands in process industries.
- Easy Diagnosis & MaintenanceOnboard status LEDs for intuitive monitoring of communication status, power status, and fault alarms. Supports online diagnostics and firmware upgrades, simplifying operation and maintenance.
Applications
As a core communication component for the Honeywell TDC 3000 DCS system, this module is widely used in automated control applications across continuous process industries, including:
Oil & GasDCS network communication for oilfield production, oil and gas transmission, and refineries, ensuring real-time transmission and control of process parameters such as temperature, pressure, and flow.
PetrochemicalsProduction facilities for ethylene, fertilizers, and fine chemicals, enabling control network interconnection for reactors, distillation columns, and other equipment to meet safe and continuous production requirements.
Power & EnergyProcess control for auxiliary systems in thermal power plants and nuclear power plants, coordinating network data exchange among boilers, steam turbines, generators, and related equipment.
Pharmaceuticals & Food & BeverageDCS systems in GMP-compliant production workshops, ensuring stable transmission and precise control of production process parameters.
Water Treatment & MetallurgyProcess control for wastewater treatment plants and steel smelters, enabling network communication and coordination between remote I/O, control stations, and operator stations.
Paper & Building MaterialsDistributed control for paper production lines and cement manufacturing facilities, ensuring real-time data exchange and coordinated control across all process sections.
Frequently Asked Questions (FAQ)
Q1: What is the difference between 51304511-200 and 51304511-100?
A: Both are NIM modem boards. The core difference lies in certification and compatibility: 51304511-200 is CE-certified, complying with European and international market standards; 51304511-100 is non‑CE‑certified, for use only in non‑CE‑required applications. Functions are fully identical, and they can replace each other (subject to system certification requirements).
Q2: Does this board support hot swapping?
A: Hot swapping is supported only in TDC 3000 redundant systems. In non‑redundant systems, installation or replacement must be performed under power‑off conditions, otherwise short circuits, communication interruptions or board damage may occur.
Q3: How to quickly diagnose communication failures?
A: Three-step troubleshooting:① Check board indicators: Power LED off → power fault; Communication LED not flashing → network or board fault; Alarm LED on → board fault.② Inspect UCN A/B cables: Reconnect and test cable continuity.③ System diagnostics: Run the NIM module diagnostic tool from the TDC 3000 host computer to distinguish hardware faults (replace board) from configuration faults (reconfigure).
Q4: Can this board be used in Experion PKS systems?
A: Not supported. 51304511-200 is dedicated to TDC 3000. Experion PKS uses an entirely new hardware architecture and requires corresponding communication modules (such as those for C300 controllers).
Q5: What are the requirements for board firmware upgrade?
A: Upgrade must use Honeywell official firmware packages via dedicated TDC 3000 configuration tools. Back up system configuration before upgrading. In redundant systems, ensure primary and backup modules are upgraded simultaneously to avoid redundancy failure due to version mismatch.
Q6: What is the application scenario of replacement model 51401583-100?
A: 51401583-100 is a firmware‑compatible board for NIM modules. It is required only when the system needs SOE (Sequence of Events) time synchronization, and works together with 51304511-200.
Q7: What is the service life and warranty period?
A: Service life under normal industrial conditions is 10–15 years. New original boards come with a standard 1‑year warranty; non‑human‑induced defects are covered for free replacement within the warranty period.
Q8: Does it support third-party DCS systems?
A: Not supported. The board uses Honeywell proprietary communication protocols and is compatible only with its own TDC 3000 system. It cannot directly connect to third-party DCS networks from Siemens, ABB, etc.
