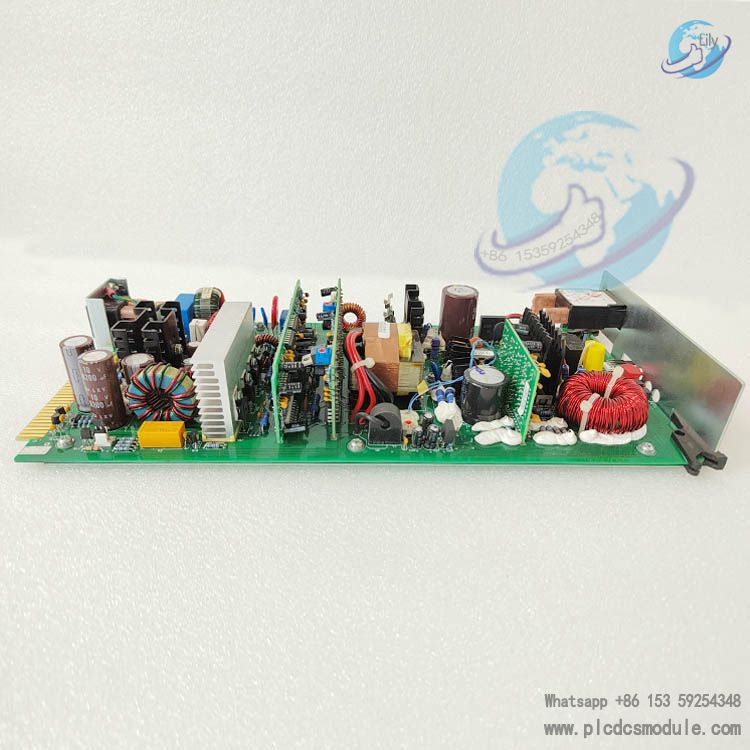

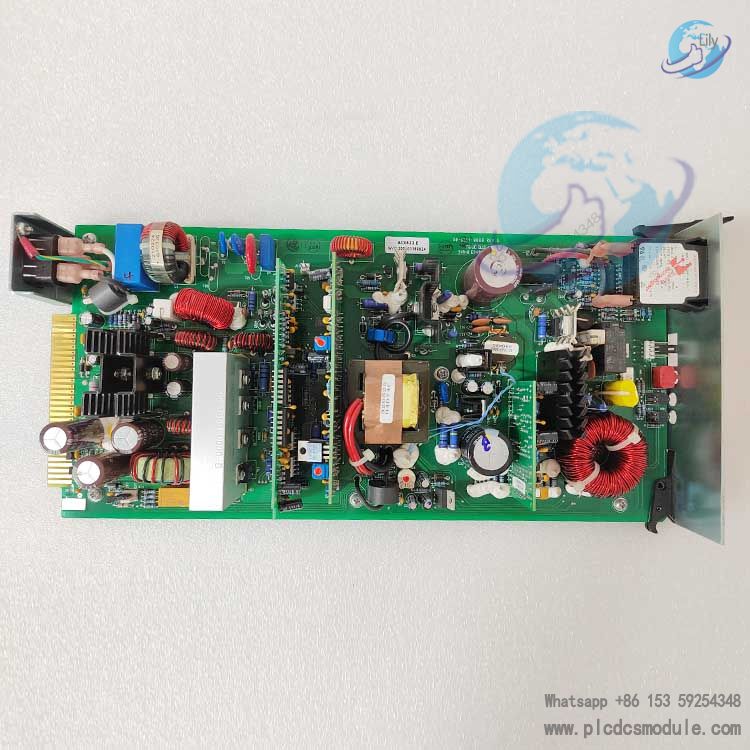

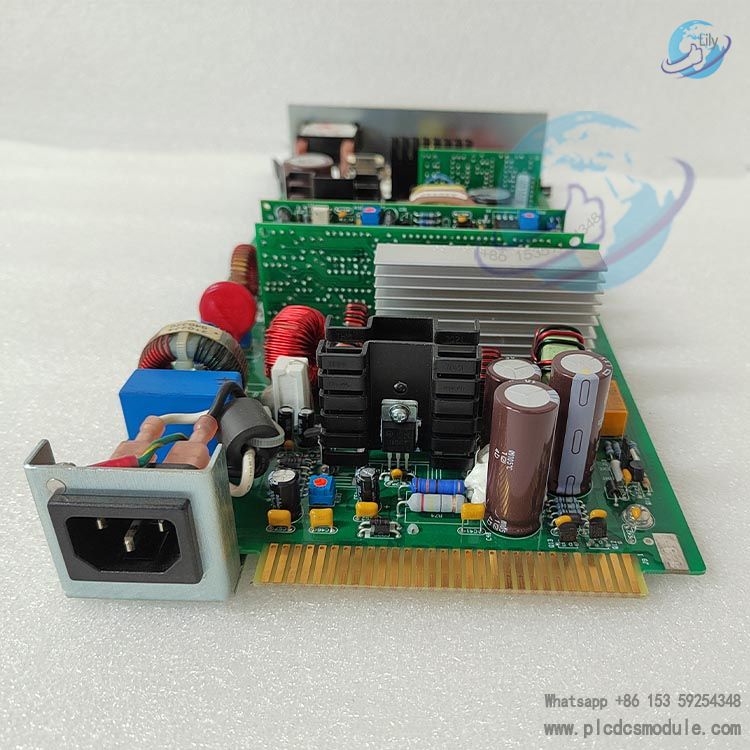

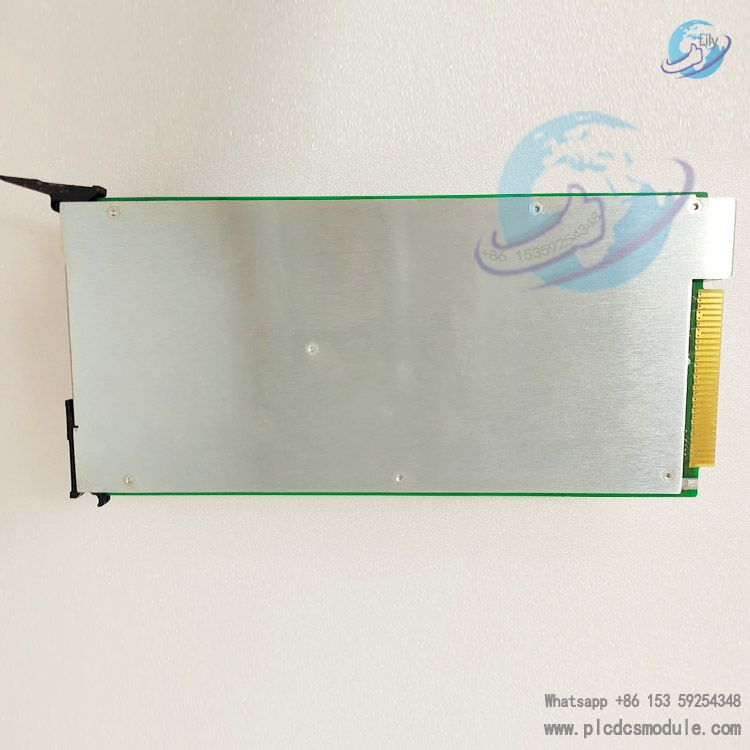

Honeywell ACX633 51196655-100 is a dual-node redundant industrial power supply module designed for the TDC 3000 Distributed Control System (DCS), serving as a core component of the ACX633 series. Featuring high reliability, wide voltage compatibility, multiple groups of DC outputs, and full-function protection as its core design, the ACX633 51196655-100 has obtained international safety certifications such as CE, UL, and CSA. It is specially engineered to provide uninterrupted, redundant power supply for critical control nodes in demanding industrial scenarios including petrochemicals, electric power energy, and metallurgy, ensuring the continuous operation of control systems at the hardware level and eliminating the risk of system shutdown caused by single-point power supply failures. Adopting standardized rack-mounted installation, the module is compatible with the full range of Honeywell TDC 3000 cabinets and supports dual-node cooperative operation, enabling seamless switching between primary and backup power supplies.
Technical Specifications
- Electrical SpecificationsModel: ACX633, Part Number 51196655-100Input: 120/240 VAC auto-adaptive wide voltage, 50/60 Hz, 4 A RMSOutput (multiple isolated DC outputs):+5 VDC @ 20 A+12 VDC @ 3 A-12 VDC @ 1 A+27 VDC @ 0.6 ATotal Power: 165 WEfficiency: ≥85%Input-to-output isolation: ≥2 kV AC
- Physical & Environmental ParametersDimensions: Approx. 37×17.8×5.3 cmWeight: Approx. 2.09 kgOperating temperature: -10°C ~ +60°CStorage temperature: -40°C ~ +70°CHumidity: 5% ~ 95% non-condensingMounting: Standard rack-mount rail mountingCertifications: CE, UL, CSA, FCC, RoHS
Product Functions & Advantages
Dual‑Node Redundant ArchitectureSupports parallel operation of two modules with real-time master‑backup switching and uninterrupted power supply, ensuring zero downtime for critical nodes and meeting high‑availability requirements of industrial systems.
Wide‑Range Global Voltage CompatibilityFeatures 120/240 VAC auto‑adaptive input that complies with global power grid standards, allowing deployment in different regions without hardware modifications.
Multiple Precise DC OutputsIntegrates four independent regulated outputs: +5V, ±12V, and +27V, directly matching the power supply needs of DCS controllers, I/O modules, communication cards, and various other components.
Comprehensive Protection MechanismBuilt‑in over‑voltage, over‑current, short‑circuit, over‑temperature, and reverse‑polarity protection. Automatically limits current or shuts down under abnormal conditions to safeguard the module and backend load equipment.
Industrial‑Grade High ReliabilityConstructed with military‑grade electronic components and potting technology, providing resistance to vibration and electromagnetic interference (EMI), and adapting to harsh conditions such as dust, oil, and high temperatures.

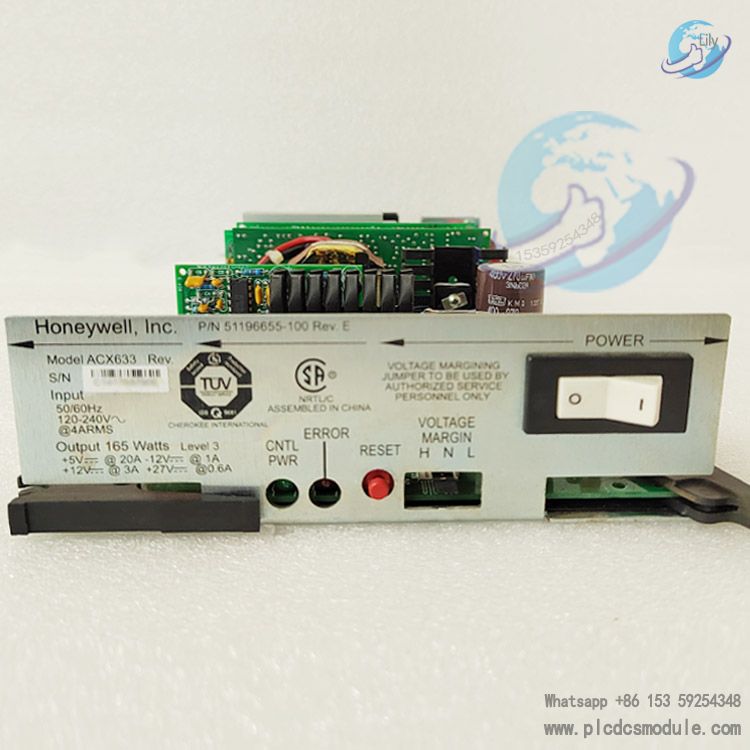

Easy Maintenance & DiagnosticsEquipped with front-panel power status indicators (run/fault/redundancy) and supports hot‑swap design, enabling maintenance without system power interruption.
Frequently Asked Questions (FAQ)
Q1: Does the ACX633 51196655-100 support hot swapping?A: Yes. The module features a hot‑swap design. It can be directly plugged in and out online without shutting down the system or disconnecting power, and will not affect normal operation of the DCS.
Q2: How to configure dual‑node redundancy?A: Install two modules in the corresponding dual‑node slots of the same rack; they will automatically cooperate via the backplane redundant bus. If the primary module fails, the backup module will take over power supply seamlessly within 10 ms with no output interruption.
Q3: How to troubleshoot abnormal output voltage?A: ① Check if the input voltage is within 120/240 VAC ±10%; ② Ensure the load does not exceed limits (each channel current within rated value); ③ Check the panel fault LED. In case of overcurrent / short‑circuit protection, power off, resolve the load fault, then restart; ④ In redundant mode, the faulty single module can be directly replaced with a spare one.
Q4: Is this module compatible with other Honeywell DCS systems?A: It is mainly designed for TDC 3000. Compatibility with newer systems such as Experion PKS is limited. It is recommended to check the hardware manual or consult Honeywell technical support before selection.
Q5: What is the module service life and maintenance cycle?A: Designed service life ≥10 years under normal industrial environment. It is recommended to inspect wiring, heat dissipation and indicator status, and clean dust every 12 months. Electrolytic capacitors are consumable parts and can be preventively replaced after 5–8 years.
Q6: Does it support DC input?A: No. Only 120/240 VAC input is supported; no DC input version is available.
Q7: Which standards apply to the CE certification?A: Complies with EU standards EN 61000‑6‑2/4 (EMC), EN 60950‑1 (electrical safety) and LVD Low Voltage Directive. It can be used in the EU and regions recognizing CE standards.
Q8: Does a single module failure affect system operation?A: No impact under redundant configuration. In single‑node mode, failure will cause power interruption, so dual‑node redundancy is mandatory for critical applications.
