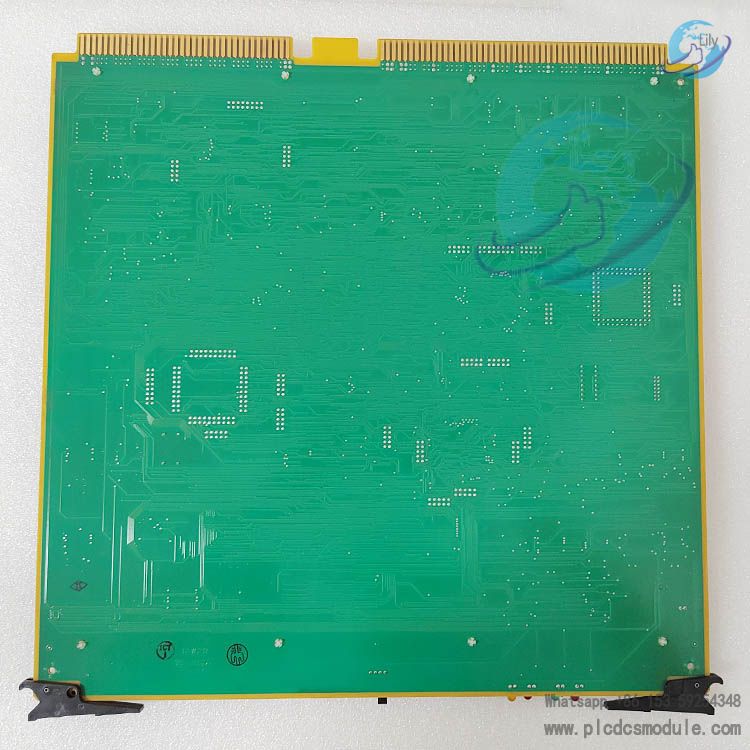

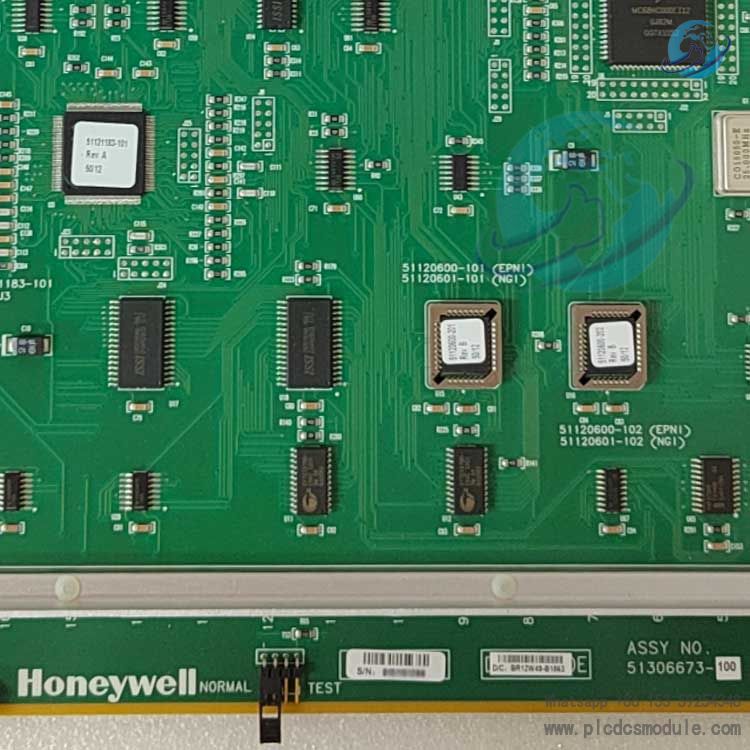

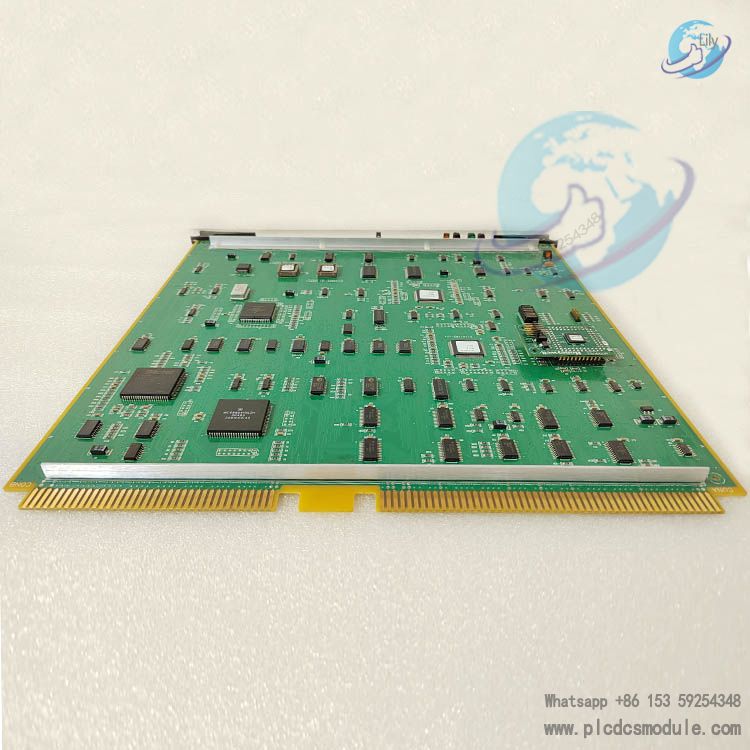

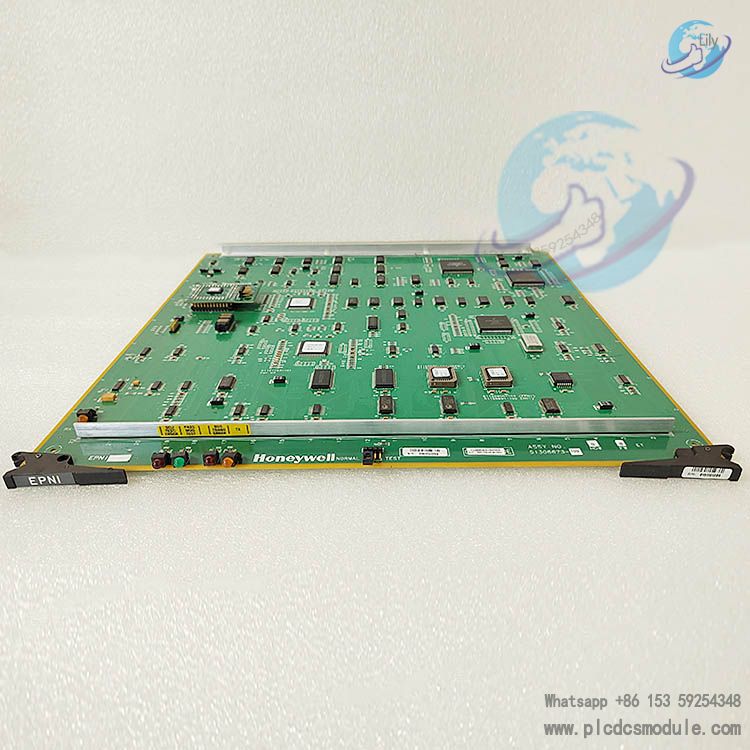

HONEYWELL 51306673-100 is an Enhanced Processor Node Interface module in the Experion PKS DCS system, also known as the ENB card. It is classified as an analog input module in some documents. Serving as a high-speed communication gateway between control processors and on-site I/O devices, sensors and actuators, it enables reliable two-way transmission of data and control signals, and acts as a core component of the network architecture and process control links of the DCS system.
Core Functions
High-speed Data Communication: Acting as a bridge between the system backplane and Ethernet, it supports Honeywell proprietary protocols and TCP/IP to realize real-time, high-bandwidth data interaction between the control network and field devices.
Analog Signal Acquisition (Extended Function): Some hardware versions integrate 16-channel analog input (12 single-ended channels + 4 differential channels), compatible with standard signals such as 4-20mA and 0-10V, and applicable to sensors for temperature, pressure, flow and other parameters.
Redundancy & Reliability: It supports 1:1 redundant configuration with automatic switchover in case of faults to ensure uninterrupted critical links. It also features line break detection as well as overcurrent and overvoltage protection.
Self-diagnosis & Maintenance: It conducts power-on self-test and real-time online diagnosis to locate faults of ports, links or chips. Operating status is reported via LED indicators and system logs, reducing maintenance difficulty.
System Integration Compatibility: Compatible with Experion PKS R400 and later versions, it can be seamlessly connected to Honeywell FTE (Fault Tolerant Ethernet) network, and supports distributed control architecture with multi-node and multi-region deployment.
Technical Specifications
Model: 51306673-100Type: Enhanced Processor Node Interface Module (EPNI/ENB Card)Compatible Systems: Honeywell Experion PKS DCS, FTE Fault Tolerant EthernetCommunication Interfaces: 10/100Mbps Ethernet (RJ45), system backplane interfaceAnalog Input (Optional): 16 channels; 12 single-ended + 4 differential. Input range: 4-20mA, 0-5V, 0-10VRedundancy: 1:1 redundancy supported, automatic switchover time ＜500msDiagnostics: Power-on self-test, link fault detection, overcurrent/overvoltage protection, LED status indicationPower Supply: Powered by DCS chassis backplane (24VDC)Operating Temperature: 0℃～60℃Storage Temperature: -40℃～85℃Relative Humidity: 5%～95% (non-condensing)Weight: Approx. 0.64kg (1.41 lbs)Mounting Type: Standard DCS chassis slot mounting
Application Scenarios
Petrochemical Industry: Signal acquisition of temperature, pressure and liquid level in reaction kettles, and data interaction of control loops.
Power & Energy Industry: Parameter monitoring of boilers and steam turbines, and DCS control network communication for generator units.
Water Treatment Industry: Analog signal collection from water quality sensors, and control signal transmission for dosing pumps and valves.
Manufacturing Industry: Monitoring of production line temperature, pressure and flow, as well as equipment status data upload and command issuance.
FAQ
Q1: Is model 51306673-100 a pure interface card or an analog input module?A: Its core is a communication interface card (EPNI). Some hardware versions integrate 16-channel analog input functions, which is why it is categorized as an analog input module in certain documents. Its primary function remains network communication between processors and field devices.
Q2: The module fails to communicate and the LED indicators are abnormal. How to troubleshoot?A:
- Verify normal 24VDC power supply from the chassis backplane;
- Ensure Ethernet and backplane cables are securely connected and undamaged;
- Check LED status including PWR, LINK and FAULT, and refer to the official manual to locate faults such as link disconnection, IP conflict or hardware failure;
- Replace the slot or perform redundancy switchover to rule out slot or single-module failures.
Q3: How to solve unstable or inaccurate analog input signals?A:
- Check sensor wiring; use shielded twisted pair for differential signals and keep single-ended signals away from high-voltage interference sources;
- Confirm the input range matches the sensor output (e.g. 4-20mA corresponding to 0-100℃);
- Enable the signal filtering function in system software;
- Ensure reliable module grounding to eliminate interference caused by ground potential difference.
Q4: Will data be lost after switchover if the primary module fails under redundant configuration?A: No critical data will be lost. During redundancy switchover, real-time data and operating status are synchronized, with a switchover time of less than 500ms and uninterrupted control loops. Only transient pulse signals within an extremely short period may have slight delays, which will not affect conventional process control.
Q5: Is this module compatible with older versions of the Experion PKS system?A: System version matching is required. It is only compatible with Experion PKS R400 and above. For legacy systems such as R300, upgrade the system software or replace it with a compatible module model; otherwise, the device cannot be recognized or communicate normally.
