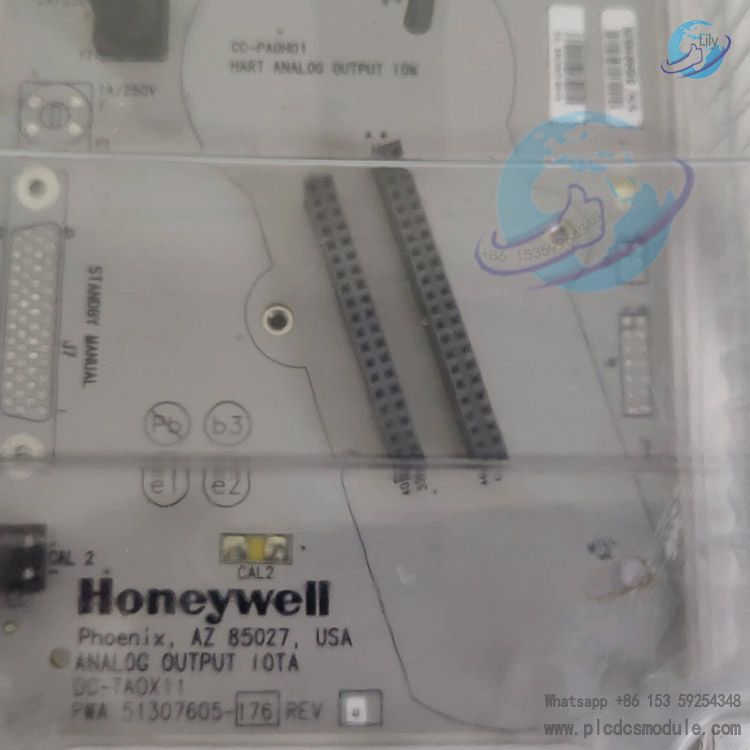

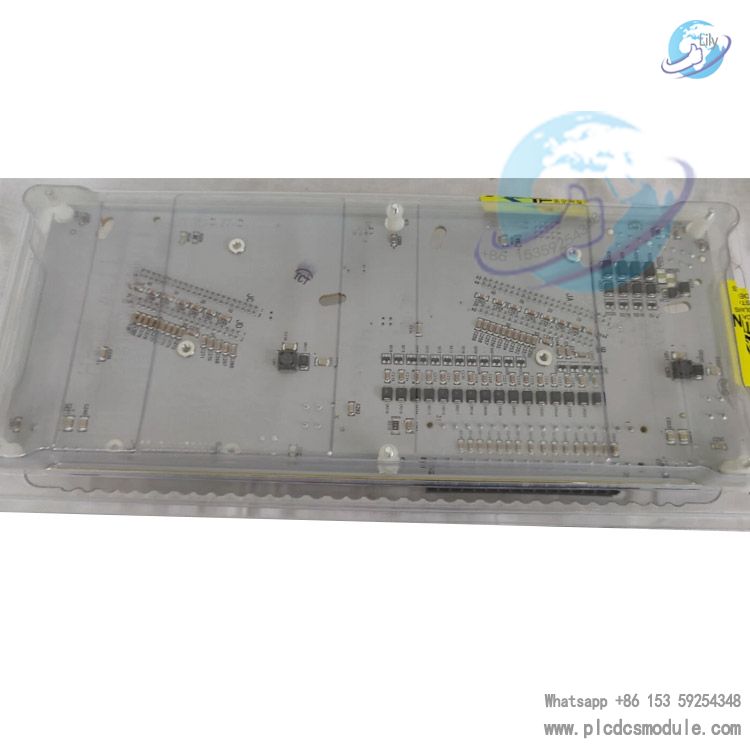

Honeywell DC‑TAOX11 51307605‑176 ANALOG OUTPUT IOTA MODULE
Basic Information
Honeywell DC‑TAOX11 (part number 51307605‑176) is a non‑redundant analog‑output IOTA terminal assembly under Experion PKS C‑series I/O architecture. As the signal transfer medium between field actuators and IOM output modules, DC‑TAOX11 undertakes analog‑output loop wiring and signal filtering‑conditioning tasks. It supports only one single IOM module, designed for ordinary non‑critical process loops. All field cables from valve positioners and regulating actuators are terminated to DC‑TAOX11 board terminals. IOM modules can be hot‑swapped directly without modifying field‑side wiring, reducing maintenance workload for conventional loops. Widely applied to massive ordinary regulating points in petrochemical and power plant industries.
Technical Specifications
| Backplane Power Supply | 24VDC, powered by system backplane |
| Channel Specification | 16 analog‑output terminal loops |
| Supported Signal | 4‑20mA current output, compatible with industrial valve positioners and regulating actuators |
| Hardware Slot | Single IOM slot, dual‑module hardware redundancy not supported |
| Wiring Type | Crimp‑type industrial terminals, compatible with multi‑strand shielded cables |
| Operating Temperature | ‑40℃ ~ +85℃ |
| Board Protection | Coated PCB, cabinet‑mount installation only |
| Compatible Controller | Experion PKS C300 Controller |
| Matching IOM Modules | CC‑PAOX01, CC‑PAOH01 |
| Installation Standard | Standard C‑series IOTA rack‑mount form factor |
| Loop Diagnosis | Channel short‑circuit & open‑circuit fault reporting to DCS operator station |
| Board Identification | Hardware information auto‑uploaded to control system |
Core Advantages
- Lightweight architecture. Single‑slot hardware design of DC‑TAOX11 targets non‑critical AO loops and reduces project hardware investment cost.
- Centralized cable management. All field device cables terminate to DC‑TAOX11 terminals. IOM modules plug directly onto the board, maintenance on IOM will not disturb field wiring.
- Complete channel‑level fault diagnosis. Short‑circuit and open‑circuit faults are uploaded directly to DCS interface for O&M staff to locate fault points rapidly.
- Wide‑temperature anti‑interference PCB design, adapts to large temperature fluctuation and heavy EMI cabinet environments in chemical and energy industries for stable signal output.
- Fully compatible with complete C‑series hardware ecosystem. DC‑TAOX11 shares unified rack dimension and terminal interface with other IOTA boards of the same series, simplifying project spare‑parts management.
Product Features
- Separated plug‑in structure for IOM module and IOTA board, equipped with single IOM slot for ordinary analog‑output loop construction.
- Each channel is embedded with hardware short‑circuit self‑locking protection. Single‑channel fault will not spread and affect outputs of other channels.
- Crimp terminals accept multi‑strand shielded industrial cables directly, lowering failure risks brought by extra intermediate terminal blocks.
- DC‑TAOX11 integrates signal conditioning and filtering circuits to realize signal isolation and filtering between field‑side devices and IOM modules.
- Supports non‑stop hot‑swap of IOM modules, spare‑part replacement can be performed while plant is running.
- Board hardware identity is auto‑recognized by DCS, reducing manual configuration workload.
Application Fields
- Ordinary regulating loops in petrochemical plants, signal output for common control valves.
- DCS systems for thermal‑power and gas‑fired power plants, drive secondary governor valves and actuators.
- Non‑safety‑level regulating valve control for oil‑gas processing plants.
- Common analog‑actuator output points for process industries including paper‑making and metallurgy.
- Control loops with low non‑interruption requirement for continuous processes in pharmaceutical factories.
- Drive ordinary flow & pressure regulating actuators for water‑treatment projects.
Product Comparison
| DC‑TAOX11 51307605‑176 | DC‑TAIX11 | CC‑TAID01 |
| Non‑redundant Analog Output IOTA | Redundant Analog Output IOTA | Non‑redundant Analog Input IOTA |
| Single IOM slot, no hardware redundancy | Dual‑IOM redundant slots | Single IOM slot, no hardware redundancy |
| DCS output to field devices | DCS output to field devices | Field transmitter input to DCS |
| 16 channels | 16 channels | 16 channels |
| Ordinary non‑critical AO loops | High‑reliability critical AO loops | Ordinary AI acquisition loops |
DC‑TAOX11 51307605‑176 is applied for analog‑output points without redundancy requirements to save hardware budget. DC‑TAIX11 targets non‑interruptible critical process loops for bumpless dual‑module switch‑over. CC‑TAID01 is used for ordinary transmitter signal acquisition. The three share identical rack‑mount dimensions but differ in internal signal‑conditioning circuits and cannot be directly interchanged.
Related Matching Products
- Controller: C300 Controller
- IOM Output Modules: CC‑PAOX01 standard analog‑output module, CC‑PAOH01 HART‑capable analog‑output module
- System Hardware: C‑series I/O rack backplane
- System Software: Experion PKS configuration software
- Matching Spare Parts: C‑series IOM dust cover, terminal crimping tools
FAQ
Q: Can DC‑TAOX11 51307605‑176 work independently?
A: No. DC‑TAOX11 51307605‑176 is merely an IOTA terminal assembly without native signal‑output capability. It must work with corresponding IOM modules.
Q: Do DC‑TAOX11 and DC‑TAIX11 have identical terminal pin‑outs?
A: Physical terminal layout is consistent, yet slot hardware structures differ. Direct replacement cannot enable redundancy, DCS configuration modification is required simultaneously.
Q: Does DC‑TAOX11 51307605‑176 support native HART communication?
A: The board itself has no HART function. HART superimposed communication can only be realized when assembled with CC‑PAOH01 IOM module.
Q: Can two IOM modules be inserted on DC‑TAOX11 51307605‑176?
A: Only one single IOM slot is hardware‑designed. Simultaneous installation of two IOM modules is not supported, hardware redundancy configuration is unavailable.
Q: Will hardware damage of DC‑TAOX11 cause total channel failure?
A: Hardware failure of DC‑TAOX11 itself will interrupt all 16 analog‑output loops on this board. IOM failure also leads to loop outage with no standby link for takeover.
Q: Are IOM output modules included when ordering DC‑TAOX11 51307605‑176?
A: Standard supply only contains DC‑TAOX11 IOTA terminal board. IOM modules are separate items and shall be ordered separately.
Q: For legacy‑project upgrade to redundant loops, is hardware replacement sufficient?
A: Hardware replacement alone is insufficient. You need to switch to DC‑TAIX11, procure an extra second IOM module and complete DCS redundancy configuration modification.
Q: Can DC‑TAOX11 51307605‑176 run with other‑series controllers?
A: DC‑TAOX11 is exclusively compatible with Experion PKS C300 controller and incompatible with other controller hardware families.
Related Honeywell Part Numbers
CC‑PAOH01, CC‑PAOX01, DC‑TAIX11, CC‑TAID11, CC‑TAID01, CC‑TDOB01, CC‑TDOB11, CC‑PDOB01, CC‑PAIH02, CC‑TAIX01, CC‑PDIO01, CC‑TDI01, CC‑TDI11, CC‑PCNT01, CC‑PLLI01
Precautions
- Confirm rack backplane integrity before DC‑TAOX11 51307605‑176 installation. Damaged backplane will trigger complete IOTA communication abnormality.
- Only one qualified IOM module shall be installed inside the slot. Mixing IOM modules of different hardware revisions is prohibited.
- Route field cables strictly according to silkscreen terminal marks on the board. Never mix current and voltage signals to avoid channel burnout.
- For high‑humidity corrosive working conditions, guarantee cabinet ventilation and dehumidification to protect PCB coating of DC‑TAOX11.
- Confirm DCS system has recognized hardware before IOM hot‑swap operations to prevent circuit damage caused by live plug‑and‑unplug.
- For project spare‑part inventory, store DC‑TAOX11 and matched IOM modules separately for fast fault replacement.
