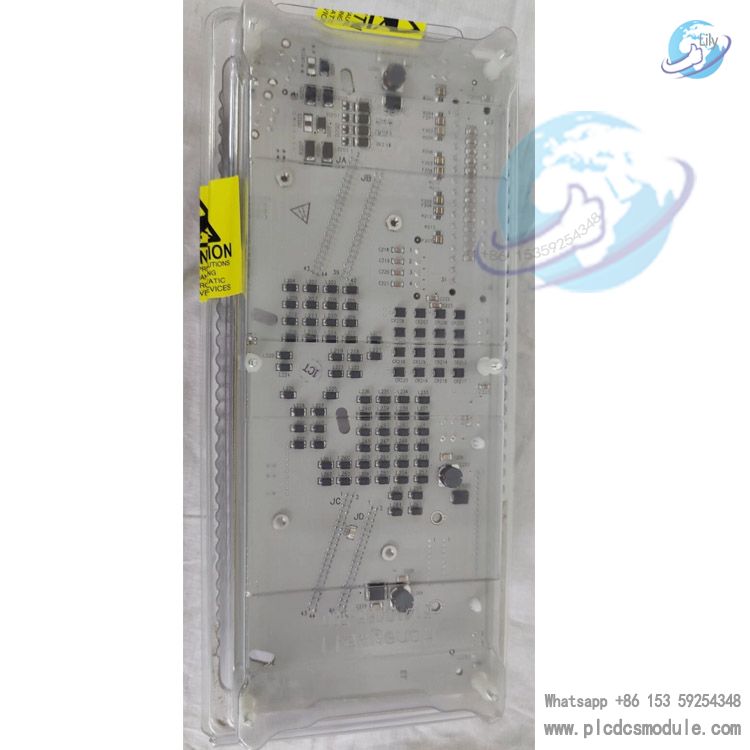

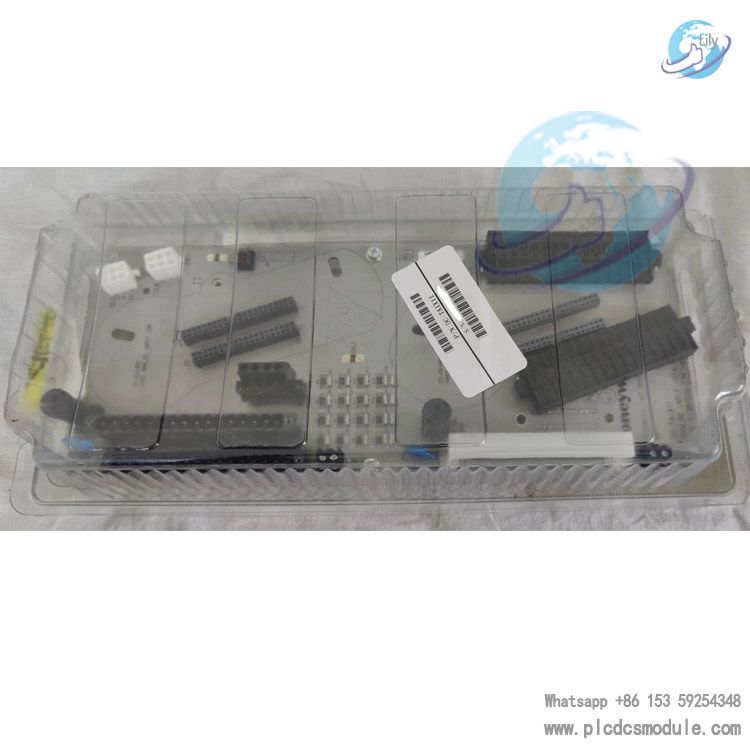

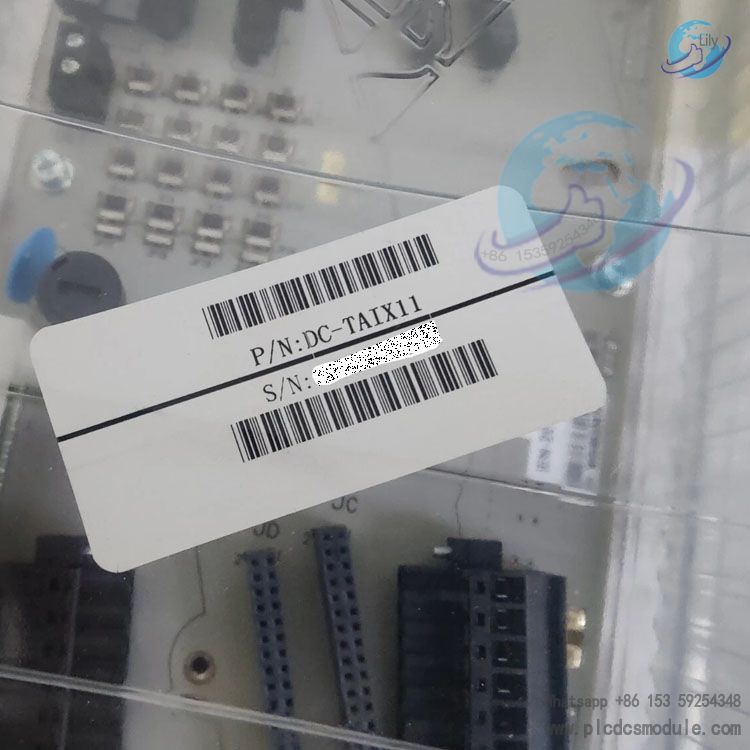

Honeywell DC‑TAIX11 Analog Output IOTA Redundant Module
Basic Information
Honeywell DC‑TAIX11 is a redundant analog‑output IOTA terminal assembly under Experion PKS C‑series I/O architecture. It acts as the signal transfer carrier between field devices and IOM input‑output modules. DC‑TAIX11 undertakes analog‑output signal wiring, signal conditioning and physical support for dual‑redundant links. Two identical analog‑output IOM modules can be mounted on DC‑TAIX11 to realize bumpless hardware‑level switching, suitable for process scenarios such as petrochemical and power generation where loop interruption is unacceptable. DC‑TAIX11 reduces wiring workload for redundant systems. All field actuator cables are terminated to the IOTA terminals. IOM modules support hot‑swap maintenance without modifying field‑side cables, lowering plant downtime risks during maintenance.
Technical Specifications
| Operating Power | 24VDC, powered by system backplane |
| Channel Configuration | 16 analog‑output loop terminals |
| Signal Type | 4‑20mA analog output, compatible with valve positioners and regulating actuators |
| Redundancy Architecture | Dual‑IOM parallel installation, automatic switch‑over upon hardware failure, non‑interrupted output |
| Wiring Terminals | Crimp‑type terminals, support multiple‑spec industrial cables |
| Operating Temperature | ‑40℃ ~ +85℃ |
| Ingress Protection | Coated PCB, for indoor cabinet industrial environment |
| Compatible Controller | Experion PKS C300 Controller |
| Supported IOM Modules | CC‑PAOH01, CC‑PAOX01 |
| Dimension | Standard C‑series IOTA form‑factor, rack‑mount installation |
| Fault Detection | Loop short‑circuit & open‑circuit status reporting to control system |
| On‑board Status Loop | Channel‑level diagnostic alarms together with paired IOM modules |
Core Advantages
- Native hardware redundancy support. DC‑TAIX11 implements dual‑module redundancy without extra external wiring. Standby link takes over seamlessly when primary module fails, avoiding process loop shutdown risks.
- Centralized wiring management. All field actuator cables terminate to DC‑TAIX11 terminals. IOM modules plug directly onto the DC‑TAIX11 board. Replacing IOM will not disturb field wiring.
- Complete channel diagnostic link. Loop short‑circuit and open‑circuit faults are uploaded directly to DCS operator interface, helping O&M staff locate faulty channels and shorten troubleshooting time.
- Wide‑temperature anti‑interference PCB design, adapted to large temperature variation and heavy EMI cabinet conditions in chemical and energy industries, delivering stable long‑term signal performance.
- Standardized C‑series hardware ecosystem. DC‑TAIX11 is fully compatible with the complete Experion PKS hardware portfolio, simplifying project spare‑parts management.
Product Features
- Adopts separated plug‑in structure for IOM and IOTA. Equipped with dual IOM slots specially built for redundant analog‑output loops.
- Each channel features hardware short‑circuit self‑locking protection. Single‑channel fault will not propagate and affect the remaining 15 output channels.
- Terminals accept multi‑strand industrial cables for direct crimping. No extra intermediate terminal blocks required, reducing potential failure points.
- On‑board signal‑conditioning circuits are integrated on DC‑TAIX11 for signal isolation and filtering between field side and IOM modules.
- Supports online hot‑swap of IOM modules. IOM spare‑part replacement can be performed without plant shutdown.
- Hardware is auto‑recognized by DCS system. Hardware revision information is uploaded automatically to reduce configuration workload.
Application Fields
- Regulating‑loop control for petrochemical plants, control valve and regulating valve signal output.
- DCS control systems for thermal‑power and gas‑fired power plants, drive boiler governor and actuator signals.
- Process regulating valve control for oil‑gas extraction and processing facilities.
- Analog‑actuator output for process industries including paper‑making and metallurgy.
- Continuous production in large‑scale pharmaceutical‑chemical plants for high‑reliability non‑interruptible control loops.
- Large‑scale water‑treatment projects, drive flow and pressure regulating actuators.
Product Comparison
| Item | DC‑TAIX11 | DC‑TAOX01 | CC‑TAID11 |
| Product Type | Redundant Analog Output IOTA | Non‑redundant Analog Output IOTA | Redundant Analog Input IOTA |
| Redundancy Support | Dual‑IOM redundant slots | Single‑IOM slot, no redundancy | Dual‑IOM redundant slots |
| Signal Direction | DCS to field devices (output) | DCS to field devices (output) | Field sensors to DCS (input) |
| Channel Count | 16 channels | 16 channels | 16 channels |
| Application Scenarios | Critical‑process AO loops | Non‑critical ordinary AO loops | Redundant AI acquisition loops |
DC‑TAIX11 targets analog‑output loops requiring redundancy protection; DC‑TAOX01 is used for ordinary non‑critical loops to save hardware cost; CC‑TAID11 focuses on analog‑signal acquisition for transmitter connection. All three share identical rack‑mount dimensions but differ in signal‑conditioning circuits and cannot be directly interchanged.
Related Matching Products
- Controller: C300 Controller
- IOM Output Modules: CC‑PAOH01 (HART‑capable analog output module), CC‑PAOX01 (standard analog output module)
- System Backplane: C‑series I/O rack backplane
- System Software: Experion PKS configuration software
- Matching Spare Parts: C‑series IOM dust cover, terminal crimping tools
FAQ
Q: Can DC‑TAIX11 be used standalone?
A: No. DC‑TAIX11 is an IOTA terminal assembly and must work with corresponding IOM analog‑output modules. The board itself has no capability for signal calculation or output.
Q: Do DC‑TAIX11 and DC‑TAOX01 have identical terminal pin‑outs?
A: Physical terminal layout is the same, but redundant‑slot hardware differs. Direct replacement requires evaluation of system redundancy configuration; blind interchange without configuration modification is prohibited.
Q: Does DC‑TAIX11 support superimposed HART signals?
A: It has no native HART capability. HART communication is achieved only when paired with CC‑PAOH01 HART‑enabled IOM module as a complete assembly.
Q: What is the maximum number of IOM modules for one DC‑TAIX11?
A: Maximum two identical analog‑output IOM modules for hardware redundancy. Mixed insertion of different IOM models is not supported.
Q: Will DC‑TAIX11 failure cause total loss of all output loops?
A: Physical damage to DC‑TAIX11 itself will interrupt all 16 loops on this board. Redundancy switch‑over is triggered only upon IOM module failure. Distinguish between IOM faults and IOTA hardware faults.
Q: Are IOM modules included when purchasing DC‑TAIX11?
A: Standard supply of DC‑TAIX11 covers only the IOTA terminal board. IOM input‑output modules are separate line‑items and shall be ordered separately.
Q: For legacy‑project upgrade, can old non‑redundant IOTA be directly replaced by DC‑TAIX11 to enable redundancy?
A: Hardware fits directly into the rack. Besides hardware replacement, you shall modify DCS control redundancy configuration and procure a second IOM module. Redundancy function becomes available only after full configuration completion.
Q: Can DC‑TAIX11 run on non‑C300 controllers?
A: DC‑TAIX11 is exclusively compatible with Experion PKS C300 controller and incompatible with other controller families.
Related Honeywell Part Numbers
CC‑PAOH01, CC‑PAOX01, CC‑TAOX01, CC‑TAID11, CC‑TAID01, CC‑TDOB01, CC‑TDOB11, CC‑PDOB01, CC‑PAIH02, CC‑TAIX01, CC‑PDIO01, CC‑TDI01, CC‑TDI11, CC‑PCNT01, CC‑PLLI01
Precautions
- Verify rack backplane integrity before DC‑TAIX11 installation. Damaged backplane will trigger total IOTA communication failure.
- The two IOM modules must be exactly the same model. Mixing different hardware revisions in DC‑TAIX11 slots is forbidden.
- Route field cables strictly per printed terminal markings. Never mix current and voltage signals to avoid channel burnout.
- Control cabinet humidity. Ensure cabinet ventilation & dehumidification under high‑humidity corrosive conditions to preserve DC‑TAIX11 board coating.
- Confirm DCS hardware configuration recognizes the board before hot‑swap operations to prevent circuit damage caused by live plug‑and‑unplug.
- For project spare‑part inventory, store DC‑TAIX11 and matched IOM separately to guarantee fast fault replacement.
