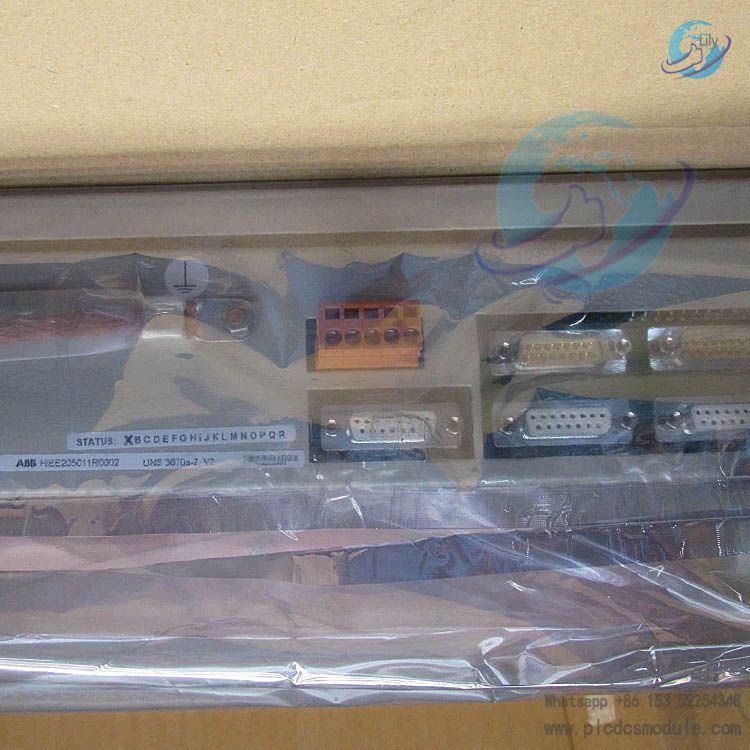

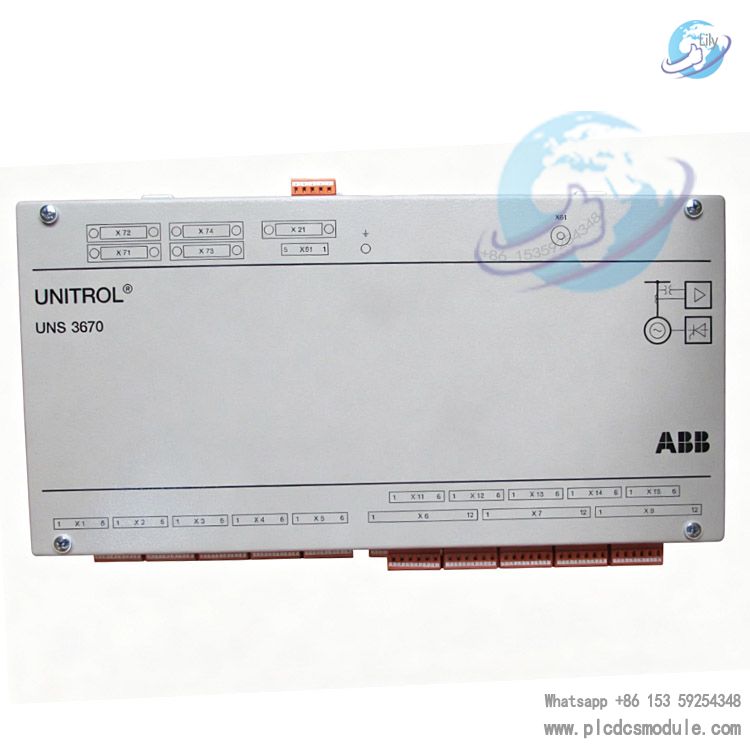

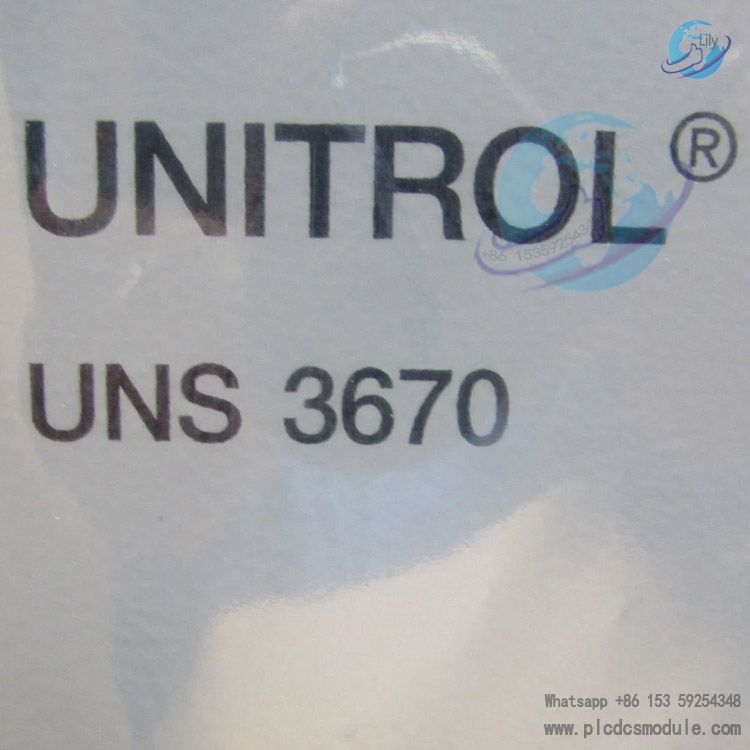

ABB UNS 3670A-Z, V1 Order No.: HIEE205011R0001 Converter Electronics Module,Positioned as a system-level signal conversion and interface control unit, the ABB UNS 3670A-Z, V1 is mainly integrated into ABB DCS, PLC, high-voltage variable frequency drives, power generation control and other systems.It is responsible for high-precision analog/digital signal conversion, data acquisition, protocol processing and system communication adaptation, building a stable and reliable signal transmission bridge between field industrial equipment and upper-level control systems.
Featuring strong anti-interference performance, high stability and long service life, it is suitable for harsh industrial environments such as oil refining, petrochemical, power generation, iron and steel, and chemical industries.It ensures the accuracy of signal conversion and the operational safety of the system during continuous production.
Technical Specifications
Model Designation: UNS 3670A-Z, V1
Part Number: HIEE205011R0001
Product Type: Converter Electronics / Control Interface Module
- Power Supply: 24V DC (typical), wide voltage input compatible with 18–32V DC
- Physical Dimensions: Approx. 110 mm × 85 mm × 100 mm; Weight approx. 0.26 kg
- Operating Environment: Operating temperature -20℃ ~ +70℃; Humidity 5% ~ 95% (non-condensing)
- Ingress Protection: IP30 (cabinet-mounted)
- Communication Interface: Supports RS485, Modbus RTU and other industrial protocols, compatible with ABB system buses
- Signal Processing: High-precision A/D and D/A conversion, supports bidirectional analog/digital conversion
- Protection Features: Built-in overvoltage, overcurrent, short circuit and reverse polarity protection
- Certifications: CE certified, compliant with IEC industrial safety standards
- Product Net Depth / Length: 0.41 m
- Product Net Height: 0.12 m
- Product Net Weight: 4 kg
- Product Net Width: 0.32 m
Functional Features
High-Precision Signal ConversionEnables bidirectional high-precision conversion between analog signals (4–20mA, 0–10V, etc.) and digital signals, with conversion error ≤ 0.1%, meeting high-precision acquisition and output requirements for industrial process control.
Multi-Protocol Compatible CommunicationIntegrates mainstream industrial protocols such as Modbus and CANopen, allowing seamless connection with ABB Symphony, 800xA and other DCS systems as well as third-party PLC devices, ensuring stable data exchange between systems.
Industrial-Grade Stability & ReliabilityAdopts wide-temperature and anti-electromagnetic interference (EMC) design, suitable for harsh working conditions including dust, humidity and vibration. MTBF (Mean Time Between Failures) exceeds 100,000 hours, supporting 24/7 continuous operation.
Modular Plug-and-Play DesignStandard rail / panel mounting structure, supports hot-swappable adaptation (in some system scenarios). Easy installation and configuration enable quick replacement and upgrade, reducing system downtime for maintenance.
Real-Time Diagnosis & ProtectionBuilt-in status monitoring and fault diagnosis functions provide real-time feedback on module operating status. In case of abnormality, it triggers an alarm and automatically activates the protection mechanism to prevent equipment damage and system fault propagation.
Wide Scenario AdaptabilityCompatible with various signal types including voltage, current and temperature. Conversion ranges and output parameters can be customized to suit signal conversion demands in power generation, metallurgy, chemical industry and other industries.
Application Scenarios
Power Industry: Used in power plant DCS systems, substation monitoring systems, and high-voltage inverter control to achieve signal conversion and transmission of unit operating parameters.
Process Industry: Applied to process control in oil refining, petrochemical and chemical plants (conversion of temperature, pressure and flow signals), ensuring precise regulation of production processes.
Metallurgy & Steel: Used in control systems for blast furnaces and rolling mills, adapting to signal acquisition and control output under high-temperature and high-interference working conditions.
Industrial Automation: Provides signal interface adaptation for high-end manufacturing production lines and intelligent equipment, enabling seamless connection between field devices and central control systems.
Frequently Asked Questions (FAQ)
Q1: The red fault light remains on after power‑on and the module does not work properly. How to troubleshoot?A1: First check whether the 24V DC supply voltage is within the range of 18–32V DC; over‑ or under‑voltage will trigger protection. Next verify correct polarity of power connections. Then check for short circuits in signal I/O wiring and proper grounding. If all above are normal, test with a spare module to determine if the original unit has a hardware fault.
Q2: The module has communication abnormalities and the host computer cannot read data. How to resolve?A2: Step 1: Verify that communication parameters including protocol (Modbus RTU, etc.), baud rate, data bits and parity bits match the host computer. Step 2: Check RS485 bus wiring (whether A/B terminals are reversed, whether terminating resistors are configured). Step 3: Rule out strong electromagnetic interference on the bus by replacing shielded cables and improving grounding. Step 4: Test whether the module communication port is damaged.
Q3: Signal conversion error is too large and exceeds control accuracy requirements. How to handle?A3: First calibrate the input signal source to confirm it is error‑free. Then check for poor contact resistance or inadequate shielding causing interference. Next perform zero and span calibration of the module via system software. If the error still exceeds limits after calibration, replace the module.
Q4: Does this module support hot‑swapping? Does the system need to be shut down for replacement?A4: The module is designed for hot‑swapping, but confirmation is required based on the matching ABB control system (such as 800xA). Online replacement is possible in some system scenarios without full system shutdown. It is recommended to refer to the system manual or perform replacement under low load to avoid affecting system operation.
Q5: What is the difference between UNS 3670A‑Z,V1 and V2? Can they be directly replaced?A5: V2 is an upgraded version of V1, mainly optimized for communication stability, anti‑interference performance and partial parameter accuracy. Hardware interfaces, mounting dimensions and core functions are fully compatible, allowing direct replacement. After replacement, system parameters must be rechecked to ensure proper adaptation.
