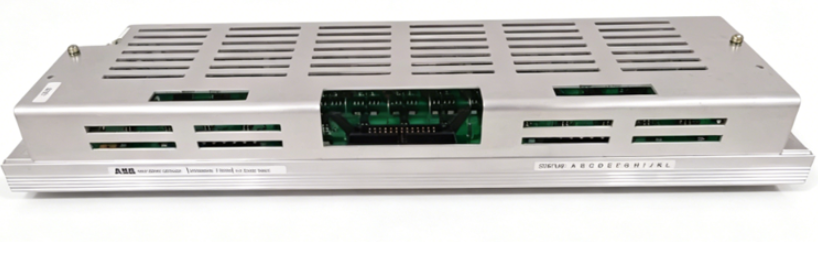

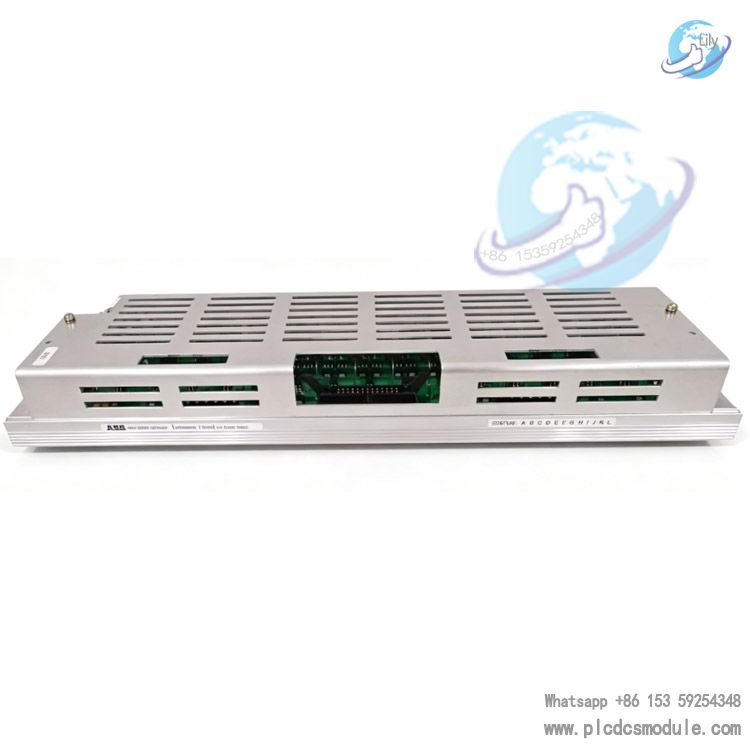

ABB UFC092 BE01 (Order No. HIEE300910R0001) is a 16-channel binary input module designed for industrial automation and process control applications.It is mainly used to acquire field dry contacts and 24V DC active digital signals, providing reliable equipment status monitoring and logical judgment basis for the control system.As part of the ABB DCS system I/O series, this module features complete electrical isolation, fault diagnosis and industrial-grade anti-interference capabilities.It can operate stably in harsh working conditions such as power, petrochemical, metallurgy and water treatment.It supports standard DIN rail mounting and integration with the S800 I/O system, ensuring acquisition accuracy and response speed while delivering easy installation and reliable long-term operation.
Download
Download
Technical Specifications
1. Basic Specifications

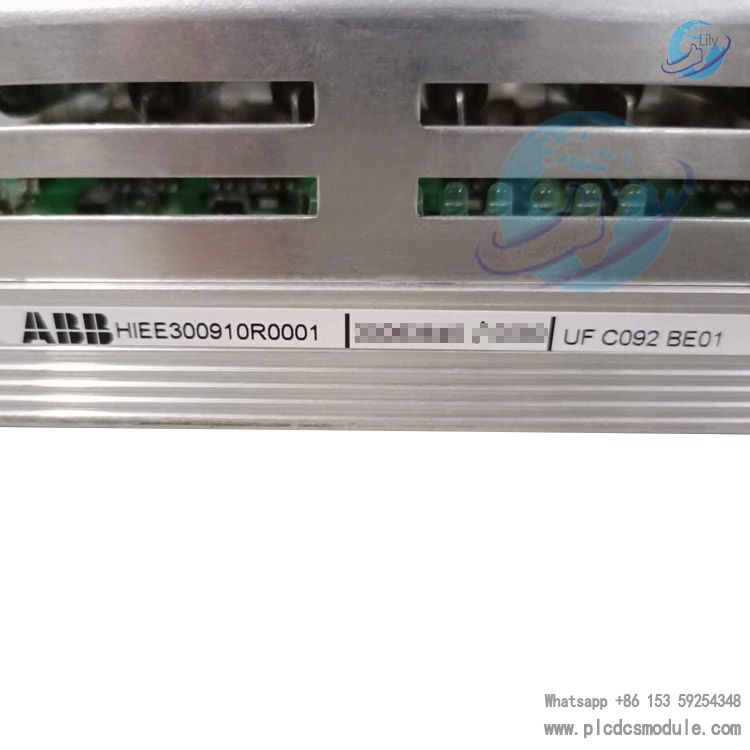

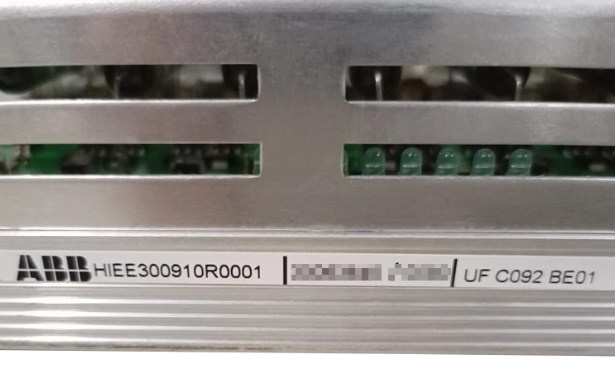

- Model: UFC092 BE01
- Order No.: HIEE300910R0001
- Number of Channels: 16 independent binary input channels (DI)
- Signal Type: Passive dry contacts, 24V DC active signals
- Input Voltage Range: 0–30V DC
- Logic Threshold: OFF ≤5V DC; ON ≥15V DC
- Channel Isolation: 2500V AC (1 minute)
- Response Time: ≤1ms
2. Electrical & Environmental
- Operating Power Supply: 24V DC ±10%
- Operating Temperature: -20℃ ~ +60℃
- Storage Temperature: -40℃ ~ +85℃
- Humidity: 5%–95% (non-condensing)
- Ingress Protection: IP20
- EMC: Compliant with IEC 61000-4, EN 55011
3. Physical Dimensions & Weight
- Net Width: 60 mm
- Net Height: 380 mm
- Net Depth / Length: 130 mm
- Net Weight: 1 kg
4. Installation & Interface
- Mounting: 35mm DIN rail mounting
- Wiring: Screw / spring terminals
- Status Indicators: Channel LEDs, RUN indicator, FAULT indicator
Functional Features
- 16 independent digital input channels, supporting both dry contact and 24V DC active signal input
- Full electrical isolation between channels and system side for improved anti-interference performance and system safety
- Built-in signal filtering, debouncing, overvoltage and overcurrent protection to reduce false triggering
- Channel-level LED status indication for online diagnostics and quick fault location
- Industrial-grade wide-temperature design and high MTBF, ideal for continuous operation
- Hot-swappable design allows maintenance and replacement without system shutdown
- Compatible with ABB AC 800M, S800 I/O, 800xA and other control systems
Application Scenarios
Suitable for power, petrochemical, metallurgy, paper making, water treatment, rail transit and other industries.Used to acquire digital input signals such as valve position, pump start/stop status, limit switches, relay protection signals, circuit breaker status, etc.
Frequently Asked Questions (FAQ)
Q1: Can UF C092 BE01 be directly connected to 220V AC signals?A1: No. This module is a 24V DC digital input module. Connecting high-voltage AC signals will directly damage the module and the control system.
Q2: Does the module require external power supply for dry contact inputs only?A2: No external independent power supply is needed for dry contact inputs, as the detection circuit is provided internally by the module. Simply connect the channel and COM terminals correctly.
Q3:What may cause the indicator light of one channel not to light up?A3: Common causes include: unclosed field contacts, loose or broken wiring, insufficient input voltage, or a damaged channel. Troubleshooting can be done by switching channels or measuring voltage.
Q4: Does this module support hot-swapping?A4: Hot-swapping is supported in the compatible ABB S800 I/O system. The module can be replaced while the system is running without affecting the normal operation of other I/O channels.
Q5: Are the module dimensions and weight suitable for standard control cabinet installation?A5: The module net dimensions are 60 mm (W) × 380 mm (H) × 130 mm (D), with a net weight of 1 kg. It adopts standard DIN rail mounting and can be directly installed in conventional industrial control cabinets.
Q6: What is the relationship between HIEE300910R0001 and UF C092 BE01?A6: They refer to the same module. UF C092 BE01 is the model name, while HIEE300910R0001 is the official ABB order number (part number).
Q7: How to deal with a constantly lit fault indicator on the module?A7: First check whether the 24V DC power supply is normal, and whether there is a short circuit or poor grounding in the wiring. If the fault persists with normal power and wiring, it usually indicates a hardware failure, and module replacement is recommended.
