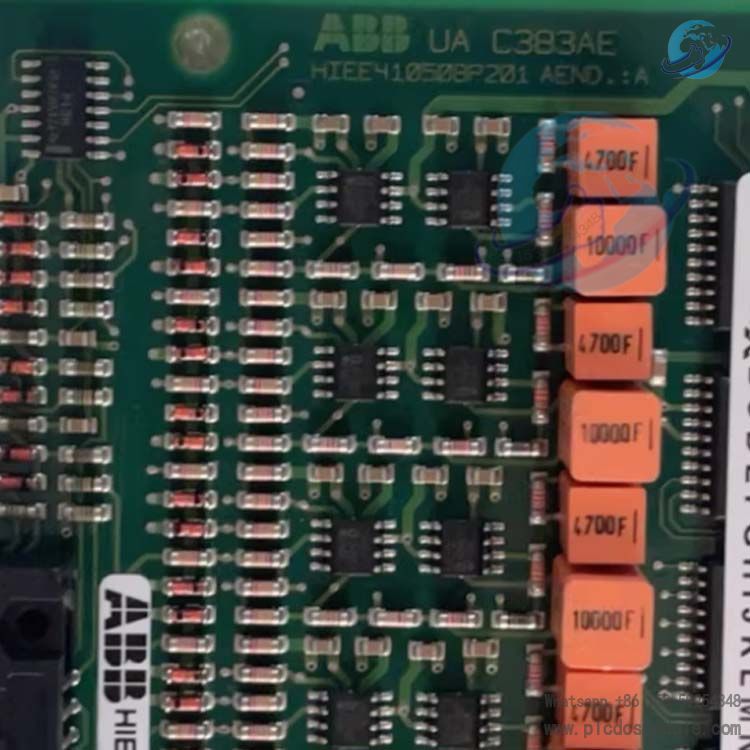

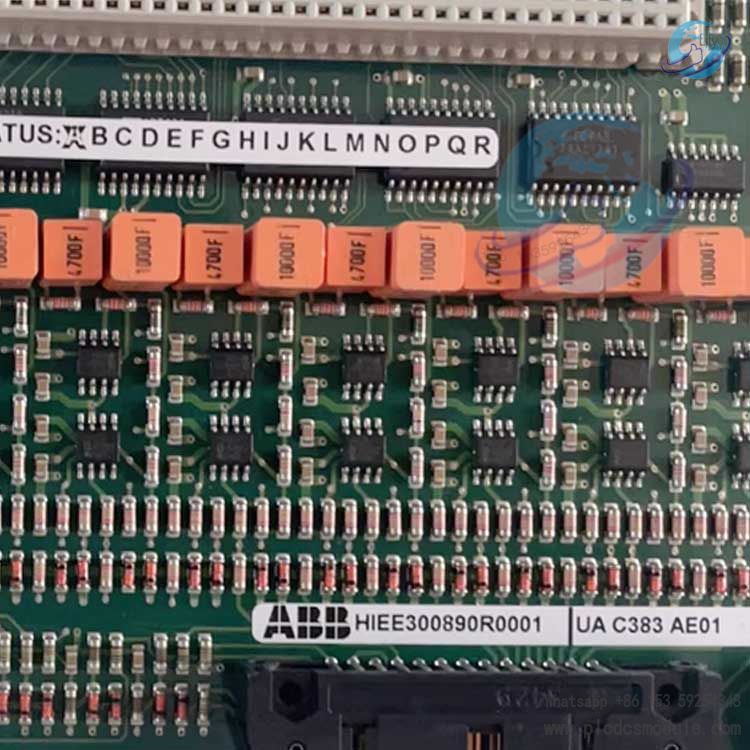

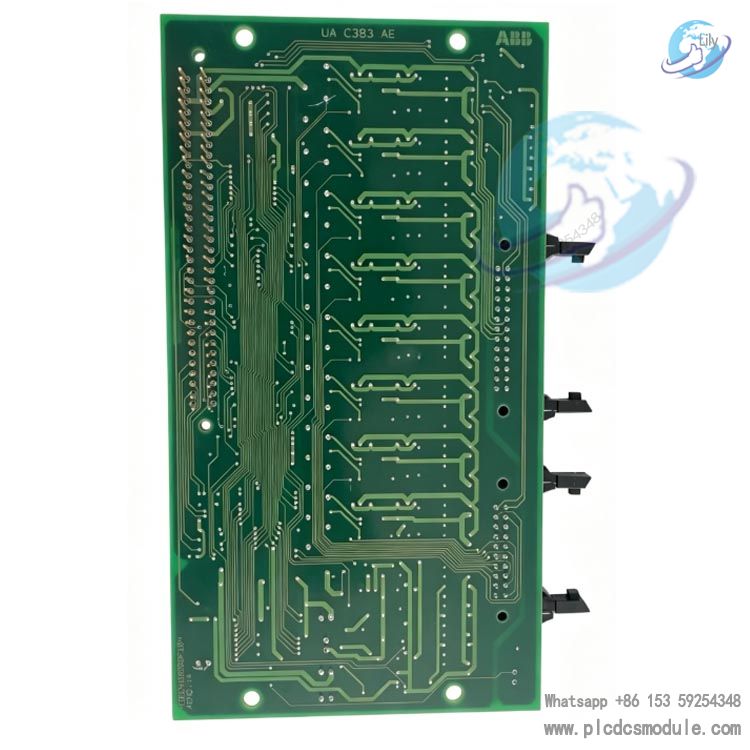

ABB UA C383 AE01 (Order No.: HIEE300890R0001) driver board is a core hardware component in the ABB Symphony Plus, AC 800M and 800xA DCS systems.It is primarily designed as a signal driving, isolation conversion and link control unit between the control system and field actuators, variable frequency drives or power modules.
As a critical bridge between the system I/O layer and the power circuit, the board integrates high-precision signal conditioning, electrical isolation, fault protection and communication diagnostics.It converts weak control signals from the controller into strong signals capable of driving high-power equipment, while providing electrical safety isolation between the field side and the control side.This ensures stable operation of the control system in industrial environments with strong electromagnetic interference and high voltage.Engineered for high reliability, strong anti-interference performance and hot-swappable compatibility, it is widely used in precision drive and safety control applications in process industries such as power, petrochemicals, metallurgy and papermaking.
Technical Specifications
- Model Designation: UA C383 AE01
- Part Number: HIEE300890R0001
- Board Type: Driver / Interface Board
- Applicable Systems: ABB Symphony Plus, AC 800M, 800xA Distributed Control Systems
- Power Supply: 24V DC ±10%, typical power consumption ≤15W
- Electrical Isolation: 1500V AC isolation voltage between channels / system side and field side; surge withstand voltage 2500V
- Physical Specifications: Standard VME / rack-mounted board, approx. 220mm × 160mm × 25mm, weight approx. 0.6kg
- Operating Environment: Temperature -20℃ ~ +60℃, humidity 5%~95% (non-condensing), protection class IP20
- Signal Processing: Supports digital / analog drive output; signal response time <10ms; sampling rate 1000 samples/sec
- Communication Interface: Compatible with system internal bus, supports real-time data interaction and status feedback with controller
- Reliability: MTBF >100,000 hours; supports hot-swapping; equipped with overcurrent, overvoltage and reverse polarity protection
Frequently Asked Questions (FAQ)
Q1: The power indicator does not light up after the board is powered on. How to troubleshoot?A1: ① Check whether the 24V DC power supply is normal and the voltage is within 21.6V~26.4V, and verify the polarity of the power cable is not reversed. ② Check whether the rack power connector is loose and the board gold fingers are clean; reinsert and secure the board. ③ Check if the internal fuse of the board is blown (some versions have a resettable fuse that automatically resets after power off). ④ If all the above are normal, the power module of the board may be faulty and the board needs to be replaced.
Q2: There is no output signal from a channel and the field device does not act. How to handle it?A2: ① First check whether the channel reports a fault (overcurrent / short circuit) via the control system diagnostic interface. ② Disconnect the field load and test the board channel output separately. If the output is normal, it indicates a short circuit, wrong wiring or device fault on the field load side. ③ If there is still no output under no-load condition, check whether the channel configuration parameters are correct and not manually disabled. ④ Replace with a spare channel or board to confirm hardware damage to the board channel.
Q3: What causes frequent fault alarms and unstable operation of the board?A3: ① Excessively high on-site temperature (over 60℃) triggers overheating protection; improve cabinet ventilation and heat dissipation. ② Strong on-site electromagnetic interference due to unshielded signal cables or parallel routing with high-voltage cables; rewire and properly ground the shielding layer. ③ Load power exceeds the board’s driving capability, causing overcurrent protection; replace with a high-power driver board or add an intermediate relay. ④ Board aging or oxidized gold fingers; clean the gold fingers or replace the board.
Q4: Can UA C383 AE01 be used mixed with other model driver boards?A4: It can only be used in the same rack with ABB driver boards of the same series and specification (such as other versions of the UA C383 series). Mixing with different models (such as C389, C390 series) is strictly prohibited due to differences in interface protocols and signal specifications, to avoid system communication abnormalities or hardware damage.
Q5: Does the board support hot-swapping? What should be noted during plugging and unplugging?A5: Hot-swapping is supported. Notes: ① Ensure the board channels are not controlling critical safety equipment to avoid misoperation caused by signal interruption during plugging. ② Operate smoothly to avoid damaging the rack slot due to shaking. ③ The system will automatically recognize the board after hot-swapping without restarting; normal operation will resume after 1–2 minutes.
Q6: How to determine if the board is damaged and needs replacement?A6: The board can be judged damaged if any of the following conditions are met: ① All indicators are off with no output despite normal power supply. ② Single or multiple channels continuously report faults and cannot be restored after eliminating wiring and load issues. ③ Physical damage such as scorching, unusual odor or bulging components on the board. ④ The control system cannot recognize the board and communication fails after reinsertion or slot replacement.
