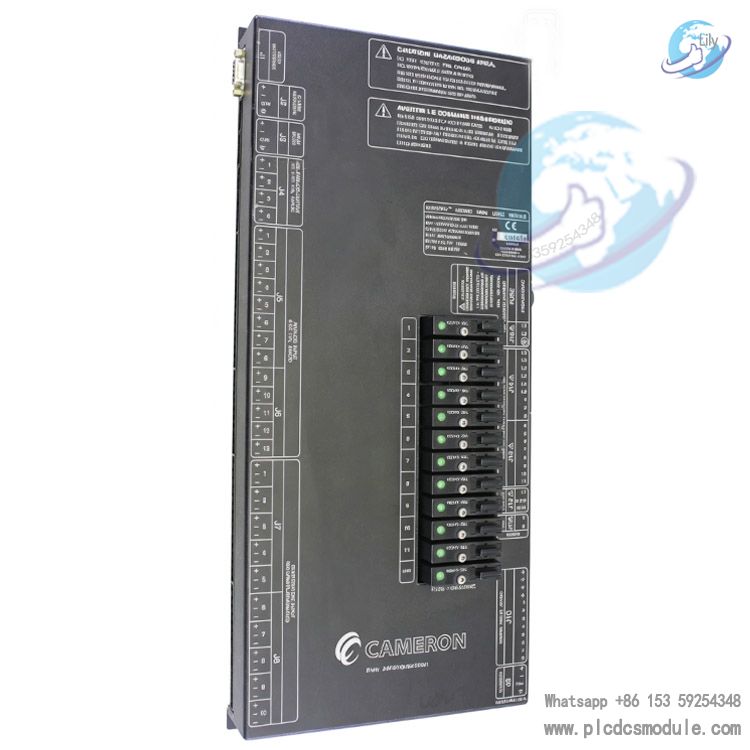

AAP3798102-00031 is a core general-purpose input/output (I/O) module for the Cameron (now part of Ingersoll Rand) Maestro Universal centrifugal compressor control system. Specifically designed for signal acquisition, condition monitoring and actuator control of centrifugal compressors (such as the MSG TURBO-AIR series), it serves as a critical hardware component enabling compressor automation, precise regulation and system integration. The module is widely suited to high-reliability control requirements in industrial scenarios including oil and gas, chemical engineering and energy.

Basic Information

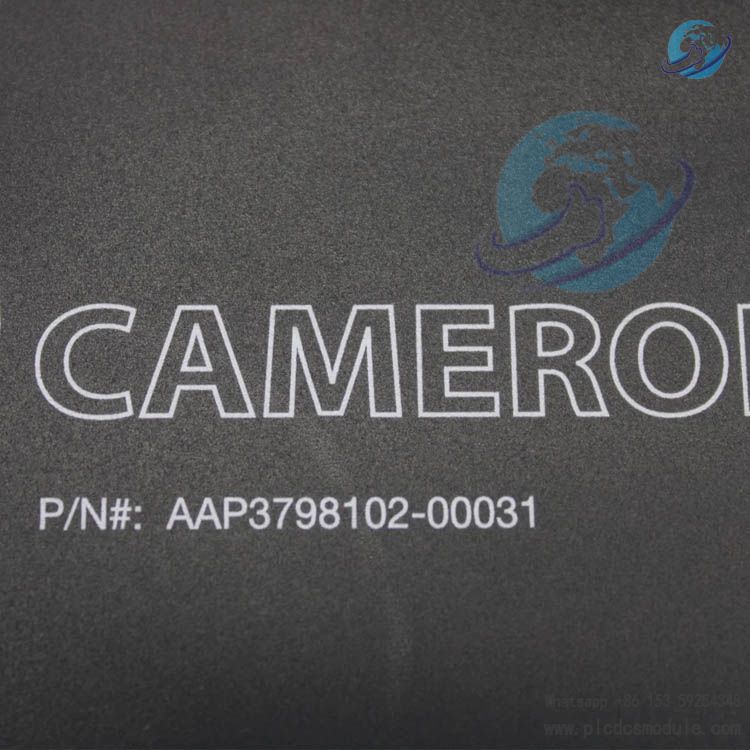

Model: AAP3798102-00031

Brand: CAMERON (Cameron Compression Systems)

Product Series: Maestro Universal Compressor Control System

Product Type: Universal Compressor I/O Module (Signal Acquisition and Control Output Module)

Compatible Equipment: Centrifugal compressors such as Cameron/Ingersoll Rand MSG TURBO-AIR, TA2000/3000/6000 series

Core Functions and Features

1. Multi-Functional Signal Interface

• Analog Input (AI): Supports current signals (4-20mA, 0-20mA) and voltage signals (0-5V, 0-10V, -10-10V) for collecting continuous operating parameters including compressor pressure, temperature, flow rate, vibration, and oil temperature.
• Digital Input (DI): Receives dry contacts and passive switch signals to monitor switch status such as compressor start/stop, valve position, alarm contacts, and safety interlocks.

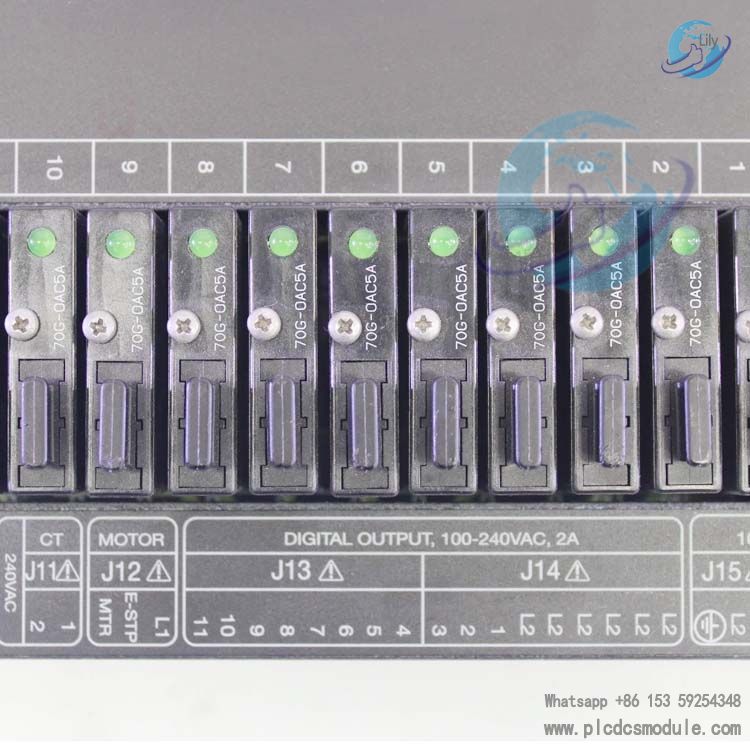

• Digital Output (DO): Outputs relay contact signals to control actuators like compressor start/stop, solenoid valves, alarm indicators, and external interlock circuits.
• Signal Accuracy: Analog acquisition precision reaches 12-14bit, ensuring measurement accuracy in industrial conditions.

2. System Compatibility and Expandability

• Dedicated Adaptation: Specifically designed for Maestro Universal controllers (AAP3798102 series main control modules, e.g., AAP3798102-00131), with plug-and-play functionality and no additional driver adaptation required.
• Multi-Module Expansion: Supports connection of up to 3 I/O modules in a single control system, meeting the expansion needs of large compressor units with multiple measurement points and control loops.
• Full-Function Compatibility: Integrates with the main control module to realize core functions such as 5/4-loop constant pressure control, constant mass flow control, multi-compressor coordinated management (MCM), automatic start/stop, and cooling water control.

3. Communication and Integration Capability

• Built-in Interfaces: Equipped with RS-485 (Modbus RTU), CAN bus, and Ethernet (Modbus TCP/IP) interfaces for high-speed data interaction with the main control module, while supporting access to factory SCADA and DCS systems.
• Remote Monitoring: Built-in Web server enables real-time remote viewing and diagnosis of I/O signals and compressor operating conditions.
• Optional Protocols: Supports optional protocols such as Profibus to adapt to different industrial automation network architectures.

4. Industrial-Grade Reliability

• Wide Temperature Operation: Stable operation from -20℃ to +60℃, and storage temperature range of -40℃ to +85℃, suitable for extreme industrial site environments.
• Anti-Interference Design: Adopts optoelectronic isolation and shielded circuit design, complying with industrial EMC standards to resist on-site electromagnetic interference and ensure stable signal transmission.
• Maintenance-Free Design: Fan-free and wearing parts-free design with long Mean Time Between Failures (MTBF), suitable for 24-hour continuous operation of compressors.
• Signal Fault Diagnosis: Supports open circuit, short circuit, and over-range alarms for quick maintenance and troubleshooting.

5. Ease of Installation and Maintenance

• Plug-and-Modular Design: Supports on-line replacement without affecting the overall operation of the system.
• Pluggable Terminals: Field wiring and rewiring are convenient with pluggable terminals, supporting standard grounding of shielded cables to reduce noise interference.
• Status Indicator Lights: Integrated status indicator lights visually display module power supply, communication, and signal fault status for quick problem check.

Technical Specifications

Applications

• Oil & Gas: Condition monitoring and safety control of centrifugal compressors in natural gas transmission and oil & gas processing plants.
• Chemical Industry: Control of process gas compressor units in synthetic ammonia, ethylene and air separation plants.
• Energy & Power: Automatic regulation and remote monitoring of air compressors and gas compressors in power stations.
• Industrial Manufacturing: Control of large compressed air systems in steel, paper and textile industries.
• Equipment Retrofit: Upgrade of control systems for legacy centrifugal compressors by replacing traditional I/O components to improve intelligence.

Frequently Asked Questions (FAQ)

• Check if the on-site sensor power supply and wiring are secure; ensure shielded cables are properly grounded at the single end.
• Verify that the signal type (current / voltage) matches the module's configuration parameters.
• Inspect for sensor failure; calibrate the module's acquisition accuracy using a standard signal generator.
• Check the communication connection between the module and the master controller, and restart the module to reset the fault state.

• Check if the 24V DC power supply is normal and if the module's power indicator light is on.
• Inspect RS-485/CAN/Ethernet communication cables and terminals for looseness.
• Confirm communication settings such as address and baud rate match the master system.
• Replace the communication cable or module to rule out hardware damage.

• Abnormal status indicator lights (off / solid red).
• No signal acquisition or output at all, with no improvement after restarting.
• Persistent communication offline despite checking wiring and parameters.
• Physical damage such as burning, odor, or terminal burnout.
